4-36 — POWER STEERING CONTROL; ENGINE SIDE (#17289) — 32 parça

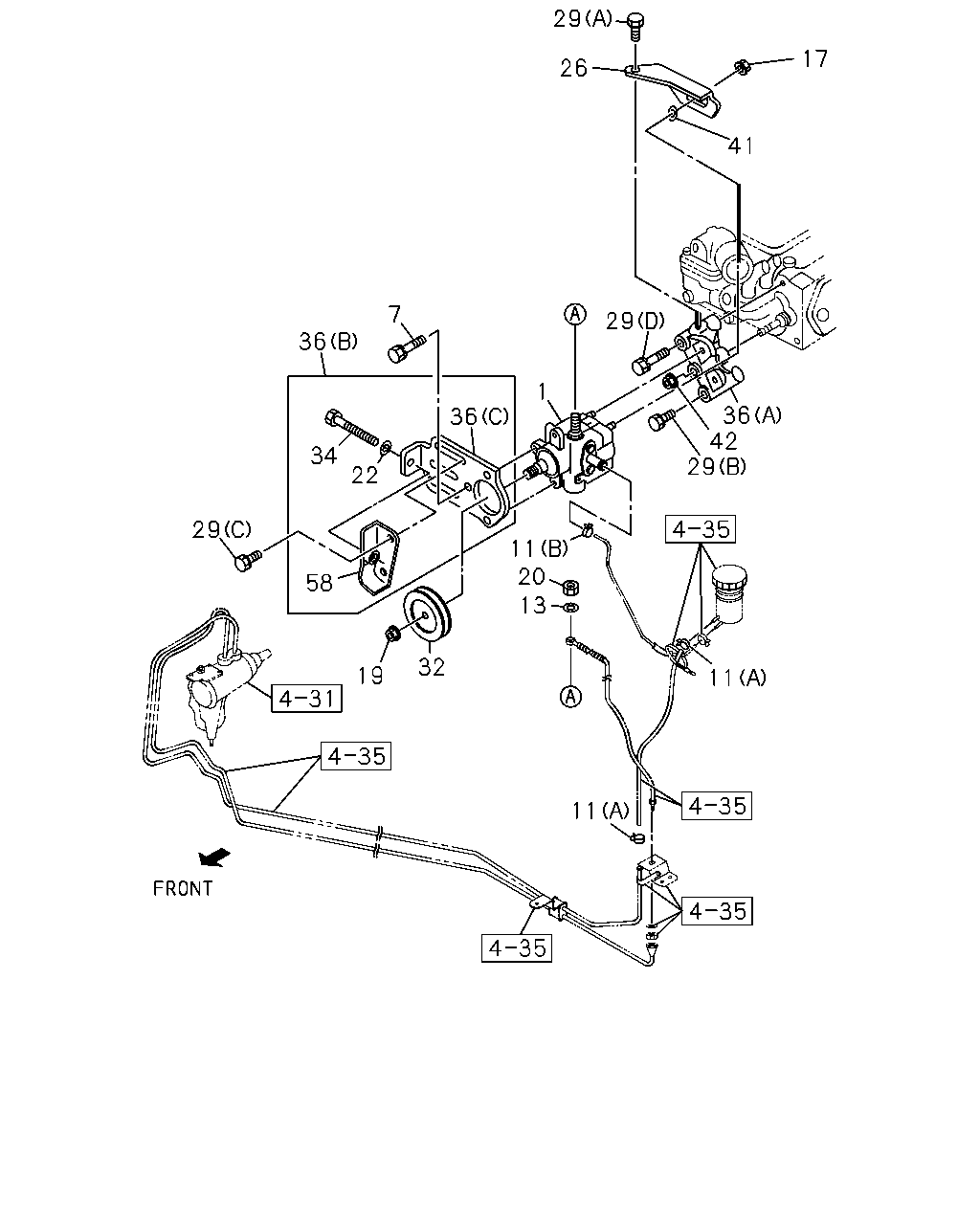

çizim 49749
29 17 26 41 29 36 42 29 7 36 1 36 34 22 29 11 20 13 58 32 19 11 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97940-172-3 01 1 0009-0011
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97942-188-0 01 1 0012-
7 BOLT; OIL PUMP,P/S
M10X28 W/LK WASHER THA 		8-97200-583-0 03 1 0009-0209
7 BOLT; OIL PUMP,P/S
M10X28 W/LK WASHER THA 		8-97943-080-0 03 1 0210-
11 CLIP; FLEX HOSE
(A) ID=16 THA 		8-94238-568-0 02 1 0009-
11 CLIP; FLEX HOSE
(B) ID=21 THA 		8-94242-034-0 01 1 0009-
13 WASHER; LK,FLEX HOSE,P/S
ID=12.2 		9-09150-512-0 01 1 0009-
17 NUT; POWER STRG PUMP
M8 FLANGE 		0-91150-208-0 01 1 0009-0211
17 NUT; POWER STRG PUMP
M8 FLANGE THA 		0-91180-208-0 01 1 0212-
19 NUT; PULLEY,OIL PUMP
M12 		8-94139-015-0 01 1 0009-0104
20 NUT; HOSE TO PUMP
M12 		9-99111-412-0 01 1 0009-
22 WASHER; LK,OIL PUMP,P/S
ID=10.2 THA 		9-09150-510-0 01 1 0101-
22 WASHER; LK,OIL PUMP,P/S
ID=10.2 THA 		9-09150-510-0 01 1 0009-0012
26 BRACKET; P/S PUMP,RR
THA 		8-97941-415-0 01 1 0009-
29 BOLT; BRKT,POWER STRG
(A) M8X18 W/LK WASHER 		0-50040-818-0 01 1 0009-
29 BOLT; BRKT,POWER STRG
(B) M8X60 W/LK WASHER 		0-50040-860-0 01 1 0009-
29 BOLT; BRKT,POWER STRG
(C) M10X28 W/LK WASHER 		0-50041-028-0 02 1 0009-
29 BOLT; BRKT,POWER STRG
(D) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0009-
32 PULLEY; IDLER,P/S
THA 		8-97940-179-1 01 1 0009-0011
32 PULLEY; IDLER,P/S
THA 		8-97942-187-0 01 1 0012-
34 BOLT; ADJ PLATE
M10X70 		0-20801-070-0 01 1 0101-
34 BOLT; ADJ PLATE
M10X70 		0-20801-070-0 01 1 0009-0012
36 BRACKET; PLATE,P/S PUMP
THA 		8-97942-483-0 01 1 0101-
36 BRACKET; PLATE,P/S PUMP
(C) THA 		8-97941-330-0 01 1 0009-0012
36 BRACKET; PLATE,P/S PUMP
(B) THA 		8-97941-331-0 01 1 0009-0012
36 BRACKET; PLATE,P/S PUMP
(A) THA 		8-97941-414-0 01 1 0009-
41 WASHER; PL,BRKT
ID=8.5 OD=22 T=4 		9-09851-649-0 01 1 0009-
42 NUT; ADJ PLATE
M8 FLANGE 		0-91150-208-0 01 1 0009-0211
42 NUT; ADJ PLATE
M8 FLANGE THA 		0-91180-208-0 01 1 0212-
58 SLIDER; BELT ADJ,P/S OIL PUMP
THA 		8-97941-329-0 01 1 0101-
58 SLIDER; BELT ADJ,P/S OIL PUMP
THA 		8-97941-329-0 01 1 0009-0012
66 BOLT; PULLEY
M8X12 FLANGE 		0-28080-812-0 03 1 0105-
