4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#17288) — 26 parça

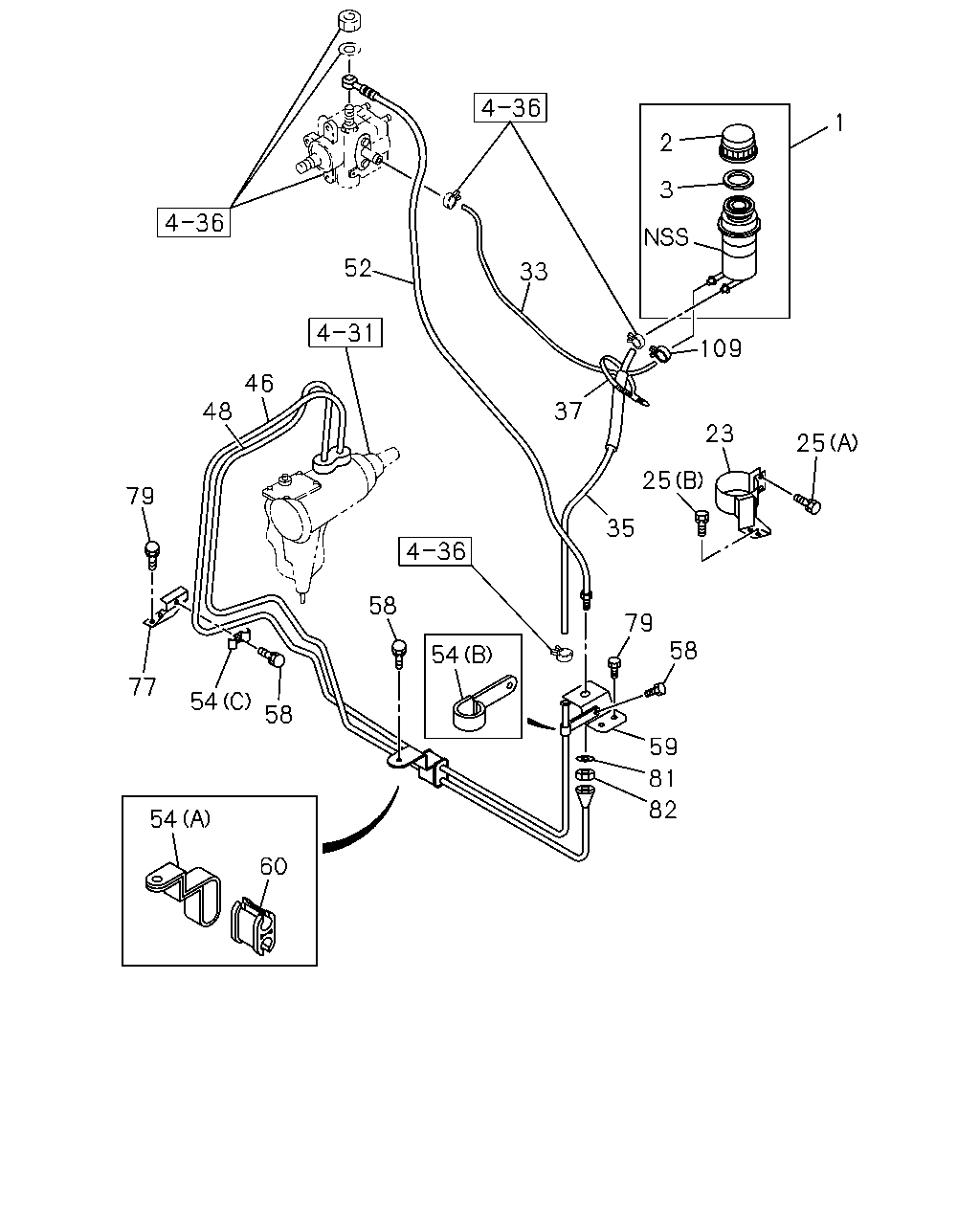

çizim 50056
1 2 3 52 33 109 46 48 37 23 25 25 79 35 58 79 58 54 77 54 58 59 81 82 54 60
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 8-97115-869-2 01 1 0009-
2 CAP; OIL TANK,P/S 8-94481-841-2 01 1 0009-
3 GASKET; OIL TANK,P/S 8-94363-359-1 01 1 0009-
23 BRACKET; OIL TANK,P/S
THA 		8-97919-970-1 01 1 0009-
25 BOLT; OIL TANK BRKT
(A) M6X16 FLANGE 		0-28480-616-0 01 1 0009-
25 BOLT; OIL TANK BRKT
(B) M8X16 FLANGE 		0-28480-816-0 02 1 0009-
33 HOSE; RUBBER,POWER STRG
THA 		8-97940-545-0 01 1 0009-
35 HOSE; RETURN,P/S TANK
THA 		8-97940-546-1 01 1 0009-
37 CLIP; HOSE,P/S
L=170 		5-09707-054-0 01 1 0009-
46 PIPE; OIL,P/S UNIT TO OIL TANK
THA 		8-97920-775-3 01 1 0009-0107
46 PIPE; OIL,P/S UNIT TO OIL TANK
THA 		8-97922-011-1 01 1 0108-
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
THA 		8-97915-562-3 01 1 0009-0107
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
THA 		8-97922-009-0 01 1 0108-
52 HOSE; FLEX,P/S CONT VLV
THA 		8-97941-889-0 01 1 0009-
54 CLIP; OIL PIPE
(B) ID=11 H=34 L=27 		1-09701-023-0 01 1 0009-
54 CLIP; OIL PIPE
(C) 		8-94222-795-1 01 1 0009-
54 CLIP; OIL PIPE
(A) THA 		8-97919-236-0 01 1 0009-
58 BOLT; CLIP
M6X16 FLANGE 		0-28480-616-0 03 1 0009-
59 BRACKET; CLIP,OIL PIPE 8-97087-533-1 01 1 0009-
60 CLAMP; PIPE,RETURN
ID=10X2 H=22 THA 		8-94252-455-2 01 1 0009-
77 BRACKET; POWER STEERING HOSE 8-97120-707-0 01 1 0009-0105
77 BRACKET; POWER STEERING HOSE 8-97120-705-0 01 1 0106-
79 BOLT; BRKT
M6X16 FLANGE 		0-28480-616-0 03 1 0009-
81 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		9-09151-216-0 01 1 0009-
82 NUT; FLEX HOSE,P/S
M16 		9-99111-416-0 01 1 0009-
109 CLIP; RUBBER HOSE
ID=21 THA 		8-94242-034-0 01 1 0009-
