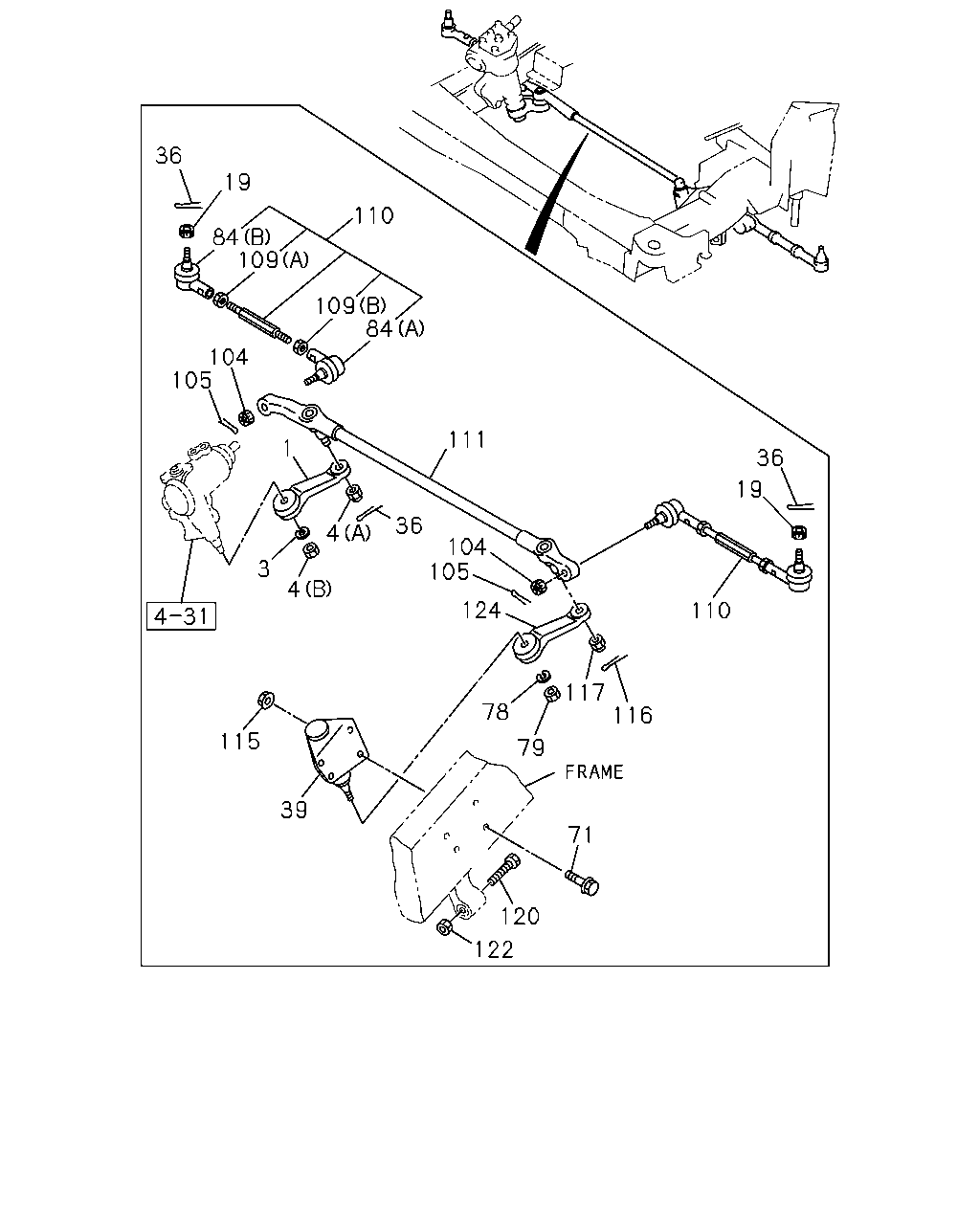

4-33 — STEERING LINKAGE (#17287) — 27 parça
çizim 49922
36 19 110 84 109 109 84 104 105 1 111 36 19 36 4 104 105 3 4 124 110 117 116 78 115 79 39 71 120 122
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG 8-97026-252-0 01 1 0009-0105
1 ARM; PITMAN,STRG 8-97315-932-0 01 1 0106-
3 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 0009-
4 NUT; PITMAN ARM
(A) M14 		8-94465-411-0 01 1 0009-
4 NUT; PITMAN ARM
(B) M22 		9-09111-522-0 01 1 0009-
19 NUT; PITMAN ARM,STOPPER
M14 		8-94465-411-0 02 1 0009-
36 PIN; SPLIT,DRAG LINK
OD=2.7 L=17 THA 		8-97171-453-0 01 1 0009-
36 PIN; SPLIT,DRAG LINK
OD=2.8 L=25 		9-08113-025-0 02 1 0009-
39 LEVER ASM; RELAY,STRG LINKAGE 8-97039-325-1 01 1 0009-
71 BOLT; RELAY LEVER BRKT
M10X92 FLANGE THA 		8-97916-478-0 04 1 0009-
78 WASHER; LINK,RELAY LEVER
ID=16.2 		9-09150-816-0 01 1 0009-
79 NUT; RELAY LEVER
M16 		9-99111-516-0 01 1 0009-
84 ROD END; TRACK ROD
(A) RH THREAD 		8-97020-953-1 02 1 0009-
84 ROD END; TRACK ROD
(B) LH THREAD 		8-97020-954-2 02 1 0009-
104 NUT; ROD END
M14 		8-94465-411-0 02 1 0009-
105 PIN; SPLIT,ROD END
OD=2.7 L=17 THA 		8-97171-453-0 02 1 0009-
109 NUT; ROD
(B) M14 LH THREAD 		5-09400-010-0 02 1 0009-
109 NUT; ROD
(A) M14 		9-99110-414-0 02 1 0009-
110 ROD; TRACK,OUTER
L=262 		8-94459-493-2 02 1 0009-
111 ROD; TRACK,CENTER 8-94389-221-2 01 1 0009-0203
111 ROD; TRACK,CENTER 8-97316-968-1 01 1 0204-
115 NUT; RELAY LEVER BRKT
M10 FLANGE 		8-94313-797-0 04 1 0009-
116 PIN; SPLIT,TRACK ROD,CENTER
OD=2.7 L=15 THA 		8-97171-452-0 01 1 0009-
117 NUT; DRAG LINK
M12 SLOTTED 		9-99117-512-0 01 1 0009-
120 BOLT; RELAY LEVER STOPPER
L=57 		8-94403-347-1 02 1 0009-
122 NUT; RELAY LEVER STOPPER
M10 		9-09111-410-0 02 1 0009-
124 LEVER; RELAY,STRG LINKAGE 8-94404-000-6 01 1 0009-
