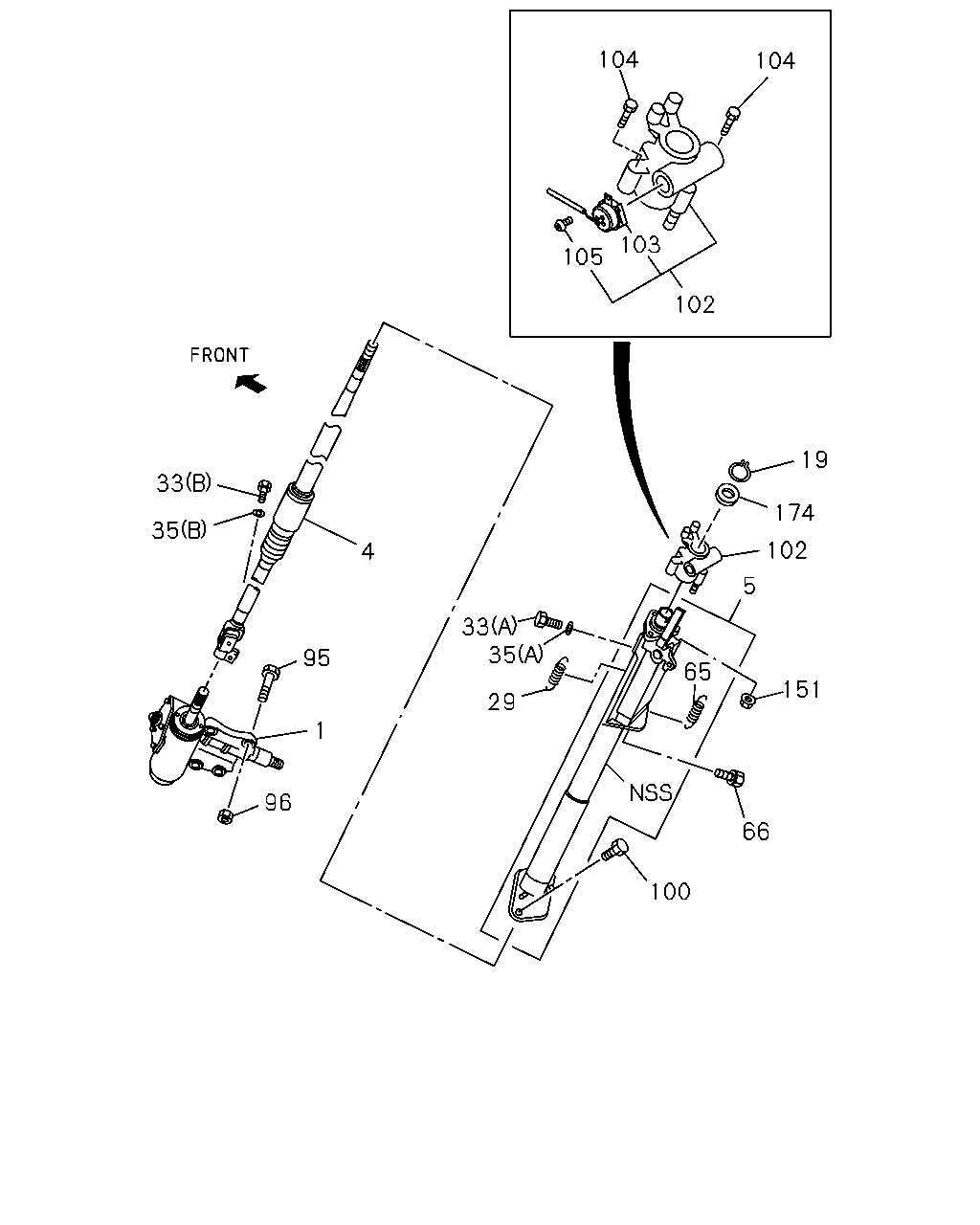

4-31 — STEERING COLUMN AND SHAFT
(#17286) — 23 parça
104
104
103
105
102
19
33
174
35
102
4
5
33
35
65
95
151
29
1
96
66
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. THA
8-97940-178-5
01
1
0009-
4
SHAFT; STRG
8-97207-517-0
01
1
0009-0210
4
SHAFT; STRG
8-97289-286-0
01
1
0211-
5
COLUMN; STRG
8-97203-777-0
01
1
0009-0210
5
COLUMN; STRG
8-97203-776-2
01
1
0211-
19
RING; SNAP,STRG SHAFT
ID=20.5
9-09180-022-0
01
1
0009-
29
SPRING; COLUMN
8-97069-501-1
02
1
0009-0210
29
SPRING; COLUMN
8-97069-501-1
01
1
0211-
33
BOLT; STRG SHAFT TO UNIT
(A)
8-94477-976-1
01
1
0009-
33
BOLT; STRG SHAFT TO UNIT
(B) M8X30 THA
8-97916-472-0
01
1
0009-
35
WASHER; LK,STRG SHAFT
(A)
8-94477-979-0
01
1
0009-
35
WASHER; LK,STRG SHAFT
(B) ID=8.2 THA
9-09150-508-0
01
1
0009-
65
SPRING; STRG COLUMN
8-97078-241-0
01
1
0009-
66
BOLT; STRG COLUMN
M8X35
8-97100-457-0
02
1
0009-
95
BOLT; STRG UNIT
M10X92 FLANGE THA
8-97916-478-0
04
1
0009-
96
NUT; STRG UNIT
M10 FLANGE
8-94313-797-0
04
1
0009-
100
BOLT; COLUMN TO FLOOR
M8X25
8-94152-496-1
02
1
0009-
102
LOCK ASM; STRG
8-97170-879-0
01
1
0009-
103
SWITCH; IGNITION
8-97145-371-0
01
1
0009-
104
BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER THA
8-97916-553-0
02
1
0009-
105
SCREW; IGN SW
M4X12
9-03465-412-0
01
1
0009-
151
NUT; FLANGE
M6 FLANGE
0-91150-106-0
01
1
0009-
174
RUBBER; CUSHION,STRG COLUMN
8-97170-762-0
01
1
0009-
