Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

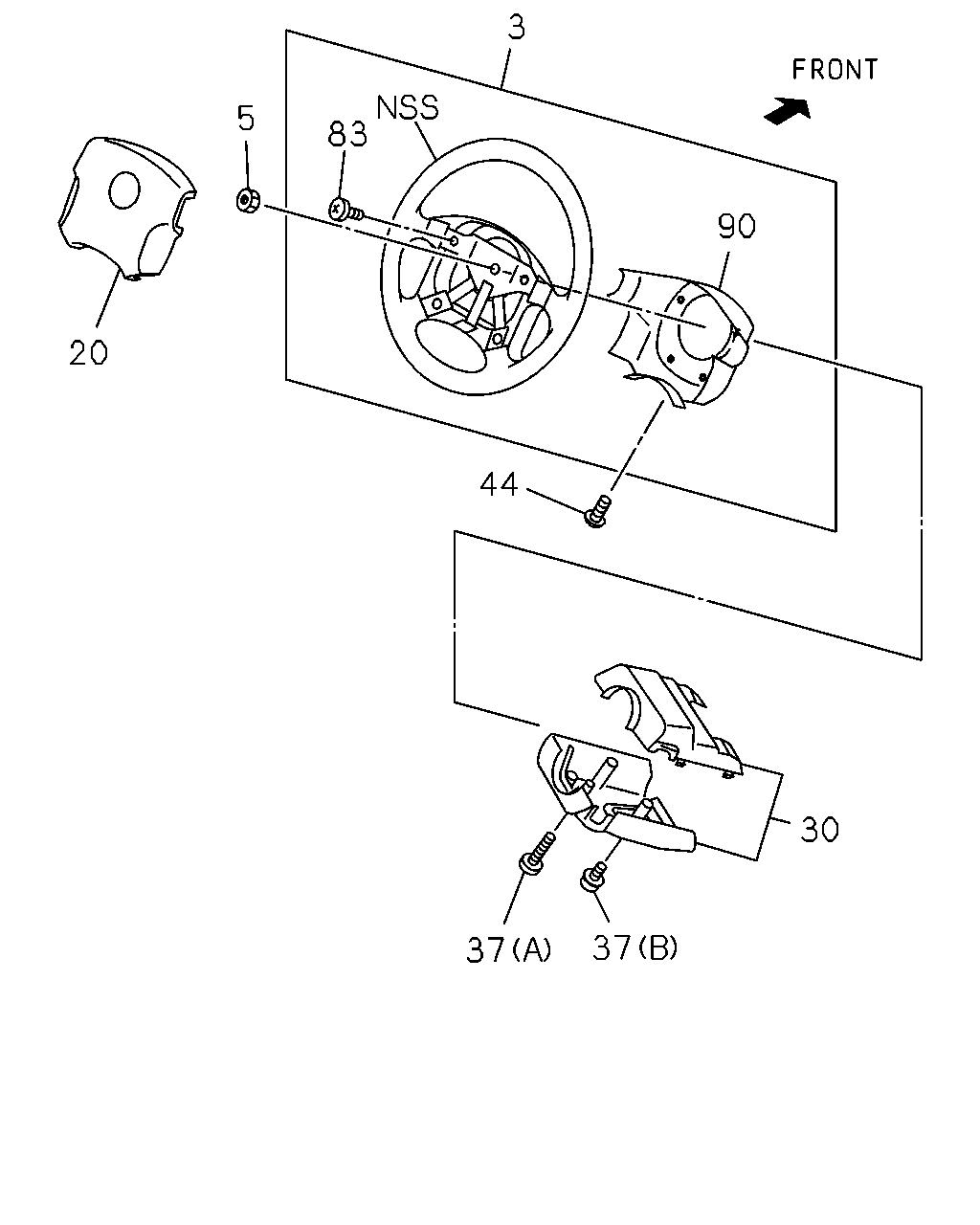

4-30 — STEERING WHEEL AND COWL
(#17285) — 11 parça
3
83
5
90
20
44
30
37
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
WHEEL; STRG
BLACK THA
8-97940-256-0
01
1
0009-
5
NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER
8-94455-487-1
01
1
0009-
20
SHROUD; PAD,STRG WHEEL
THA
8-97914-678-1
01
1
0009-
30
COWL; STEERING
BLACK
8-97151-865-6
01
1
0009-0112
30
COWL; STEERING
BLACK
8-97098-330-8
01
1
0201-
37
SCREW; STRG COWL UPR
(A) M5X16
5-09981-053-0
04
1
0009-
37
SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER
9-03900-412-0
03
1
0009-0106
37
SCREW; STRG COWL UPR
(B) M4X12 W/LK&PL WASHER
9-03920-412-0
03
1
0107-
44
SCREW; STRG COWL
M5X19 W/LK&PL WASHER
8-94104-815-1
01
1
0009-
83
SCREW; LWR COVER TO WHEEL
THA
8-97164-606-0
04
1
0009-
90
COVER ASM; STRG WHEEL,LWR
BLACK THA
8-97158-297-0
01
1
0009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
