◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCS ▶ 50892 - UCS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#17284) — 63 parça

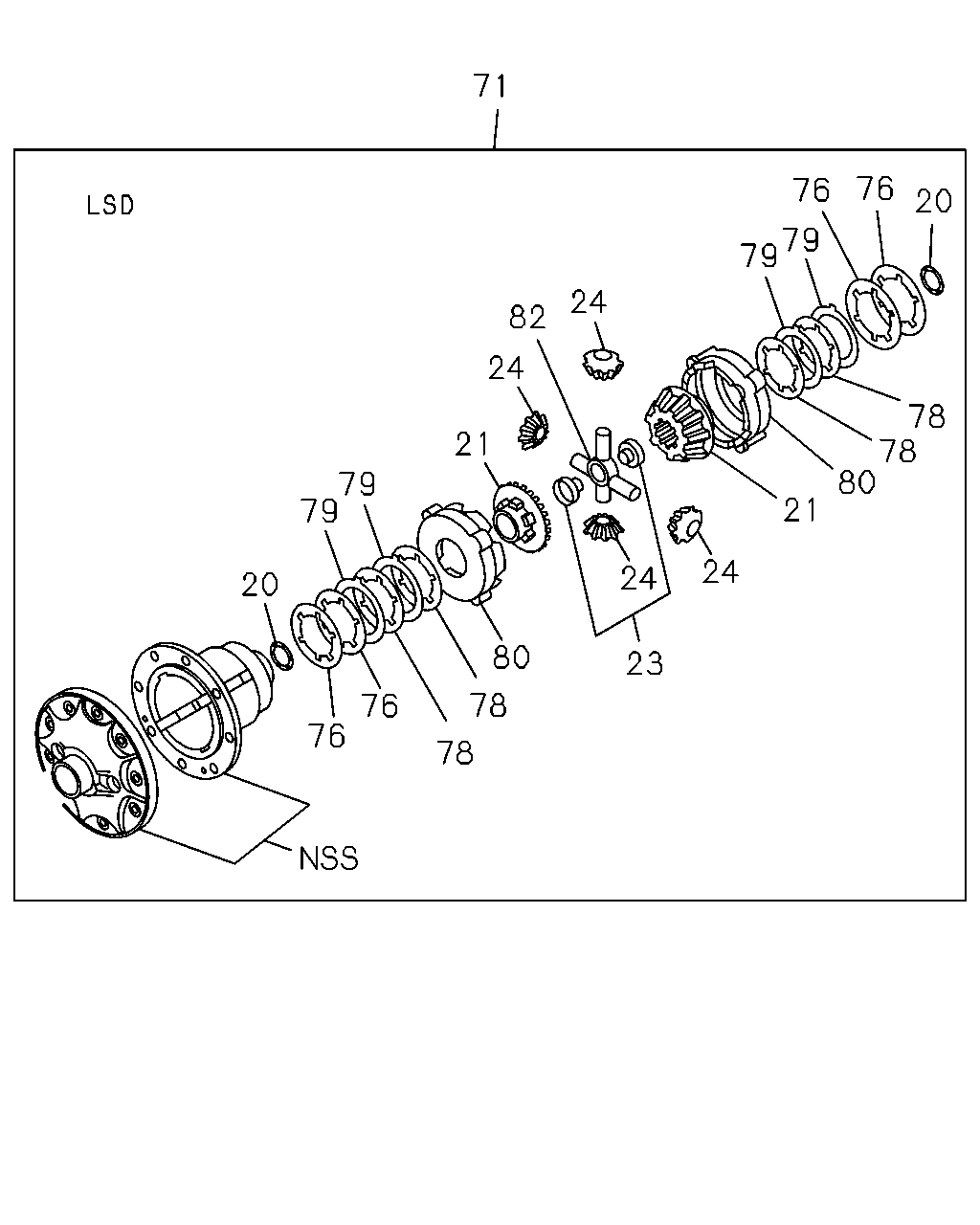

çizim 49837
71 76 20 76 79 79 24 82 24 78 78 80 21 79 79 21 24 24 20 80 78 78 23 76 76
BalonParca AdiParca NoAdetTipApplied Date
20 WASHER; THRUST,SIDE GEAR
T=1.60 		8-94365-187-0 02 1 0009-
20 WASHER; THRUST,SIDE GEAR
T=1.70 		8-94365-188-0 02 1 0009-
20 WASHER; THRUST,SIDE GEAR
T=1.50 		8-94453-935-0 02 1 0009-
20 WASHER; THRUST,SIDE GEAR
T=1.80 		8-97066-412-0 02 1 0009-
21 GEAR; SIDE,DIFF 8-97200-286-0 02 1 0009-
23 BLOCK; THRUST,DIFF BOX 8-94320-495-0 01 1 0009-
24 GEAR; PINION,DIFF 8-97200-285-1 04 1 0009-
71 CAGE ASM; DIFF,FINAL DRIVE 8-97062-975-2 01 1 0009-
76 DISC; BEVEL 8-97096-209-0 04 1 0009-
78 DISC; FRICTION 8-94453-937-0 04 1 0009-
79 PLATE; FRICTION
T=1.85 		8-94365-189-0 04 1 0009-
79 PLATE; FRICTION
T=1.75 		8-94453-936-0 04 1 0009-
80 RING; PRESSURE 8-94453-931-0 02 1 0009-
82 SPIDER; DIFF PINION 8-94453-932-0 01 1 0009-

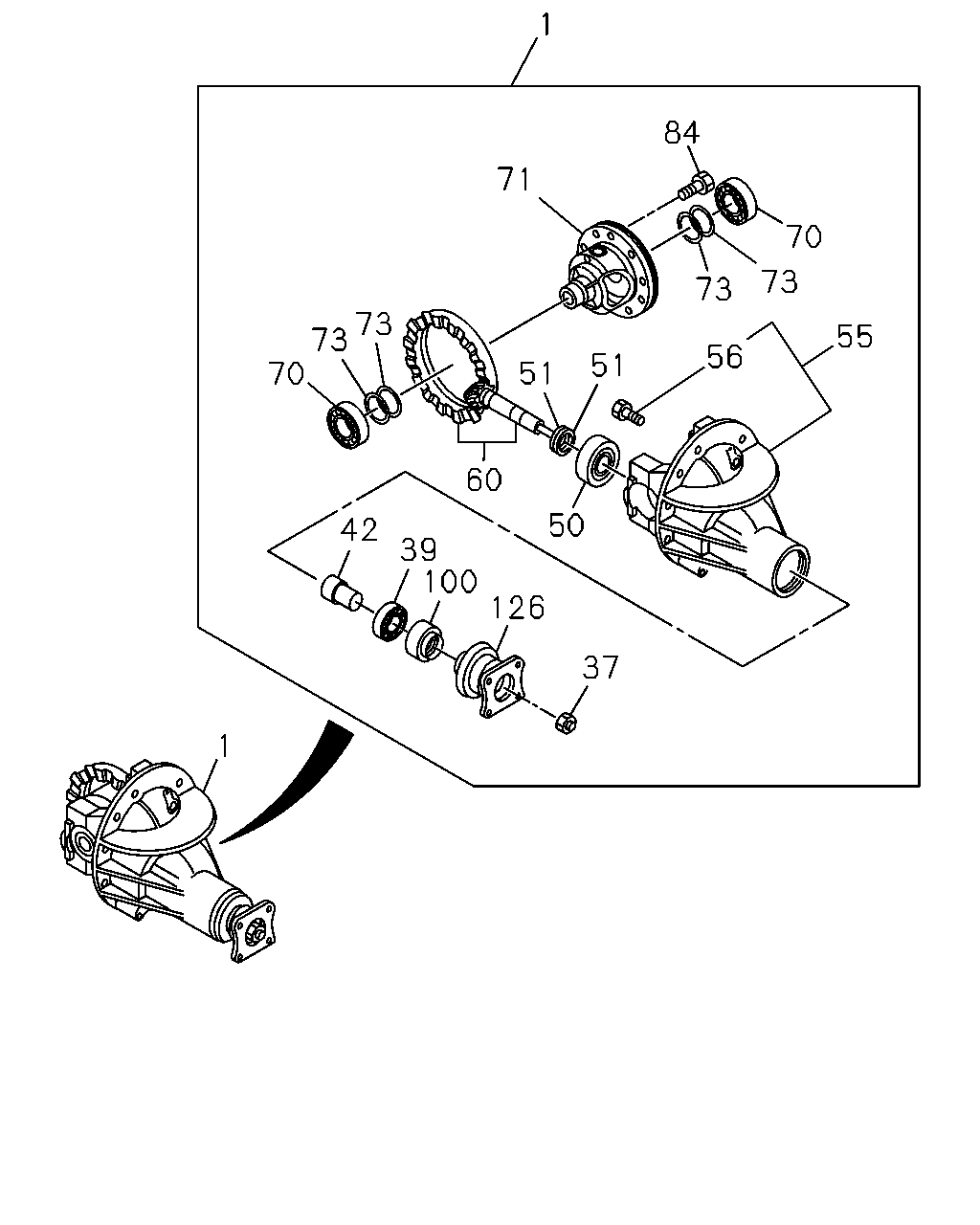

çizim 52000
1 84 71 70 73 73 73 73 70 55 56 51 51 60 42 39 100 126 50 37 1
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,RR
A/T AISIN<RMD> FRT&RR P225/75R15 6JJX15 AL<9LH> 41/9 		8-97021-094-4 01 1 0009-
1 DRIVE ASM; FINAL,RR
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> 41/9 		8-97021-094-4 01 1 0009-
1 DRIVE ASM; FINAL,RR
A/T AISIN<RMD> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> 43/9 		8-97021-097-3 01 1 0009-
1 DRIVE ASM; FINAL,RR
M/T MUA 5 SPEED<RMN> FRT&RR P225/75R15 6JJX15 AL<9LH> 43/10 		8-97021-092-3 01 1 0009-
37 NUT; DRIVING PINION
M24 FLANGE 		8-94376-261-1 01 1 0009-
39 BEARING; FINAL PINION
NSK 		9-00093-078-0 01 1 0009-
42 COLLAR; DIST,COLLAPSIBLE 8-97035-399-0 01 1 0009-
50 BEARING; FINAL PINION
NSK 		8-94435-342-0 01 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=1.94 		8-94435-356-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=1.96 		8-94435-357-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=1.98 		8-94435-358-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.00 		8-94435-359-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.02 		8-94435-360-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.04 		8-94435-361-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.06 		8-94435-362-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.08 		8-94435-363-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.10 		8-94435-364-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.12 		8-94435-365-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.14 		8-94435-366-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.16 		8-94435-367-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.18 		8-94435-368-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.20 		8-94435-369-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.22 		8-94435-370-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.24 		8-94435-371-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.26 		8-94435-372-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.28 		8-94435-373-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.30 		8-94435-374-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.32 		8-94435-375-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.34 		8-94435-376-0 AR 1 0009-
51 SHIM; PINION,FINAL DRIVE
T=2.36 		8-94435-377-0 AR 1 0009-
55 CARRIER; DIFF 8-94435-290-4 01 1 0009-
56 BOLT; BRG CAP
M12X75 		8-94435-341-0 04 1 0009-
60 GEAR SET; FINAL DRIVE,RR
A/T AISIN<RMD> FRT&RR P225/75R15 6JJX15 AL<9LH> 41/9 		8-97087-826-0 01 1 0009-
60 GEAR SET; FINAL DRIVE,RR
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> 41/9 		8-97087-826-0 01 1 0009-
60 GEAR SET; FINAL DRIVE,RR
A/T AISIN<RMD> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> 43/9 		8-97039-242-1 01 1 0009-
60 GEAR SET; FINAL DRIVE,RR
M/T MUA 5 SPEED<RMN> FRT&RR P225/75R15 6JJX15 AL<9LH> 43/10 		8-97039-238-1 01 1 0009-
70 BEARING; DIFF CAGE
JTEKT 		8-94452-449-1 02 1 0209-
70 BEARING; DIFF CAGE
NSK 		8-94435-355-0 02 1 0009-
71 CAGE ASM; DIFF,FINAL DRIVE 8-97062-975-2 01 1 0009-
73 SHIM; DIFF SIDE BRG
T=0.12 		8-94435-348-0 AR 1 0009-
73 SHIM; DIFF SIDE BRG
T=0.15 		8-94435-349-0 AR 1 0009-
73 SHIM; DIFF SIDE BRG
T=0.18 		8-94435-350-0 AR 1 0009-
73 SHIM; DIFF SIDE BRG
T=0.25 		8-94435-351-0 AR 1 0009-
73 SHIM; DIFF SIDE BRG
T=0.30 		8-94435-352-0 AR 1 0009-
73 SHIM; DIFF SIDE BRG
T=0.50 		8-94435-353-0 AR 1 0009-
84 BOLT; FINAL DRIVE GEAR
M10X18.5 		8-97038-064-0 12 1 0009-
100 SEAL; OIL,FINAL PINION
NOK 		8-94408-084-1 01 1 0009-
100 SEAL; OIL,FINAL PINION
TKK 		8-94408-085-1 01 1 0009-
126 COUPLING; DRIVING PINION 8-97075-216-3 01 1 0009-
