4-20 — REAR AXLE CASE AND SHAFT (#17283) — 50 parça

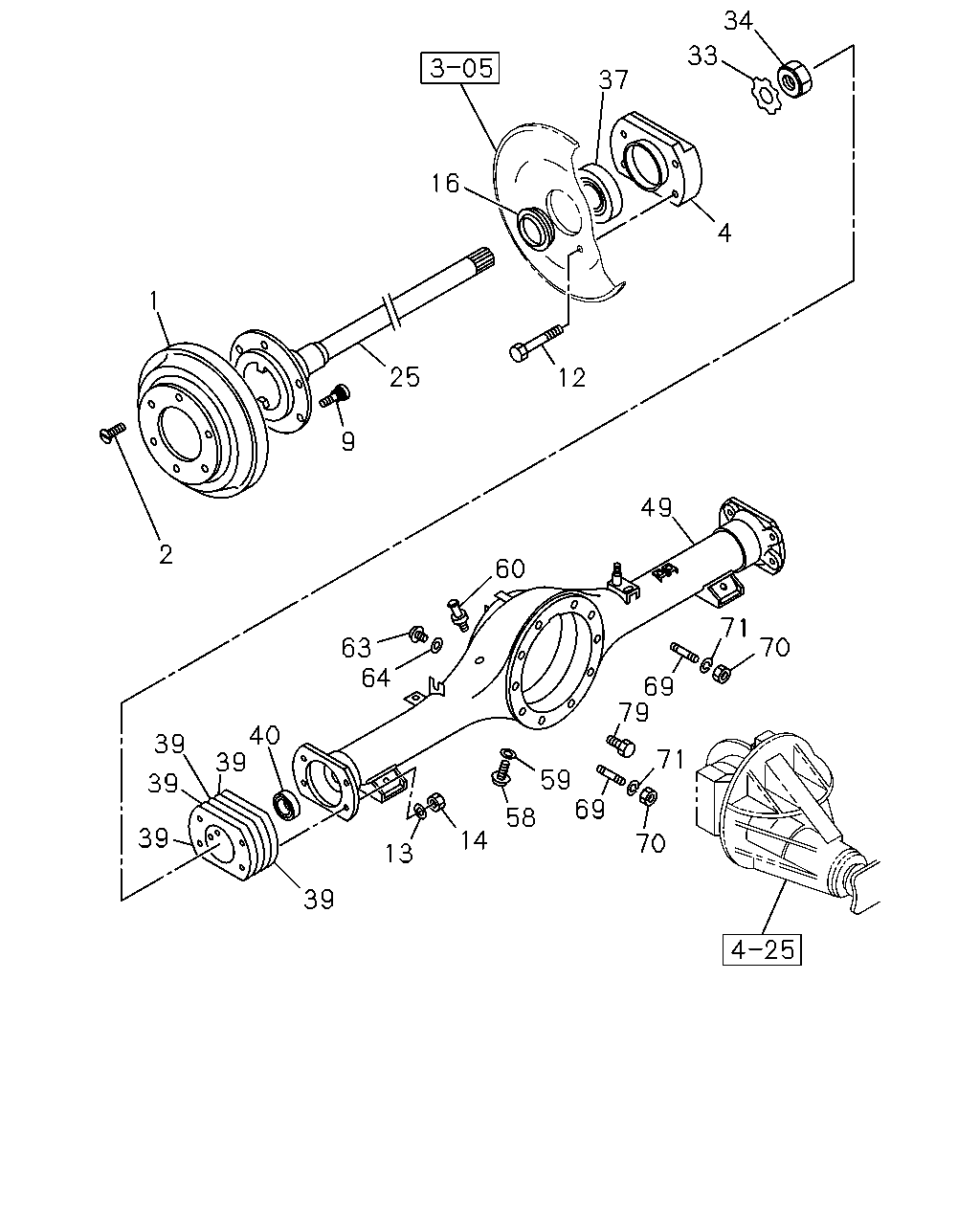

çizim 48499
34 33 37 16 4 1 25 12 9 49 2 60 71 70 63 64 69 79 40 39 39 71 59 69 58 39 39 14 70 13 39
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR
THA 		8-97910-577-1 02 1 0009-
2 BOLT; BRK DRUM
M6X16 CK-HEAD 		9-03090-616-0 02 1 0009-
4 HOLDER; BRG,AXLE SHAFT 8-94469-695-1 02 1 0009-
9 PIN; WHEEL,RR AXLE
THA 		8-97942-156-0 12 1 0009-
12 BOLT; BRG HOLDER TO CASE
WO/MARK M12X83 		8-94471-384-3 04 1 0009-
12 BOLT; BRG HOLDER TO CASE
W/MARK M12X83 		8-94471-385-2 04 1 0009-
13 WASHER; LK,BRG HOLDER TO CASE
ID=12.2 		9-09150-512-0 08 1 0009-
14 NUT; BRG HOLDER TO CASE
M12 		8-97138-934-0 08 1 0009-
16 SEAL; OIL,RR HUB,OUTER
ID=50.5 OD=72 		9-09724-022-1 02 1 0009-
25 SHAFT; AXLE,RR
THA 		8-97940-666-0 02 1 0009-0009
25 SHAFT; AXLE,RR
THA 		8-97942-193-0 02 1 0010-
33 WASHER; AXLE SHAFT 8-97086-472-0 02 1 0009-
34 NUT; AXLE SHAFT
M45 		8-94178-278-0 02 1 0009-
37 BEARING; HUB INNER,RR AXLE
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> JTEKT THA 		8-97918-180-0 02 1 0009-
37 BEARING; HUB INNER,RR AXLE
FRT&RR P225/75R15 6JJX15 AL<9LH> JTEKT THA 		8-97918-180-0 02 1 0009-
37 BEARING; HUB INNER,RR AXLE
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> NSK THA 		8-97950-009-0 02 1 0009-
37 BEARING; HUB INNER,RR AXLE
FRT&RR P225/75R15 6JJX15 AL<9LH> NSK THA 		8-97950-009-0 02 1 0009-
39 SHIM; BRG HOLDER
A/T AISIN<RMD> FRT&RR P225/75R15 6JJX15 AL<9LH> T=1.000 THA 		8-97911-104-0 AR 1 0009-
39 SHIM; BRG HOLDER
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> T=1.000 THA 		8-97911-104-0 AR 1 0009-
39 SHIM; BRG HOLDER
A/T AISIN<RMD> FRT&RR P225/75R15 6JJX15 AL<9LH> T=0.500 THA 		8-97911-105-0 AR 1 0009-
39 SHIM; BRG HOLDER
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> T=0.500 THA 		8-97911-105-0 AR 1 0009-
39 SHIM; BRG HOLDER
A/T AISIN<RMD> FRT&RR P225/75R15 6JJX15 AL<9LH> T=0.130 THA 		8-97911-106-0 AR 1 0009-
39 SHIM; BRG HOLDER
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> T=0.130 THA 		8-97911-106-0 AR 1 0009-
39 SHIM; BRG HOLDER
A/T AISIN<RMD> FRT&RR P225/75R15 6JJX15 AL<9LH> T=0.076 THA 		8-97911-107-0 AR 1 0009-
39 SHIM; BRG HOLDER
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> T=0.076 THA 		8-97911-107-0 AR 1 0009-
39 SHIM; BRG HOLDER
A/T AISIN<RMD> FRT&RR P225/75R15 6JJX15 AL<9LH> T=0.050 THA 		8-97911-108-0 AR 1 0009-
39 SHIM; BRG HOLDER
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> T=0.050 THA 		8-97911-108-0 AR 1 0009-
39 SHIM; BRG HOLDER
M/T MUA 5 SPEED<RMN> FRT&RR P225/75R15 6JJX15 AL<9LH> T=1.000 THA 		8-97911-104-0 AR 1 0009-
39 SHIM; BRG HOLDER
A/T AISIN<RMD> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> T=1.000 THA 		8-97911-104-0 AR 1 0009-
39 SHIM; BRG HOLDER
M/T MUA 5 SPEED<RMN> FRT&RR P225/75R15 6JJX15 AL<9LH> T=0.500 THA 		8-97911-105-0 AR 1 0009-
39 SHIM; BRG HOLDER
A/T AISIN<RMD> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> T=0.500 THA 		8-97911-105-0 AR 1 0009-
39 SHIM; BRG HOLDER
M/T MUA 5 SPEED<RMN> FRT&RR P225/75R15 6JJX15 AL<9LH> T=0.130 THA 		8-97911-106-0 AR 1 0009-
39 SHIM; BRG HOLDER
A/T AISIN<RMD> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> T=0.130 THA 		8-97911-106-0 AR 1 0009-
39 SHIM; BRG HOLDER
M/T MUA 5 SPEED<RMN> FRT&RR P225/75R15 6JJX15 AL<9LH> T=0.076 THA 		8-97911-107-0 AR 1 0009-
39 SHIM; BRG HOLDER
A/T AISIN<RMD> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> T=0.076 THA 		8-97911-107-0 AR 1 0009-
39 SHIM; BRG HOLDER
M/T MUA 5 SPEED<RMN> FRT&RR P225/75R15 6JJX15 AL<9LH> T=0.050 THA 		8-97911-108-0 AR 1 0009-
39 SHIM; BRG HOLDER
A/T AISIN<RMD> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> T=0.050 THA 		8-97911-108-0 AR 1 0009-
40 SEAL; OIL,REAR AXLE
ID=37.5 OD=60 		5-09625-092-0 02 1 0009-
49 CASE; RR AXLE
THA 		8-97940-718-2 01 1 0009-
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0009-
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 THA 		9-09571-416-0 01 1 0009-
60 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 0009-0409
60 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0410-
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 0009-
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 THA 		8-94462-734-0 01 1 0009-
69 STUD; AXLE CASE
M10X31 L=43 THA 		9-09630-011-1 02 1 0009-
70 NUT; CARRIER
M10 		9-09110-510-0 02 1 0009-
71 WASHER; LK,FINAL DRIVE SETTING
ID=10.2 		9-09150-610-0 02 1 0009-
79 BOLT; COVER TO CASE
M10X30 		0-50061-030-0 07 1 0009-
79 BOLT; COVER TO CASE
M10X90 		0-50061-090-0 01 1 0009-
