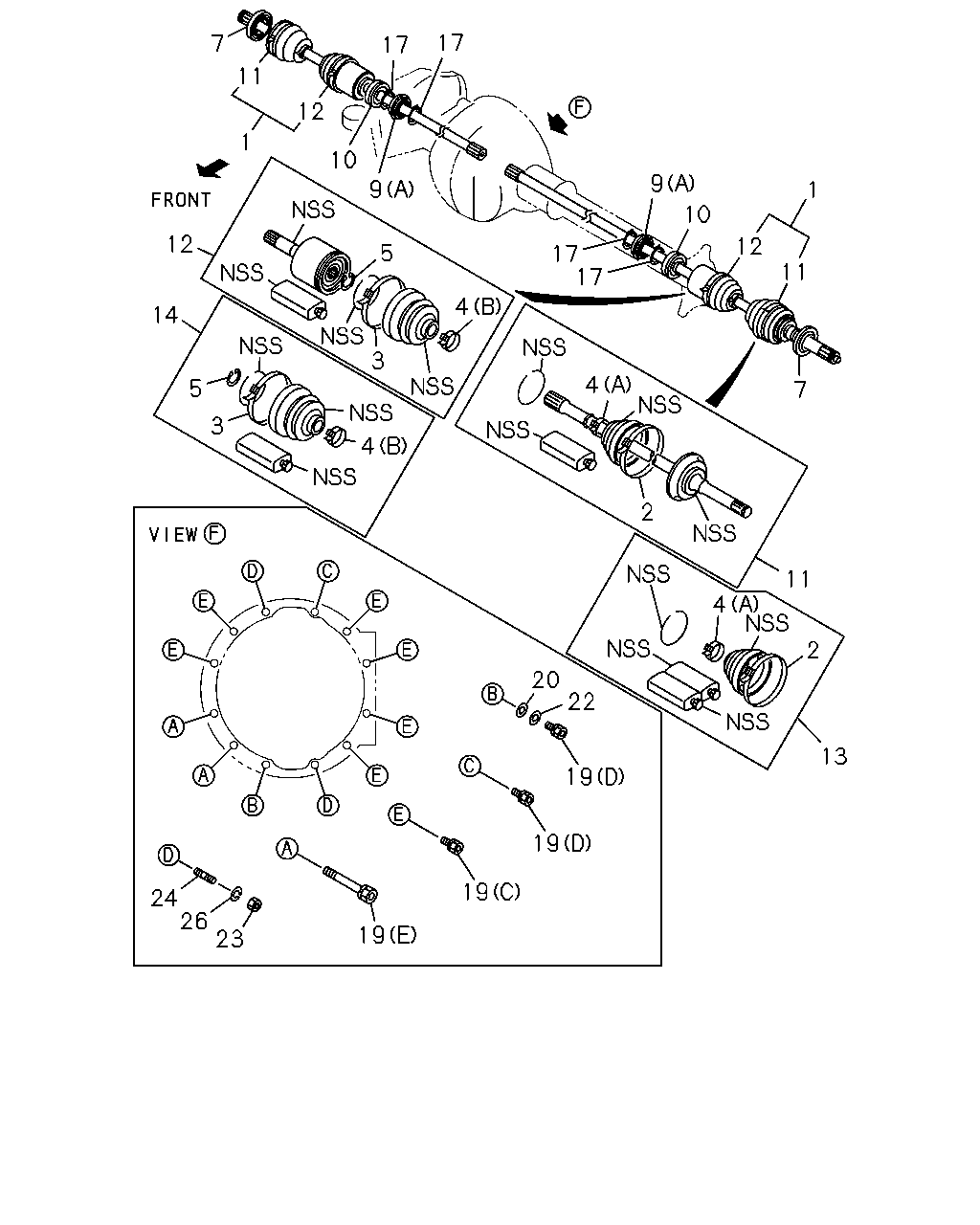

4-12 — FRONT DRIVE SHAFT (#17280) — 72 parça

17 7 11 17 12 10 9 1 9 10 1 17 17 12 12 5 11 4 14 3 4 5 7 4 3 2 11 4 2 20 22 13 19 19 19 24 26 23 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT ASM; FRT DRIVE THA	8-97139-095-0	02	1	0009-0212
1	SHAFT ASM; FRT DRIVE	8-97361-345-0	02	1	0301-
2	BAND; "A",FRT DRIVE SHAFT THA	8-97131-401-0	02	1	0009-
3	BAND; "B",FRT DRIVE SHAFT THA	8-94312-929-0	02	1	0009-
4	BAND; "C",FRT DRIVE SHAFT (B) THA	8-94312-931-0	02	1	0009-
4	BAND; "C",FRT DRIVE SHAFT (A) THA	8-97138-938-0	02	1	0009-
5	RING; RET,FRT DRIVE SHAFT THA	8-97131-402-0	02	1	0009-
7	SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	0009-
9	BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	0009-
9	BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	0009-
10	SEAL; OIL,AXLE SHAFT,INNER	8-94366-610-0	02	1	0009-0311
10	SEAL; OIL,AXLE SHAFT,INNER	8-97373-555-0	02	1	0312-
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT	8-97131-396-1	02	1	0009-
12	JOINT ASM THA	8-97138-978-0	02	1	0009-0212
12	JOINT ASM	8-97201-316-1	02	1	0301-
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT	8-97138-981-1	02	1	0009-
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT THA	8-97138-980-0	02	1	0009-0212
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT	8-97201-314-1	02	1	0301-
17	RING; SNAP,DRIVE SHAFT TO TRANS AXLE ID=27.9	9-09180-030-0	04	1	0009-
19	BOLT; FRT AXLE (A) M12X22 FLANGE	0-28081-222-0	04	1	0009-
19	BOLT; FRT AXLE (B) M8X20 FLANGE	0-28280-820-0	04	1	0009-
19	BOLT; FRT AXLE (C) M8X25 W/LK WASHER THA	8-97093-664-1	06	1	0009-
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER THA	8-97093-665-1	02	1	0009-
19	BOLT; FRT AXLE (E) M8X90 W/LK WASHER THA	8-97093-666-1	02	1	0009-
20	GASKET; AXLE CASE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	01	1	0009-
22	WASHER; PL,AXLE CASE ID=8.4	9-09164-508-0	01	1	0009-
23	NUT; FRT AXLE M8	9-09110-508-0	02	1	0009-
24	STUD; CASE,FRT AXLE M8X25 L=37	9-04110-825-0	02	1	0009-
26	WASHER; LK,CASE,FRT AXLE ID=8.2	9-09150-608-0	02	1	0009-

36 34 35 35 28 27 18 37 36 44 35 30 19 35 34 49 48 50 62 95 62 144 79 69 9 138 132 37 44 137 48 84 19 18

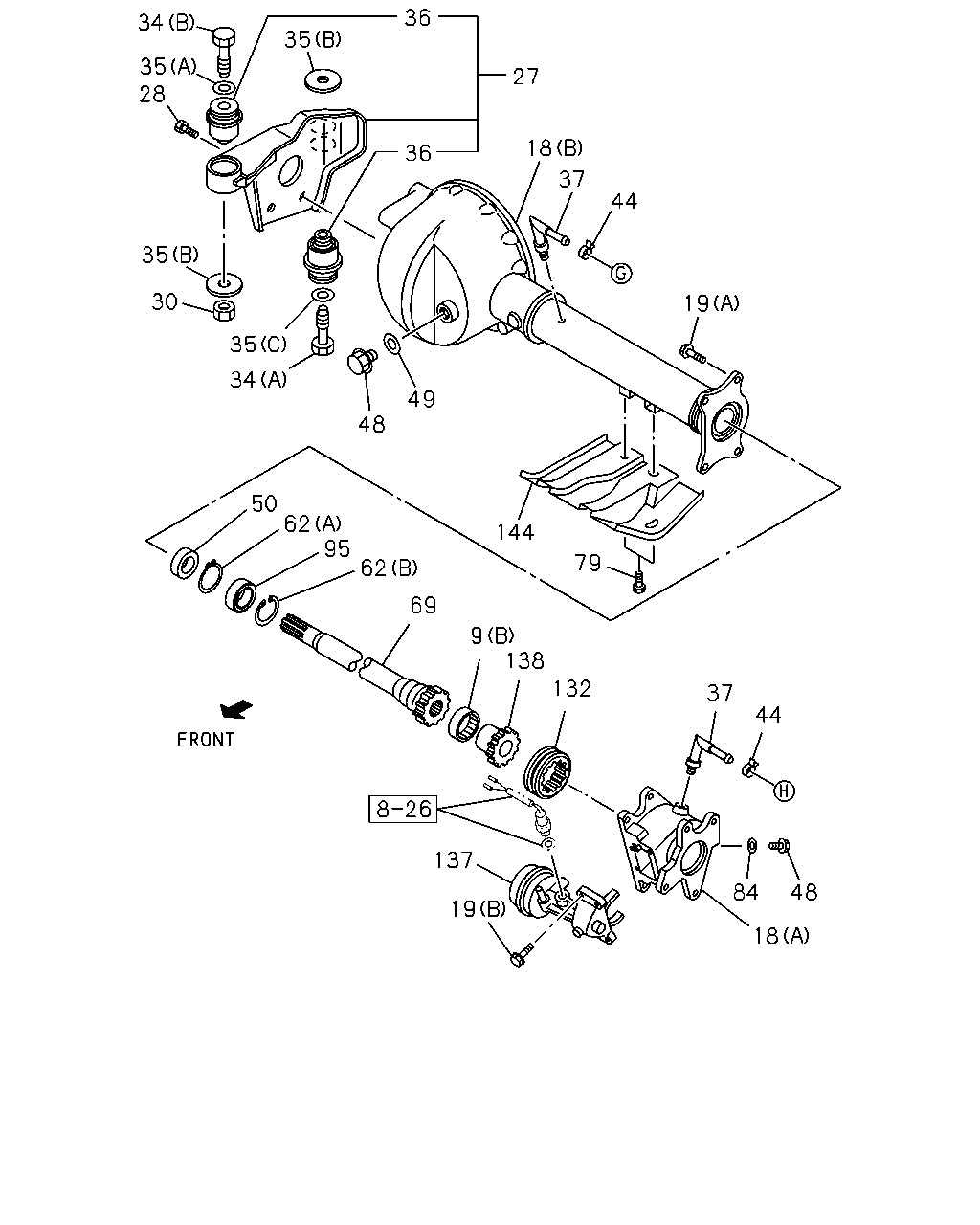

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	0009-
9	BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	0009-
18	CASE; FRT AXLE (A)	8-97081-658-3	01	1	0009-
18	CASE; FRT AXLE (B)	8-97217-847-0	01	1	0009-
19	BOLT; FRT AXLE (A) M12X22 FLANGE	0-28081-222-0	04	1	0009-
19	BOLT; FRT AXLE (B) M8X20 FLANGE	0-28280-820-0	04	1	0009-
19	BOLT; FRT AXLE (C) M8X25 W/LK WASHER THA	8-97093-664-1	06	1	0009-
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER THA	8-97093-665-1	02	1	0009-
19	BOLT; FRT AXLE (E) M8X90 W/LK WASHER THA	8-97093-666-1	02	1	0009-
27	BRACKET; AXLE CASE W/BUSHING	8-94462-170-3	01	1	0009-
27	BRACKET; AXLE CASE W/BUSHING	8-94462-169-3	01	1	0009-
28	BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	0009-
30	NUT; FRT AXLE MTG M14 THA	9-99110-514-0	02	1	0009-
34	BOLT; FRT AXLE MTG (B) M14X84	8-94452-339-2	02	1	0009-
34	BOLT; FRT AXLE MTG (A) M14X80	9-91066-480-0	02	1	0009-
35	WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	0009-
35	WASHER; FRT AXLE MTG (B) ID=14 OD=50	8-97093-581-0	04	1	0009-
35	WASHER; FRT AXLE MTG (C) ID=15 OD=36	9-09164-714-0	02	1	0009-
36	BUSHING; RUBBER,FRT AXLE MTG ID=15 L=49.3 THA	8-94481-466-0	04	1	0009-0303
36	BUSHING; RUBBER,FRT AXLE MTG	8-97018-240-0	04	1	0304-
37	BREATHER; FRT AXLE CASE	8-94226-943-0	01	1	0009-
37	BREATHER; FRT AXLE CASE	8-94226-943-0	01	1	0009-
44	CLIP; AIR BREATHER HOSE ID=11	8-97173-219-0	02	1	0009-
48	PLUG; DRAIN,AXLE CASE M20X10.5	9-09662-005-0	02	1	0009-
49	GASKET; DRAIN PLUG ID=20 OD=30 THA	8-94462-734-0	01	1	0009-
50	SEAL; OIL,SHAFT,FRT AXLE	8-97084-507-0	01	1	0009-
62	RING; SNAP,AXLE SHAFT (A) ID=37.0	9-09180-040-0	01	1	0009-
62	RING; SNAP,AXLE SHAFT (B) ID=57.9	9-09180-162-0	01	1	0009-
69	SHAFT; AXLE,FRT INNER	8-97188-174-1	01	1	0009-
79	BOLT; BRKT	0-28481-016-0	02	1	0009-
84	GASKET; PLUG,OIL FILLER ID=20 OD=30 THA	8-94462-734-0	01	1	0009-
95	BEARING; AXLE SHAFT,FRT	8-97103-392-0	01	1	0009-
132	SLEEVE; RUBBER,HOSE	8-97130-567-1	01	1	0009-
137	ACTUATOR; AXLE	8-97208-683-8	01	1	0009-
138	GEAR; CLUTCH Z=17	8-97134-857-1	01	1	0009-
144	PROTECTOR	8-97220-537-2	01	1	0009-

43 45 39 45 31 43 45 43 39

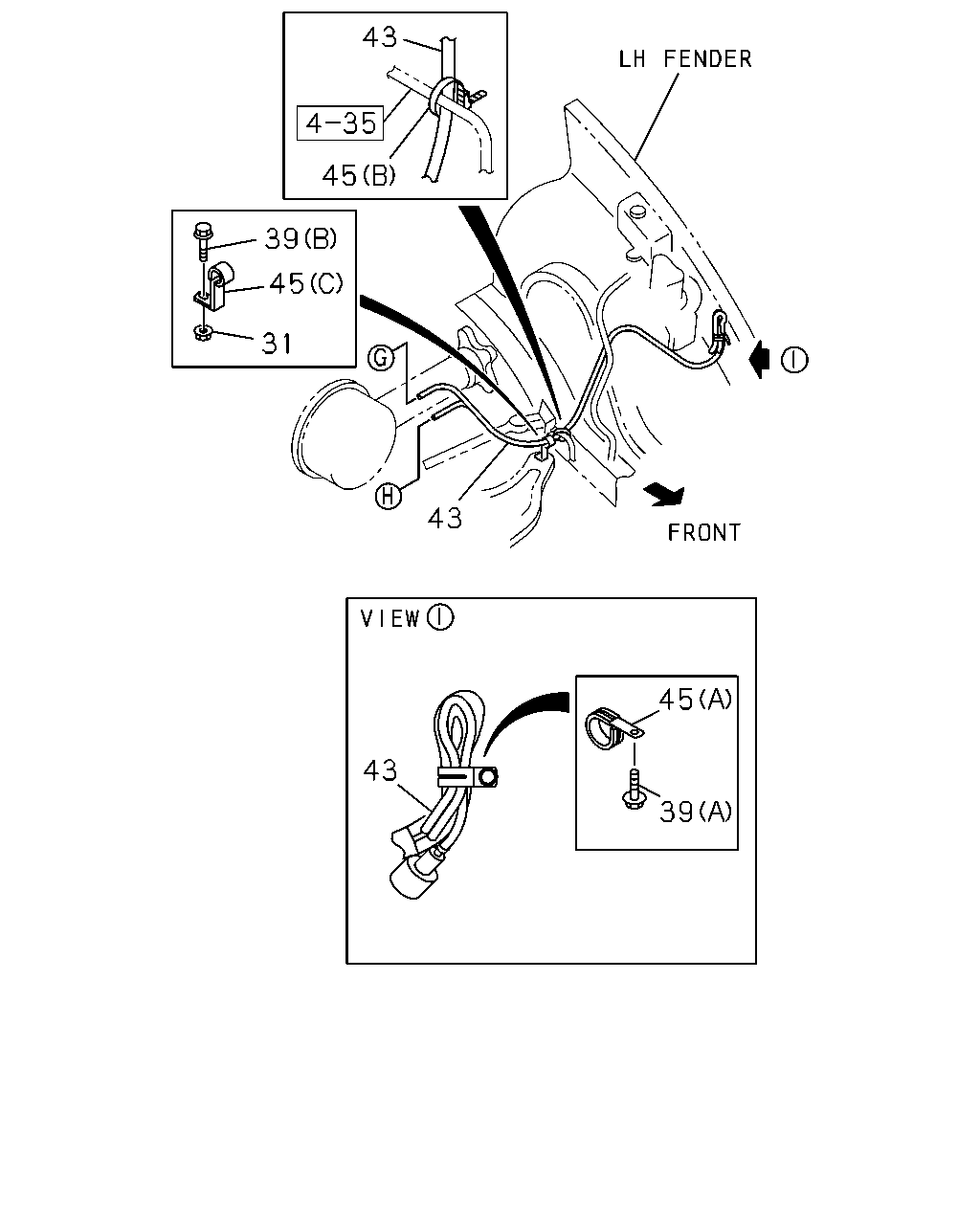

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NUT; MUD COVER TO BRKT M6 FLANGE	0-91150-106-0	01	1	0009-
39	BOLT; BREATHER HOSE CLIP (A) M6X16 FLANGE	0-28680-616-0	01	1	0009-
39	BOLT; BREATHER HOSE CLIP (B) M6X25 FLANGE	0-28680-625-0	01	1	0009-
43	HOSE; RUBBER,AIR BREATHER	8-97260-166-0	01	1	0009-
45	CLIP (A) ID=28 L=32	1-09701-064-1	01	1	0009-
45	CLIP (B) L=170	5-09707-054-0	01	1	0009-
45	CLIP (C)	8-94121-003-0	01	1	0009-
