4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

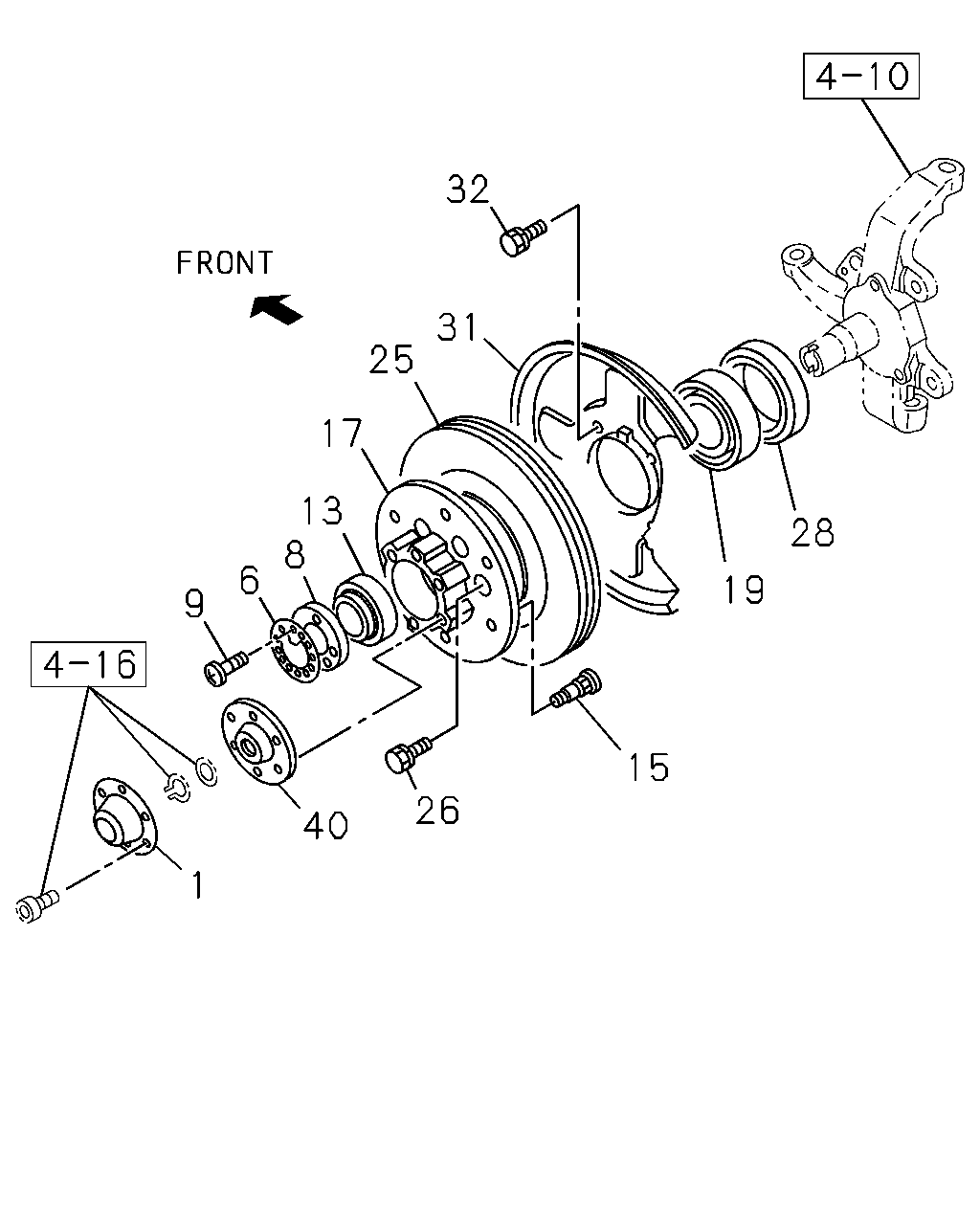

4-11 — FRONT HUB AND DRUM OR ROTOR
(#17279) — 15 parça
32
31
25
17
13
8
6
28
19
9
15
26
40
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
THA
8-94173-314-2
02
1
0009-
6
WASHER; LK,FRT HUB
T=1.8 OD=65
8-94442-398-0
02
1
0009-
8
NUT; ADJ,FRT HUB
ID=40 OD=65 T=8
8-94442-399-1
02
1
0009-
9
SCREW; ADJ,NUT
M4X8 CK-HEAD
9-93090-408-0
06
1
0009-
13
BEARING; HUB OUTER,FRT AXLE
NSK THA
8-94227-041-0
02
1
0009-
15
PIN; WHEEL,FRT AXLE
THA
8-97942-155-0
12
1
0009-
17
HUB; FRT AXLE
THA
8-94381-084-2
02
1
0009-
19
BEARING; HUB INNER,FRT AXLE
NSK THA
8-94258-819-0
02
1
0009-
25
ROTOR; DISC BRK,FRT
THA
8-94172-376-1
02
1
0009-
26
BOLT; BRK,DISC TO HUB
M12X31.5
8-94409-921-0
12
1
0009-
28
SEAL; OIL,FRT HUB
8-94407-711-0
02
1
0009-
31
COVER; DUST,FRT BRAKE
8-94173-247-1
01
1
0009-
31
COVER; DUST,FRT BRAKE
8-94173-246-1
01
1
0009-
32
BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER THA
8-97025-916-0
06
1
0009-
40
FLANGE; FRT WHEEL HUB
8-94173-313-0
02
1
0009-
