4-01 — PROPELLER SHAFT (#17277) — 36 parça

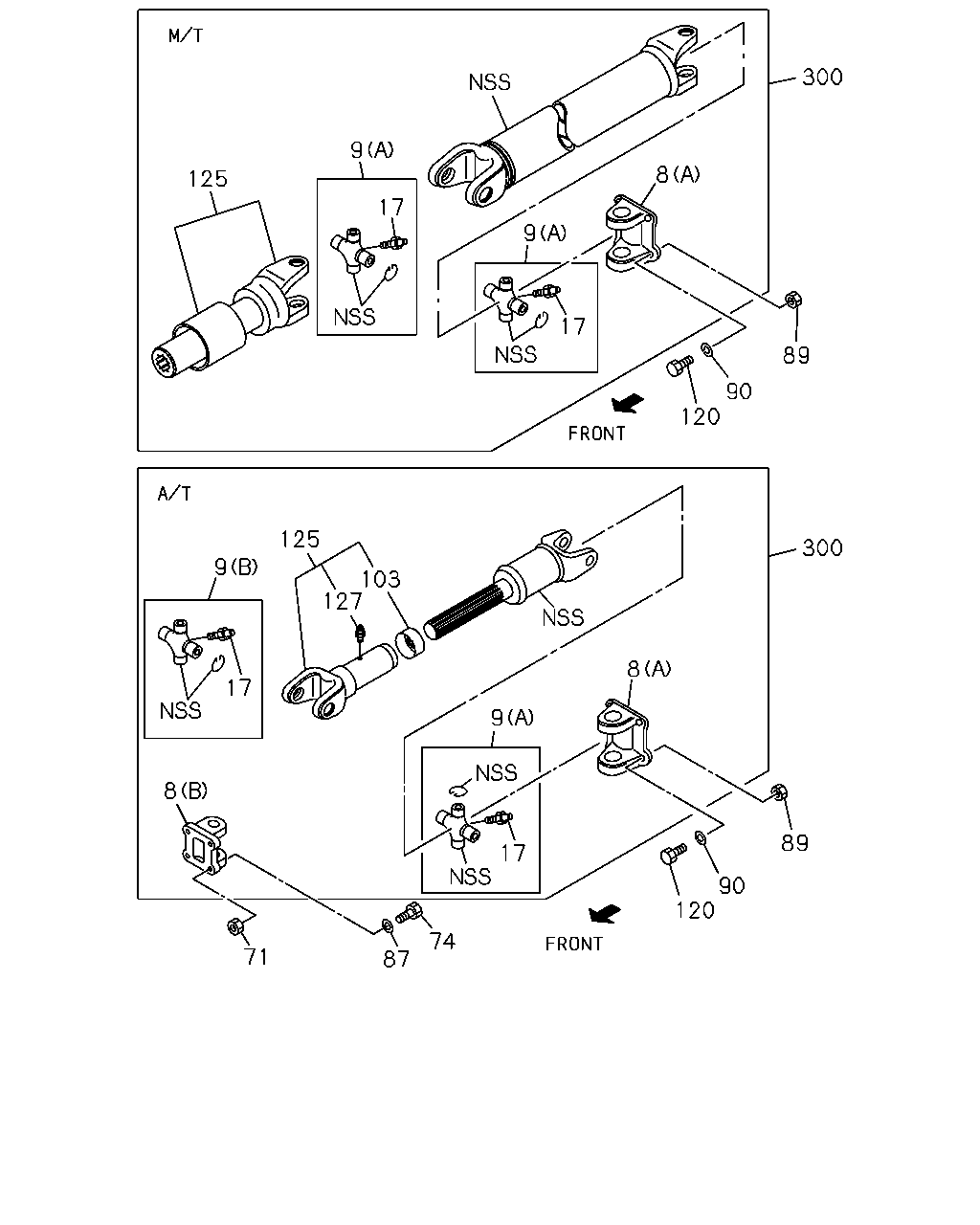

300 9 8 125 17 9 17 89 90 120 125 300 9 103 127 8 17 9 8 89 17 90 120 71 74 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	YOKE; FLANGE,PROP SHAFT (A) REAR	8-97211-116-0	01	1	0009-
8	YOKE; FLANGE,PROP SHAFT (B) FRONT	8-97211-120-0	02	1	0009-
8	YOKE; FLANGE,PROP SHAFT A/T AISIN<RMD> (B) REAR	8-97178-365-0	01	1	0009-
9	JOURNAL ASM; PROP SHAFT A/T AISIN<RMD> (B) REAR	8-97167-317-0	01	1	0009-
9	JOURNAL ASM; PROP SHAFT A/T AISIN<RMD> (A) FRONT AND REAR	8-97211-133-0	03	1	0009-
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED<RMN> (A) FRONT AND REAR	8-97211-133-0	04	1	0009-
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	9-09031-006-0	04	1	0009-
71	NUT; YOKE A/T AISIN<RMD> REAR M10	8-94159-009-1	04	1	0009-
74	BOLT; YOKE,TRANS A/T AISIN<RMD> REAR M10X29 THA	8-97168-458-1	04	1	0009-
87	WASHER; LK,1ST PROP TO 2ND PROP A/T AISIN<RMD> REAR ID=10.2	9-09150-610-0	04	1	0009-
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	12	1	0009-
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	12	1	0009-
103	BOOT; PROP SHAFT A/T AISIN<RMD>	8-97020-597-1	02	1	0009-
120	BOLT; YOKE TO RR AXLE M10X29 THA	8-97168-458-1	12	1	0009-
125	YOKE ASM; SPLINED,PROP SHAFT A/T AISIN<RMD>	8-97167-316-0	01	1	0009-
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED<RMN> L=158	8-97211-132-0	01	1	0009-
127	NIPPLE; GREASE,SPLINED YOKE A/T AISIN<RMD> M6 STRAIGHT	9-09031-006-0	01	1	0009-
300	SHAFT ASM; PROP,RR A/T AISIN<RMD> L=1128	8-97211-630-0	01	1	0009-
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED<RMN>	8-97211-585-0	01	1	0009-

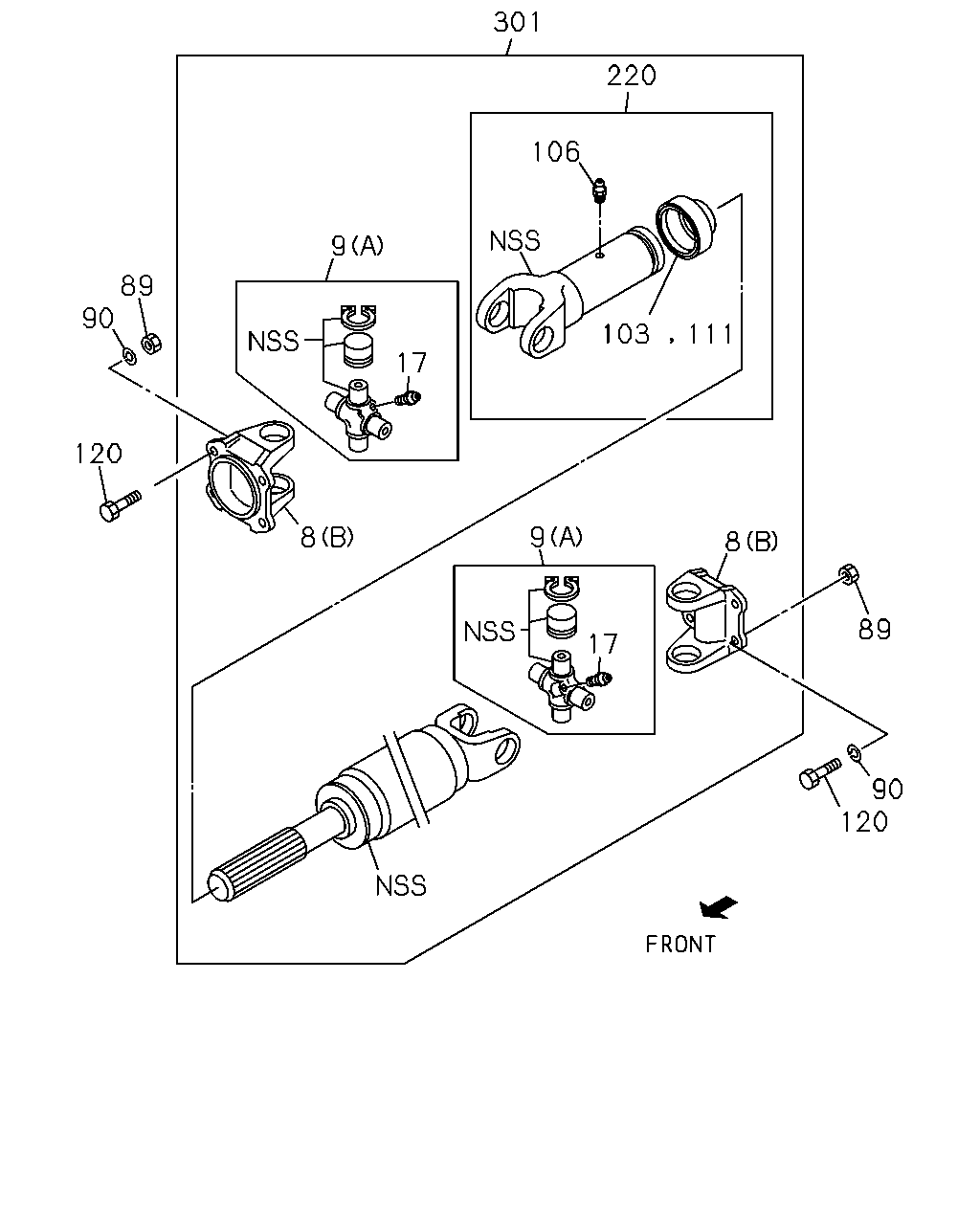

301 220 106 9 89 90 103 111 17 120 8 9 8 89 17 90 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	YOKE; FLANGE,PROP SHAFT (A) REAR	8-97211-116-0	01	1	0009-
8	YOKE; FLANGE,PROP SHAFT (B) FRONT	8-97211-120-0	02	1	0009-
8	YOKE; FLANGE,PROP SHAFT A/T AISIN<RMD> (B) REAR	8-97178-365-0	01	1	0009-
9	JOURNAL ASM; PROP SHAFT A/T AISIN<RMD> (B) REAR	8-97167-317-0	01	1	0009-
9	JOURNAL ASM; PROP SHAFT A/T AISIN<RMD> (A) FRONT AND REAR	8-97211-133-0	03	1	0009-
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED<RMN> (A) FRONT AND REAR	8-97211-133-0	04	1	0009-
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	9-09031-006-0	04	1	0009-
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	12	1	0009-
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	12	1	0009-
103	BOOT; PROP SHAFT A/T AISIN<RMD>	8-97020-597-1	02	1	0009-
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	9-09031-006-0	01	1	0009-
111	RING; SLEEVE M/T MUA 5 SPEED<RMN>	5-37249-004-0	01	1	0009-
120	BOLT; YOKE TO RR AXLE M10X29 THA	8-97168-458-1	12	1	0009-
220	YOKE; SPLINED A/T AISIN<RMD> L=177	8-97211-131-0	01	1	0009-
220	YOKE; SPLINED M/T MUA 5 SPEED<RMN>	8-97211-130-0	01	1	0009-
301	SHAFT ASM; PROP,FRT A/T AISIN<RMD> L=627	8-97211-643-1	01	1	0009-
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED<RMN>	8-97211-638-1	01	1	0009-
