3-11 — PARKING BRAKE CONTROL (#17269) — 28 parça

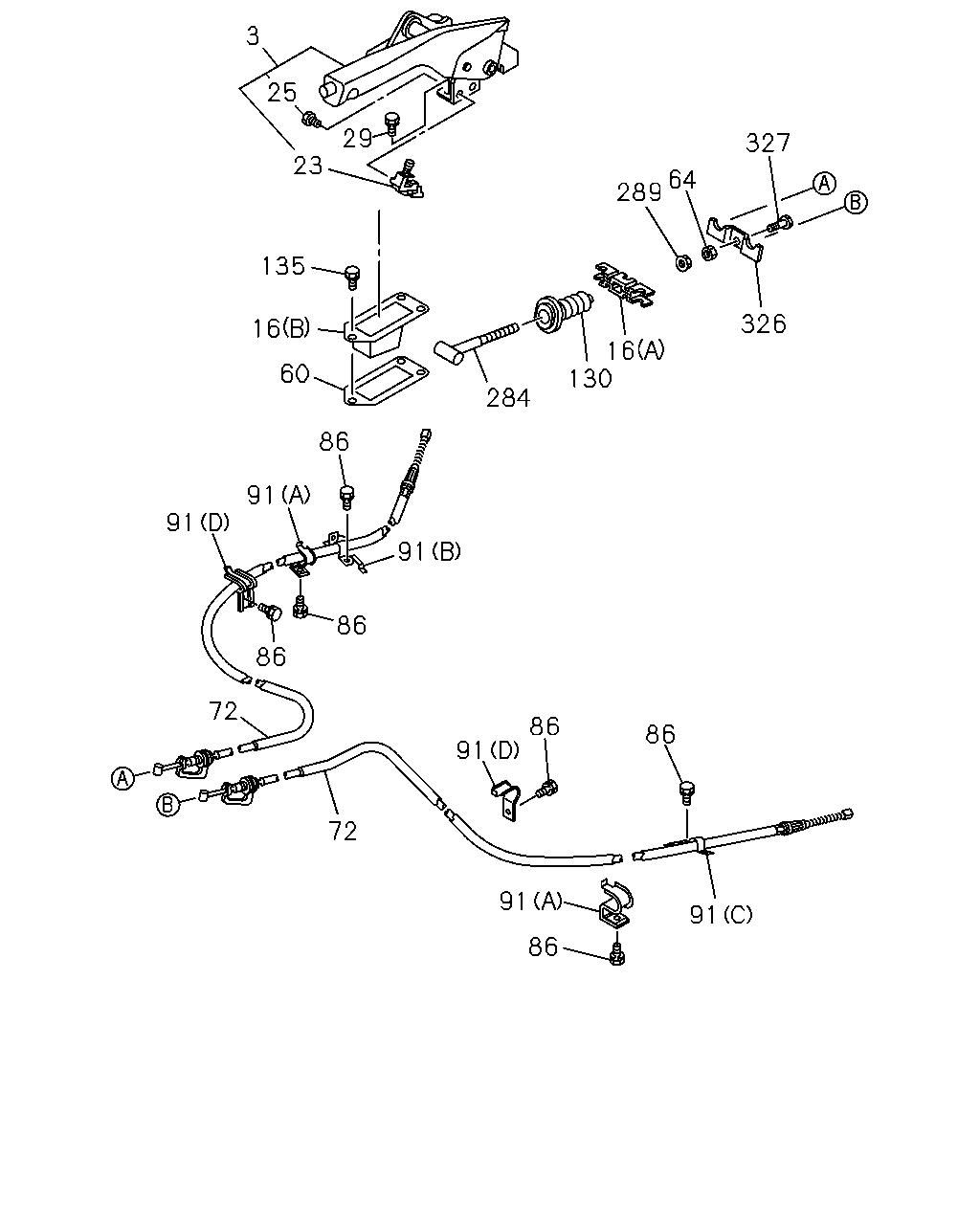

çizim 51199
3 25 29 327 23 64 289 135 326 16 16 130 60 284 86 91 91 91 86 86 72 86 91 86 72 91 91 86
BalonParca AdiParca NoAdetTipApplied Date A B
3 LEVER; PARKING BRK
THA 		8-97940-667-0 01 1 0009- ● ●
16 BRACKET; PARKING BRK
(B) THA 		8-97941-071-0 01 1 0009- ● ●
16 BRACKET; PARKING BRK
(A) THA 		8-97941-074-0 01 1 0009- ● ●
23 SWITCH; PARKING BRK
THA 		8-97941-054-0 01 1 0009- ● ●
25 SCREW; SW,PARKING BRK
THA 		8-97941-055-0 01 1 0009- ● ●
29 BOLT; PARKING BRK LEVER TO BODY
M8X20 FLANGE 		0-28680-820-0 04 1 0009- ● ●
60 GASKET; PARKING BRK
THA 		8-97941-075-0 01 1 0009- ● ●
64 NUT; PARKING BRK
M8 		9-09110-408-0 01 1 0009- ● ●
72 CABLE; PARKING BRK
THA 		8-97917-900-0 01 1 0009- ● ●
72 CABLE; PARKING BRK
THA 		8-97917-899-0 01 1 0009- ● ●
86 BOLT
M6X12 FLANGE 		0-28080-612-0 06 1 0009- ● ●
86 BOLT
M6X20 FLANGE 		0-28480-620-0 04 1 0009- ● ●
86 BOLT
M6X14 W/LK&PL WASHER 		0-50140-614-0 02 1 0009- ● ●
91 CLIP; PARKING BRK CABLE
(A) 		8-94146-602-0 02 1 0009- ● ●
91 CLIP; PARKING BRK CABLE
(D) ID=14 		9-09916-883-0 02 1 0009- ● ●
91 CLIP; PARKING BRK CABLE
(C) 		8-97045-075-0 01 1 0009- ● ●
91 CLIP; PARKING BRK CABLE
(B) 		8-97045-074-0 01 1 0009- ● ●
130 COVER; DUST,PARK BRK LEVER
THA 		8-97941-072-0 01 1 0009- ● ●
135 BOLT; PARKING BRK BRKT
M6X16 W/PL WASHER 		8-94204-636-0 03 1 0009- ● ●
284 ROD; HAND BRK
THA 		8-97941-073-0 01 1 0009- ● ●
289 NUT; PARKING BRK
M8 FLANGE 		0-91150-108-0 01 1 0009- ● ●
326 RETAINER; PARK CABLE 8-97024-708-0 01 1 0009- ● ●
327 BOLT; RETAINER
M8X25 FLANGE 		0-28680-825-0 01 1 0009- ● ●
çizim 52001
328 87 41 41 230 180
BalonParca AdiParca NoAdetTipApplied Date A B
41 NUT; HAND BRK STEM
M8 FLANGE THA 		5-09440-005-0 02 1 0009- ● ●
87 NUT
M8 FLANGE 		0-91150-108-0 04 1 0009- ● ●
180 GASKET; ROLLER BRKT,PARKING BRK
THA 		8-94334-899-1 04 1 0009- ● ●
230 WASHER; PL
ID=8.4 OD=22 		9-09160-708-0 04 1 0009- ● ●
328 PLATE; SEAL 8-97069-885-1 01 1 0009- ● ●
