3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

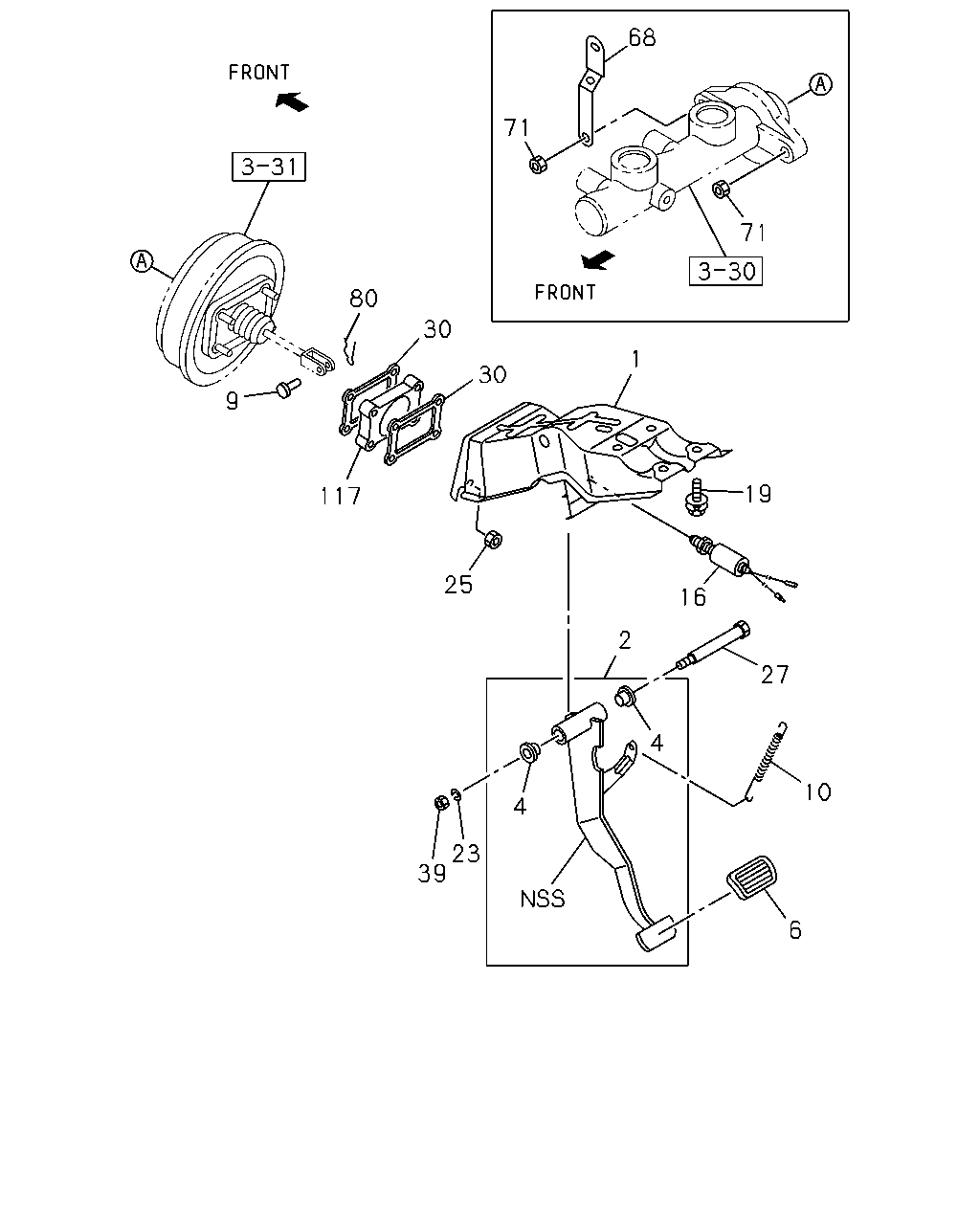

3-10 — BRAKE PEDAL AND CONTROL
(#17268) — 19 parça
68
71
71
80
30
1
30
9
19
117
25
16
2
27
4
10
4
23
39
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
8-97134-254-2
01
1
0009-
2
PEDAL; BRK
A/T AISIN<RMD> THA
8-97100-340-2
01
1
0009-
2
PEDAL; BRK
M/T MUA 5 SPEED<RMN> THA
8-97100-339-2
01
1
0009-
4
BUSHING; BRK PEDAL
THA
8-97914-379-0
02
1
0009-
6
COVER; BRK PEDAL
A/T AISIN<RMD>
5-31413-004-0
01
1
0009-
6
COVER; BRK PEDAL
M/T MUA 5 SPEED<RMN> THA
8-97915-151-0
01
1
0009-
9
PIN; JAW JOINT
8-94250-182-0
01
1
0009-
10
SPRING; RETURN,BRK PEDAL
THA
8-97915-402-0
01
1
0009-
16
SWITCH; STOP LAMP
THA
8-97918-841-0
01
1
0009-
19
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
05
1
0009-
23
WASHER; LK,SHAFT
ID=10.2 THA
9-09150-510-0
01
1
0009-
25
NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE THA
5-09440-005-0
04
1
0009-
27
SHAFT; BRK PEDAL
8-94480-803-0
01
1
0009-
30
GASKET; M/VAC TO BODY
8-94111-590-0
02
1
0009-
39
NUT; STOPPER LK
M10
9-09110-410-0
01
1
0009-
68
BRACKET; SERVO TO DASH PANEL
THA
8-97061-908-0
01
1
0009-
71
NUT; BRK M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
0009-
80
PIN; SNAP,BRK PEDAL
L=27.7
8-94157-841-0
01
1
0009-
117
SPACER; M/VAC TO BODY
8-94126-762-0
01
1
0009-
