Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
3 - Brakes, Brake System
▶

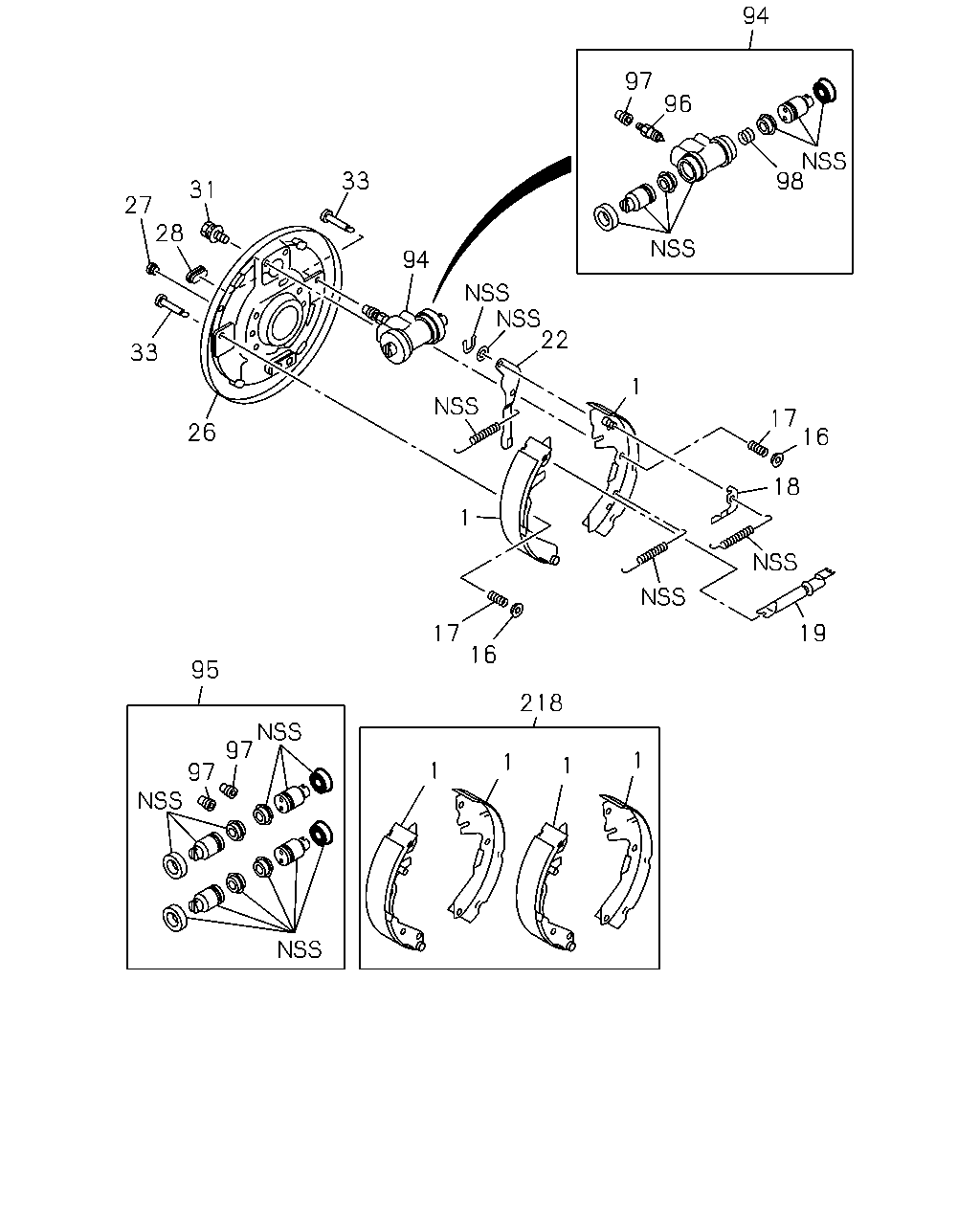

3-05 - REAR WHEEL BRAKE
▶
3-05 — REAR WHEEL BRAKE
(#17267) — 29 parça
19
18
16
17
1
218
16
17
1
22
94
98
94
96
97
33
31
27
33
26
95
97
97
1
1
1
1
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
LEADING
8-97113-220-1
02
1
0009-
1
SHOE; BRK,RR
TRAILING
8-97113-219-1
01
1
0009-
1
SHOE; BRK,RR
TRAILING
8-97113-218-1
01
1
0009-
16
CUP; SHOE HOLDING
9-47162-033-0
04
1
0009-
17
SPRING; SHOE HOLD DOWN
8-94134-106-0
04
1
0009-
18
LEVER; AUTO ADJ
8-94124-866-1
01
1
0009-
18
LEVER; AUTO ADJ
8-94124-865-1
01
1
0009-
19
ADJUSTER; RR BRK
8-94127-078-1
01
1
0009-
19
ADJUSTER; RR BRK
8-94127-077-1
01
1
0009-
22
LEVER; PARKING BRK,WHEEL BRK
8-97127-628-1
01
1
0009-
22
LEVER; PARKING BRK,WHEEL BRK
8-97127-627-1
01
1
0009-
26
PLATE; BACK,RR BRK
8-97113-217-1
01
1
0009-
26
PLATE; BACK,RR BRK
8-97113-216-1
01
1
0009-
27
COVER; CHECK HOLE,DRUM COVER
8-97122-854-0
02
1
0009-
28
COVER; ADJ HOLE
M/T MUA 5 SPEED<RMN> FRT&RR P225/75R15 6JJX15 AL<9LH> THA
5-47169-002-0
02
1
0109-
28
COVER; ADJ HOLE
A/T AISIN<RMD> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> THA
5-47169-002-0
02
1
0109-
28
COVER; ADJ HOLE
A/T AISIN<RMD> FRT&RR P225/75R15 6JJX15 AL<9LH>
8-97123-320-0
02
1
0009-0010
28
COVER; ADJ HOLE
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH>
8-97123-320-0
02
1
0009-0010
28
COVER; ADJ HOLE
8-97123-320-0
02
1
0011-0108
28
COVER; ADJ HOLE
A/T AISIN<RMD> FRT&RR P225/75R15 6JJX15 AL<9LH>
8-97123-320-0
02
1
0109-
28
COVER; ADJ HOLE
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH>
8-97123-320-0
02
1
0109-
31
BOLT; RR WHEEL CYL
M6X10 FLANGE
8-94134-103-0
04
1
0009-
33
PIN; SHOE HOLD DOWN
8-94201-061-0
04
1
0009-
94
CYLINDER; WHEEL,RR BRK
8-97127-616-0
02
1
0009-
95
CUP SET; RR WHEEL CYL
5-87831-543-0
01
1
0009-
96
SCREW; BLEEDER,RR BRK
9-47615-027-0
02
1
0009-
97
CAP; BLEEDER,RR WHEEL CYL
8-94482-339-0
02
1
0009-
98
SPRING; RR WHEEL CYL
8-94230-597-2
02
1
0009-
218
SHOE KIT; BRK,RR
THA
5-87380-092-0
01
1
0204-
