Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

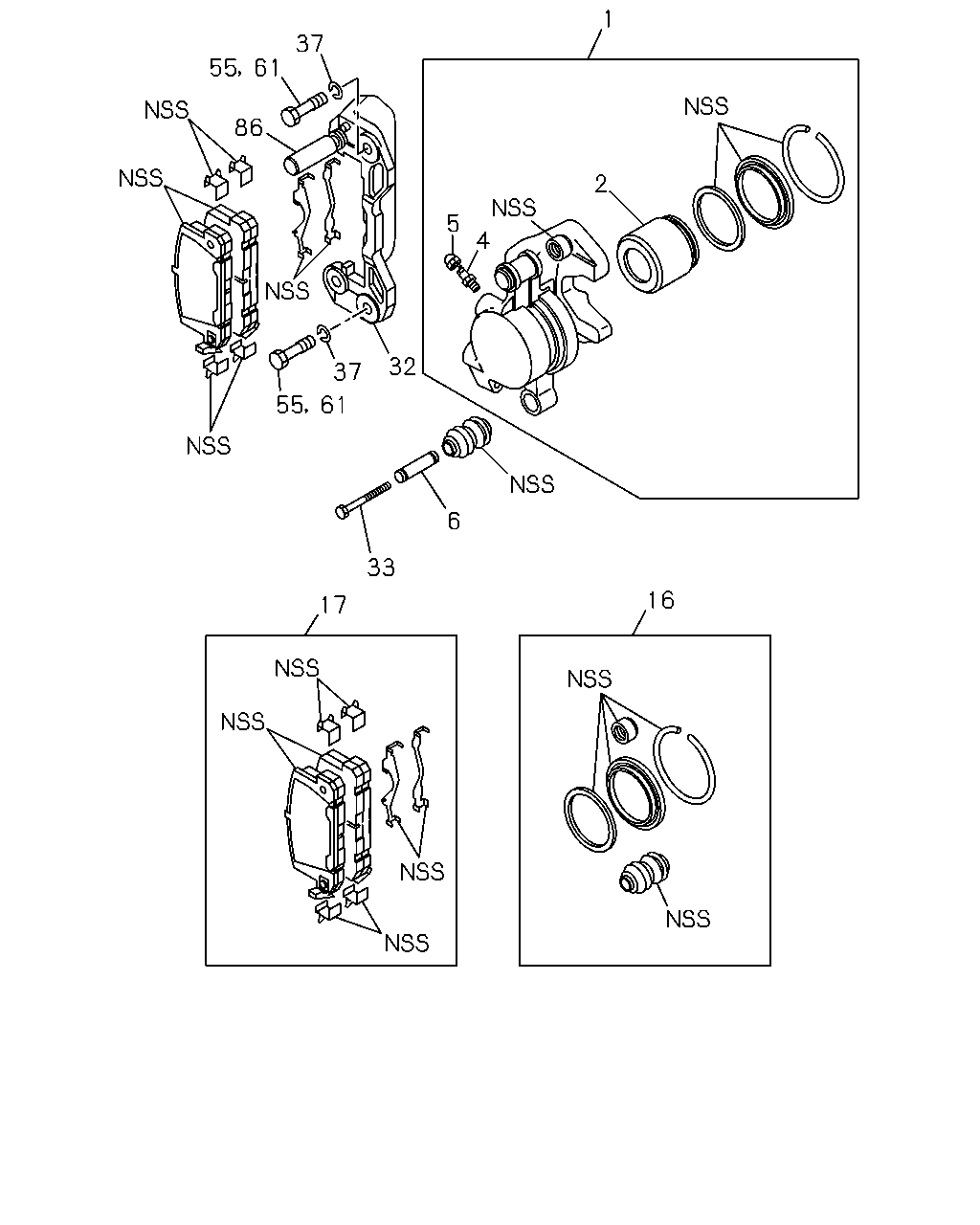

3-02 — FRONT DISC BRAKE CALIPER
(#17266) — 16 parça
1
37
55
61
86
2
5
4
32
37
61
55
6
33
16
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; FRT DISC BRK
IDN
8-97957-005-0
01
1
0009-
1
CALIPER; FRT DISC BRK
IDN
8-97957-004-0
01
1
0009-
2
PISTON; CALIPER,DISC BRK,FRT
8-94438-689-0
04
1
0009-
4
SCREW; BLEEDER,DISC BRK,FRT
THA
8-97113-867-0
04
1
0009-
5
CAP; BLEEDER,DISC BRK,FRT
1-47619-009-0
04
1
0009-
6
SLEEVE; BOOT,CALIPER
8-94136-644-0
02
1
0009-
16
REPAIR KIT; CALIPER,DISC BRK,FRT
THA
8-97134-715-0
01
1
0009-
17
PAD KIT; CALIPER,DISC BRK,FRT
IDN
8-97956-925-0
01
1
0009-
32
SUPPORT; FRT DISC BRK
IDN
8-97956-918-0
02
1
0009-
33
BOLT; SUPPORT BRKT TO DISC BRK
M10X59.5
8-94438-712-0
02
1
0009-
37
WASHER; LK
ID=14.2
9-09150-814-0
04
1
0009-
55
BOLT; SUPPORT BRKT TO DISC BRK
M14X29 THA
8-97126-347-0
02
1
0009-0201
55
BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97327-422-0
02
1
0202-
61
BOLT; SUPPORT BRKT TO KNUCKLE
M14X29 THA
8-97126-347-0
02
1
0009-0201
61
BOLT; SUPPORT BRKT TO KNUCKLE
M14X29
8-97327-422-0
02
1
0202-
86
PIN; GUIDE
8-94438-694-0
02
1
0009-
