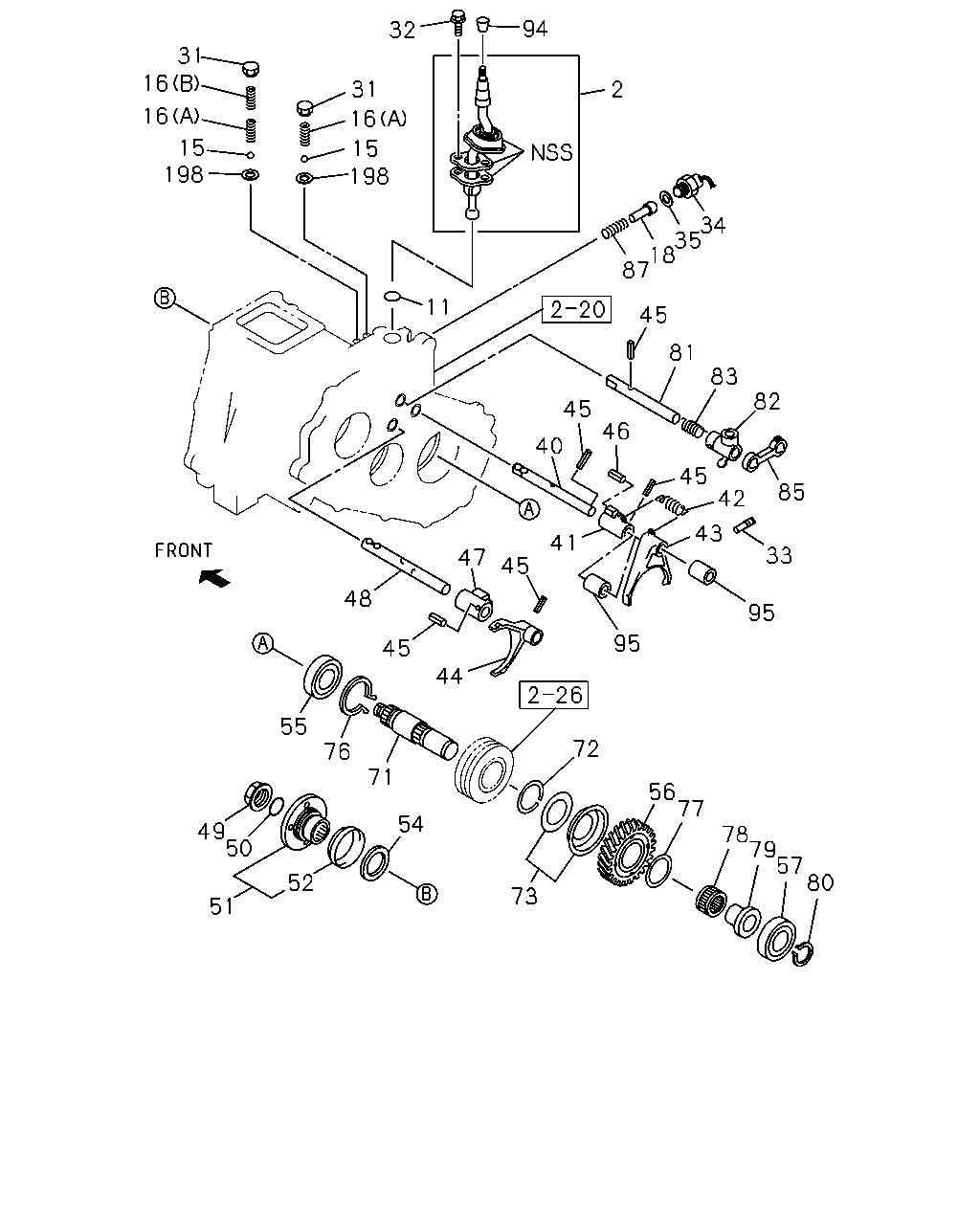

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#17263) — 57 parça

195 195

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	195	HOSE; AIR A/T AISIN<RMD>	8-97173-553-0	01	1	0009-
	195	HOSE; AIR M/T MUA 5 SPEED<RMN>	8-97172-683-0	01	1	0009-

94 32 31 16 16 15 198 31 16 15 198 2 34 35 18 87 11 45 81 83 82 45 46 40 45 42 43 85 41 33 47 45 48 95 95 45 44 55 72 76 71 56 77 54 49 50 78 79 57 80 52 73 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LEVER ASM; CHANGE,TRANSFER A/T AISIN<RMD>	8-97228-917-2	01	1	0009-
2	LEVER ASM; CHANGE,TRANSFER M/T MUA 5 SPEED<RMN>	8-97217-562-3	01	1	0009-
11	GASKET; CHANGE LEVER M/T MUA 5 SPEED<RMN> ID=33.2	1-09623-378-0	01	1	0009-
15	BALL; DETENT,SHIFT ROD,TRANSFER	8-94435-335-0	02	1	0009-
16	SPRING; DETENT,SHIFT ROD,TRANSFER (A) L=26.8	8-94320-193-0	02	1	0009-
16	SPRING; DETENT,SHIFT ROD,TRANSFER (B) L=23.2 THA	8-97241-351-0	01	1	0009-
18	PIN; INTER LOCK,SHIFT ROD,TRANSFER	8-94461-898-0	01	1	0009-
31	PLUG; DETENT BALL,TRANSFER M12X9	9-99202-312-0	02	1	0009-
32	BOLT; CHANGE LEVER TO SIDE CASE M8X16 FLANGE	0-28080-816-0	02	1	0009-
33	SCREW; STOPPER,TRANSFER A/T AISIN<RMD> M6X18	8-94448-812-2	01	1	0009-0302
33	SCREW; STOPPER,TRANSFER M6X18	8-94448-812-2	01	1	0303-
34	SWITCH; TRANSFER INDICATOR	8-97138-632-1	01	1	0009-
35	GASKET; INDICATOR SWITCH,TRANSFER ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0009-
40	ROD; SHIFT,4X2-4X4,TRANSFER	8-97070-675-2	01	1	0009-
41	BLOCK; SHIFT,4X2-4X4,TRANSFER	8-97033-094-2	01	1	0009-
42	SPRING; GEAR LOCK RELEASE,TRANSFER L=30	8-94422-188-0	01	1	0009-
43	ARM; SHIFT,4X2-4X4,TRANSFER	8-97100-915-2	01	1	0009-
44	ARM; SHIFT,HIGH-LOW,TRANSFER	8-94421-922-3	01	1	0009-
45	PIN; SPR,SHIFT ARM TO ROD D=4.2 L=25	8-94171-541-0	06	1	0009-
46	PIN; SPR,SELECT LEVER	8-94448-816-1	01	1	0009-
47	BLOCK; SHIFT,LOW-HIGH,TRANSFER	8-97141-883-1	01	1	0009-
48	ROD; SHIFT,HIGH-LOW,TRANSFER	8-97182-406-1	01	1	0009-
49	NUT; COUPLING DRIVER,FRT OUTPUT M27 FLANGE	8-94422-073-0	01	1	0009-
50	GASKET; COUPLING DRIVER,FRT OUTPUT ID=29.7 OD=36.1	8-94483-035-0	01	1	0009-
51	FLANGE ASM; COUPLING DRIVER,TRANSFER	8-94453-699-7	01	1	0009-
52	COVER; DUST,TRANSFER FLANGE	8-94320-867-3	01	1	0009-
54	SEAL; OIL,TRANSFER FLANGE TKK	8-97046-702-0	01	1	0009-0010
54	SEAL; OIL,TRANSFER FLANGE NOK	8-97046-703-2	01	1	0009-
55	BEARING; BALL,TRANSFER FLANGE,FRT SIDE NSK	8-94422-172-1	01	1	0009-
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=49	8-97126-101-1	01	1	0009-
57	BEARING; BALL,TRANSFER FLANGE,RR SIDE NSK	8-94422-052-0	01	1	0009-
71	SHAFT; TRANSFER OUTPUT	8-94377-437-5	01	1	0009-
72	RING; SNAP,ANTI LASH PLATE,FRT OUTPUT M/T MUA 5 SPEED<RMN>	8-94482-501-0	01	1	0009-
73	PLATE ASM; ANTI LASH,TRANSFER GEAR M/T MUA 5 SPEED<RMN>	8-97164-346-0	01	1	0009-
76	RING; SNAP,BRG OUTER,TRANSFER OD=77.0	8-94422-092-0	01	1	0009-
77	SPRING; BELLEVILLE,ANTI LASH PLATE M/T MUA 5 SPEED<RMN>	8-94482-499-0	01	1	0009-
78	BEARING; FRT OUTPUT GEAR,TRANSFER NSK	8-94422-064-0	01	1	0009-
78	BEARING; FRT OUTPUT GEAR,TRANSFER JTEKT	8-94422-065-1	01	1	0009-
79	COLLAR; FRT OUTPUT GEAR,TRANSFER	8-94422-076-1	01	1	0009-
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.55 WHITE	8-94422-180-0	01	1	0009-
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.60 YELLOW	8-94422-181-0	01	1	0009-
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.65 BLUE	8-94422-182-0	01	1	0009-
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.70 PINK	8-94422-183-0	01	1	0009-
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.75 GREEN	8-94422-184-0	01	1	0009-
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.80 BROWN	8-94422-185-0	01	1	0009-
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.85 RED	8-94422-186-0	01	1	0009-
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.90 ORANGE	8-94422-187-0	01	1	0009-
81	ROD; TRANSFER SELECT	8-94370-499-2	01	1	0009-
82	BLOCK; TRANSFER	8-97033-092-1	01	1	0009-
83	SPRING; SELECT	8-94462-235-0	01	1	0009-
85	BRIDGE; CONT ROD,TRANSFER	8-97128-522-0	01	1	0009-
87	SPRING; INTER LOCK,TRANSFER	8-94461-897-0	01	1	0009-
94	KNOB; TRANSFER LEVER BLACK	8-94453-161-1	01	1	0009-
95	BUSHING	8-97103-115-0	02	1	0009-
198	GASKET; PLUG,DETENT ID=12.2	1-09630-084-0	02	1	0009-
