Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-61 - TRANSFER CASE AND GEAR SHIFTER
▶

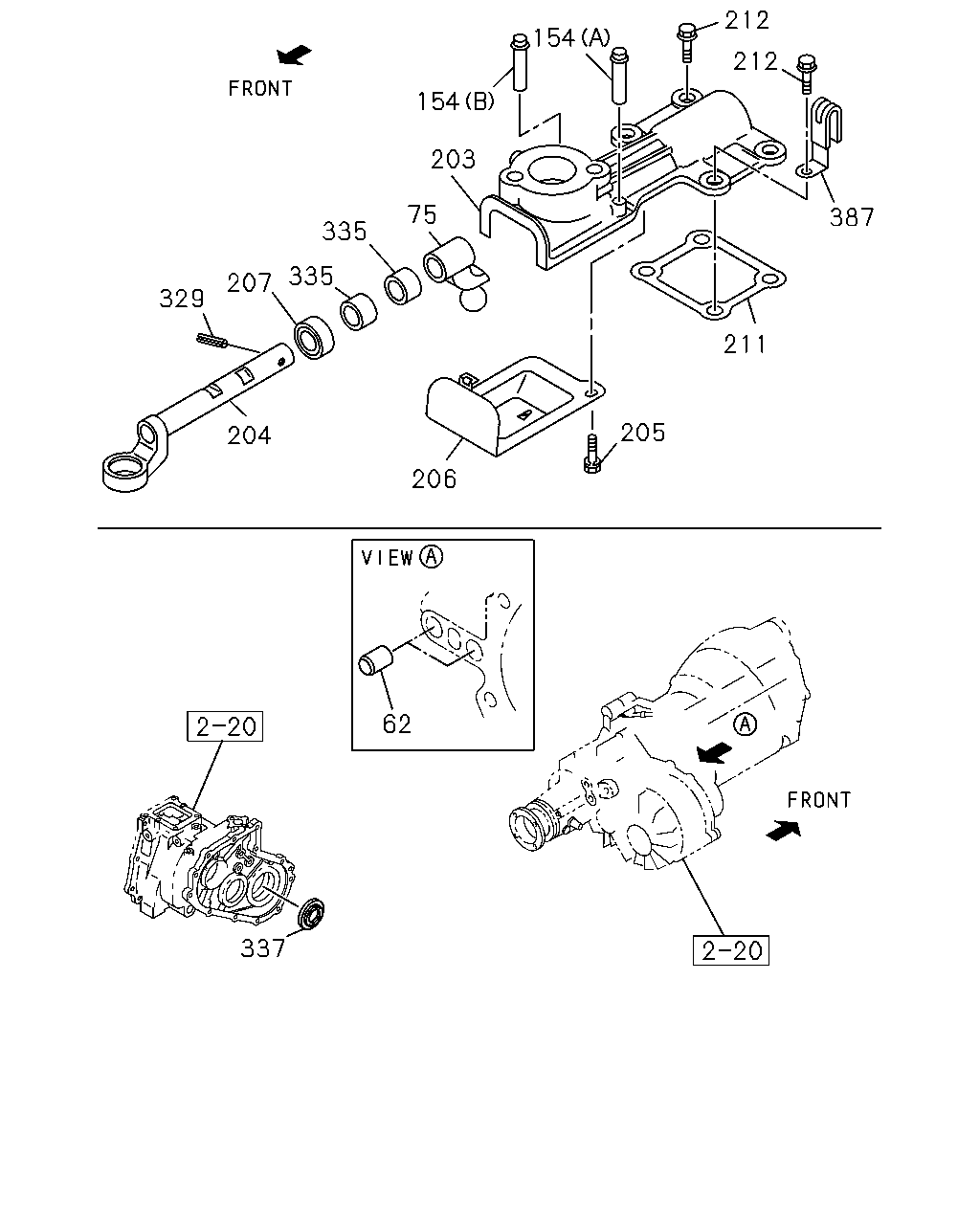

2-61 — TRANSFER CASE AND GEAR SHIFTER
(#17262) — 15 parça
212
154
212
154
203
75
387
335
207
335
329
211
205
204
206
62
337
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
CAP; SHIFT ROD
A/T AISIN<RMD>
8-97221-078-0
02
1
0009-
75
LEVER ASM; L-H CONT,INTERNAL
A/T AISIN<RMD>
8-94367-929-2
01
1
0009-
154
PIPE; BREATHER
A/T AISIN<RMD> (A)
8-97173-544-0
01
1
0009-
154
PIPE; BREATHER
A/T AISIN<RMD> (B)
8-97173-545-0
01
1
0009-
203
BOX; TRANSFER CONT
A/T AISIN<RMD>
8-97173-546-1
01
1
0009-
204
ROD; SHIFT,TRANSFER CONT
A/T AISIN<RMD>
8-97176-249-2
01
1
0009-
205
BOLT; DUST COVER,CONT BOX,TRANSFER
A/T AISIN<RMD> M6X8
9-03490-608-0
01
1
0009-
206
COVER; DUST,CONT BOX,TRANSFER
A/T AISIN<RMD>
8-97106-784-1
01
1
0009-
207
SEAL; OIL,INTERNAL SHIFT ROD,TRANSFER
A/T AISIN<RMD>
8-94221-533-1
01
1
0009-
211
GASKET; CONT BOX,TRANSFER
A/T AISIN<RMD>
8-94368-327-0
01
1
0009-
212
BOLT; CONT BOX,TRANSFER
A/T AISIN<RMD> M8X25 FLANGE
0-28680-825-0
04
1
0009-
329
PIN; SPRING,SHIFT ROD
A/T AISIN<RMD> OD=5.4
9-09678-510-0
01
1
0009-
335
BUSHING
A/T AISIN<RMD>
8-94388-205-1
02
1
0009-
337
PLATE; LOCK
M/T MUA 5 SPEED<RMN>
8-97102-940-0
01
1
0009-
387
CLAMP; HOSE
A/T AISIN<RMD>
5-09700-359-0
02
1
0009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
