Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶

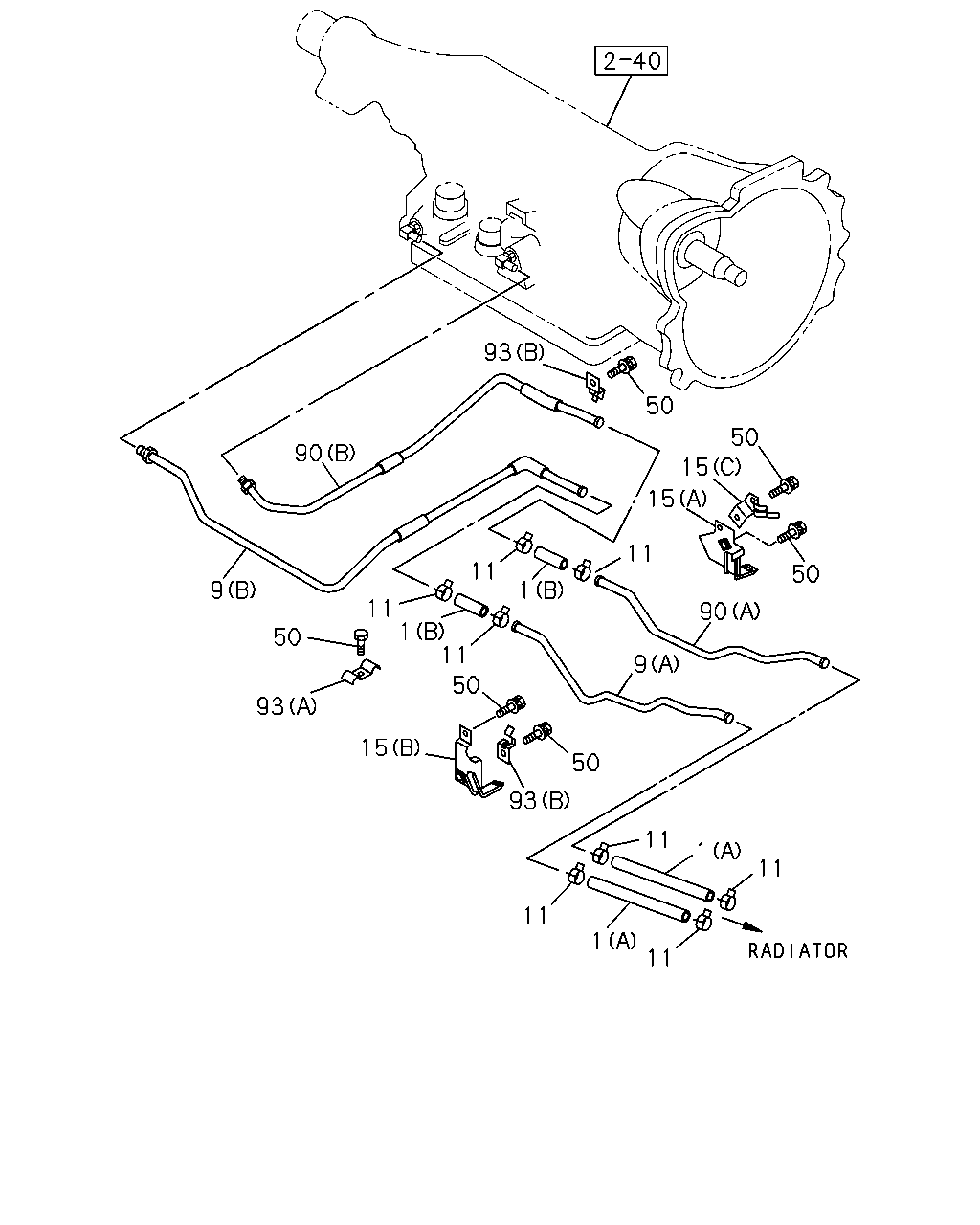

2-53 - TRANSMISSION OIL COOLER SYSTEM
▶
2-53 — TRANSMISSION OIL COOLER SYSTEM
(#17258) — 14 parça
93
50
50
15
15
50
90
11
11
9
1
11
1
11
50
90
50
9
93
15
50
93
11
1
11
11
1
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
(B) L=96
8-97019-868-1
02
1
0009-
1
HOSE; ATF
(A) L=250
8-97089-701-0
02
1
0009-
9
PIPE; ATF,INL,A/T
(A) THA
8-97910-314-1
01
1
0009-
9
PIPE; ATF,INL,A/T
(B) THA
8-97920-779-1
01
1
0009-
11
CLIP; PIPE
ID=14
8-97173-221-0
08
1
0009-
15
BRACKET; ATF PIPE
(C)
8-97245-953-0
01
1
0009-
15
BRACKET; ATF PIPE
(B) THA
8-97919-976-1
01
1
0009-
15
BRACKET; ATF PIPE
(A) THA
8-97919-977-2
01
1
0009-
50
BOLT; CLIP
M6X16 FLANGE
0-28080-616-0
02
1
0009-
50
BOLT; CLIP
M8X16 W/LK WASHER
0-50040-816-0
04
1
0009-
90
PIPE ASM; ATF
(A)
8-97065-885-1
01
1
0009-
90
PIPE ASM; ATF
(B)
8-97092-861-0
01
1
0009-
93
CLIP; BRKT
(A) THA
8-94334-345-1
01
1
0009-
93
CLIP; BRKT
(B)
8-97062-040-0
02
1
0009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
