2-49 — AUTO TRANS INHIBITOR SWITCH (#17256) — 31 parça

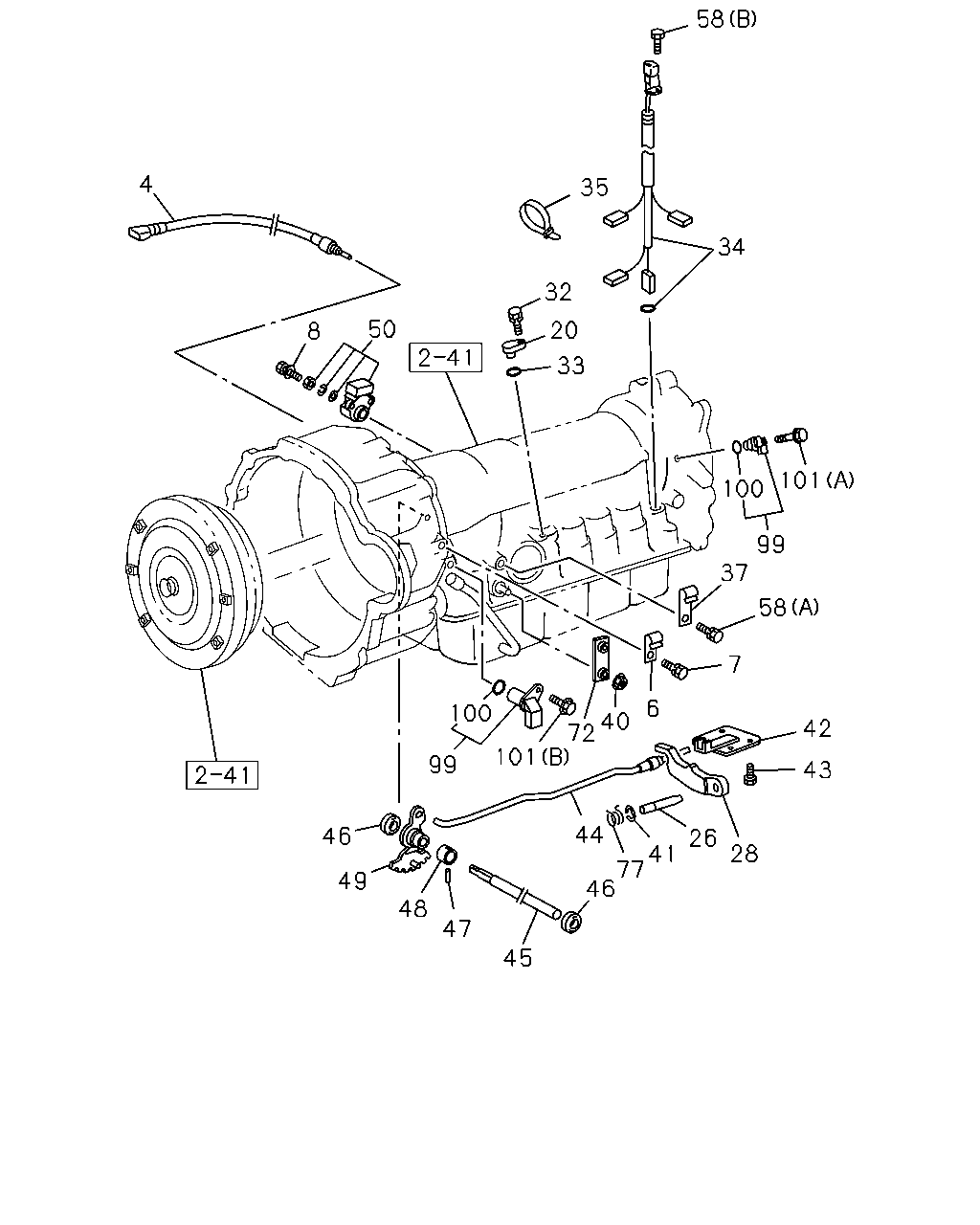

çizim 11628
58 4 35 34 32 50 20 33 8 101 100 99 37 58 7 6 100 40 72 101 42 99 43 44 26 41 28 77 46 46 49 48 47 45
BalonParca AdiParca NoAdetTipApplied Date
4 SENSOR; THERMO,A/T OIL 8-97126-810-0 01 1 0009-
6 CLAMP; WIRING HARNESS,A/T 8-97069-460-0 01 1 0009-
7 BOLT; CLAMP,WIRING HARNESS
M6X10 		8-94252-680-0 01 1 0009-
8 BOLT; NEUTRAL START SW,A/T
M8X30 		8-97130-929-0 01 1 0009-
20 PIN; SNAP,PARKING ROD,A/T 8-97232-067-0 01 1 0009-
26 SHAFT; PARKING PAWL,A/T 8-94479-975-0 01 1 0009-
28 PAWL; PARKING,A/T 8-97143-087-0 01 1 0009-
32 BOLT; THROTTLE CABLE
M6X16 		8-94479-712-0 01 1 0009-
33 GASKET; THROTTLE CABLE 8-94364-922-0 01 1 0009-
34 SOLENOID ASM; A/T 8-97232-108-0 01 1 0009-
35 CLAMP; THROTTLE CABLE 8-94473-565-0 01 1 0009-
37 CLAMP; SOLENOID,A/T 8-97213-023-0 01 1 0009-
40 NUT; LEVER TO SHAFT
M8 FLANGE 		0-91150-108-0 02 1 0009-
41 RETAINER; SPR,SHAFT 5-34488-002-0 01 1 0009-
42 BRACKET; PARKING LOCK 8-97126-815-0 01 1 0009-
43 BOLT; BRKT
M6X14 		8-94479-978-0 03 1 0009-
44 ROD ASM; PARKING PAWL 8-97126-814-0 01 1 0009-
45 SHAFT; VALVE LEVER 8-97025-848-0 01 1 0009-
46 SEAL; OIL
OD=22 		8-94479-740-0 02 1 0009-
47 PIN; ROLL SHAFT
D=4 		8-94257-081-0 01 1 0009-
48 COVER; SLEEVE 8-94479-761-0 01 1 0009-
49 LEVER ASM; CAM 8-94479-760-0 01 1 0009-
50 SWITCH; NEUTRAL,A/T 8-97207-138-0 01 1 0009-
58 BOLT; SOLENOID TO A/T
(A) 		8-94364-906-0 01 1 0009-
58 BOLT; SOLENOID TO A/T
(B) M6X16 		8-94479-712-0 01 1 0009-
72 LEVER; SELECT CONT 8-97228-890-0 01 1 0009-
77 SPRING; TORSION,PARKING BRK LK,A/T 8-94479-976-0 01 1 0009-
99 SENSOR; SPD 8-97027-383-0 02 1 0009-
100 GASKET; SPD SENSOR 8-97027-197-0 02 1 0009-
101 BOLT; SPD SENSOR
(A) M6X16 		8-94479-712-0 01 1 0009-
101 BOLT; SPD SENSOR
(B) M6X14 		8-94479-978-0 01 1 0009-
