2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#17255) — 66 parça

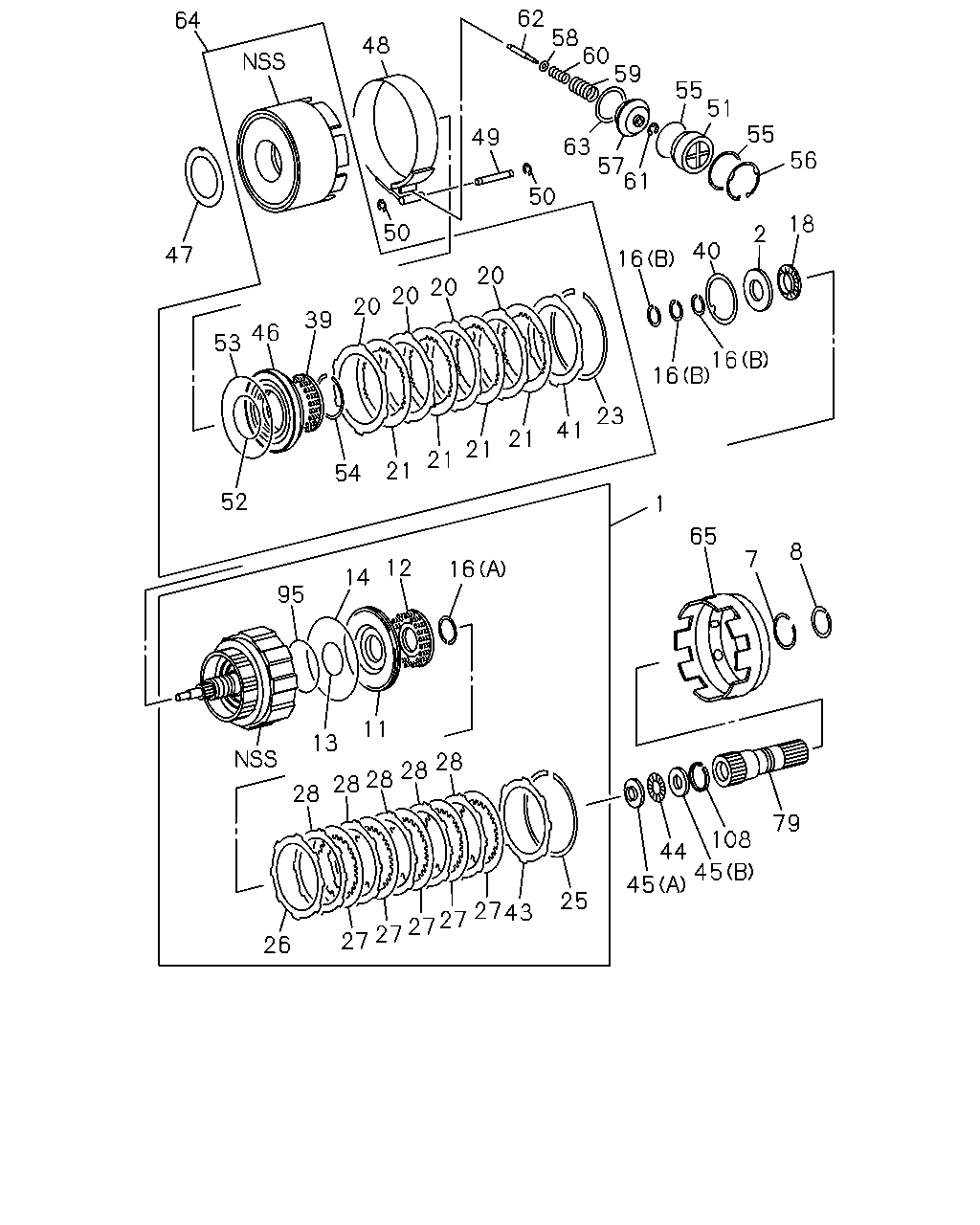

çizim 11012
62 58 60 59 64 48 55 51 55 49 63 57 61 56 50 50 18 2 40 47 16 20 20 20 20 39 46 53 16 16 23 41 21 21 21 21 54 52 1 65 8 7 12 16 14 95 11 13 28 28 28 28 28 79 108 44 45 45 25 27 43 27 27 27 27 26
BalonParca AdiParca NoAdetTipApplied Date
1 HUB ASM; CLU,INPUT SHAFT,A/T 8-97184-340-0 01 1 0009-
2 RACE; THRUST BRG,A/T 8-94479-763-0 01 1 0009-
7 RING; RET,PLANETARY GEAR,A/T 8-94479-844-0 01 1 0009-
8 RING; SEAL,PLANETARY GEAR,A/T 8-94166-003-0 01 1 0009-
11 PISTON ASM; CLU,A/T 8-97025-836-0 01 1 0009-
12 SPRING; CLU RETURN,A/T 8-94479-770-0 01 1 0009-
13 GASKET; INNER,CLU,A/T 8-94364-919-0 01 1 0009-
14 GASKET; OUTER,CLU,A/T 8-94364-920-0 01 1 0009-
16 RING; SNAP,CLU,A/T
(A) 		8-94479-769-0 01 1 0009-
16 RING; SNAP,CLU,A/T
(B) 		8-94479-775-0 03 1 0009-
18 BEARING; THRUST,CLU,A/T 8-94479-764-0 01 1 0009-
20 DISC; CLU,A/T 8-97214-543-0 04 1 0009-
21 DISC ASM; CLU & FACING,A/T 8-97214-544-0 04 1 0009-
23 RING; RET,CLU,A/T 8-97214-553-0 01 1 0009-
25 RING; RET,BACKING PLATE,A/T 8-94250-342-0 01 1 0009-
26 PLATE; CLU,BACKING,A/T 8-94479-772-0 01 1 0009-
27 DISC ASM; CLU & FACING,A/T 8-97143-083-0 05 1 0009-
28 DISC; CLU,A/T
STD 		8-97025-838-0 05 1 0009-
28 DISC; CLU,A/T
OPT 		8-97184-342-0 05 1 0009-
39 SPRING; DIRECT CLU RETURN 8-97019-543-0 01 1 0009-
40 WASHER; THRUST,CLU DRUM,INPUT SHAFT 8-94479-796-0 01 1 0009-
41 FLANGE; DIRECT CLU
T=3.9 		8-97214-551-0 01 1 0009-
41 FLANGE; DIRECT CLU
T=4.0 		8-97214-552-0 01 1 0009-
41 FLANGE; DIRECT CLU
T=4.1 		8-97288-906-0 01 1 0009-
41 FLANGE; DIRECT CLU
T=4.2 		8-97288-907-0 01 1 0009-
41 FLANGE; DIRECT CLU
T=3.3 		8-97288-908-0 01 1 0009-
41 FLANGE; DIRECT CLU
T=3.4 		8-97288-909-0 01 1 0009-
41 FLANGE; DIRECT CLU
T=3.5 		8-97288-910-0 01 1 0009-
41 FLANGE; DIRECT CLU
T=3.6 		8-97288-911-0 01 1 0009-
41 FLANGE; DIRECT CLU
T=3.7 		8-97288-912-0 01 1 0009-
41 FLANGE; DIRECT CLU
T=3.8 		8-97288-913-0 01 1 0009-
43 FLANGE; FWD CLU
T=3.0 		8-97025-841-0 01 1 0009-
43 FLANGE; FWD CLU
T=4.2 		8-97025-843-0 01 1 0009-
43 FLANGE; FWD CLU
T=4.4 		8-97025-844-0 01 1 0009-
43 FLANGE; FWD CLU
T=3.6 		8-97232-043-0 01 1 0009-
43 FLANGE; FWD CLU
T=3.8 		8-97232-044-0 01 1 0009-
43 FLANGE; FWD CLU
T=4.0 		8-97232-045-0 01 1 0009-
43 FLANGE; FWD CLU
T=3.2 		8-97232-046-0 01 1 0009-
43 FLANGE; FWD CLU
T=3.4 		8-97232-047-0 01 1 0009-
44 BEARING; THRUST,INPUT SHAFT RR 8-94479-778-0 01 1 0009-
45 RACE; THRUST BRG,INPUT SHAFT
(A) 		8-94479-776-0 01 1 0009-
45 RACE; THRUST BRG,INPUT SHAFT
(B) 		8-94479-777-0 01 1 0009-
46 PISTON; DIRECT CLU,A/T 8-94364-921-0 01 1 0009-
47 WASHER; THRUST,DIRECT CLU DRUM 8-94479-779-0 01 1 0009-
48 BAND; 2ND COAST BRK 8-97143-086-0 01 1 0009-
49 PIN; 2ND COAST BRK BAND 8-94479-825-0 01 1 0009-
50 RING; SNAP,2ND COAST BRK BAND,A/T 8-94479-818-0 02 1 0009-
51 COVER; 2ND COAST BRK,A/T 8-94479-822-0 01 1 0009-
52 GASKET; PISTON INNER,DIRECT CLU,A/T 8-97184-321-0 01 1 0009-
53 GASKET; PISTON OUTER,DIRECT CLU,A/T 8-94364-920-0 01 1 0009-
54 RING; SNAP,PISTON RETURN SPRING 8-94479-783-0 01 1 0009-
55 GASKET; COVER,2ND COAST BRK,A/T 8-94479-824-0 02 1 0009-
56 RING; SNAP,2ND COAST BRK COVER,A/T 8-97069-458-0 01 1 0009-
57 PISTON; 2ND COAST BRK,A/T 8-97143-132-0 01 1 0009-
58 WASHER; 2ND COAST BRK PISTON,A/T 8-94479-817-0 01 1 0009-
59 SPRING; OUTER,2ND COAST BRK PISTON 8-94479-812-0 01 1 0009-
60 SPRING; INNER,2ND COAST BRK PISTON 8-94479-815-0 01 1 0009-
61 RING; SNAP,2ND COAST BRK 8-94479-818-0 01 1 0009-
62 ROD; 2ND COAST BRK PISTON
L=71.4 		8-94479-816-0 01 1 0009-
62 ROD; 2ND COAST BRK PISTON
L=72.9 		8-94479-820-0 01 1 0009-
63 RING; SEAL,2ND COAST BRK PISTON 8-94479-813-0 01 1 0009-
64 DRUM ASM; DIRECT CLU,A/T 8-97288-905-0 01 1 0009-
65 DRUM; SUN GEAR INPUT 8-97024-255-0 01 1 0009-
79 GEAR ASM; INPUT SUN 8-94479-846-0 01 1 0009-
95 GASKET; CLU HUB 8-97122-978-0 01 1 0009-
108 RING; SNAP,SUN GEAR 8-94479-845-0 01 1 0009-
