2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#17254) — 26 parça

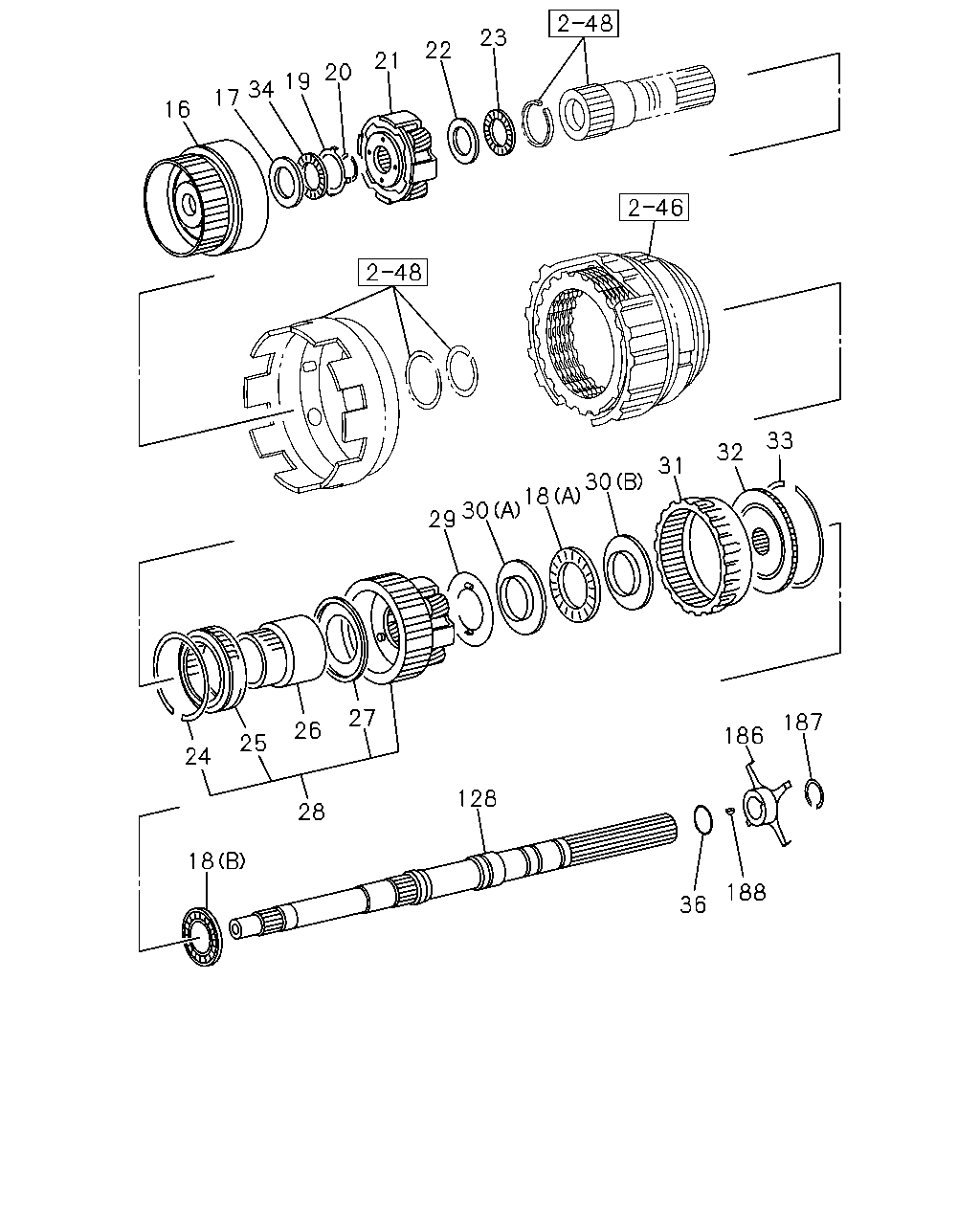

çizim 50413
23 22 21 20 19 34 17 16 33 32 31 30 18 30 29 27 187 26 186 25 24 128 28 18 188 36
BalonParca AdiParca NoAdetTipApplied Date
16 GEAR ASM; FRT PLANETARY,A/T 8-97143-082-0 01 1 0009-
17 RACE; THRUST BRG,PLANETARY SHAFT,A/T 8-94479-836-0 01 1 0009-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(A) 		8-94479-847-0 01 1 0009-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(B) 		8-97249-735-0 01 1 0009-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T 8-94479-837-0 01 1 0009-
20 RING; RET,PLANETARY GEAR,A/T 8-94479-842-0 01 1 0009-
21 GEAR; PLANETARY,INTERNAL FRT,A/T 8-94479-839-0 01 1 0009-
22 RACE; THRUST BRG,FRT PLANETARY SHAFT,A 8-94479-840-0 01 1 0009-
23 BEARING; THRUST,PLANETARY SHAFT,A/T 8-94479-841-0 01 1 0009-
24 RING; RET,FRT PLANETARY,A/T 8-97143-129-0 01 1 0009-
25 CLUTCH ASM; ONEWAY,FRT PLANETARY,A/T 8-94364-924-0 01 1 0009-
26 RACE; ONEWAY CLU,A/T 8-97019-542-0 01 1 0009-
27 WASHER; THRUST,FRT PLANETARY,A/T 8-94313-577-0 01 1 0009-
28 GEAR ASM; RR PLANETARY,A/T 8-97232-050-0 01 1 0009-
29 WASHER; THRUST,FRT PLANETARY,A/T 8-94479-851-0 01 1 0009-
30 RACE; THRUST BRG,RR PLANETARY FLANGE
(A) 		8-94479-848-0 01 1 0009-
30 RACE; THRUST BRG,RR PLANETARY FLANGE
(B) 		8-94479-849-0 01 1 0009-
31 GEAR ASM; INTERNAL,PLANETARY,A/T 8-94479-854-0 01 1 0009-
32 FLANGE; RING GEAR,RR PLANETARY,A/T 8-94479-852-0 01 1 0009-
33 RING; RET,PLANETARY GEAR,A/T 8-94479-853-0 01 1 0009-
34 BEARING; THRUST,FRT PLANETARY SHAFT,A/ 8-94479-838-0 01 1 0009-
36 RING; SEALING,FRT PLANETARY SHAFT,A/T 8-94479-902-0 01 1 0009-
128 SHAFT; OUTPUT,A/T 8-97069-456-0 01 1 0009-
186 ROTOR; SPEED SENSOR 8-97069-450-0 01 1 0009-
187 RING; SNAP,ROTOR,SPEED SENSOR 8-94479-905-0 01 1 0009-
188 KEY; SPEED SENSOR ROTOR 8-94479-904-0 01 1 0009-
