2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#17253) — 36 parça

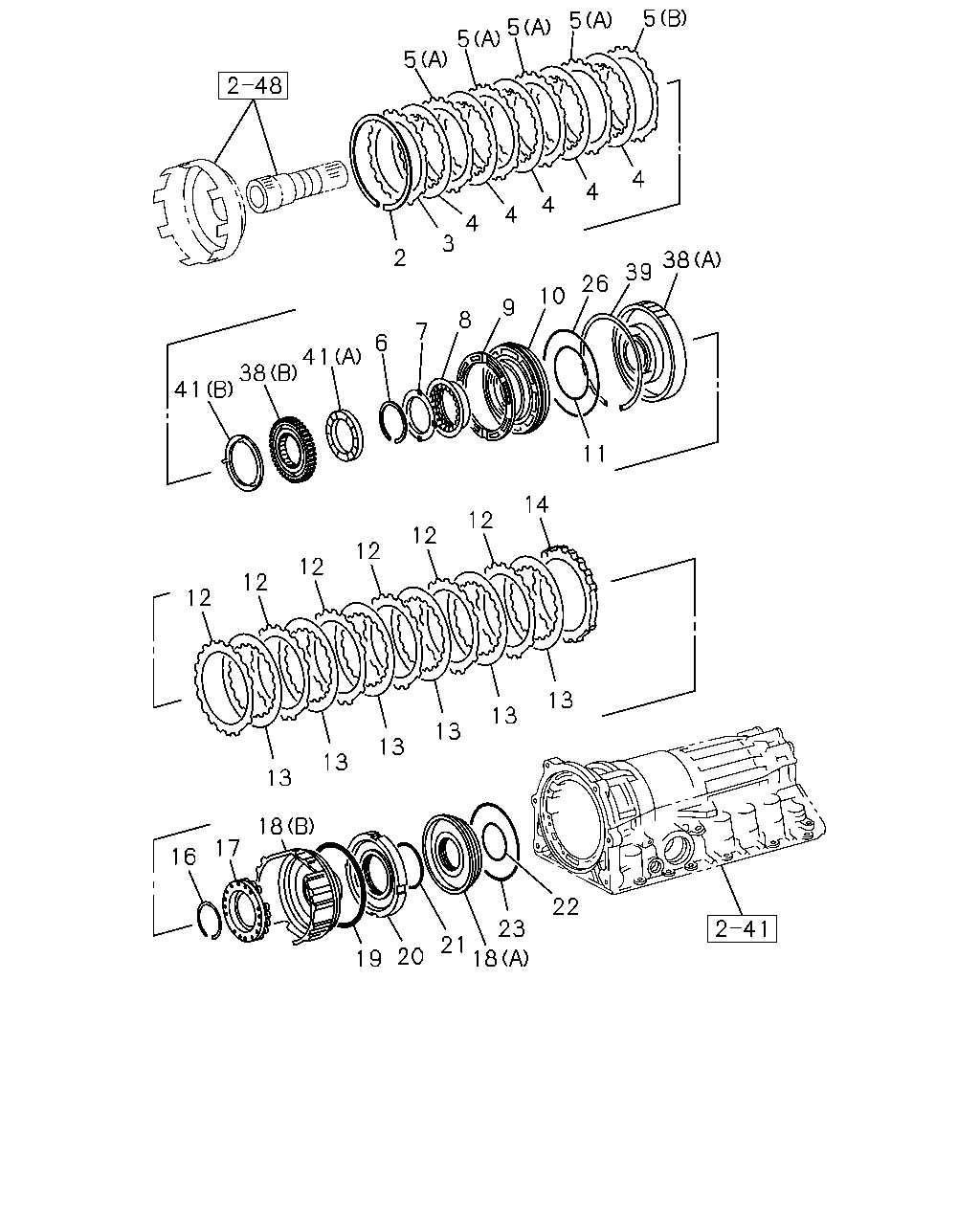

çizim 12005
5 5 5 5 5 4 4 4 4 4 3 2 38 39 26 10 9 8 7 6 41 38 41 11 14 12 12 12 12 12 12 13 13 13 13 13 13 18 22 17 16 23 21 18 19 20
BalonParca AdiParca NoAdetTipApplied Date
2 RING; RET,FRT BRK,2ND BRK,A/T 8-94479-795-0 01 1 0009-
3 PLATE; CLU BACKING,2ND BRK,A/T 8-94479-806-0 01 1 0009-
4 DISC ASM; CLU & FACING,2ND BRK,A/T 8-97143-081-0 05 1 0009-
5 DISC; CLU,2ND BRK,A/T
(A) 		8-94479-807-0 04 1 0009-
5 DISC; CLU,2ND BRK,A/T
(B) 		8-97025-835-0 01 1 0009-
6 RING; SNAP,FRT BRK,A/T 8-94479-804-0 01 1 0009-
7 RETAINER; BRK,RETURN SPR,FRT BRK,A/T 8-94479-803-0 01 1 0009-
8 SPRING; RETURN,FRT BRK,A/T 8-94479-805-0 01 1 0009-
9 SLEEVE; 2ND BRK PISTON 8-97025-834-0 01 1 0009-
10 PISTON; BRK,FRT,2ND BRK,A/T 8-94479-799-0 01 1 0009-
11 GASKET; BRK PISTON,FRT,INNER,A/T
ID=85 		8-94479-800-0 01 1 0009-
12 PLATE; CLU,LOW & REV BRK,A/T 8-94479-832-0 06 1 0009-
13 DISC; CLU,LOW & REV BRK 8-97232-040-0 06 1 0009-
14 FLANGE; BRK,LOW & REV BRAKE
T=5.0 		8-97019-534-0 01 1 0009-
14 FLANGE; BRK,LOW & REV BRAKE
T=4.8 		8-97019-535-0 01 1 0009-
14 FLANGE; BRK,LOW & REV BRAKE
T=4.6 		8-97019-536-0 01 1 0009-
14 FLANGE; BRK,LOW & REV BRAKE
T=4.4 		8-97019-537-0 01 1 0009-
14 FLANGE; BRK,LOW & REV BRAKE
T=4.2 		8-97019-538-0 01 1 0009-
14 FLANGE; BRK,LOW & REV BRAKE
T=4.0 		8-97019-539-0 01 1 0009-
14 FLANGE; BRK,LOW & REV BRAKE
T=5.2 		8-97184-319-0 01 1 0009-
14 FLANGE; BRK,LOW & REV BRAKE
T=5.4 		8-97184-320-0 01 1 0009-
16 RETAINER; RETURN SPR,RR BRK,A/T 5-34268-006-0 01 1 0009-
17 SPRING; RETURN,RR BRK,A/T 8-97214-554-0 01 1 0009-
18 PISTON; LOW & REV BRK,A/T
(A) 		8-94479-826-0 01 1 0009-
18 PISTON; LOW & REV BRK,A/T
(B) 		8-97069-454-0 01 1 0009-
19 GASKET; LOW & REV BRK PISTON 5-34218-004-0 01 1 0009-
20 SLEEVE; BRK REACTION,A/T 8-94479-827-0 01 1 0009-
21 RING; BRK REACTION SLEEVE,INNER 8-97184-352-0 01 1 0009-
22 GASKET; BRK PISTON,RR,INNER,A/T 8-97184-348-0 01 1 0009-
23 GASKET; BRK PISTON,RR,OUTER,A/T 8-97184-353-0 01 1 0009-
26 GASKET; BRK PISTON,FRT,OUTER,A/T
ID=124 		8-94479-801-0 01 1 0009-
38 CLUTCH ASM; ONEWAY,2ND BRK,A/T
(A) 		8-94479-798-0 01 1 0009-
38 CLUTCH ASM; ONEWAY,2ND BRK,A/T
(B) 		8-97143-134-0 01 1 0009-
39 RING; RET,SUN GEAR TO CLU 8-94479-797-0 01 1 0009-
41 WASHER; THRUST
(A) 		8-94479-809-0 01 1 0009-
41 WASHER; THRUST
(B) 		8-94479-811-0 01 1 0009-
