2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#17252) — 32 parça

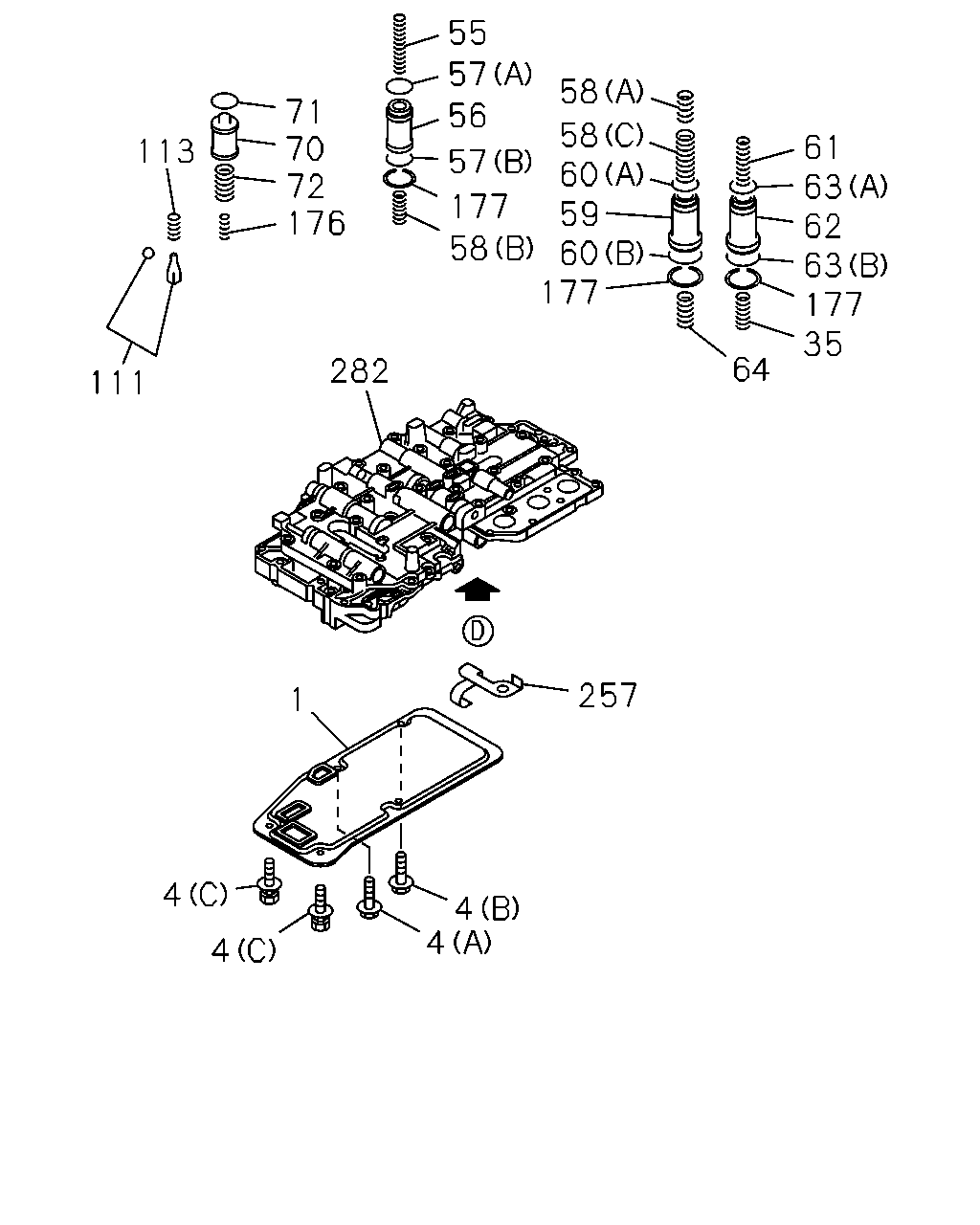

çizim 50381
55 57 58 56 58 57 60 177 59 58 60 177 71 70 72 176 61 63 62 63 177 35 113 64 282 111 257 1 4 4 4 4
BalonParca AdiParca NoAdetTipApplied Date
1 STRAINER ASM; OIL,A/T 8-97207-143-0 01 1 0009-
4 BOLT; OIL STRAINER,A/T
(A) M6X20 		8-94479-922-0 01 1 0009-
4 BOLT; OIL STRAINER,A/T
(B) M6X23 		8-94479-925-0 01 1 0009-
4 BOLT; OIL STRAINER,A/T
(C) 		8-97207-142-0 02 1 0009-
35 SPRING; LWR VLV BODY 8-97025-856-0 01 1 0009-
55 SPRING; ACCUMLATOR PISTON 8-97027-208-0 01 1 0009-
56 PISTON; ACCUMLATOR 8-97027-207-0 01 1 0009-
57 GASKET; 2ND SPD PISTON,A/T
(A) ID=20 		8-97184-885-0 01 1 0009-
57 GASKET; 2ND SPD PISTON,A/T
(B) ID=27 		8-97184-886-0 01 1 0009-
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(A) 		8-97027-204-0 01 1 0009-
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(B) 		8-97027-209-0 01 1 0009-
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(C) 		8-97184-329-0 01 1 0009-
59 PISTON; DIRECT CLU,A/T 8-97025-819-0 01 1 0009-
60 GASKET; DIRECT CLU PISTON,A/T
(A) 		8-97184-887-0 01 1 0009-
60 GASKET; DIRECT CLU PISTON,A/T
(B) 		8-97184-888-0 01 1 0009-
61 SPRING; FWD CLU,(C-1 ACUUM),A/T 8-97184-330-0 01 1 0009-
62 PISTON; FWD CLU,A/T 8-97025-817-0 01 1 0009-
63 GASKET; FWD CLU,A/T
(B) 		8-97184-888-0 01 1 0009-
63 GASKET; FWD CLU,A/T
(A) ID=24 		8-97184-889-0 01 1 0009-
64 SPRING; DIRECT CLU 8-97184-335-0 01 1 0009-
70 PISTON; ACCUMLATOR 8-97027-205-0 01 1 0009-
71 GASKET; ACCUMLATOR PISTON 8-97184-884-0 01 1 0009-
72 SPRING; ACCUMLATOR PISTON 8-97027-206-0 01 1 0009-
111 BODY; CHECK BALL 8-94479-931-0 01 1 0009-
113 SPRING; CHECK BALL 8-94479-930-0 01 1 0009-
176 SPRING; ACCUM INNER 8-97025-825-0 01 1 0009-
177 RING; SNAP
ID=19 		8-97025-821-0 03 1 0009-
257 CLAMP; HARNESS 8-97232-037-0 01 1 0009-
282 BODY ASM; VLV,A/T 8-97288-903-0 01 1 0009-
çizim 50571
26 26 26
BalonParca AdiParca NoAdetTipApplied Date
26 BOLT; BODY FIX,VLV LWR,A/T
(A) M6X28 		8-94473-611-0 10 1 0009-
26 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X36 		8-94473-630-0 06 1 0009-
26 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X23 		8-94479-925-0 04 1 0009-
