2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#17251) — 15 parça

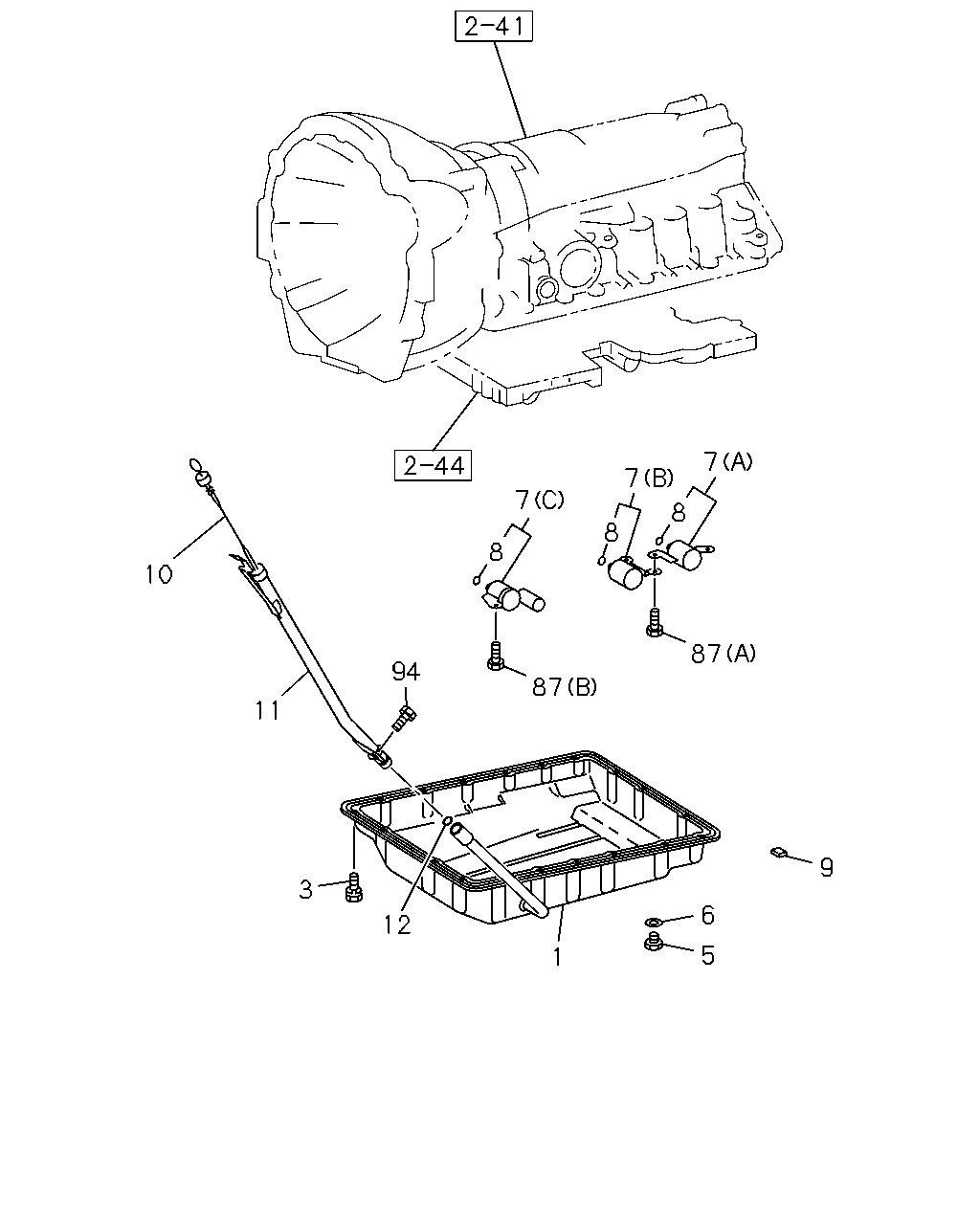

çizim 50039
7 7 8 7 8 8 10 87 94 87 11 9 3 6 12 5 1
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL,A/T 8-97288-942-0 01 1 0009-
3 BOLT; OIL PAN TO CASE 8-97130-928-0 19 1 0009-
5 PLUG; OIL PAN 5-34132-003-0 01 1 0009-
6 GASKET; OIL PAN TO PLUG
ID=12 		5-34132-002-0 01 1 0009-
7 SOLENOID; DOWN SHIFT,A/T
(C) 		8-97214-539-0 01 1 0009-
7 SOLENOID; DOWN SHIFT,A/T
(A) 		8-97218-986-0 01 1 0009-
7 SOLENOID; DOWN SHIFT,A/T
(B) 		8-97218-987-0 01 1 0009-
8 GASKET; DOWN SHIFT SOLENOID,A/T
ID=6.1 		8-94480-101-0 03 1 0009-
9 MAGNET; OIL PAN 5-34138-004-0 04 1 0009-
10 GAUGE; OIL LEVEL 8-97257-680-1 01 1 0009-
11 TUBE; OIL FILLER 8-97061-029-3 01 1 0009-
12 GASKET; OIL FILLER TUBE TO A/T
ID=9.8 		9-09561-110-0 01 1 0009-
87 BOLT; SOLENOID
(A) M5X12 		8-94405-335-0 01 1 0009-
87 BOLT; SOLENOID
(B) M6X12 		8-94479-927-0 01 1 0009-
94 BOLT; OIL FILLER TUBE
M8X16 FLANGE 		0-28080-816-0 01 1 0009-
