◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCS ▶ 50892 - UCS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP ▶
2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#17250) — 45 parça

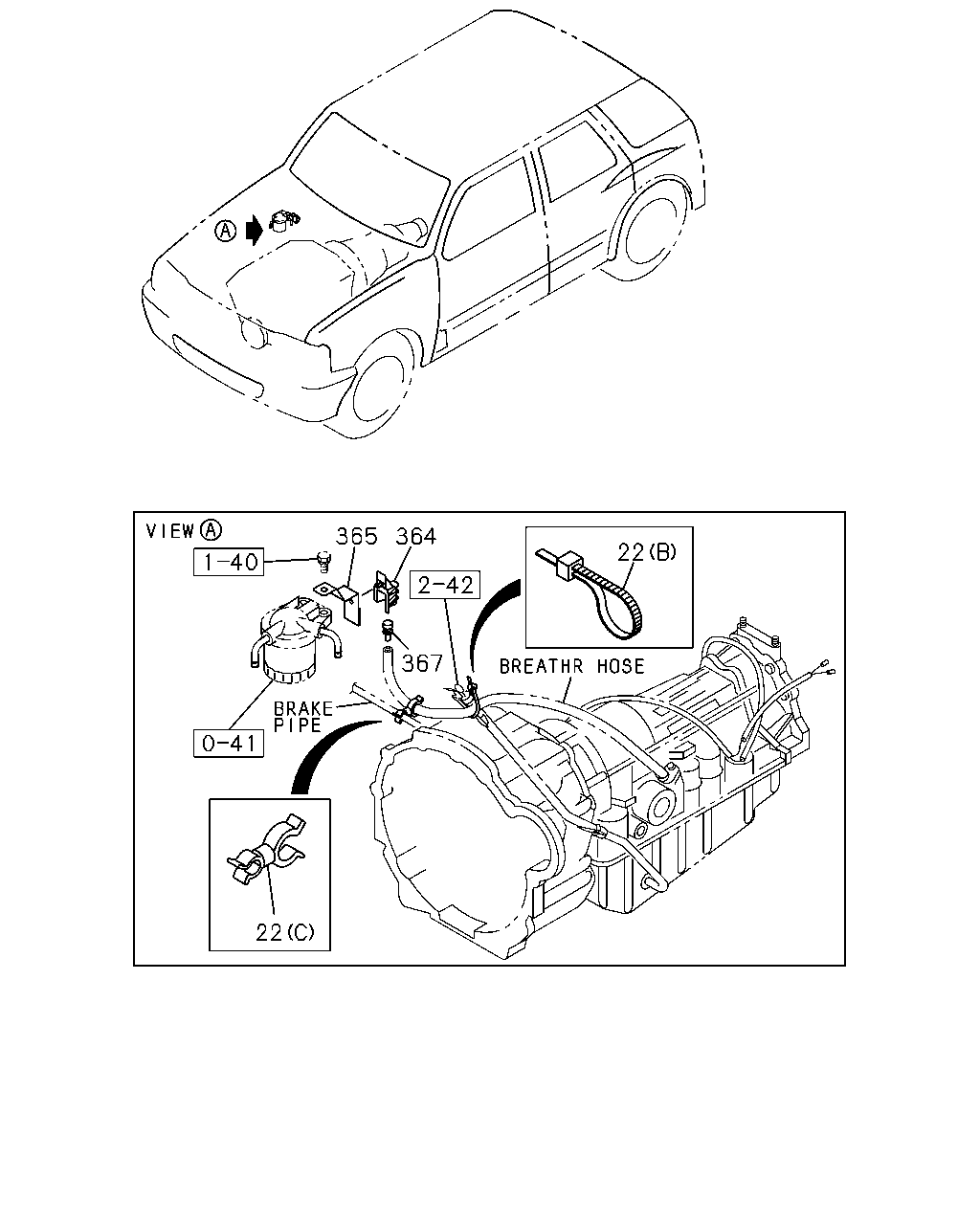

çizim 50312
365 364 22 367 22
BalonParca AdiParca NoAdetTipApplied Date
22 CLIP; BREATHER HOSE,A/T
(B) L=140 THA 		5-09707-031-1 02 1 0009-
22 CLIP; BREATHER HOSE,A/T
(C) ID=13 & 4.75 THA 		8-94447-856-0 01 1 0009-
22 CLIP; BREATHER HOSE,A/T
(A) 		8-94479-730-0 01 1 0009-
364 COVER; AIR BREATHER,A/T 8-97228-324-0 01 1 0009-
365 BRACKET; BREATHER HOSE,A/T 8-97252-264-1 01 1 0009-
367 BREATHER; AIR,MISSION 8-97164-362-0 01 1 0009-

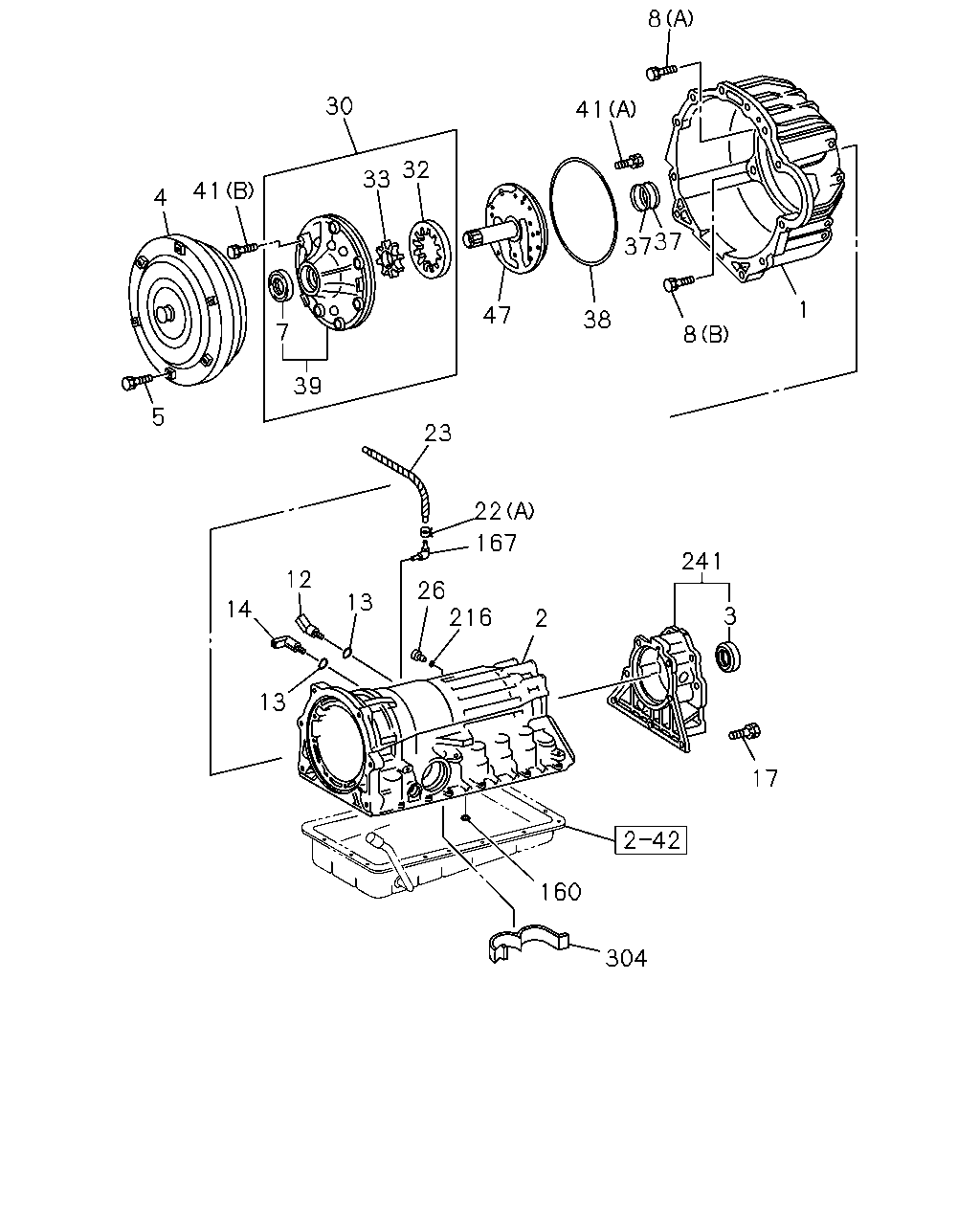

çizim 50747
8 30 41 32 33 37 37 41 4 1 47 38 7 8 39 5 23 22 167 241 12 26 216 13 14 3 2 13 17 160 304
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; CONV,A/T 8-97179-520-0 01 1 0009-
2 CASE ASM; A/T 8-97232-111-0 01 1 0009-
3 SEAL; OIL,RR COVER,A/T 8-97069-465-0 01 1 0009-
4 CONVERTER ASM; TORQUE,A/T 8-97214-535-0 01 1 0009-
5 BOLT; RR PLATE TO TORQUE CONV
M8X10 THA 		8-94460-742-0 06 1 0009-
7 SEAL; OIL,LIP,A/T 8-94479-742-0 01 1 0009-
8 BOLT; HSG TO CASE
(A) M10X35 		8-90257-082-0 04 1 0009-
8 BOLT; HSG TO CASE
(B) M12X68 		8-97025-830-0 02 1 0009-
12 CONNECTOR; OIL COOLER OUTLET PIPE 8-94450-762-0 01 1 0009-
13 GASKET; OIL COOLER PIPE
ID=11.7 		8-94479-724-0 02 1 0009-
14 UNION; OIL COOLER RETURN PIPE 8-94450-761-0 01 1 0009-
17 BOLT; REAR COVER TO CASE 8-94479-936-0 07 1 0009-
22 CLIP; BREATHER HOSE,A/T
(B) L=140 THA 		5-09707-031-1 02 1 0009-
22 CLIP; BREATHER HOSE,A/T
(C) ID=13 & 4.75 THA 		8-94447-856-0 01 1 0009-
22 CLIP; BREATHER HOSE,A/T
(A) 		8-94479-730-0 01 1 0009-
23 HOSE; BREATHER,A/T 8-97288-901-0 01 1 0009-
26 PLUG; TRANS CASE 5-34119-002-0 02 1 0009-
30 PUMP ASM; OIL,A/T 8-97143-135-0 01 1 0009-
32 GEAR; OUTER,OIL PUMP,A/T
W=10.715 H MARK 		8-97184-337-0 01 1 0009-
32 GEAR; OUTER,OIL PUMP,A/T
W=10.695 F MARK 		8-97213-029-0 01 1 0009-
32 GEAR; OUTER,OIL PUMP,A/T
W=10.705 G MARK 		8-97213-030-0 01 1 0009-
32 GEAR; OUTER,OIL PUMP,A/T
W=10.725 J MARK 		8-97213-031-0 01 1 0009-
32 GEAR; OUTER,OIL PUMP,A/T
W=10.735 K MARK 		8-97213-032-0 01 1 0009-
33 GEAR; INNER,OIL PUMP,A/T
W=10.715 H MARK 		8-97147-426-0 01 1 0009-
33 GEAR; INNER,OIL PUMP,A/T
W=10.695 F MARK 		8-97213-025-0 01 1 0009-
33 GEAR; INNER,OIL PUMP,A/T
W=10.705 G MARK 		8-97213-026-0 01 1 0009-
33 GEAR; INNER,OIL PUMP,A/T
W=10.725 J MARK 		8-97213-027-0 01 1 0009-
33 GEAR; INNER,OIL PUMP,A/T
W=10.735 K MARK 		8-97213-028-0 01 1 0009-
37 RING; SEAL,OIL PUMP,A/T 8-94479-747-0 02 1 0009-
38 GASKET; OIL PUMP,A/T 8-94479-748-0 01 1 0009-
39 BODY SUB ASM; FRT,OIL PUMP,A/T 8-94479-741-0 01 1 0009-
41 BOLT; OIL PUMP HSG,A/T
(B) M8X35 		8-94479-749-0 07 1 0009-
41 BOLT; OIL PUMP HSG,A/T
(A) M6X15.5 		8-97019-532-0 13 1 0009-
47 SHAFT; OIL PUMP,A/T 8-97019-531-0 01 1 0009-
160 GASKET; BRK DRUM,A/T 8-94313-576-0 01 1 0009-
167 CONNECTOR; CASE,A/T 8-97126-812-0 01 1 0009-
216 GASKET; SOLENOID OUTER
ID=6 		5-34119-001-0 02 1 0009-
241 ADAPTER; A/T 8-97132-838-0 01 1 0009-
304 SPRING; LEAF,A/T 8-97184-331-0 01 1 0009-
