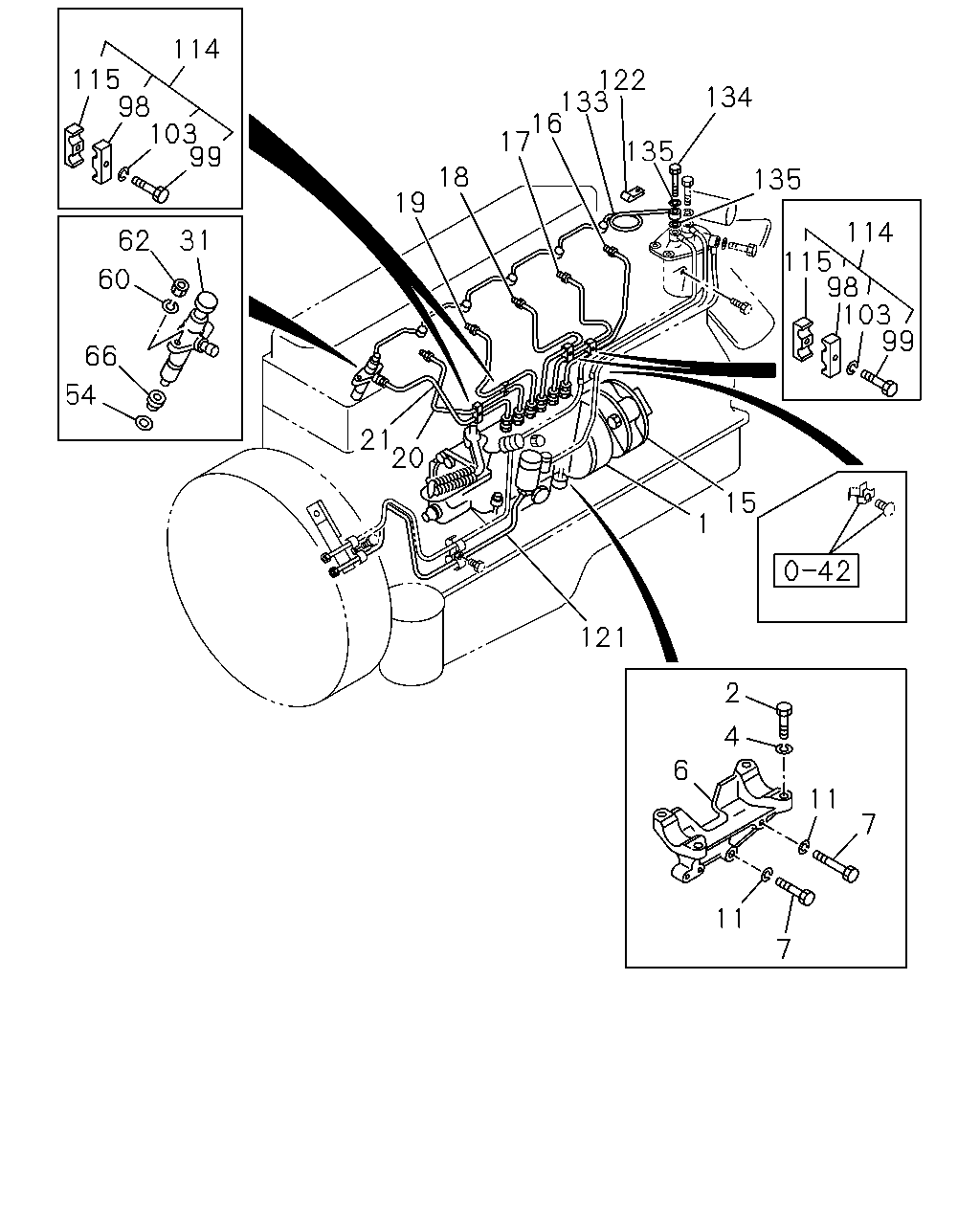

0-40 — FUEL INJECTION SYSTEM (#1725) — 55 parça

114 115 98 103 99 122 133 16 17 134 135 18 135 19 114 62 31 115 98 103 99 60 66 54 21 20 15 1 121 2 4 6 11 7 11 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FIRE TRUCK(RA9) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. RLD GOVERNOR ADR VAR8<RC7>	1-15601-912-4	01	1	9207-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FIRE TRUCK(RA9) EXC. RLD GOVERNOR ADR VAR8<RC7>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15601-910-4	01	1	9207-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. FIRE TRUCK(RA9),RLD GOVERNOR ADR VAR8<RC7>, INJPUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15601-904-4	01	1	9207-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. FIRE TRUCK(RA9),RLD GOVERNOR ADR VAR8<RC7>	1-15601-906-4	01	1	9207-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOVERNOR ADR VAR8<RC7> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15601-907-4	01	1	9207-
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9207-
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9207-
6	BRACKET; INJ PUMP TO C/BL	9-19751-104-1	01	1	9207-
7	BOLT; INJ PUMP BRKT M10X80	0-10806-080-0	02	1	9207-
7	BOLT; INJ PUMP BRKT M10X40 W/LK WASHER	0-50041-040-0	02	1	9207-
11	WASHER; INJ PUMP BRKT ID=10.5	9-09851-866-0	02	1	9207-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15780-081-3	01	1	9207-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15780-089-2	01	1	9207-
16	PIPE; INJ NO.1	1-15413-169-3	01	1	9207-
17	PIPE; INJ NO.2	1-15413-170-2	01	1	9207-
18	PIPE; INJ NO.3	1-15413-171-2	01	1	9207-
19	PIPE; INJ NO.4	1-15413-172-2	01	1	9207-
20	PIPE; INJ NO.5	1-15413-173-2	01	1	9207-
21	PIPE; INJ NO.6	1-15413-174-3	01	1	9207-
31	NOZZLE ASM; INJ	1-15300-169-1	06	1	9207-
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9207-
60	WASHER; NOZZLE HOLDER ID=8.2	9-09150-508-0	12	1	9207-
62	NUT; NOZZLE HOLDER M8	9-09110-408-0	12	1	9207-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 OD=19.0 T=7.3	5-15315-003-0	06	1	9207-
98	CLIP; "A",INJ PIPE	9-15419-613-0	04	1	9207-
99	BOLT; CLIP,INJ,PIPE M5X20	9-09802-539-0	04	1	9207-
103	WASHER; LK,CLIP,INJ PIPE ID=5.1	9-09150-505-0	04	1	9207-
114	CLIP; INJ PIPE	9-15419-612-0	04	1	9207-
115	CLIP; "B",INJ PIPE	9-15419-614-0	04	1	9207-
121	PIPE; FUEL,FEED PUMP,SUCTION FIRE TRUCK(RA9)	5-15411-651-0	01	1	9207-
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. FIRE TRUCK(RA9)	1-15413-396-0	01	1	9207-
122	CLIP; LEAK OFF PIPE ID=6	9-09524-555-0	01	1	9207-
133	PIPE; INJ NOZZLE LEAK OFF	1-15412-471-1	01	1	9207-
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	01	1	9207-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9207-9305
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9306-

34 36 36 37 31 38 32 31 39 44 45 41 42 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ	1-15300-169-1	06	1	9207-
32	HOLDER ASM; NOZZLE	1-15330-057-0	06	1	9207-9306
32	HOLDER ASM; NOZZLE	1-15330-087-1	06	1	9307-
33	NOZZLE; INJ	5-15311-016-0	06	1	9207-
34	BOLT; EYE,NOZZLE HOLDER M8X19 FLANGE	1-09675-139-0	06	1	9207-9306
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	06	1	9307-
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94171-195-0	06	1	9207-9306
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	9307-
36	GASKET; RETURN PIPE,NOZZLE HOLDER ID=8.2 OD=14.0 T=1.0	9-09571-408-0	12	1	9207-9306
36	GASKET; RETURN PIPE,NOZZLE HOLDER ID=8.2 OD=13.2 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09630-082-0	12	1	9307-
37	NUT; CAP,NOZZLE HOLDER	8-94169-504-0	06	1	9207-9306
37	NUT; CAP,NOZZLE HOLDER	5-15332-006-0	06	1	9307-
38	GASKET; CAP NUT,NOZZLE HOLDER	5-15339-060-0	06	1	9307-
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9207-
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	5-15351-001-0	06	1	9207-
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	9207-
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9207-
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9207-
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9207-
