2-30 — GEAR SHIFTER AND QUADRANT BOX (#17247) — 40 parça

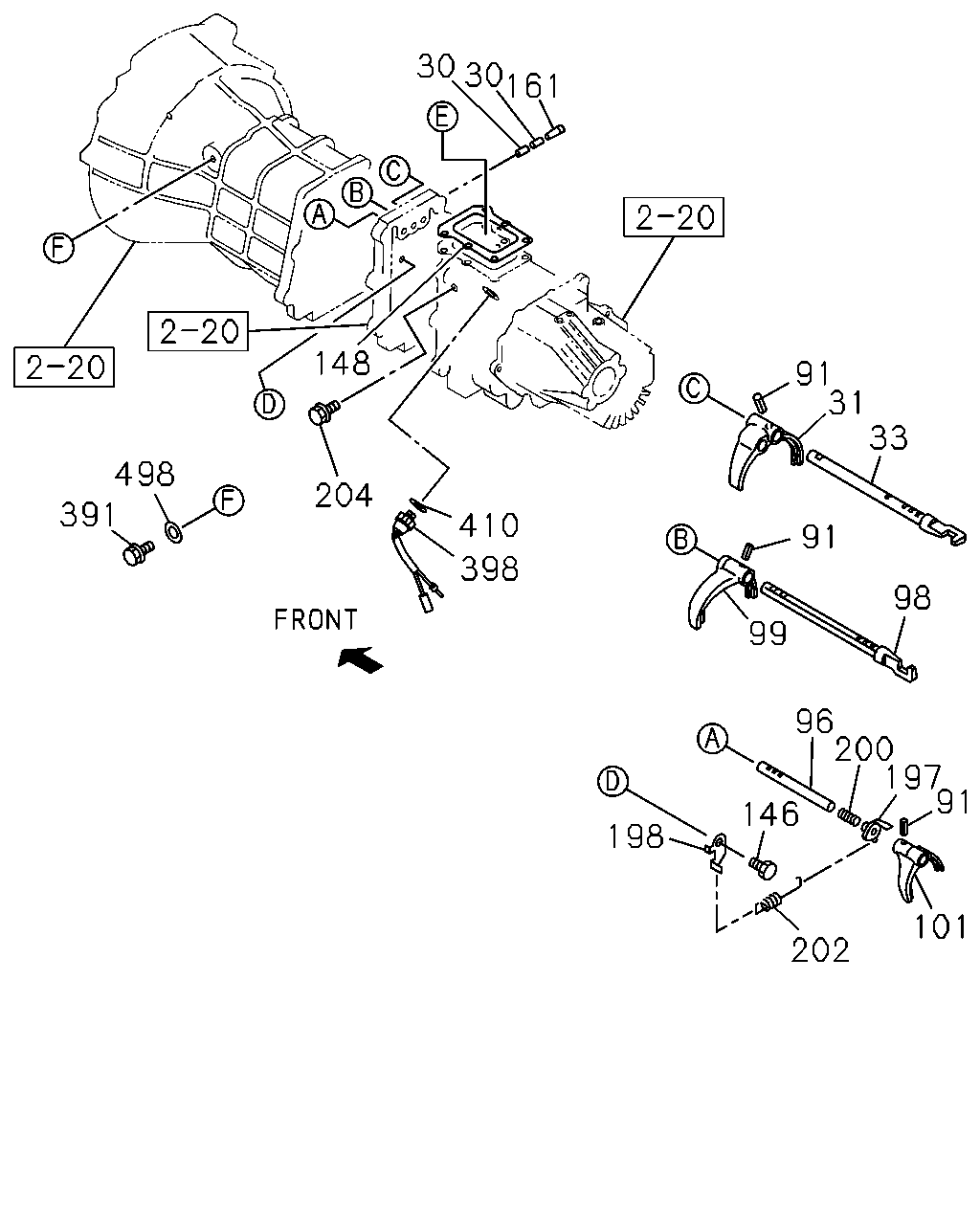

çizim 49790
30 30 161 148 91 31 33 498 391 204 410 398 91 98 99 96 200 197 91 146 198 202 101
BalonParca AdiParca NoAdetTipApplied Date A B
30 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 0009- ●
31 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 0009- ●
33 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 0009- ●
91 PIN; SPR,SHIFT ARM
D=4.2 L=25 		8-94171-541-0 03 1 0009- ●
96 ROD; SHIFT,5TH 8-94440-079-1 01 1 0009- ●
98 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 0009- ●
99 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 0009- ●
101 ARM; SHIFT,REV & 5TH 8-94448-755-2 01 1 0009- ●
146 BOLT; REV INHIBITOR
M8X20 FLANGE 		0-28680-820-0 01 1 0009-0011 ●
146 BOLT; REV INHIBITOR
M8X20 FLANGE 		0-28080-820-0 01 1 0012- ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 0009- ●
161 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0009- ●
197 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 0009- ●
198 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 0009- ●
200 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 0009- ●
202 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 0009- ●
204 STOPPER; REV INHIBITOR 8-94479-434-2 01 1 0009- ●
391 PLUG; SW HOLE
M14X11 		8-94252-142-0 01 1 0009- ●
398 SWITCH; REV LAMP 8-97138-635-0 01 1 0009- ●
410 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0 THA 		9-09571-414-0 01 1 0009- ●
498 GASKET; SWITCH,1ST & 2ND
ID=14.2 OD=20.0 THA 		9-09571-414-0 01 1 0009- ●

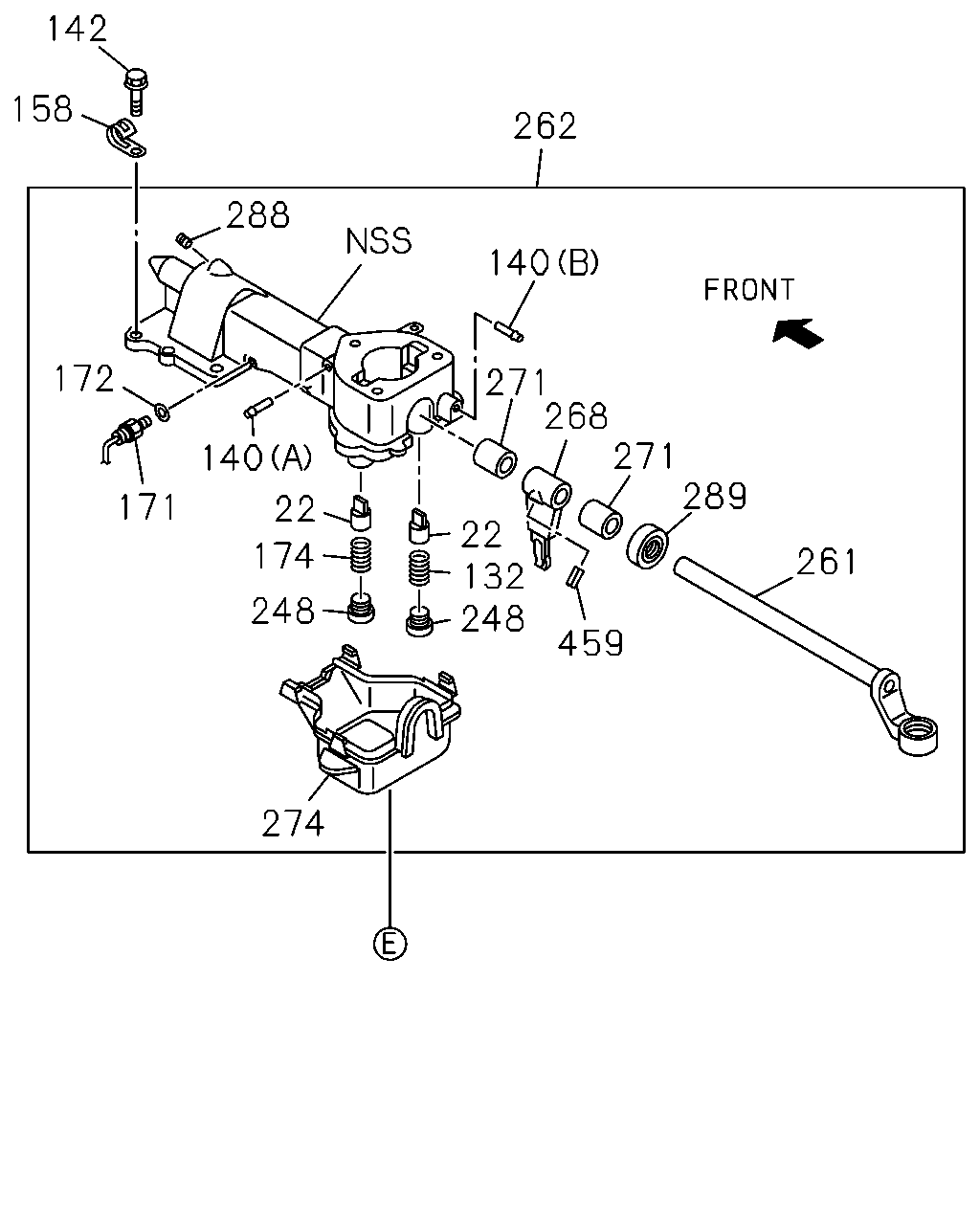

çizim 50315
142 158 262 288 140 271 268 271 289 22 132 248 172 140 22 174 171 261 248 459 274
BalonParca AdiParca NoAdetTipApplied Date A B
22 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0009- ●
132 SPRING; SELECT STOP 8-97181-395-0 01 1 0009- ●
140 BREATHER; AIR,TRANS
(A) 		8-97173-544-0 01 1 0009- ●
140 BREATHER; AIR,TRANS
(B) 		8-97173-545-0 01 1 0009-0312 ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-94448-815-3 04 1 0009- ●
158 CLIP; HARNESS
ID=12 B=14 ID=8.5 THA 		5-09700-350-0 01 1 0009- ●
171 SWITCH; NEUTRAL 8-97138-631-0 01 1 0009- ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 THA 		8-94462-114-0 01 1 0009- ●
174 SPRING; REV 8-97181-394-0 01 1 0009- ●
248 RETAINER; CONT BOX 8-97181-325-0 02 1 0009- ●
261 ROD; GEAR CONT 8-97257-909-0 01 1 0009- ●
262 BOX ASM; SHIFT CONT 8-97257-823-0 01 1 0009-0312 ●
262 BOX ASM; SHIFT CONT 8-97357-583-0 01 1 0401- ●
268 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0009- ●
271 BUSHING; QUAD BOX
ID=14 L=12 		8-97203-909-0 02 1 0009- ●
274 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0009- ●
288 PLUG; AIR BREATHER 9-00097-517-0 01 1 0009- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97181-327-0 01 1 0009- ●
459 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0009- ●
