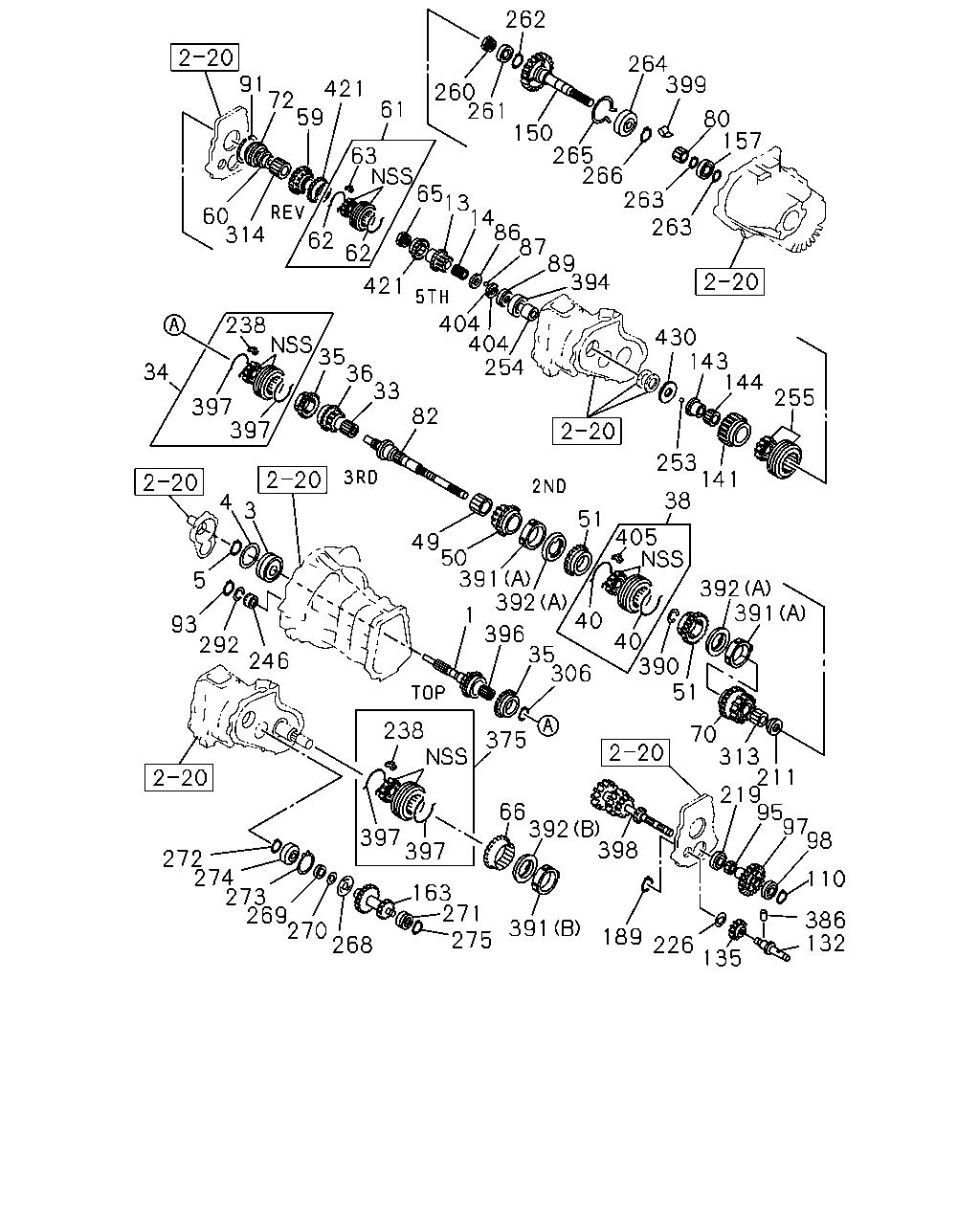

2-26 — MANUAL TRANSMISSION GEAR (#17246) — 153 parça

262 91 421 72 59 264 399 80 157 260 261 150 265 266 263 263 61 63 65 13 14 86 87 89 394 60 314 62 62 421 404 404 254 238 35 36 33 82 430 143 144 255 34 397 397 253 141 38 4 3 51 405 392 391 49 50 391 392 1 40 396 40 35 390 306 51 5 93 292 246 375 238 70 313 211 219 95 97 98 397 397 66 392 398 272 274 273 269 270 268 110 163 271 275 386 132 391 189 226 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	0009-	●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0009-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0009-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	0009-	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0009-	●
14	BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0009-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	0009-	●
34	SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0009-	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0009-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	0009-	●
38	SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0009-	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0009-	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0009-	●
50	GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	0009-	●
51	RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0009-	●
59	GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	0009-	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	0009-	●
61	SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0009-	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0009-	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0009-	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	0009-	●
66	RING; BLOCK,SYN	8-97169-516-1	01	1	0009-	●	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	0009-	●
72	BEARING; BALL,MAINSHAFT NSK THA	8-94380-017-1	01	1	0009-	●
80	GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	0009-	●
80	GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	0009-		●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97120-039-0	01	1	0009-	●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0009-	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0009-	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0009-	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0009-	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	0009-	●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0009-	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0009-	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	0009-	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0009-	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0009-	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0009-	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0009-	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0009-	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0009-	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0009-	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0009-	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0009-	●
132	SHAFT; REV	8-97019-155-1	01	1	0009-	●
135	GEAR; REV IDLER Z=33	8-94377-435-0	01	1	0009-	●
141	GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	0009-	●	●
143	COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	0009-	●	●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-028-1	01	1	0009-	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-157-0	01	1	0009-	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	0009-		●
157	BEARING; BALL,OUTPUT SHAFT NSK	8-94422-170-0	01	1	0009-	●
157	BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	0009-		●
163	GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	0009-	●	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0009-	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0009-	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0009-	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0009-	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0009-	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0009-	●
238	INSERT	8-94448-202-2	06	1	0009-	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	0009-	●
253	BALL; INPUT	8-94201-356-0	01	1	0009-	●	●
254	COLLAR; TRANSFER	8-94483-030-2	01	1	0009-	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97141-885-1	01	1	0009-	●	●
260	NUT; MAINSHAFT END M30	8-94422-072-1	01	1	0009-	●
260	NUT; MAINSHAFT END M27	8-94388-182-1	01	1	0009-		●
261	BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	0009-	●	●
262	RING; SNAP,PILOT BRG ID=23.2	9-09180-025-0	01	1	0009-	●	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=27.9	9-09180-030-0	02	1	0009-	●
264	BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	0009-	●	●
264	BEARING; RR OUTPUT SHAFT,FRT JTEKT	8-94422-055-1	01	1	0009-	●	●
265	RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	0009-	●	●
266	RING; SNAP,BRG INNER ID=37.4	8-97254-316-0	01	1	0009-	●	●
268	PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	0009-	●	●
269	SPACER; ANTI LASH PLATE,COUNTER	8-97222-764-0	01	1	0009-	●	●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER	8-94482-498-0	01	1	0009-	●	●
271	BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	0009-	●	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	0009-	●
272	RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	0009-	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	0009-	●	●
273	RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	0009-	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	0009-	●	●
274	BEARING; COUNTER GEAR,RR JTEKT	8-97080-185-0	01	1	0009-	●	●
275	RING; SNAP,COUNTER GEAR BRG ID=23.2	9-09180-025-0	01	1	0009-	●	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0009-	●
306	RING; SNAP,MAINSHAFT T=1.90 BLUE	8-97129-615-0	01	1	0009-	●
306	RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-97129-616-0	01	1	0009-	●
306	RING; SNAP,MAINSHAFT T=1.80 WHITE	8-97129-617-0	01	1	0009-	●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0009-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0009-	●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0009-	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97188-798-0	01	1	0009-	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97104-027-0	01	1	0009-		●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0009-	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0009-	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0009-	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0009-	●
391	RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	0009-	●
391	RING; INSIDE,SYN (B)	8-97101-452-0	01	1	0009-	●	●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	0009-	●
392	RING; OUTSIDE,SYN (B)	8-97169-514-1	01	1	0009-	●	●
394	BEARING; BALL,MAINSHAFT RR NSK	8-97018-921-1	01	1	0009-	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0009-	●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	04	1	0009-	●
398	GEAR; COUNTER Z=46-38-27-21	8-97100-912-1	01	1	0009-	●
399	CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	0009-	●
404	PLATE; THRUST	8-94421-892-0	02	1	0009-	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0009-	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0009-	●
430	PLATE; OIL SEAL,TRANSFER	8-94482-379-2	01	1	0009-	●

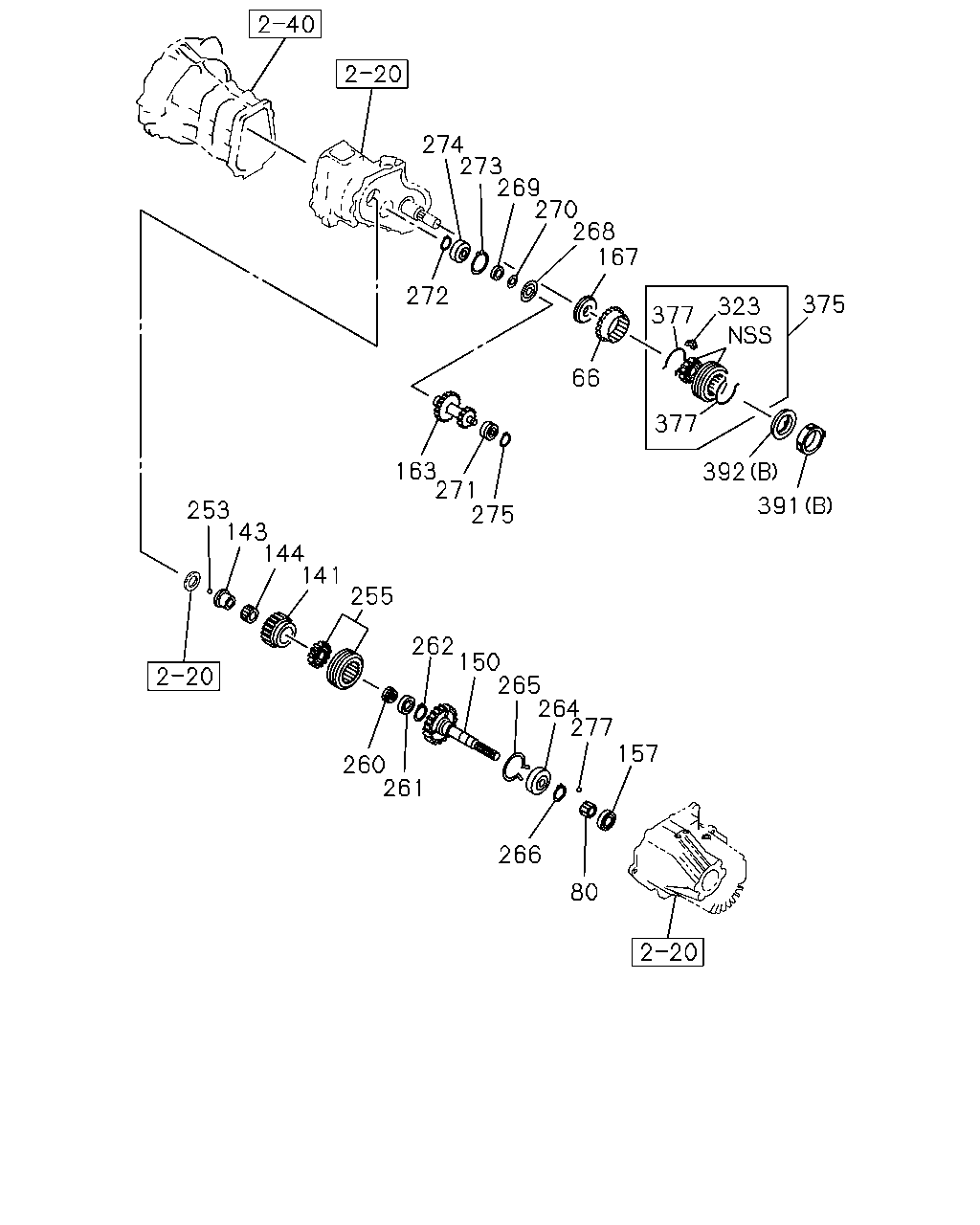

274 273 269 270 268 167 272 375 323 377 66 377 163 271 275 392 391 253 143 144 141 255 262 150 265 264 277 157 260 261 266 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	RING; BLOCK,SYN	8-97169-516-1	01	1	0009-	●	●
80	GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	0009-	●
80	GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	0009-		●
141	GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	0009-	●	●
143	COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	0009-	●	●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-028-1	01	1	0009-	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-157-0	01	1	0009-	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	0009-		●
157	BEARING; BALL,OUTPUT SHAFT NSK	8-94422-170-0	01	1	0009-	●
157	BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	0009-		●
163	GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	0009-	●	●
167	PLATE; LK,COUNTER SHAFT,TRANSFER	8-97102-940-0	01	1	0009-		●
253	BALL; INPUT	8-94201-356-0	01	1	0009-	●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97141-885-1	01	1	0009-	●	●
260	NUT; MAINSHAFT END M30	8-94422-072-1	01	1	0009-	●
260	NUT; MAINSHAFT END M27	8-94388-182-1	01	1	0009-		●
261	BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	0009-	●	●
262	RING; SNAP,PILOT BRG ID=23.2	9-09180-025-0	01	1	0009-	●	●
264	BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	0009-	●	●
264	BEARING; RR OUTPUT SHAFT,FRT JTEKT	8-94422-055-1	01	1	0009-	●	●
265	RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	0009-	●	●
266	RING; SNAP,BRG INNER ID=37.4	8-97254-316-0	01	1	0009-	●	●
268	PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	0009-	●	●
269	SPACER; ANTI LASH PLATE,COUNTER	8-97222-764-0	01	1	0009-	●	●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER	8-94482-498-0	01	1	0009-	●	●
271	BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	0009-	●	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	0009-	●
272	RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	0009-	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	0009-	●	●
273	RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	0009-	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	0009-	●	●
274	BEARING; COUNTER GEAR,RR JTEKT	8-97080-185-0	01	1	0009-	●	●
275	RING; SNAP,COUNTER GEAR BRG ID=23.2	9-09180-025-0	01	1	0009-	●	●
277	BALL; SPD DRIVE GEAR	8-94201-356-0	01	1	0009-		●
323	INSERT	8-94448-202-2	03	1	0009-		●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97188-798-0	01	1	0009-	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97104-027-0	01	1	0009-		●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	0009-		●
391	RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	0009-	●
391	RING; INSIDE,SYN (B)	8-97101-452-0	01	1	0009-	●	●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	0009-	●
392	RING; OUTSIDE,SYN (B)	8-97169-514-1	01	1	0009-	●	●
