2-20 — MANUAL TRANSMISSION ASM AND CASE (#17244) — 85 parça

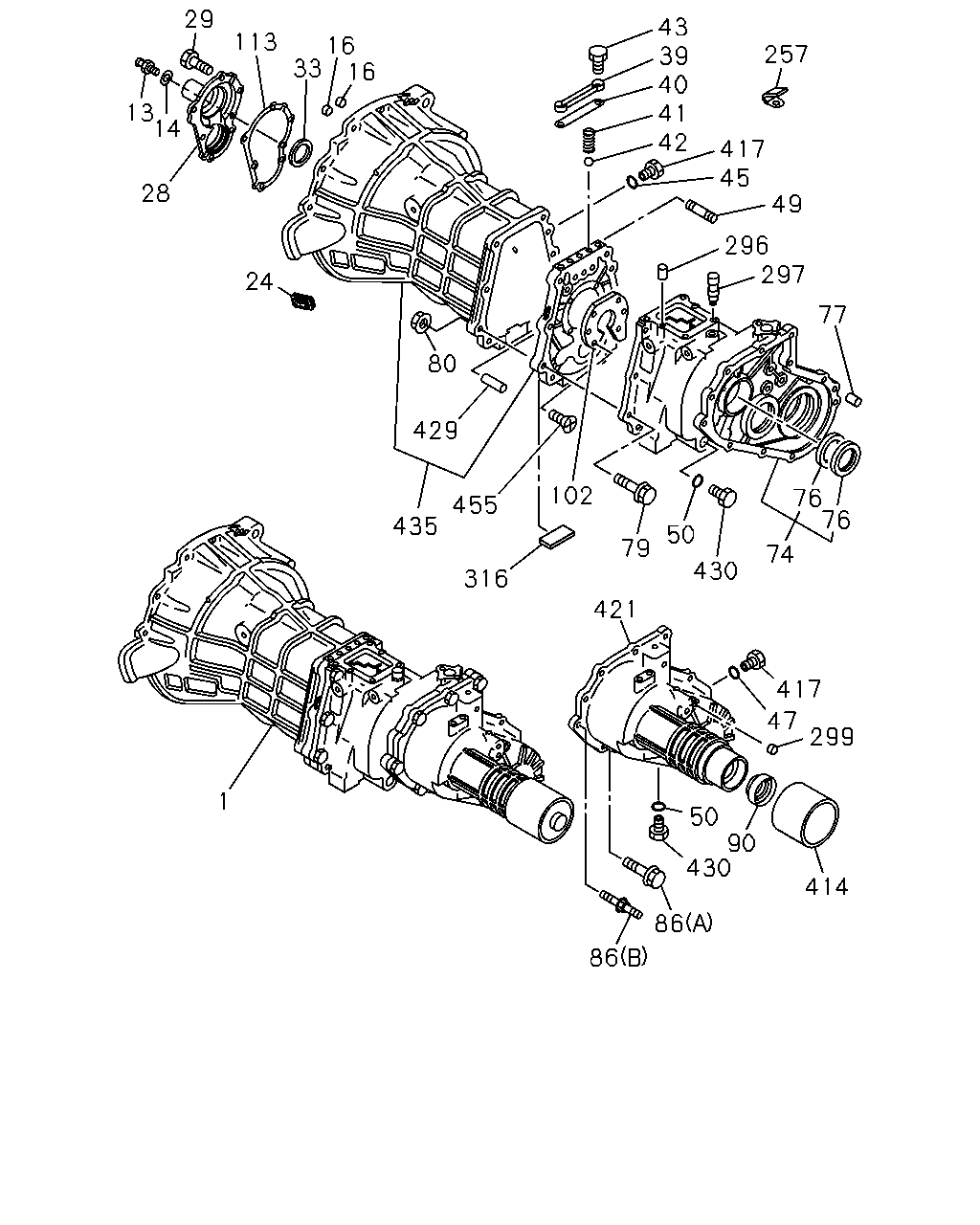

29 43 39 40 41 42 113 16 33 16 257 13 14 417 45 28 49 296 297 24 77 80 429 76 76 102 455 435 50 430 79 74 316 421 417 47 299 1 50 90 430 414 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	8-97235-933-0	01	1	0009-	●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0009-	●
14	WASHER; LK,SUPPORT ID=12.2	9-09150-512-0	01	1	0009-	●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	0009-	●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	0009-	●
28	COVER; FRT,TRANS CASE	8-97104-676-0	01	1	0009-	●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0009-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0009-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0009-	●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	0009-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0009-	●
41	SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0009-	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0009-	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-94448-815-3	02	1	0009-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0009-	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0009-	●	●
49	STUD; TRANSFER CASE M10X51.5 L=72	8-97036-714-1	01	1	0009-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	0009-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0009-		●
74	CASE ASM; TRANSFER	8-97149-125-1	01	1	0009-	●
74	CASE ASM; TRANSFER	8-97164-349-0	01	1	0009-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	0009-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	0009-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	0009-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	0009-		●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	0009-	●	●
79	BOLT; TRANSFER CASE M10X55 FLANGE	8-94473-959-1	06	1	0009-	●
79	BOLT; TRANSFER CASE M10X18 M10X55 L=83	8-97036-715-0	01	1	0009-	●
80	NUT; TRANSFER CASE M10 FLANGE	0-91150-110-0	01	1	0009-	●
86	BOLT; RR COVER (A) M10X35 FLANGE	0-28081-035-0	09	1	0009-	●	●
86	BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	0009-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-704-0	01	1	0009-0010	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-3	01	1	0009-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	0009-0010		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	0009-		●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0009-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0009-	●
257	CLIP; HARNESS ID=22	8-97022-767-0	01	1	0009-	●
257	CLIP; HARNESS ID=22	8-97022-767-0	02	1	0009-0010	●	●
296	PIN; QUAD BOX TO CASE OD=6 L=12	9-08150-612-0	02	1	0009-	●
297	BREATHER; AIR,TRANSFER CASE	8-97172-677-1	01	1	0009-	●
297	BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	0009-		●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	03	1	0009-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0009-	●
414	COVER; DUST,RR COVER	8-94310-493-0	01	1	0009-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	02	1	0009-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0009-		●
421	COVER; RR,TRANS	8-97217-334-0	01	1	0009-	●
421	COVER; RR,TRANS	8-97219-929-0	01	1	0009-0308		●
421	COVER; RR,TRANS	8-97369-829-0	01	1	0309-		●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0009-	●
430	PLUG; OIL DRAIN	9-09662-004-0	02	1	0009-	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0009-		●
435	CASE; TRANS	8-97252-840-1	01	1	0009-0312	●
435	CASE; TRANS	8-97376-845-0	01	1	0401-	●
455	SCREW; BRG RET M8X22	8-97062-754-0	04	1	0009-	●

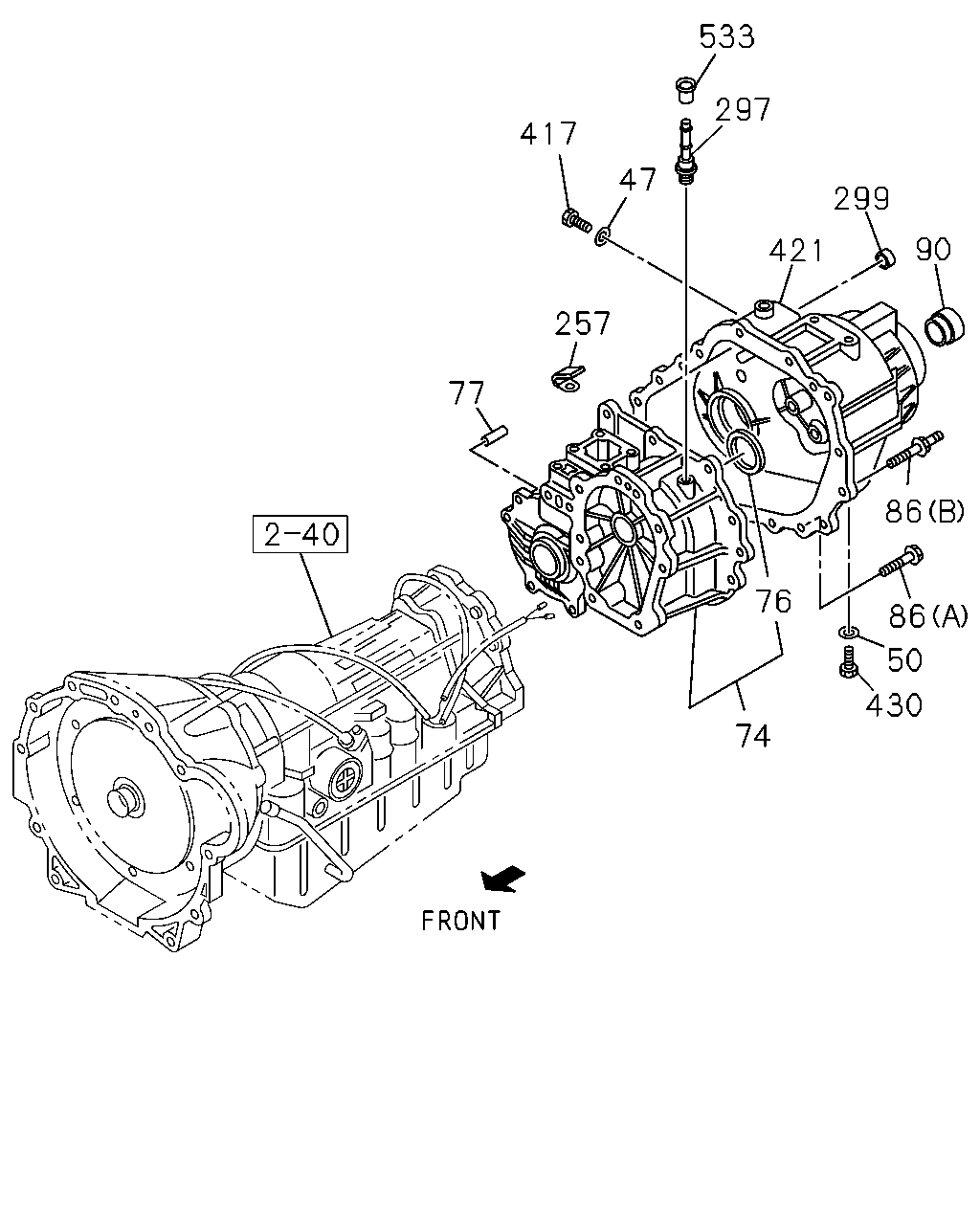

533 297 417 47 299 90 421 257 76 77 86 86 50 430 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0009-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	0009-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0009-		●
74	CASE ASM; TRANSFER	8-97149-125-1	01	1	0009-	●
74	CASE ASM; TRANSFER	8-97164-349-0	01	1	0009-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	0009-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	0009-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	0009-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	0009-		●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	0009-	●	●
86	BOLT; RR COVER (A) M10X35 FLANGE	0-28081-035-0	09	1	0009-	●	●
86	BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	0009-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-704-0	01	1	0009-0010	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-3	01	1	0009-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	0009-0010		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	0009-		●
257	CLIP; HARNESS ID=22	8-97022-767-0	01	1	0009-	●
257	CLIP; HARNESS ID=22	8-97022-767-0	02	1	0009-0010	●	●
297	BREATHER; AIR,TRANSFER CASE	8-97172-677-1	01	1	0009-	●
297	BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	0009-		●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	03	1	0009-	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	02	1	0009-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0009-		●
421	COVER; RR,TRANS	8-97217-334-0	01	1	0009-	●
421	COVER; RR,TRANS	8-97219-929-0	01	1	0009-0308		●
421	COVER; RR,TRANS	8-97369-829-0	01	1	0309-		●
430	PLUG; OIL DRAIN	9-09662-004-0	02	1	0009-	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0009-		●
533	CAP; AIR BREATHER	8-94362-237-0	01	1	0009-		●
