0-39 — AIR COMPRESSOR; BRAKE (#1724) — 88 parça

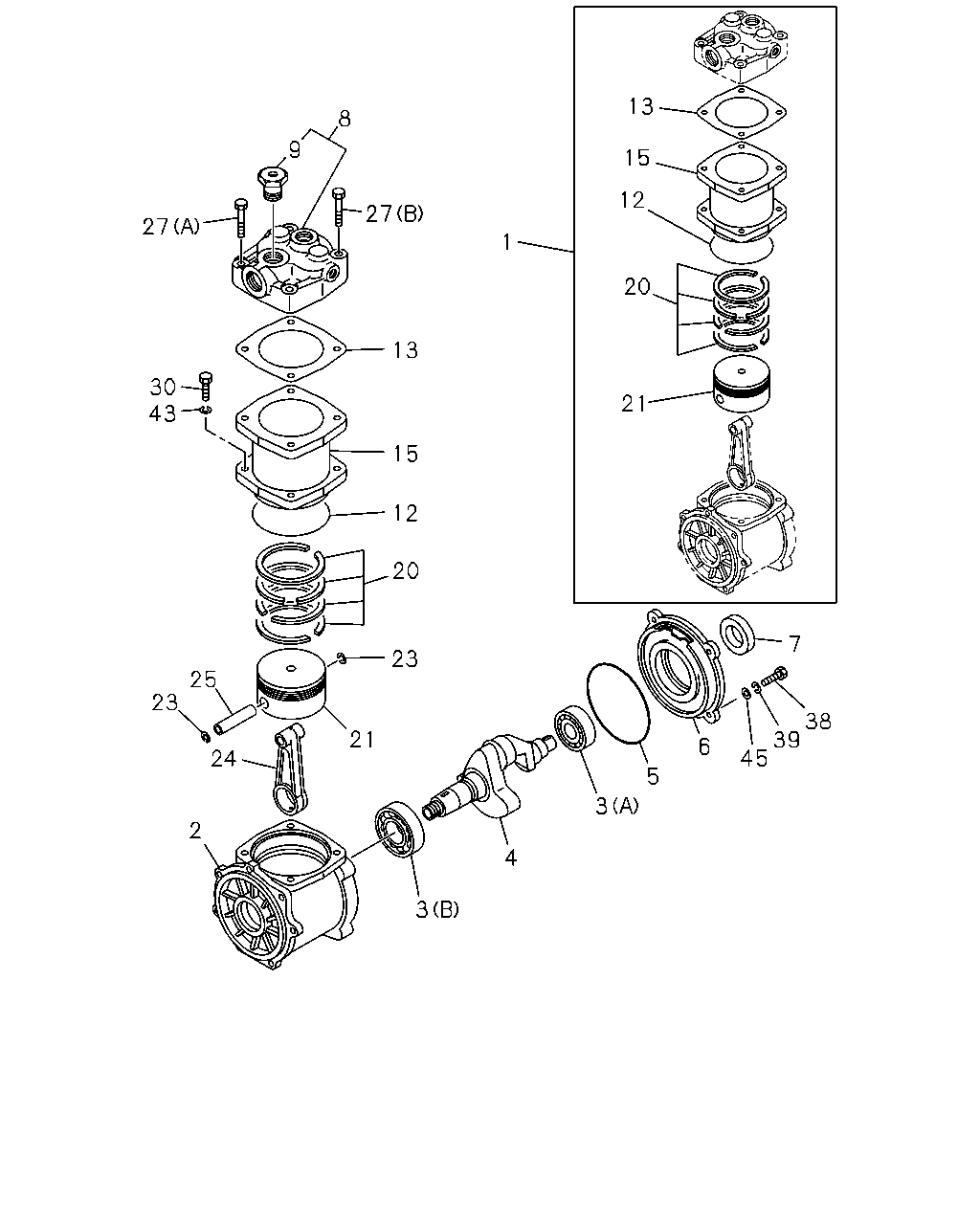

13 8 9 15 12 27 27 1 20 13 30 43 21 15 12 20 7 23 25 23 38 39 45 21 6 24 5 3 2 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19163-044-0	01	1	9207-
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19163-048-0	01	1	9207-
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19151-255-0	01	1	9207-
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19151-241-0	01	1	9207-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q) (A)	9-00006-206-0	01	1	9207-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q) (B)	9-00090-152-0	01	1	9207-
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q) (A)	9-00006-206-0	02	1	9207-
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19171-042-0	01	1	9207-
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19171-037-0	01	1	9207-
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-09623-361-0	01	1	9207-
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19158-019-0	01	1	9207-
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19156-041-1	01	1	9207-
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19156-040-0	01	1	9207-
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19158-024-1	01	1	9207-
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19158-018-1	01	1	9207-
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19110-052-1	01	1	9207-
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19110-019-0	01	1	9207-
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19120-017-1	01	1	9207-
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-09623-539-0	01	1	9207-
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19158-020-0	01	1	9207-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19139-004-0	01	1	9207-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19115-006-0	01	1	9207-
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19151-219-0	01	1	9207-
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19151-222-0	01	1	9207-
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19163-034-0	01	1	9207-
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19163-043-0	01	1	9207-
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19161-016-0	01	1	9207-
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19161-021-0	01	1	9207-
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	9-19168-008-0	02	1	9207-
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	9-19168-003-0	02	1	9207-
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19173-010-0	01	1	9207-
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19173-011-0	01	1	9207-
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	9-19167-003-0	01	1	9207-
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	9-19167-006-0	01	1	9207-
27	BOLT; HD AIR COMPRESSOR HEAVYDUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	9207-
27	BOLT; HD AIR COMPRESSOR HEAVYDUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	9207-
27	BOLT; HD EXC. AIR COMPRESSOR HEAVYDUTY(E1Q) (A) M10X30	9-02061-030-0	04	1	9207-
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVYDUTY(E1Q)	9-02051-025-0	04	1	9207-
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-09000-332-0	04	1	9207-
38	BOLT; COVER FIX AIR COMPRESSOR HEAVYDUTY(E1Q)	9-81385-023-0	04	1	9207-
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-09000-331-0	04	1	9207-
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9207-
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9207-
45	WASHER; PL,COVER FIX,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q) ID=8.4	9-09160-508-0	04	1	9207-

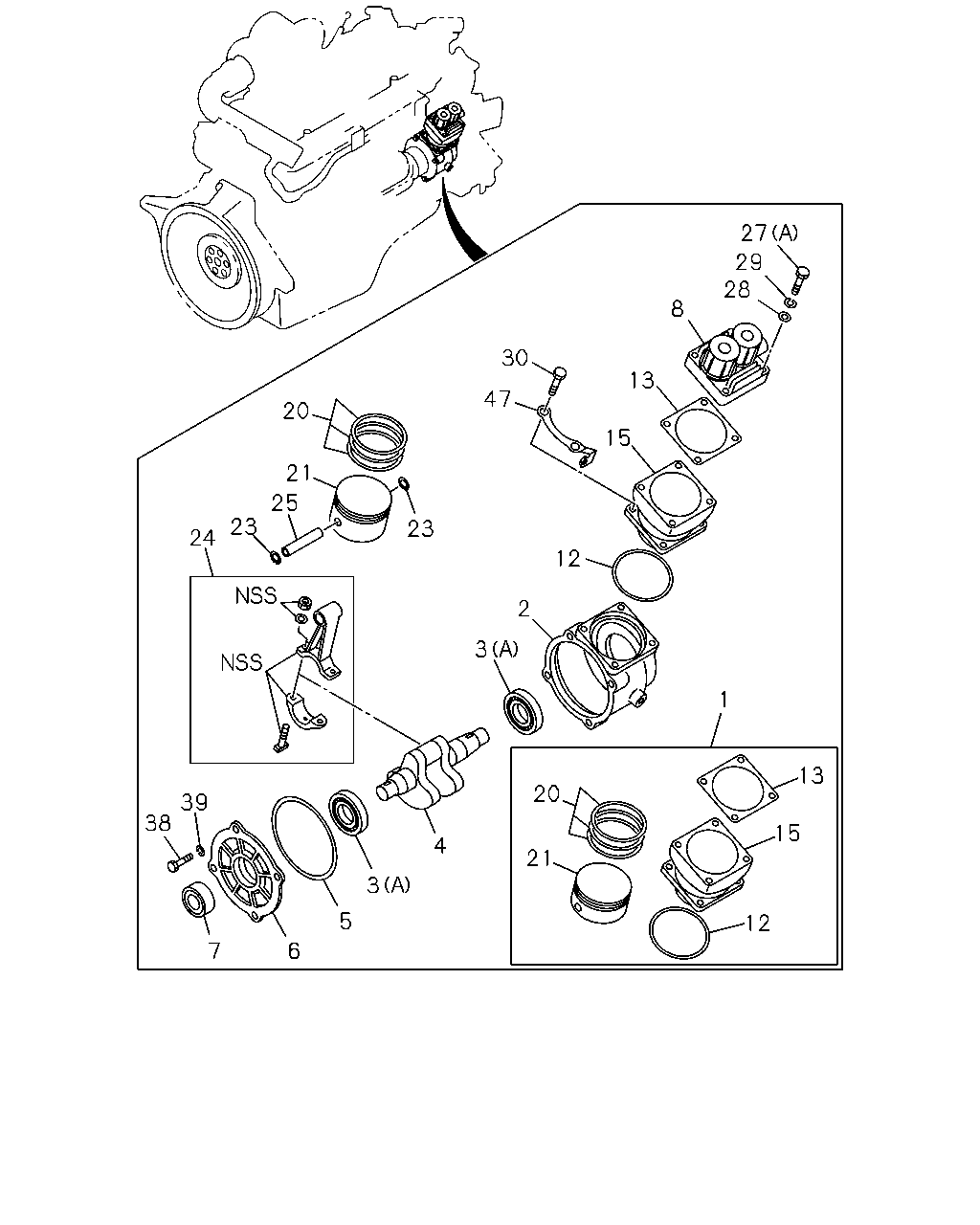

27 29 28 8 30 13 47 20 15 21 25 23 23 24 12 2 3 1 13 20 39 38 15 4 21 3 5 12 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19163-044-0	01	1	9207-
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19163-048-0	01	1	9207-
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19151-255-0	01	1	9207-
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19151-241-0	01	1	9207-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q) (A)	9-00006-206-0	01	1	9207-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q) (B)	9-00090-152-0	01	1	9207-
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q) (A)	9-00006-206-0	02	1	9207-
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19171-042-0	01	1	9207-
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19171-037-0	01	1	9207-
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-09623-361-0	01	1	9207-
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19158-019-0	01	1	9207-
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19156-041-1	01	1	9207-
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19156-040-0	01	1	9207-
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19158-024-1	01	1	9207-
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19158-018-1	01	1	9207-
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19110-052-1	01	1	9207-
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19110-019-0	01	1	9207-
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-09623-539-0	01	1	9207-
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19158-020-0	01	1	9207-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19139-004-0	01	1	9207-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19115-006-0	01	1	9207-
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19151-219-0	01	1	9207-
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19151-222-0	01	1	9207-
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19163-034-0	01	1	9207-
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19163-043-0	01	1	9207-
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19161-016-0	01	1	9207-
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19161-021-0	01	1	9207-
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	9-19168-008-0	02	1	9207-
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	9-19168-003-0	02	1	9207-
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19173-010-0	01	1	9207-
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19173-011-0	01	1	9207-
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVYDUTY(E1Q)	9-19167-003-0	01	1	9207-
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	9-19167-006-0	01	1	9207-
27	BOLT; HD AIR COMPRESSOR HEAVYDUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	9207-
27	BOLT; HD AIR COMPRESSOR HEAVYDUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	9207-
27	BOLT; HD EXC. AIR COMPRESSOR HEAVYDUTY(E1Q) (A) M10X30	9-02061-030-0	04	1	9207-
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVYDUTY(E1Q) ID=10.2	9-09150-610-0	08	1	9207-
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVYDUTY(E1Q) ID=10.5 OD=22	9-09164-610-0	04	1	9207-
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVYDUTY(E1Q)	9-02051-025-0	04	1	9207-
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-09000-332-0	04	1	9207-
38	BOLT; COVER FIX AIR COMPRESSOR HEAVYDUTY(E1Q)	9-81385-023-0	04	1	9207-
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-09000-331-0	04	1	9207-
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9207-
47	BRACKET; PIPE EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-19156-057-0	01	1	9207-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
