Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

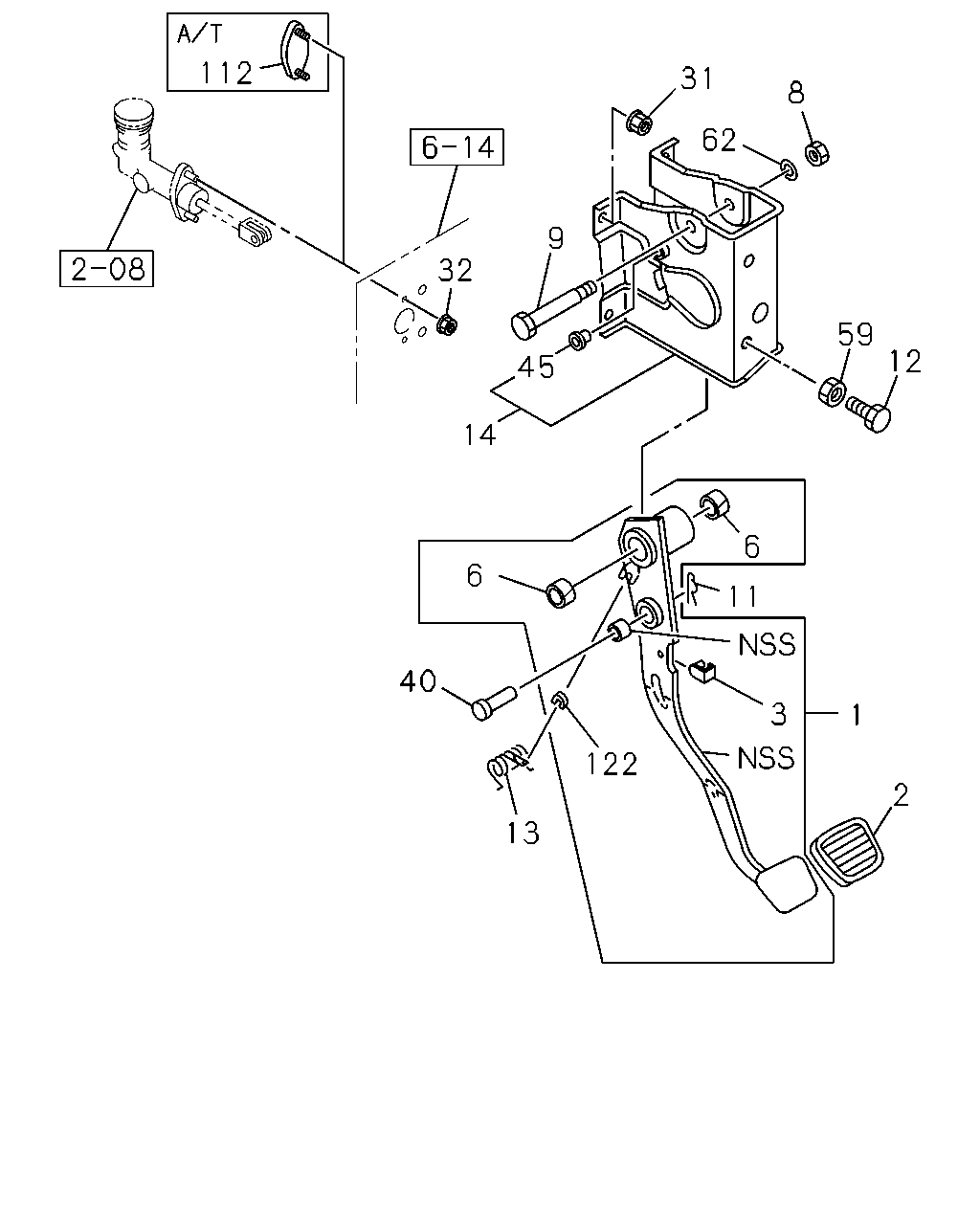

2-03 — CLUTCH PEDAL AND CONTROL
(#17239) — 18 parça
Tümü
A - M/T MUA 5 SPEED
B - A/T AISIN
112
31
8
62
9
32
59
12
45
14
6
6
11
40
3
1
122
2
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PEDAL; CLU
THA
8-97911-274-1
01
1
0009-
●
2
COVER; CLU PEDAL
THA
8-97915-151-0
01
1
0009-
●
3
RUBBER; STOPPER,CLU PEDAL
THA
8-97913-315-0
01
1
0009-
●
6
BUSHING; CLU PEDAL
THA
8-97913-314-0
02
1
0009-
●
8
NUT; PIN TO PEDAL
M10
9-09110-410-0
01
1
0009-
●
9
PIN; CLU PEDAL
8-94455-308-0
01
1
0009-
●
11
PIN; SNAP,PUSH ROD TO PEDAL
L=27.7
1-09747-005-0
01
1
0009-
●
12
BOLT; CLU PEDAL ADJ
M10X35
0-20801-035-0
01
1
0009-
●
13
SPRING; ASSIST,CLU PEDAL
THA
8-97915-400-0
01
1
0009-
●
14
BRACKET ASM; CLU PEDAL MTG
THA
8-97915-240-0
01
1
0009-
●
31
NUT; MTG BRKT TO BODY
M8 FLANGE THA
5-09440-005-0
04
1
0009-
●
32
NUT; BRKT TO CLU M/CYL
M8 FLANGE
0-91150-108-0
02
1
0009-
●
●
40
PIN; JOINT,CLU DAMPER
8-94432-133-1
01
1
0009-
●
45
BUSHING; ASSIST SPRING,CLU PEDAL
8-94175-433-0
02
1
0009-
●
59
NUT; CLU PEDAL ADJ
M10
9-09110-410-0
01
1
0009-
●
62
WASHER; LK,PIN TO PEDAL
ID=10.2 THA
9-09150-510-0
01
1
0009-
●
112
PLUG; METAL,M/CYL
THA
8-97259-210-0
01
1
0009-
●
122
BUSHING; ASSIST PEDAL,CLU
THA
8-97913-317-0
01
1
0009-
●
