Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#17236) — 16 parça
◀

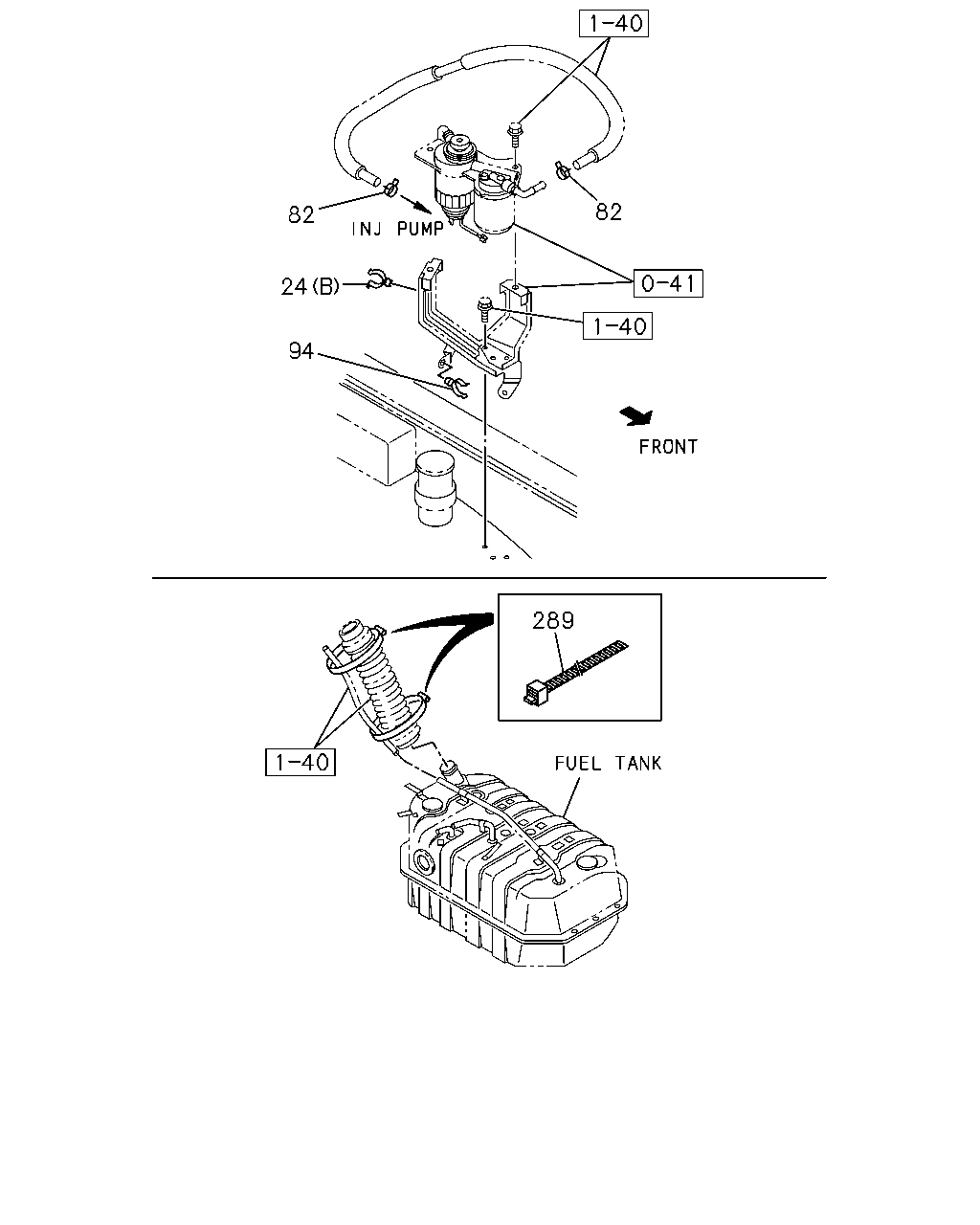

[141A] NO.3 (6 parça)
[141A] NO.2 (7 parça)

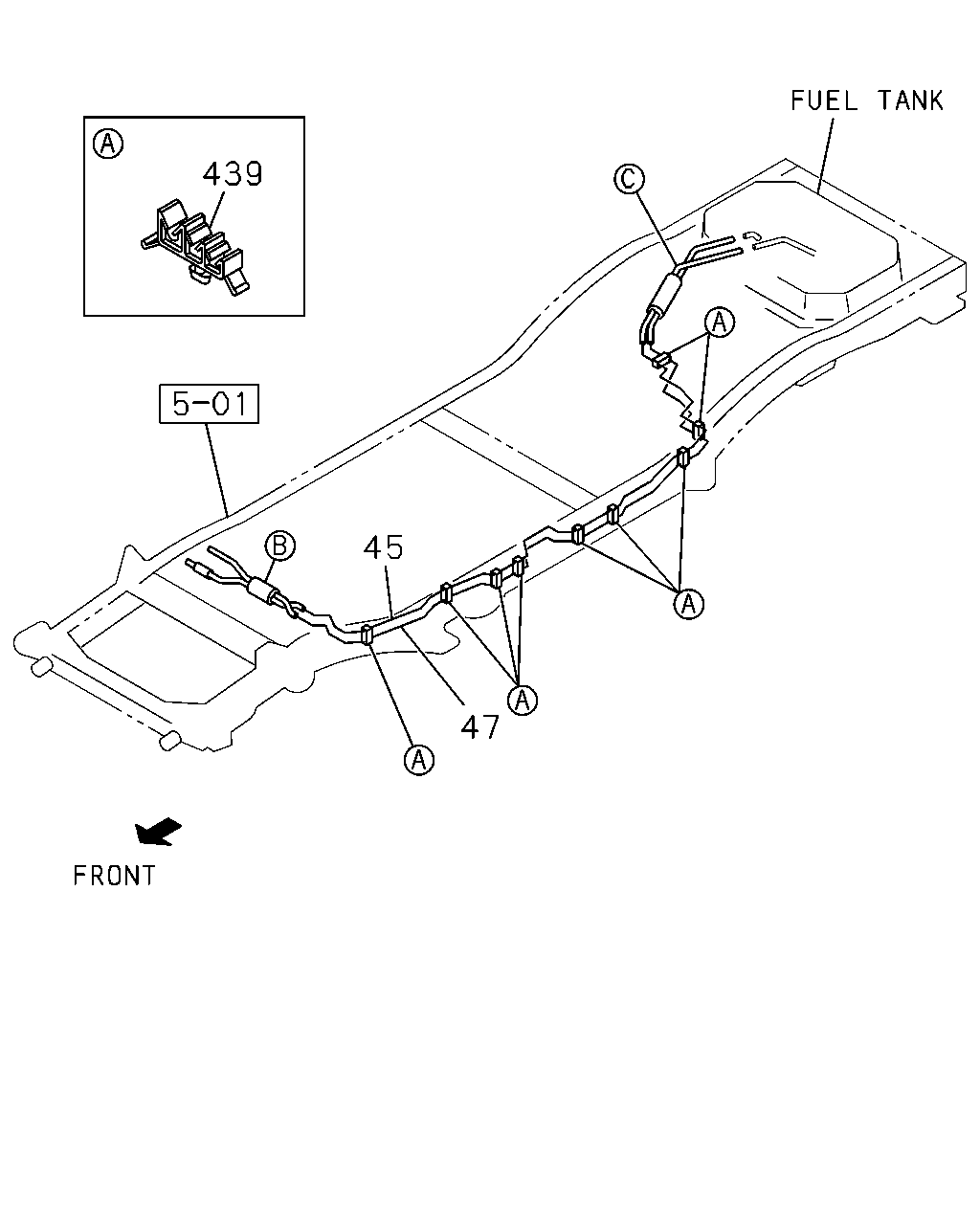

[141A] NO.1 (3 parça)
▶
82
82
24
94
289
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; FUEL HOSE
(A) ID=17.1
8-94122-679-0
02
1
0009-
24
CLIP; FUEL HOSE
(B) ID=20
8-94410-200-0
01
1
0009-
24
CLIP; FUEL HOSE
(C) ID=13
8-97173-220-0
02
1
0009-
82
CLIP; FUEL HOSE
ID=17.1
8-94122-679-0
02
1
0009-
94
CLIP; HOSE,FILTER
ID=21 BLACK
8-94422-733-0
01
1
0009-
289
CLIP; BAND,HOSE
L=350
8-94152-256-1
02
1
0009-
24
307
24
24
24
146
307
136
146
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; FUEL HOSE
(A) ID=17.1
8-94122-679-0
02
1
0009-
24
CLIP; FUEL HOSE
(B) ID=20
8-94410-200-0
01
1
0009-
24
CLIP; FUEL HOSE
(C) ID=13
8-97173-220-0
02
1
0009-
136
CLIP; HOSE,FUEL TANK
ID=17.1
8-94122-679-0
02
1
0009-
146
CLIP; HOSE,FUEL RETURN PIPE
ID=13
8-97173-220-0
02
1
0009-
307
HOSE ASM; FUEL,DELIVERY & RETURN
(A) THA
8-97920-611-1
01
1
0009-
307
HOSE ASM; FUEL,DELIVERY & RETURN
(B) THA
8-97920-614-2
01
1
0009-
439
45
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
PIPE; FUEL,DELIVERY
THA
8-97920-553-1
01
1
0009-
47
PIPE; FUEL,RETURN
THA
8-97920-554-1
01
1
0009-
439
CLIP; THREE HOLD
8-97245-523-0
09
1
0009-
