1-40 — FUEL TANK (#17235) — 34 parça

304 301 300 308 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; BRKT TO BODY M8X16 FLANGE	0-28080-816-0	03	1	0009-
301	BOLT; BRKT TO SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	0009-
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP THA	8-97920-486-0	01	1	0009-
308	CLIP; HOSE (A) ID=10.5 & 13.2	8-94310-916-0	01	1	0009-
308	CLIP; HOSE (B) ID=20	8-94410-200-0	01	1	0009-

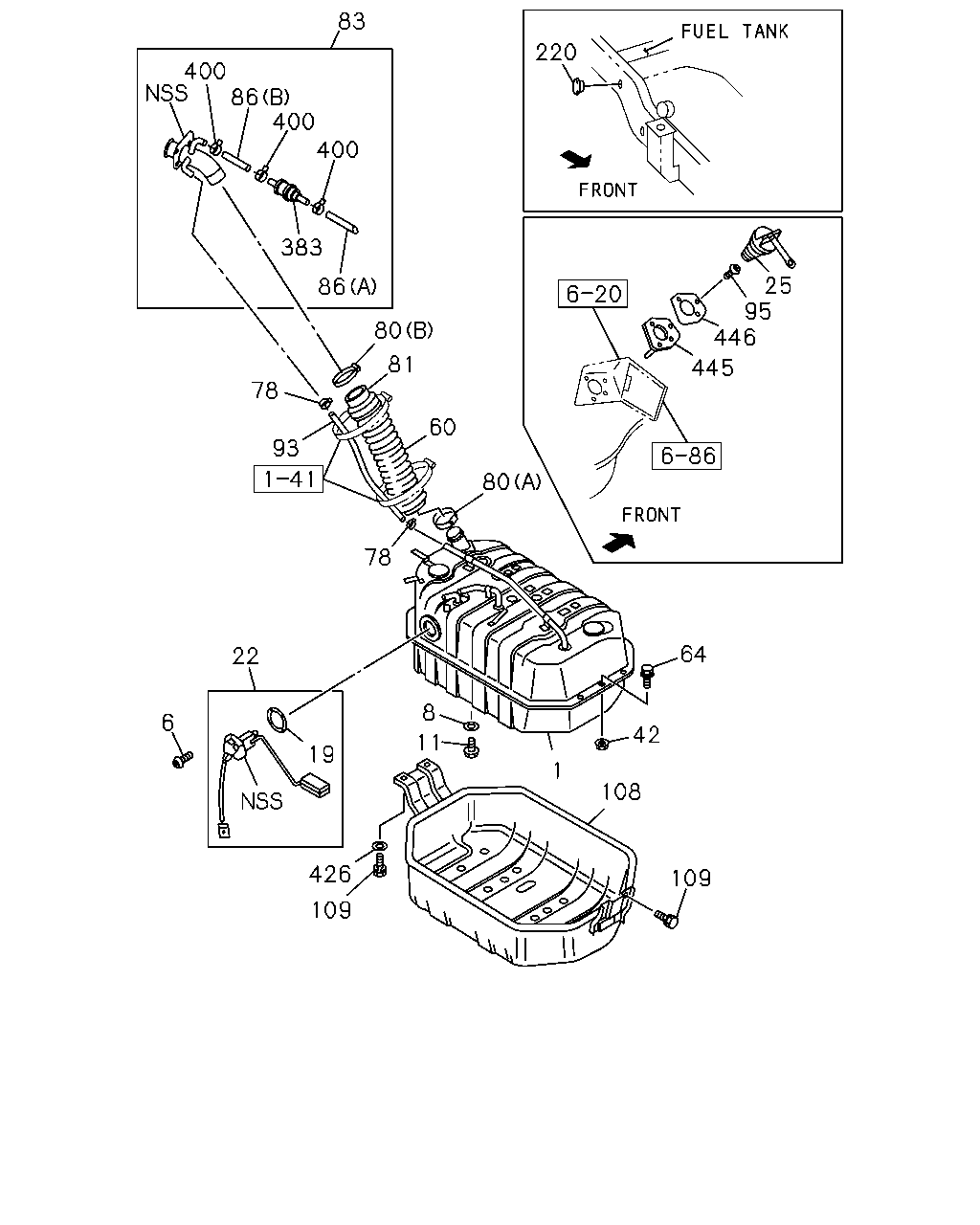

83 220 400 86 400 400 383 25 95 446 445 86 80 81 78 60 93 80 78 64 22 8 11 6 42 19 1 108 426 109 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL THA	8-97920-561-1	01	1	0009-
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	9-03910-510-0	05	1	0009-
8	GASKET; DRAIN PLUG,FUEL TANK THA	8-97913-627-0	01	1	0009-
11	PLUG; DRAIN,FUEL TANK THA	8-97913-628-0	01	1	0009-
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0009-
22	UNIT; FUEL TANK THA	8-97918-824-1	01	1	0009-
25	CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	0009-
42	NUT; SUPPORT BELT M8 FLANGE	8-94328-243-1	03	1	0009-
60	PROTECTOR; FUEL FILLER	8-94318-424-0	01	1	0009-
64	BOLT; FUEL TANK M8X24	8-97034-130-1	06	1	0009-
78	CLIP; BREATHER HOSE ID=21 THA	8-94242-034-0	02	1	0009-
80	CLIP; FILLER HOSE (A) ID=59	8-94435-876-0	01	1	0009-
80	CLIP; FILLER HOSE (B) ID=54	9-09915-412-1	01	1	0009-0110
80	CLIP; FILLER HOSE (B) ID=57	9-09915-036-1	01	1	0111-
81	HOSE; FUEL FILLER THA	8-97913-375-0	01	1	0009-
83	NECK; FUEL FILLER	8-97081-014-2	01	1	0009-
86	HOSE; EVAP (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0009-
86	HOSE; EVAP (B) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	0009-
93	HOSE; BREATHER,FUEL TANK THA	8-97913-374-0	01	1	0009-
95	SCREW; FILLER NECK M6X16	8-94381-646-0	03	1	0009-
108	PROTECTOR; FUEL TANK THA	8-97913-364-1	01	1	0009-
109	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28480-825-0	04	1	0009-
220	GROMMET; BREATHER HOSE,FUEL TANK THA	8-94482-493-1	01	1	0009-
383	VALVE; 2 WAY	8-97178-373-0	01	1	0009-
400	CLIP; HOSE,EVAP ID=8.5	8-94166-071-0	03	1	0009-0105
400	CLIP; HOSE,EVAP ID=8.5	8-94166-071-0	02	1	0106-
426	WASHER; PL ID=8.4 OD=22	9-09164-708-0	02	1	0009-
445	RUBBER; RECEIVER	8-94340-180-2	01	1	0009-
446	PLATE; FIXING	8-94340-181-0	01	1	0009-
