Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

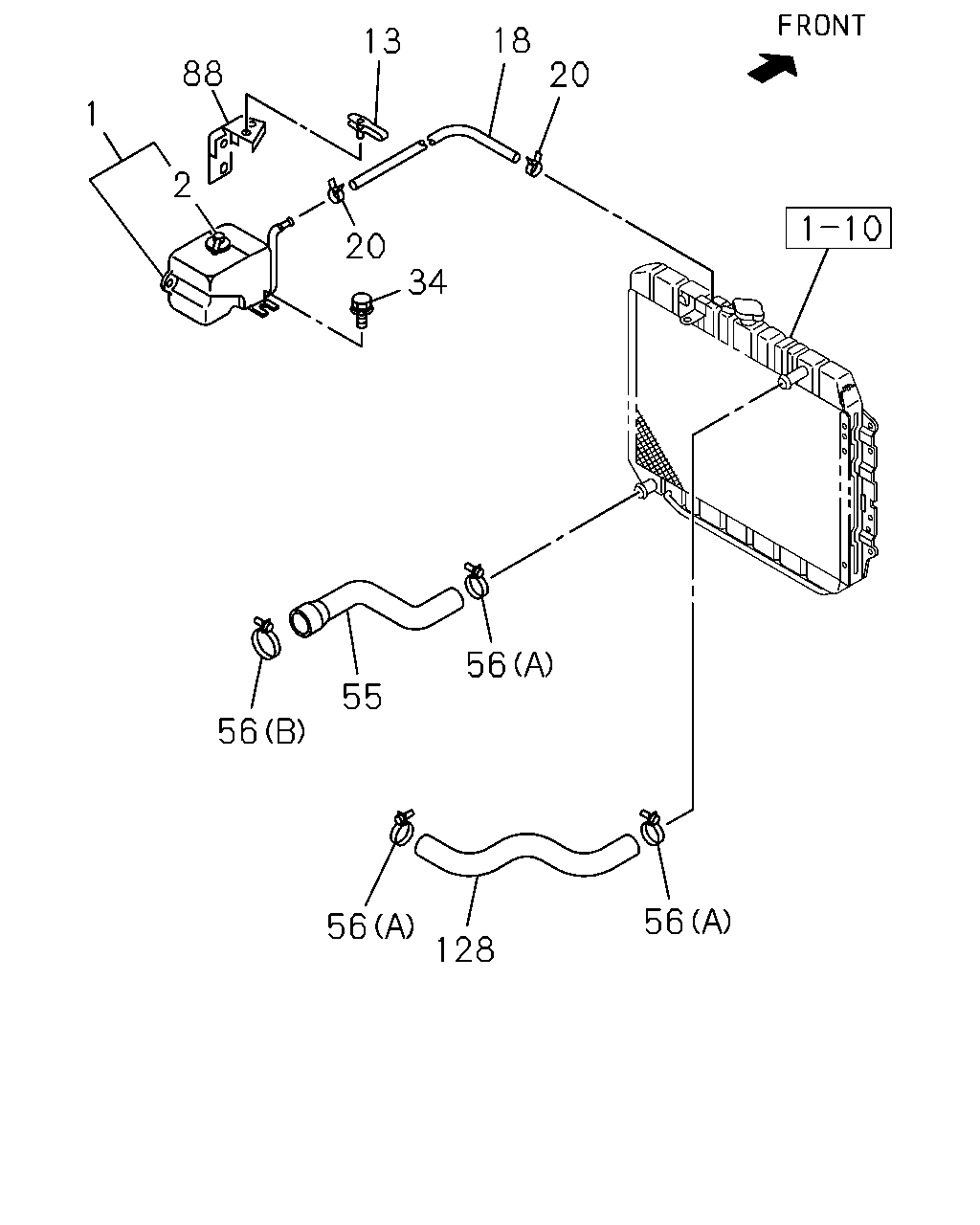

1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#17232) — 13 parça
18
20
13
88
1
2
20
34
56
55
56
56
56
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
THA
8-97916-613-0
01
1
0009-
2
CAP; SURGE TANK
8-97130-964-0
01
1
0009-
13
CLIP; HOSE,SURGE TANK
L=103
8-94239-339-0
01
1
0009-
18
HOSE; RAD TO SURGE TANK
THA
8-97921-018-1
01
1
0009-
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
02
1
0009-0103
34
BOLT; RESERVE TANK
M8X25
8-97091-076-0
02
1
0009-0203
34
BOLT; RESERVE TANK
M8X25
8-97327-634-0
02
1
0204-
55
HOSE; WATER,RAD OUTLET
THA
8-97913-757-0
01
1
0009-
56
CLIP; WATER HOSE,RAD
(B) ID=51
5-09704-050-1
01
1
0009-0105
56
CLIP; WATER HOSE,RAD
(B) ID=52
1-09704-057-0
01
1
0106-
56
CLIP; WATER HOSE,RAD
(A) ID=48 THA
8-97916-394-0
03
1
0009-
88
BRACKET; SUB TANK HOSE
8-94473-988-3
01
1
0009-
128
HOSE; WATER,RAD INL
THA
8-97920-538-0
01
1
0009-
