50892 - UCS(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶

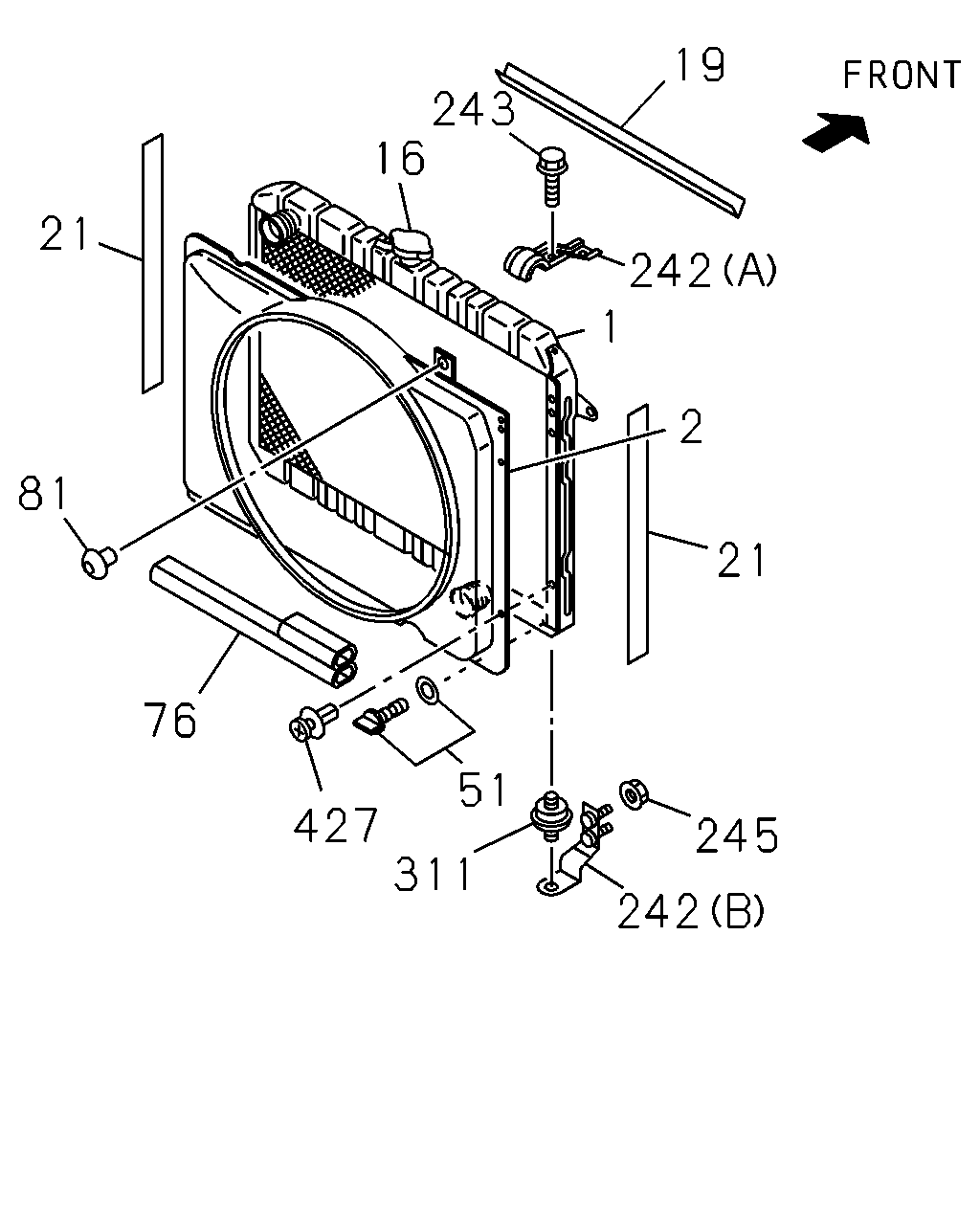

1-10 — RADIATOR
(#17231) — 18 parça
19
243
16
21
242
1
2
81
21
76
51
427
311
245
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
A/T AISIN<RMD> THA
8-97913-787-1
01
1
0009-
1
RADIATOR ASM
M/T MUA 5 SPEED<RMN> THA
8-97920-313-0
01
1
0009-
2
GUIDE; FAN
THA
8-97921-510-0
01
1
0009-
16
CAP; RAD
THA
8-97913-789-0
01
1
0009-
19
SEAL; RAD UPR
L=200
8-97081-956-2
01
1
0009-
19
SEAL; RAD UPR
L=365
8-97254-404-0
01
1
0009-
21
SEAL; RAD
M/T MUA 5 SPEED<RMN> THA
8-97920-340-0
02
1
0009-
51
PLUG; DRAIN
THA
8-97913-788-0
01
1
0009-0106
51
PLUG; DRAIN
THA
8-97922-129-0
01
1
0107-
76
SEAL; RAD,LWR
8-97257-011-0
02
1
0009-
81
SCREW; FAN GUIDE,RAD
THA
8-97921-536-0
02
1
0009-
242
BRACKET; RAD
(A)
8-97225-348-1
01
1
0009-
242
BRACKET; RAD
(B) THA
8-97919-975-0
01
1
0009-
242
BRACKET; RAD
(B) THA
8-97919-413-0
01
1
0009-
243
BOLT; BRKT
M8X20 W/LK WASHER
0-50040-820-0
02
1
0009-
245
NUT; BRKT
M8 FLANGE
8-97046-127-0
04
1
0009-
311
RUBBER; MTG,RAD
8-97231-024-0
02
1
0009-
427
CLIP; FAN GUIDE
THA
8-97043-862-0
02
1
0009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
