1 |

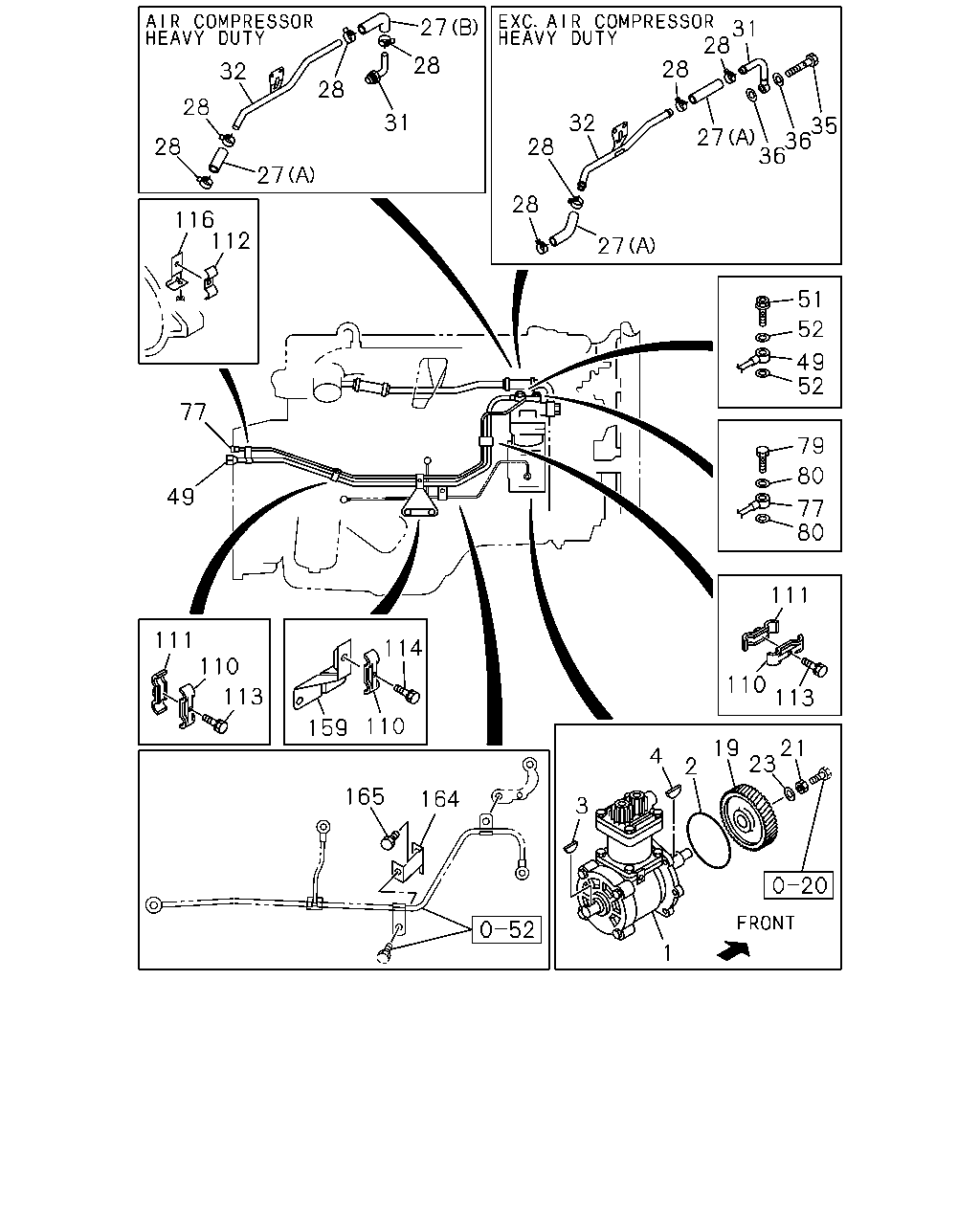

COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
AIR COMPRESSOR HEAVYDUTY(E1Q)
|
1-19100-260-3 |
01 |
1 |
9207- |
| |
1 |
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
|
1-19100-255-2 |
01 |
1 |
9207- |
| |
2 |
GASKET; AIR CMPR
ID=139.6
|
1-09623-464-0 |
01 |
1 |
9207- |
| |
3 |
KEY; COUPLING,INJ PUMP
|
9-08055-416-0 |
01 |
1 |
9207- |
| |
4 |
KEY; INJ PUMP GEAR
|
9-08055-516-0 |
01 |
1 |
9207- |
| |
19 |
GEAR; INJ PUMP
Z=50
|
1-12524-033-0 |
01 |
1 |
9207- |
| |
21 |
NUT; PUMP GEAR
M20
|
9-99110-520-0 |
01 |
1 |
9207- |
| |
23 |
WASHER; PL,PUMP GEAR
ID=21
|
9-09160-520-0 |
01 |
1 |
9207- |
| |
27 |
HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVYDUTY(E1Q)
(B)
L=120
|
1-09360-189-0 |
01 |
1 |
9207- |
| |
27 |
HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVYDUTY(E1Q)
(A)
L=100
SERVICED BY L=10000
|
9-09912-813-0 |
01 |
1 |
9207- |
| |
27 |
HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
(A)
L=100
SERVICED BY L=10000
|
9-09912-813-0 |
02 |
1 |
9207- |
| |
28 |
CLIP; HOSE,AIR CMPR
ID=26
|
1-09707-091-0 |
04 |
1 |
9207- |
| |
31 |
PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVYDUTY(E1Q)
|
1-19191-950-0 |
01 |
1 |
9207- |
| |
31 |
PIPE; AIR,AIR CMPR SUCTION
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
|
1-19191-690-0 |
01 |
1 |
9207- |
| |
32 |
PIPE; AIR,AIR CMPR
AIR COMPRESSOR HEAVYDUTY(E1Q)
|
1-19191-949-0 |
01 |
1 |
9207- |
| |
32 |
PIPE; AIR,AIR CMPR
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
|
1-19191-692-0 |
01 |
1 |
9207- |
| |
35 |
BOLT; EYE,AIR PIPE
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
M24X39
|
1-09675-132-0 |
01 |
1 |
9207- |
| |
36 |
GASKET; AIR PIPE TO AIR CMPR
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
ID=24.5 OD=32
|
9-09571-424-0 |
02 |
1 |
9207- |
| |
49 |
PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVYDUTY(E1Q)
|
1-19192-075-1 |
01 |
1 |
9207- |
| |
49 |
PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
|
1-19192-083-0 |
01 |
1 |
9207- |
| |
51 |
BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVYDUTY(E1Q)
M24X39
|
1-09675-132-0 |
01 |
1 |
9207- |
| |
51 |
BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
M20X38
|
1-09675-133-0 |
01 |
1 |
9207- |
| |
52 |
GASKET; EYE BOLT,AIR PIPE
AIR COMPRESSOR HEAVYDUTY(E1Q)
ID=24.5 OD=32
|
9-09571-424-0 |
02 |
1 |
9207- |
| |
52 |
GASKET; EYE BOLT,AIR PIPE
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
|
9-09571-420-0 |
02 |
1 |
9207- |
| |
77 |
PIPE; AIR,GOV
AIR COMPRESSOR HEAVYDUTY(E1Q)
|
1-19192-076-0 |
01 |
1 |
9207- |
| |
77 |
PIPE; AIR,GOV
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
|
1-19192-084-0 |
01 |
1 |
9207- |
| |
79 |
BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVYDUTY(E1Q)
M14X27 FLANGE
|
1-09675-086-0 |
01 |
1 |
9207- |
| |
79 |
BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
M18X33
|
1-09675-058-0 |
01 |
1 |
9207- |
| |
80 |
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
AIR COMPRESSOR HEAVYDUTY(E1Q)
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
9207- |
| |
80 |
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
|
1-09630-087-0 |
02 |
1 |
9207- |
| |
110 |
CLIP; AIR PIPE
ID=15 & 6 WO/NUT
|
1-09700-828-0 |
04 |
1 |
9207- |
| |
111 |
CLIP; AIR PIPE
ID=15 & 6 W/NUT
|
1-09700-829-0 |
02 |
1 |
9207- |
| |
112 |
CLIP; AIR PIPE END
ID=16 & 7 L=18 & 15
|
1-09700-078-0 |
01 |
1 |
9207- |
| |
113 |
BOLT; CLIP,AIR PIPE
M6X32 W/LK WASHER
|
0-50040-632-0 |
02 |
1 |
9207- |
| |
114 |
BOLT; CLIP,AIR PIPE
M6X32 W/LK WASHER
|
0-50040-632-0 |
01 |
1 |
9207- |
| |
116 |
BRACKET; AIR PIPE
|
1-19199-122-0 |
01 |
1 |
9207- |
| |
159 |
BRACKET; AIR PIPE CLIP
|
1-19199-123-1 |
01 |
1 |
9207- |
| |
164 |
BRACKET; OIL PIPE CLIP FIX
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
|
1-13345-166-0 |
01 |
1 |
9207- |
| |
165 |
BOLT; BRKT OIL PIPE CLIP
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
M10X20 W/LK WASHER
|
0-50041-020-0 |
01 |
1 |
9207- |
