Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#17228) — 43 parça

22 17 36 15 3 83 9 20 85 19 14 2 18 33 27 24 49 6 32 32 27 27 27 27 24 57 24 42 106 5 30 29 21 32 49 27 32 37 49 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97941-426-2	8-97941-557-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97941-426-2	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97941-426-2	8-97148-112-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: A = 8-97941-426-2	8-97941-564-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97941-426-2	8-97941-560-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97941-426-2	8-97941-561-0	01	1	-
22	STATOR; GEN THA ASM PART: A = 8-97941-426-2	8-97941-673-0	01	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: A = 8-97941-426-2	8-97941-562-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP THA ASM PART: A = 8-97941-426-2	8-94223-989-0	01	1	-

22 17 3 3 19 108 24 90 1 75 48 44 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97941-426-2	8-97941-557-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97941-426-2	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97941-426-2	8-97148-112-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: A = 8-97941-426-2	8-97941-564-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97941-426-2	8-97941-560-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97941-426-2	8-97941-561-0	01	1	-
22	STATOR; GEN THA ASM PART: A = 8-97941-426-2	8-97941-673-0	01	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: A = 8-97941-426-2	8-97941-562-0	01	1	-
44	SEAL; RR COVER,GEN THA ASM PART: A = 8-97941-426-2	8-97941-674-0	01	1	-
48	DIODE; GEN THA ASM PART: A = 8-97941-426-2	8-97941-559-0	01	1	-
75	REGULATOR; VOLTAGE,GEN THA ASM PART: A = 8-97941-426-2	8-97236-691-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: A = 8-97941-426-2	8-97236-692-0	01	1	-
108	ROTOR; VAC PUMP (A), THA ASM PART: A = 8-97941-426-2	8-97236-693-0	01	1	-
108	ROTOR; VAC PUMP (B), THA ASM PART: A = 8-97941-426-2	8-97941-563-0	01	1	-

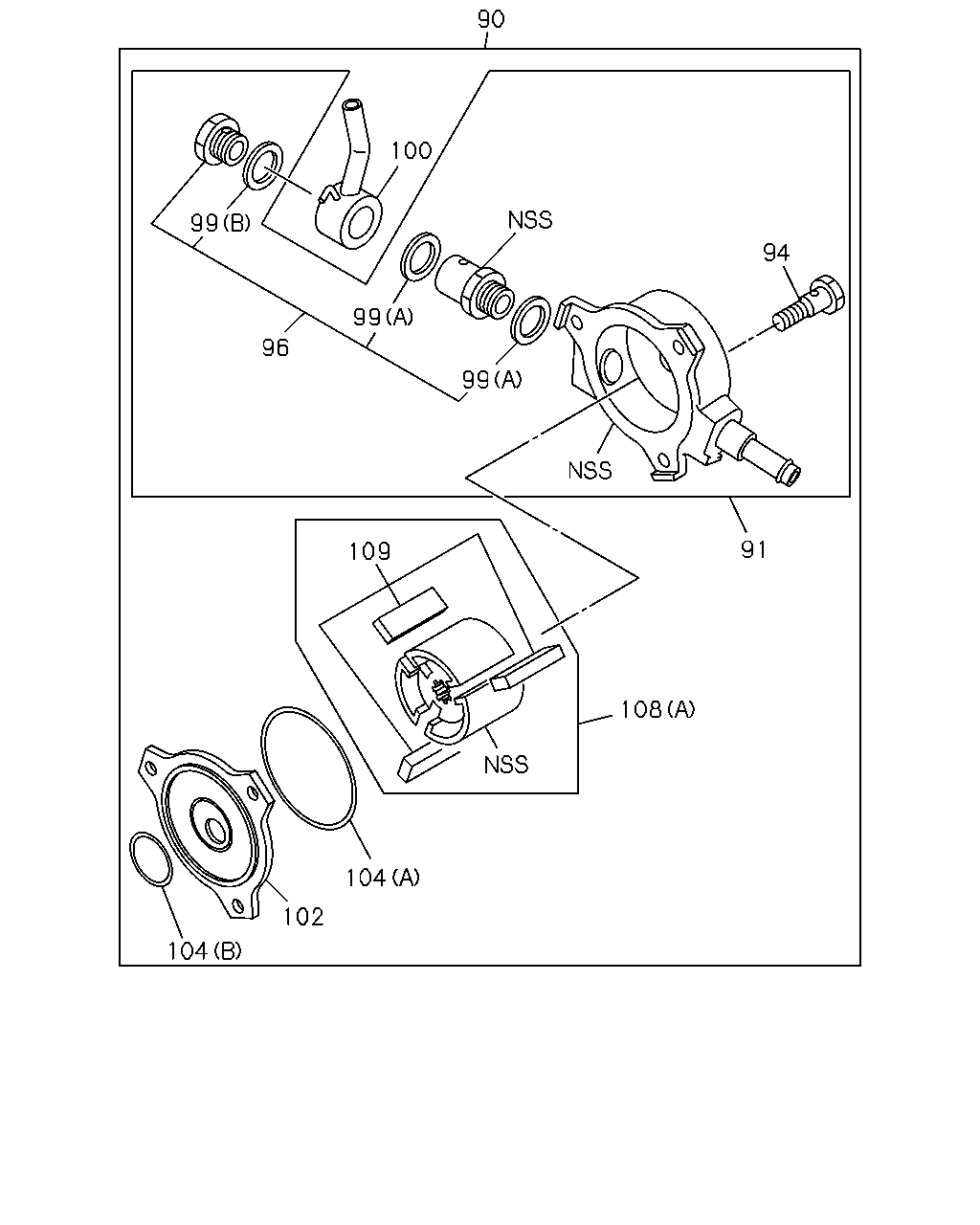

90 98 93 94 93 97 99 103 108 110 109 109 109 109 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	PUMP ASM; VAC,GEN THA ASM PART: A = 8-97941-426-2	8-97236-692-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97941-426-2	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97941-426-2	8-94223-993-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97941-426-2	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97941-426-2	8-97941-675-0	01	1	-
108	ROTOR; VAC PUMP (A), THA ASM PART: A = 8-97941-426-2	8-97236-693-0	01	1	-
108	ROTOR; VAC PUMP (B), THA ASM PART: A = 8-97941-426-2	8-97941-563-0	01	1	-
109	VANE; VAC PUMP THA ASM PART: A = 8-97941-426-2	8-94223-985-0	03	1	-

90 100 99 94 99 96 99 91 109 108 104 102 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	PUMP ASM; VAC,GEN THA ASM PART: A = 8-97941-426-2	8-97236-692-0	01	1	-
91	BODY; VAC PUMP THA ASM PART: A = 8-97941-426-2	8-97236-694-0	01	1	-
96	VALVE ASM; VAC PUMP THA ASM PART: A = 8-97941-426-2	8-94223-991-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97941-426-2	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97941-426-2	8-94223-993-0	01	1	-
100	CONNECTOR; VAC PUMP THA ASM PART: A = 8-97941-426-2	8-97166-553-0	01	1	-
102	COVER; FRT,VAC PUMP THA ASM PART: A = 8-97941-426-2	8-97137-334-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97941-426-2	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97941-426-2	8-97941-675-0	01	1	-
108	ROTOR; VAC PUMP (A), THA ASM PART: A = 8-97941-426-2	8-97236-693-0	01	1	-
108	ROTOR; VAC PUMP (B), THA ASM PART: A = 8-97941-426-2	8-97941-563-0	01	1	-
109	VANE; VAC PUMP THA ASM PART: A = 8-97941-426-2	8-94223-985-0	03	1	-
