0-65 — STARTER (#17227) — 72 parça

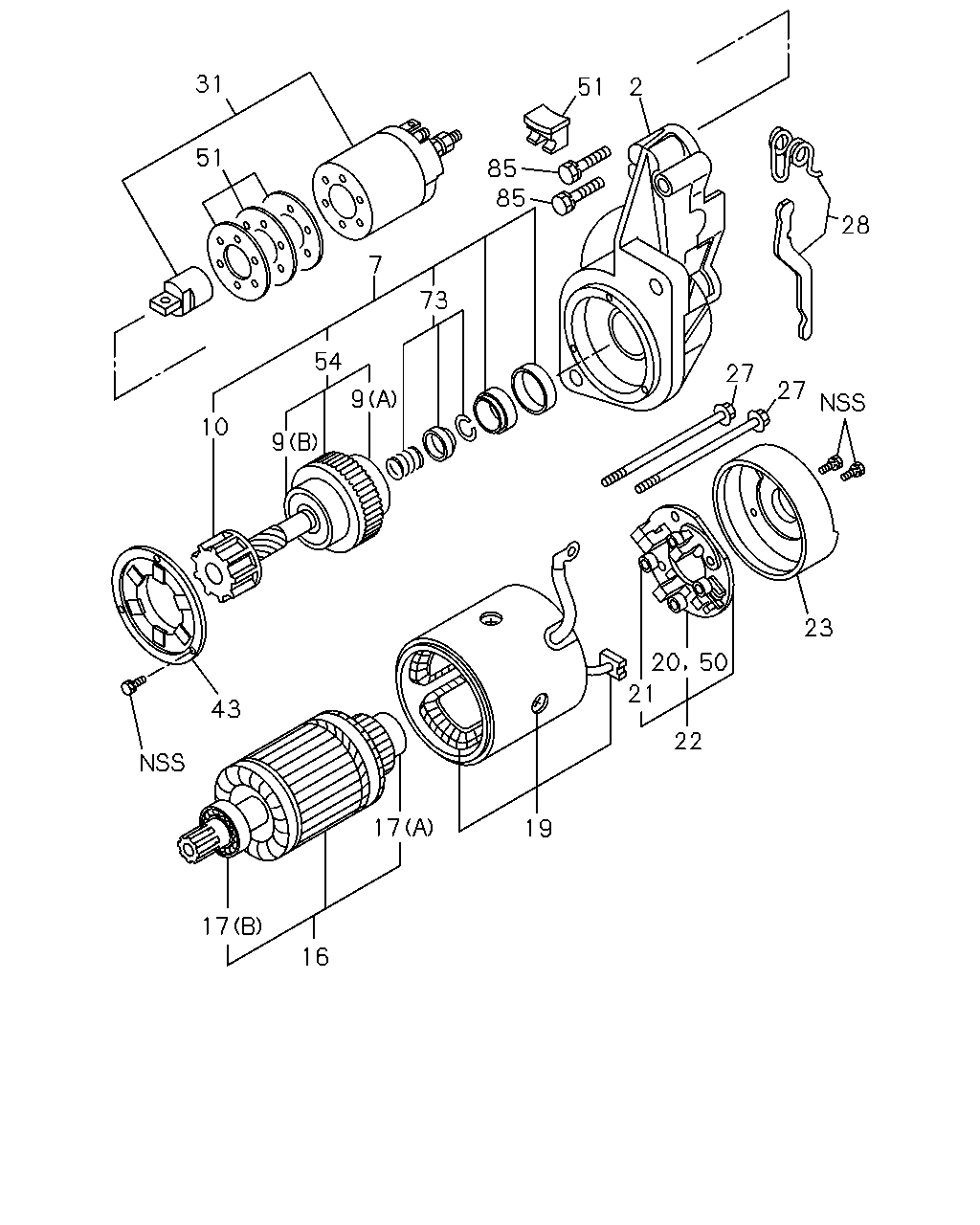

31 51 2 51 85 85 28 7 73 54 27 27 9 10 9 23 50 20 21 43 22 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 8-97941-023-0	8-97142-908-0	01	1	-
2	CASE; PINION,STARTER THA ASM PART: A = 8-97941-018-2	8-97941-668-0	01	1	-
7	CLUTCH ASM; PINION,STARTER THA ASM PART: A = 8-97941-018-2	8-97941-664-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B), THA ASM PART: A = 8-97941-018-2	8-97941-659-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), THA ASM PART: A = 8-97941-018-2	8-97941-660-0	01	1	-
10	SHAFT; GEAR STARTER THA ASM PART: A = 8-97941-018-2	8-97130-189-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97941-023-0	8-97112-869-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: A = 8-97941-018-2	8-97941-656-0	01	1	-
17	BEARING; ARMATURE,STARTER THA ASM PART: B = 8-97941-023-0	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: B = 8-97941-023-0	8-97112-954-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), THA ASM PART: A = 8-97941-018-2	8-97941-657-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: A = 8-97941-018-2	8-97941-658-0	01	1	-
19	COIL; FIELD,STARTER THA ASM PART: A = 8-97941-018-2	8-97941-661-0	01	1	-0112
19	COIL; FIELD,STARTER THA ASM PART: A = 8-97941-018-2	8-97942-825-0	01	1	0201-
20	BRUSH; (+),STARTER THA ASM PART: A = 8-97941-018-2	8-97112-557-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97941-018-2	8-94242-064-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: B = 8-97941-023-0	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97941-023-0	8-97112-873-0	01	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: A = 8-97941-018-2	8-97941-663-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97941-023-0	8-97112-875-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-97941-018-2	8-97227-901-0	01	1	0012-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-97941-018-2	8-97941-662-0	01	1	-0011
27	BOLT; THROUGH,STARTER ASM PART: B = 8-97941-023-0	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: B = 8-97941-023-0	8-97112-957-0	02	1	-
27	BOLT; THROUGH,STARTER THA ASM PART: A = 8-97941-018-2	8-97262-497-0	02	1	-
28	LEVER; SHIFT,STARTER THA ASM PART: A = 8-97941-018-2	8-97941-670-0	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: B = 8-97941-023-0	8-97142-907-1	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: A = 8-97941-018-2	8-97941-667-0	01	1	-
43	RETAINER; PINION STARTER THA ASM PART: B = 8-97941-023-0	8-94377-246-0	01	1	-
43	RETAINER; PINION STARTER THA ASM PART: A = 8-97941-018-2	8-97941-669-0	01	1	-
50	BRUSH; (-),STARTER THA ASM PART: A = 8-97941-018-2	8-97112-557-0	02	1	-
51	COVER SET; DUST ENGAGE SW STARTER THA ASM PART: A = 8-97941-018-2	8-97941-671-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97941-023-0	8-97148-687-0	01	1	-
54	CLUTCH; PINION,STARTER THA ASM PART: A = 8-97941-018-2	8-97941-665-0	01	1	-
73	STOPPER SET; PINION ASM PART: A = 8-97941-018-2	8-94228-450-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER THA ASM PART: A = 8-97941-018-2	8-97941-672-0	02	1	-

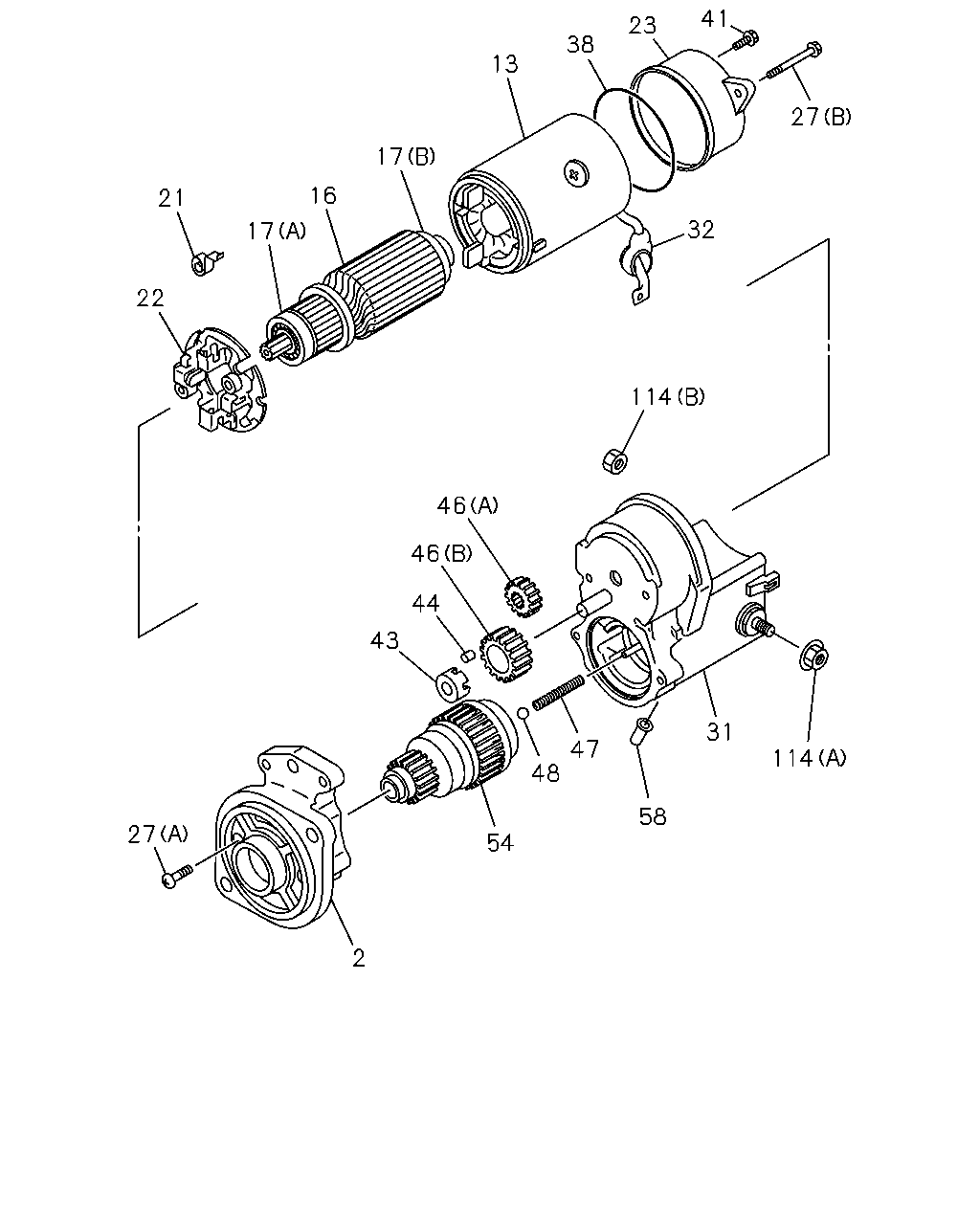

41 23 38 13 27 17 16 17 21 32 22 114 46 46 44 43 31 47 48 114 58 27 54 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 8-97941-023-0	8-97142-908-0	01	1	-
2	CASE; PINION,STARTER THA ASM PART: A = 8-97941-018-2	8-97941-668-0	01	1	-
13	YOKE; STARTER THA ASM PART: B = 8-97941-023-0	8-97941-438-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97941-023-0	8-97112-869-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: A = 8-97941-018-2	8-97941-656-0	01	1	-
17	BEARING; ARMATURE,STARTER THA ASM PART: B = 8-97941-023-0	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: B = 8-97941-023-0	8-97112-954-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), THA ASM PART: A = 8-97941-018-2	8-97941-657-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: A = 8-97941-018-2	8-97941-658-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97941-018-2	8-94242-064-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: B = 8-97941-023-0	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97941-023-0	8-97112-873-0	01	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: A = 8-97941-018-2	8-97941-663-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97941-023-0	8-97112-875-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-97941-018-2	8-97227-901-0	01	1	0012-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-97941-018-2	8-97941-662-0	01	1	-0011
27	BOLT; THROUGH,STARTER ASM PART: B = 8-97941-023-0	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: B = 8-97941-023-0	8-97112-957-0	02	1	-
27	BOLT; THROUGH,STARTER THA ASM PART: A = 8-97941-018-2	8-97262-497-0	02	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: B = 8-97941-023-0	8-97142-907-1	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: A = 8-97941-018-2	8-97941-667-0	01	1	-
32	COVER; RUBBER,STARTER THA ASM PART: B = 8-97941-023-0	5-81119-029-0	01	1	-
38	GASKET; RR COVER,STARTER THA ASM PART: B = 8-97941-023-0	8-94170-214-0	02	1	-
41	SCREW; RR COVER,STARTER ASM PART: B = 8-97941-023-0	8-97142-903-0	02	1	-
43	RETAINER; PINION STARTER THA ASM PART: B = 8-97941-023-0	8-94377-246-0	01	1	-
43	RETAINER; PINION STARTER THA ASM PART: A = 8-97941-018-2	8-97941-669-0	01	1	-
44	ROLLER; PINION STARTER THA ASM PART: B = 8-97941-023-0	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER ASM PART: B = 8-97941-023-0	8-97078-649-0	01	1	-
46	GEAR; CLU STARTER (A), THA ASM PART: B = 8-97941-023-0	8-97142-904-0	01	1	-
47	SPRING; PINION STARTER THA ASM PART: B = 8-97941-023-0	8-94377-245-0	01	1	-
48	BALL; PINION,STARTER ASM PART: B = 8-97941-023-0	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97941-023-0	8-97148-687-0	01	1	-
54	CLUTCH; PINION,STARTER THA ASM PART: A = 8-97941-018-2	8-97941-665-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER THA ASM PART: B = 8-97941-023-0	8-97041-421-0	01	1	-
114	NUT; TERMINAL THA ASM PART: B = 8-97941-023-0	8-94109-763-0	01	1	-
114	NUT; TERMINAL (B), THA ASM PART: B = 8-97941-023-0	8-94377-238-0	01	1	-
