50892 - UCS(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

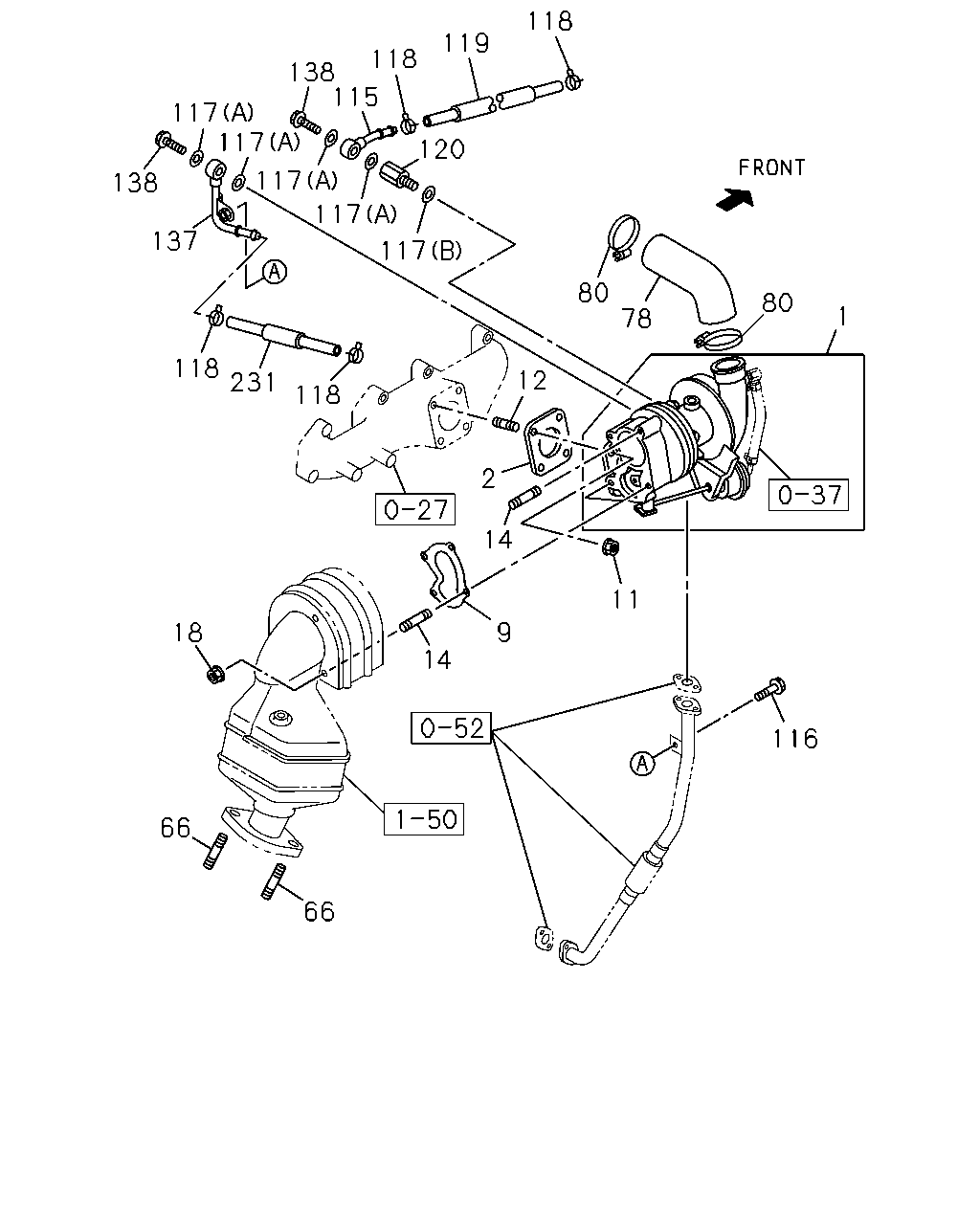

0-36 — TURBOCHARGER SYSTEM
(#17216) — 24 parça
118
119
118
138
115
117
117
117
117
117
120
138
137
80
78
80
1
118
231
12
118
2
14
11
9
18
14
116
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97226-338-1
01
1
0009-0211
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA
8-97943-196-1
01
1
0212-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97912-697-0
01
1
0009-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97912-694-0
01
1
0009-
11
NUT; TURBOCHARGER
M8 FLANGE
8-97161-607-0
04
1
0009-
12
STUD; TURBOCHARGER
M8X20 L=31 THA
8-97104-508-1
04
1
0009-0408
12
STUD; TURBOCHARGER
M8X20 L=31
8-97378-060-0
04
1
0409-
14
STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54
8-97104-507-1
04
1
0009-0408
18
NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
04
1
0009-
66
STUD; EXH PIPE
M10X38 L=53
5-09302-007-0
02
1
0009-
78
HOSE; INL PIPE,TURBOCHARGER
THA
8-97942-956-0
01
1
0206-
78
HOSE; INL PIPE,TURBOCHARGER
8-97254-750-0
01
1
0009-0301
80
CLIP; CONN HOSE,TURBOCHARGER
ID=44-60
8-94175-940-0
02
1
0009-
115
PIPE; WATER,TURBOCHARGER OUT
THA
8-97920-034-0
01
1
0009-
116
BOLT; WATER PIPE
M6X12 W/LK WASHER
0-50040-612-0
01
1
0009-0211
116
BOLT; WATER PIPE
M6X12 W/LK WASHER THA
0-50540-612-0
01
1
0212-
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) T=2.5 THA
8-97920-063-0
01
1
0009-
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2
9-09571-412-0
04
1
0009-
118
CLIP; WATER HOSE
ID=12.8
8-94367-943-0
04
1
0009-
119
HOSE; WATER,TURBOCHARGER
L=250 W/INSULATOR THA
8-97912-688-1
01
1
0009-
120
ADAPTER; WATER
THA
8-97920-062-0
01
1
0009-
137
PIPE; WATER,TURBOCHARGER IN
THA
8-97920-035-0
01
1
0009-
138
BOLT; EYE,WATER PIPE
M12X24 EYE-BOLT THA
1-09675-081-0
02
1
0009-
231
HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR THA
8-97912-684-0
01
1
0009-
