Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

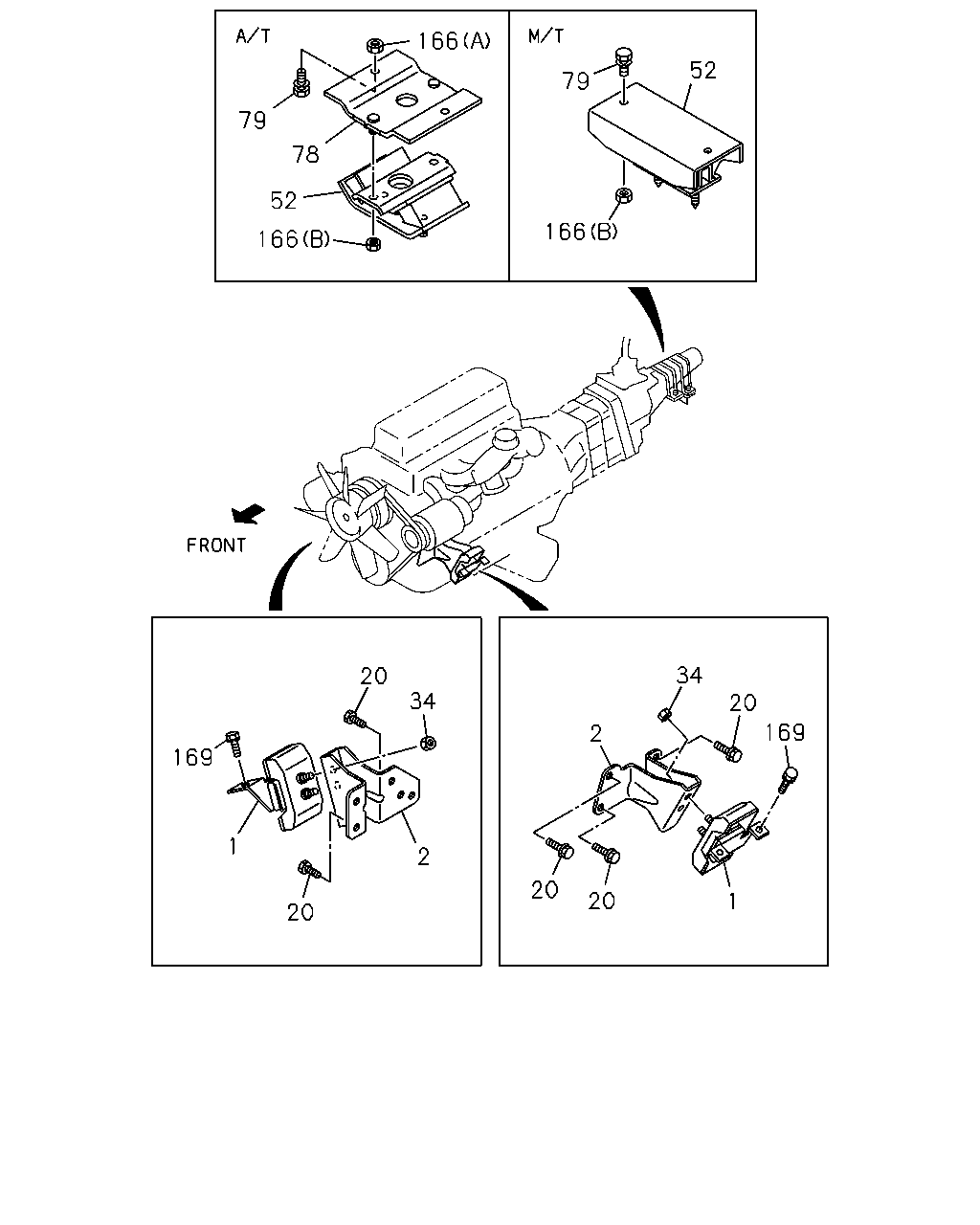

0-22 — ENGINE MOUNTING
(#17207) — 16 parça
166
52
79
79
78
52
166
166
34
20
34
20
169
2
169
1
2
20
20
1
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
THA
8-97941-907-0
01
1
0009-
1
RUBBER; ENG FOOT,FRT
THA
8-97941-906-0
01
1
0009-
2
FOOT; ENG
THA
8-97920-868-0
01
1
0009-
2
FOOT; ENG
THA
8-97920-867-0
01
1
0009-
20
BOLT; ENG FOOT
M10X22 W/LK WASHER
0-50041-022-0
06
1
0009-
20
BOLT; ENG FOOT
M10X35 W/LK WASHER
0-50041-035-0
01
1
0009-
20
BOLT; ENG FOOT
M14X25 W/LK WASHER
0-50041-425-0
01
1
0009-
34
NUT; RUBBER TO ENG
M10 FLANGE
0-91150-210-0
04
1
0009-
52
RUBBER; CUSHION,ENG MTG,RR
A/T AISIN<RMD> THA
8-97913-755-0
01
1
0009-
52
RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED<RMN> THA
8-97911-266-0
01
1
0009-
78
BRACKET; ENG MTG,RR
A/T AISIN<RMD>
8-97063-020-3
01
1
0009-
79
BOLT; SUPPORT RUBBER TO TRANS
A/T AISIN<RMD> M10X35 FLANGE
0-28681-035-0
02
1
0009-
79
BOLT; SUPPORT RUBBER TO TRANS
M/T MUA 5 SPEED<RMN> M10X25 W/LK WASHER
0-50041-025-0
02
1
0009-
166
NUT; SUPPORT RUBBER
(B) M10 FLANGE THA
8-94126-973-0
02
1
0009-
166
NUT; SUPPORT RUBBER
A/T AISIN<RMD> (A) M10 FLANGE
0-91150-110-0
02
1
0009-
169
BOLT; SUPPORT
M10X28 W/LK WASHER THA
8-97916-477-0
04
1
0009-
