0-12 — CYLINDER BLOCK (#17202) — 64 parça

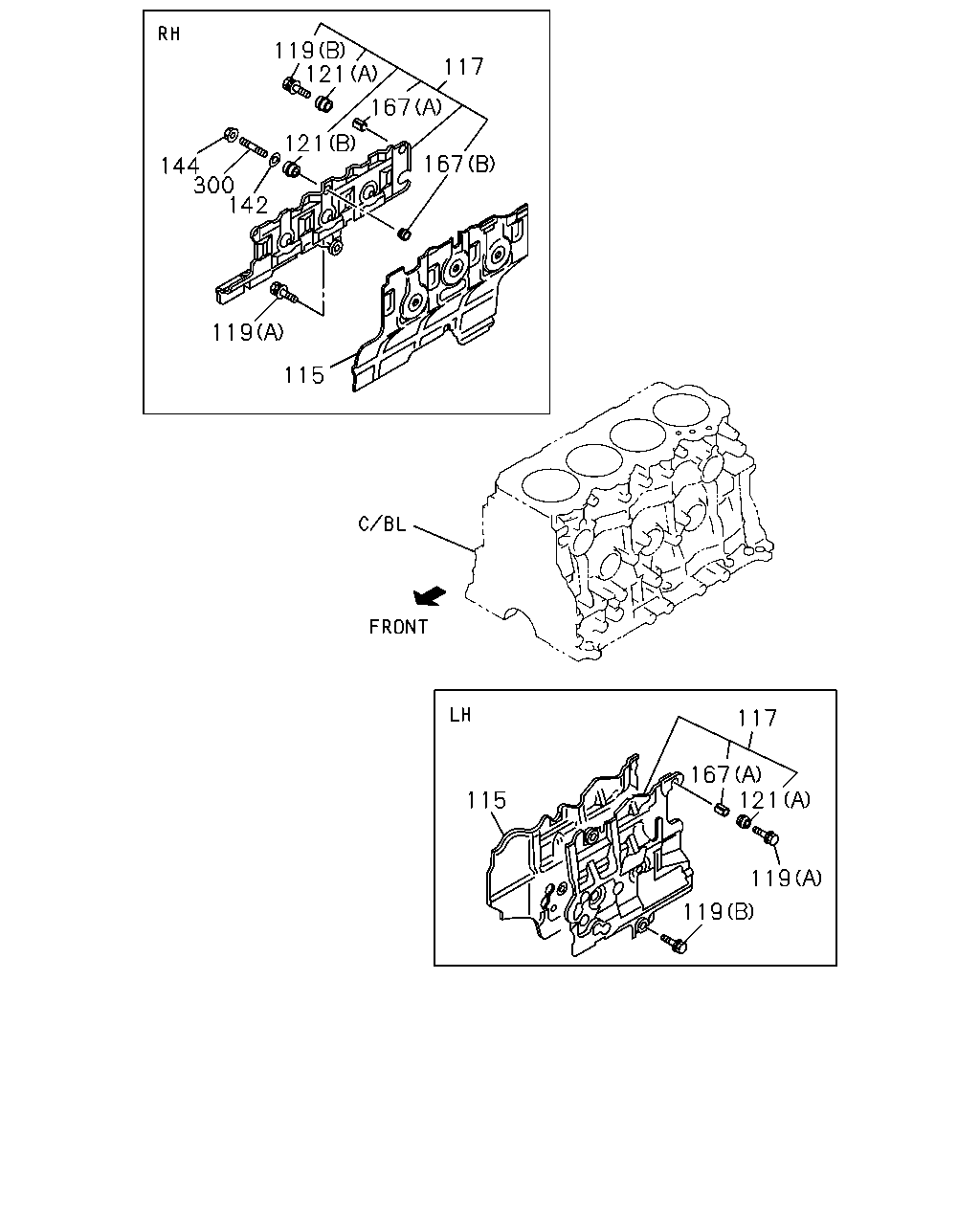

çizim 49808
119 121 167 117 121 167 144 300 142 119 115 117 167 121 115 119 119
BalonParca AdiParca NoAdetTipApplied Date
115 RUBBER; SPACE
THA 		8-97942-631-0 01 1 0112-
115 RUBBER; SPACE
THA 		8-97942-634-0 01 1 0112-
115 RUBBER; SPACE 8-97204-194-0 01 1 0009-0203
115 RUBBER; SPACE 8-97204-194-0 02 1 0204-
115 RUBBER; SPACE
THA 		8-97141-687-0 01 1 0009-0203
117 COVER ASM; C/BL
THA 		8-97919-885-1 01 1 0009-
117 COVER ASM; C/BL
THA 		8-97919-886-0 01 1 0009-
119 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 02 1 0009-
119 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 0009-
121 RUBBER; MTG,COVER
THA 		8-97919-890-0 01 1 0302-
121 RUBBER; MTG,COVER
(A) THA 		8-97916-666-1 05 1 0009-0106
121 RUBBER; MTG,COVER
(A) THA 		8-97916-666-1 02 1 0107-0107
121 RUBBER; MTG,COVER
(A) THA 		8-97916-666-1 08 1 0108-
121 RUBBER; MTG,COVER
(B) THA 		8-97919-890-0 01 1 0009-
142 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 01 1 0009-
144 NUT; COVER FIX
M8 FLANGE 		0-91150-208-0 01 1 0009-0211
144 NUT; COVER FIX
M8 FLANGE THA 		0-91180-208-0 01 1 0212-
167 TUBE; DIST,SIDE COVER
THA 		8-97919-889-0 01 1 0302-
167 TUBE; DIST,SIDE COVER
(A) THA 		8-97916-668-0 05 1 0009-0106
167 TUBE; DIST,SIDE COVER
(A) THA 		8-97916-668-0 02 1 0107-0107
167 TUBE; DIST,SIDE COVER
(A) THA 		8-97916-668-0 08 1 0108-
167 TUBE; DIST,SIDE COVER
(B) THA 		8-97919-889-0 01 1 0009-
300 STUD; COVER
M8X30 L=41 		9-04110-830-0 01 1 0009-0211
300 STUD; COVER
M8X30 L=41 THA 		0-41010-830-0 01 1 0212-0407
300 STUD; COVER
M8X30 L=41 		9-04110-830-0 01 1 0408-
300 STUD; COVER
M8X30 L=41 		9-04110-830-0 01 1 0408-

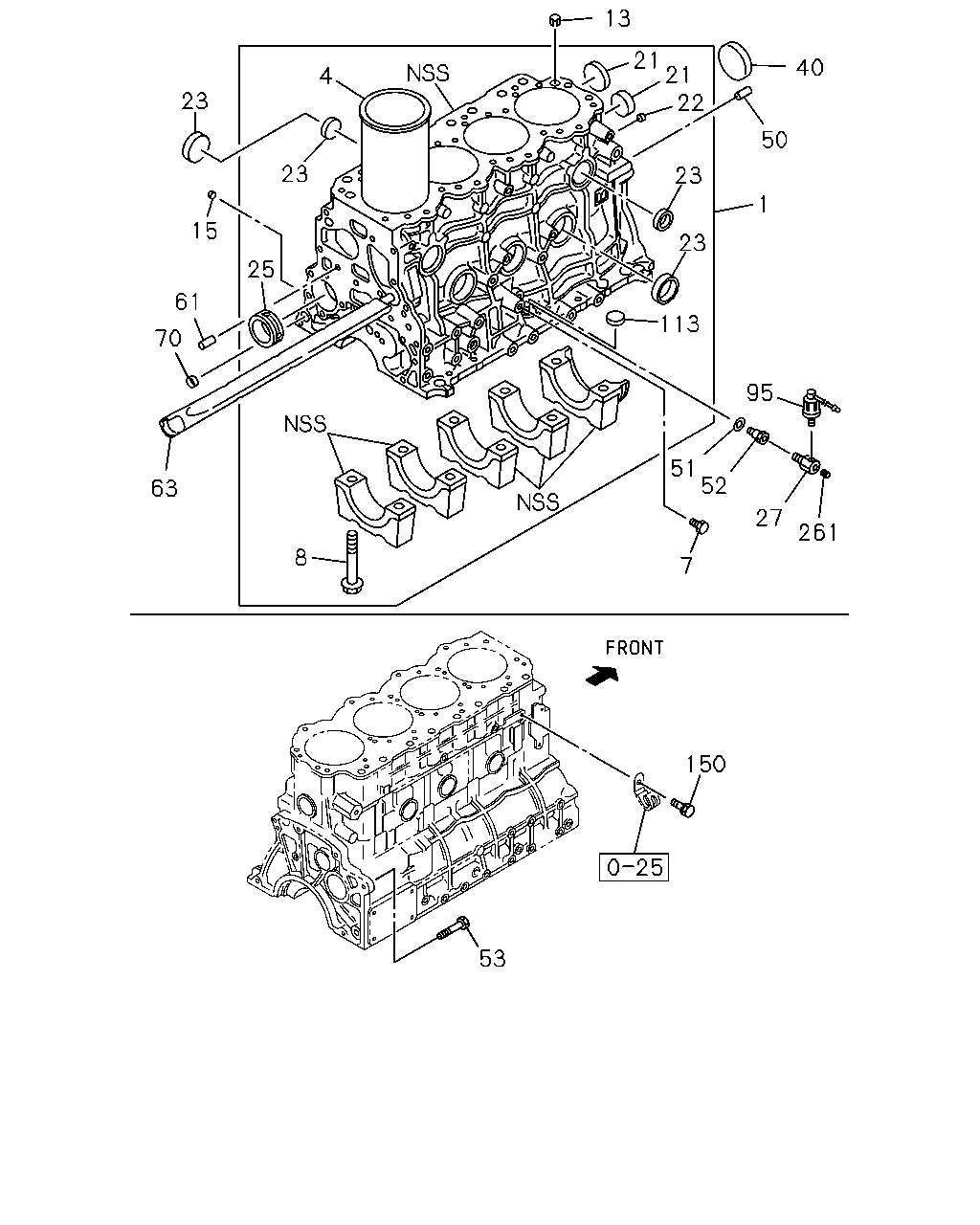

çizim 49845
13 21 21 22 40 4 113 23 50 23 23 1 23 15 25 61 70 95 51 52 63 27 261 8 7 150 53
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL
THA 		8-97940-732-4 01 1 0009-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0009-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0009-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0009-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0009-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0009-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0009-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0009-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0009-
7 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0009-
8 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0009-0110
8 BOLT; BRG CAP
M14X89 FLANGE THA 		8-97941-068-0 10 1 0111-
13 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0009-
15 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 03 1 0009-
21 CUP; SEALING,RR
OD=38 		5-11219-017-0 01 1 0009-
21 CUP; SEALING,RR
OD=36 		5-11219-018-0 01 1 0009-
22 CUP; SEALING,DUCT HOLE
OD=12.3 		5-09600-013-0 01 1 0009-
23 CUP; SEALING,C/BL FRT & RR
OD=45 		1-09600-005-1 03 1 0009-
23 CUP; SEALING,C/BL FRT & RR
OD=18 		5-11219-008-0 03 1 0009-
23 CUP; SEALING,C/BL FRT & RR
OD=32 		5-11219-015-0 02 1 0009-
23 CUP; SEALING,C/BL FRT & RR
OD=36 		5-11219-018-0 03 1 0009-
25 METAL; CM/SHF
FRONT THA 		8-97942-173-1 01 1 0009-
25 METAL; CM/SHF
CENTER & REAR THA 		8-97942-174-1 02 1 0009-
27 NIPPLE; OIL GALLERY 8-97231-967-3 01 1 0009-
40 CUP; SEALING,C/BL RR
OD=56 		8-94250-514-1 01 1 0009-
50 PIN; STRAIGHT,RR PLATE
OD=10 L=32 THA 		9-08161-032-0 01 1 0009-
51 GASKET; OIL PRESS WARNING SW,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97912-498-0 01 1 0009-
52 NIPPLE; OIL PRESS WARNING SW,C/BL
THA 		8-97943-174-0 01 1 0211-
52 NIPPLE; OIL PRESS WARNING SW,C/BL 8-94167-750-2 01 1 0009-0409
52 NIPPLE; OIL PRESS WARNING SW,C/BL
THA 		8-97943-174-0 01 1 0410-
53 BOLT; REAMER
M10X52 THA 		8-97916-382-0 01 1 0009-
61 PIN; STRAIGHT
OD=10 L=20 THA 		9-08151-020-0 01 1 0009-
63 DUCT; WATER,C/BL
THA 		8-97920-058-0 01 1 0009-
70 CUP; SEALING,FRT & RR
OD=16 		5-11129-006-0 02 1 0009-
95 PRESSURE UNIT; OIL
THA 		8-97163-851-0 01 1 0009-
113 CUP; SEALING
OD=15.6 		5-11129-003-0 01 1 0009-
150 BOLT; CLIP
M8X10 FLANGE 		0-28080-810-0 01 1 0009-
261 PLUG; OIL PRESS UNIT
PT1/8 		1-09605-050-0 01 1 0009-
