Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶

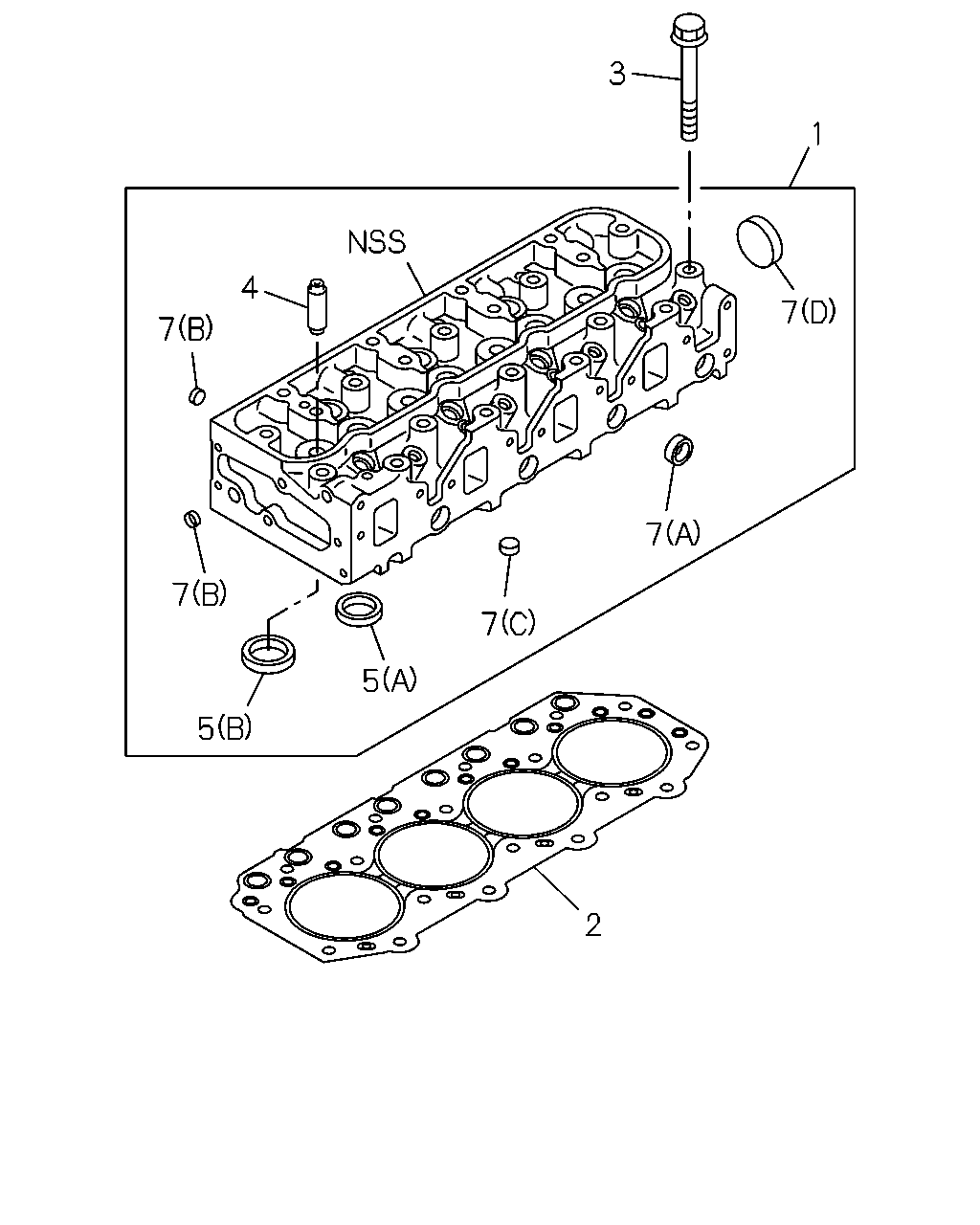

0-11 — CYLINDER HEAD
(#17201) — 12 parça
3
1
4
7
7
7
7
7
5
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
THA
8-97941-130-1
01
1
0009-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH THA
8-97940-895-1
01
1
0009-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH THA
8-97940-896-1
01
1
0009-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH THA
8-97940-897-1
01
1
0009-
3
BOLT; CYL HD TO BLOCK
M11X122 THA
8-97941-070-0
18
1
0009-
4
GUIDE; VLV
L=50
5-11721-016-0
08
1
0009-
5
SEAT; VLV INSERT
(B) OD=41.2
8-97231-228-0
04
1
0009-
5
SEAT; VLV INSERT
(A) OD=36.7
8-97231-229-0
04
1
0009-
7
CUP; SEALING,CYL HEAD
OD=45
1-09600-005-1
02
1
0009-
7
CUP; SEALING,CYL HEAD
(B) OD=12.3
5-09600-013-0
05
1
0009-
7
CUP; SEALING,CYL HEAD
(C) OD=16
5-11129-006-0
03
1
0009-
7
CUP; SEALING,CYL HEAD
(A) OD=22
8-97209-609-0
07
1
0009-
