Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

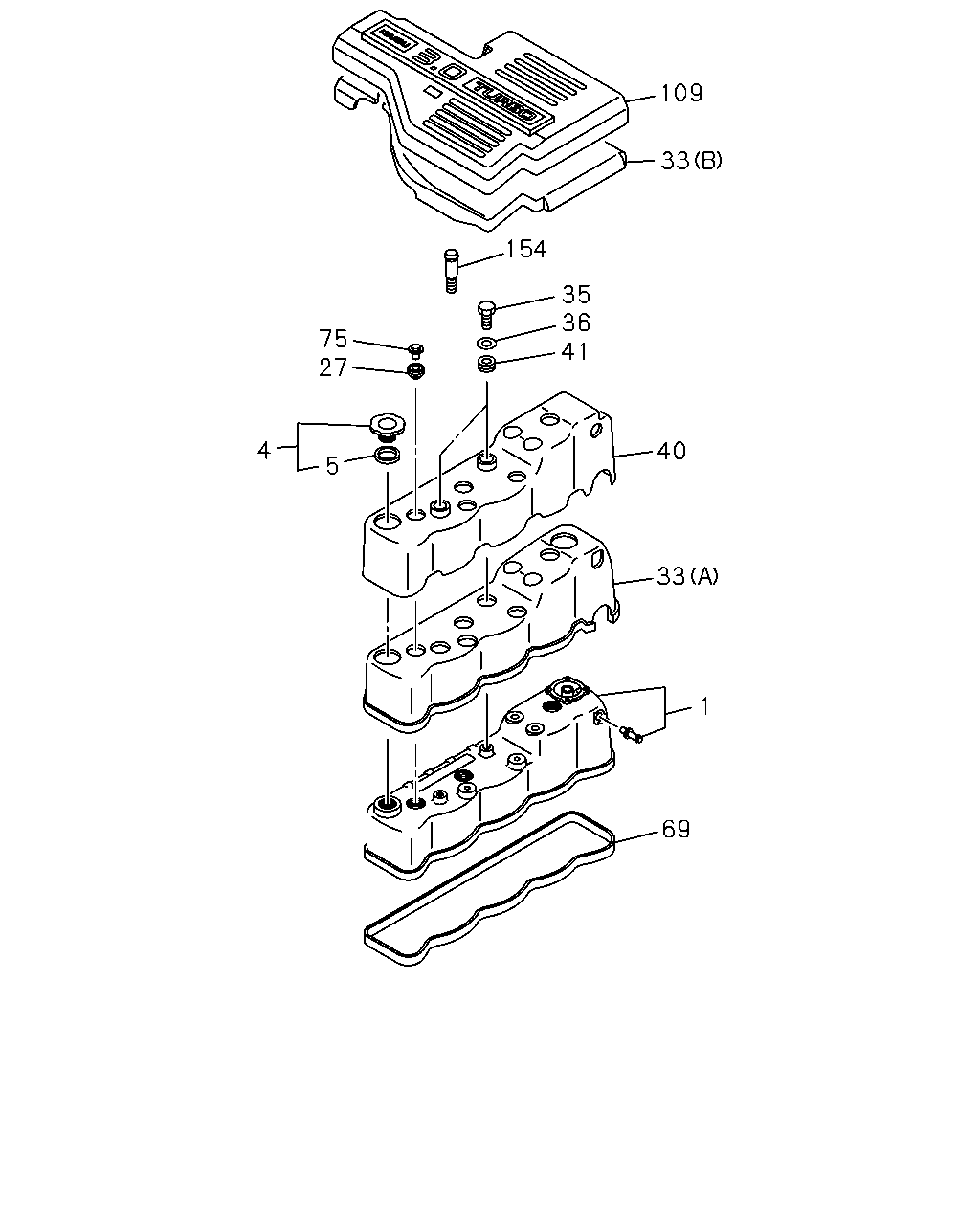

0-10 — CYLINDER HEAD COVER
(#17200) — 18 parça
109
33
154
35
36
41
75
27
4
40
5
33
1
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
THA
8-97920-050-0
01
1
0009-0204
1
COVER; CYL HD
THA
8-97943-017-0
01
1
0205-
4
CAP; OIL FILLER
THA
8-97912-543-0
01
1
0009-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 THA
8-97918-298-0
01
1
0009-
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5 THA
8-97912-653-0
03
1
0009-
33
RUBBER; SPACE,CYL HD COVER
(B)
8-97241-036-1
01
1
0009-
33
RUBBER; SPACE,CYL HD COVER
(A) THA
8-97920-049-1
01
1
0009-
35
BOLT; NOISE SHIELD COVER
M8X14
0-20800-814-0
02
1
0009-
36
WASHER; PL,NOISE SHIELD COVER
ID=8.5 OD=30 T=2.6
9-09651-112-0
02
1
0009-
40
COVER
THA
8-97920-051-2
01
1
0009-
41
GROMMET; HD COVER,OUTER
THA
8-97915-830-0
02
1
0211-
41
GROMMET; HD COVER,OUTER
THA
8-97915-830-0
02
1
0009-0010
41
GROMMET; HD COVER,OUTER
THA
8-97915-830-0
04
1
0011-0101
41
GROMMET; HD COVER,OUTER
THA
8-97915-830-0
02
1
0102-0107
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97912-741-0
01
1
0009-
75
NUT; CAP,HD COVER
M8 OD=19 THA
8-97912-654-0
03
1
0009-
109
COVER; ENG
THA
8-97920-985-0
01
1
0009-
154
PIN; COVER
8-97172-106-0
04
1
0009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
