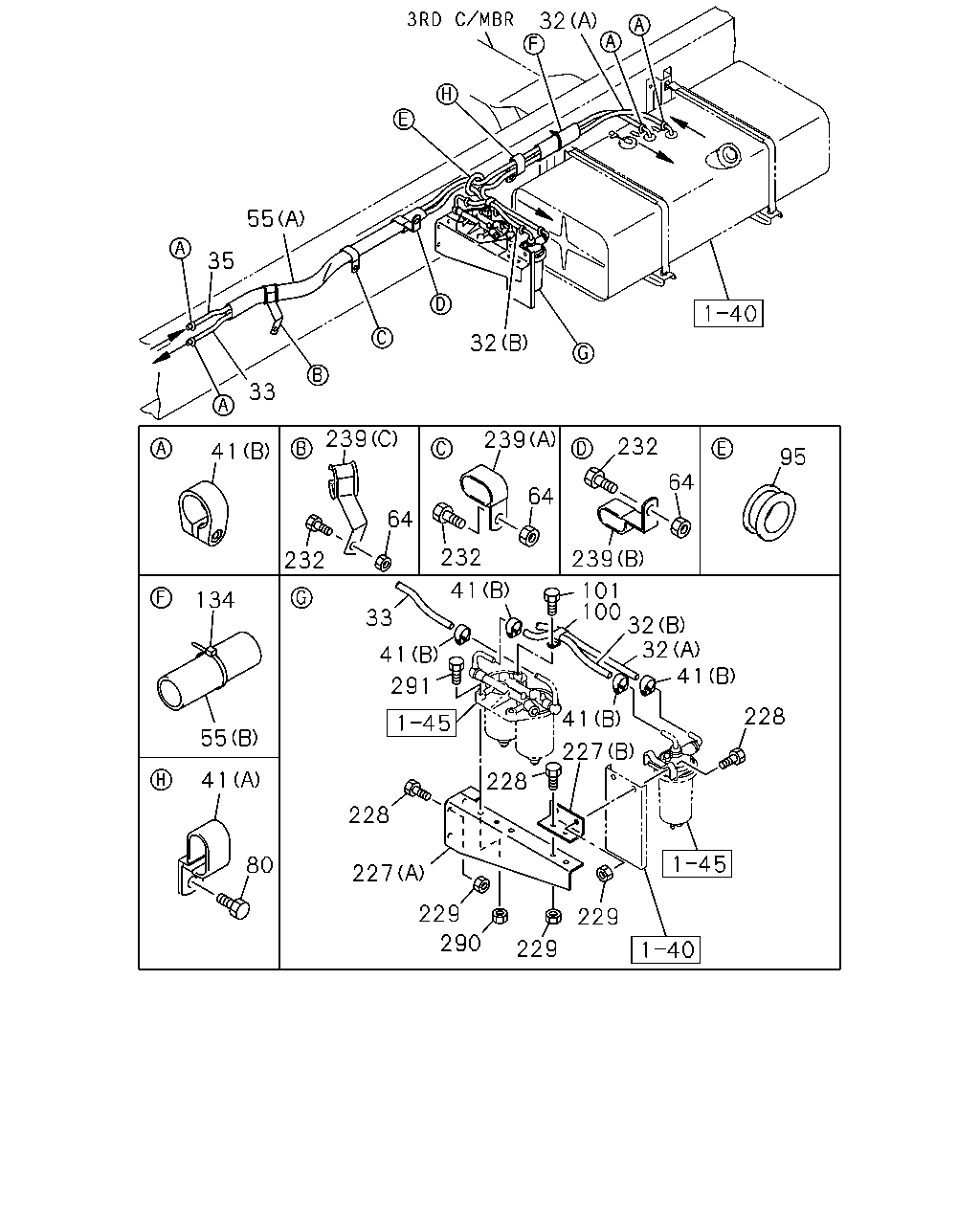

1-41 — FUEL PIPING; CHASSIS (#172) — 30 parça

32 55 35 32 33 239 239 232 41 95 64 64 64 232 239 232 41 101 100 32 32 41 134 33 41 291 228 41 55 227 41 228 228 80 227 229 229 290 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (A) L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9212-	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9212-	●	●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1440 SERVICED BY L=10000	9-09914-701-0	01	1	9212-	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 100L FRAME SIDE<N02> L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9212-9304	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 200L FRAME SIDE<N20> L=2000 SERVICED BY L=10000	1-09366-161-0	01	1	9212-9304	●	●
35	PIPE; FUEL TANK,RETURN L=2000 SERVICED BY L=10000	1-09366-161-0	01	1	9305-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	08	1	9212-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> (A) ID=16X2 L=20	9-09535-536-0	01	1	9212-	●	●
55	COVER; PIPE,FUEL TANK (A) L=900	1-09360-622-1	01	1	9212-	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) L=150	1-09369-006-1	01	1	9212-	●	●
55	COVER; PIPE,FUEL TANK (B) L=150	1-09369-006-1	01	1	9212-	●	●
64	NUT; CLIP M8	9-09110-408-0	03	1	9212-	●	●
80	BOLT; CLIP,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	01	1	9212-	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	01	1	9212-	●	●
101	BOLT; CLIP,FUEL PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	9212-	●	●
134	CLIP; BAND,FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> L=250	5-09707-030-0	01	1	9212-	●	●
134	CLIP; BAND,FUEL PIPE L=250	5-09707-030-0	01	1	9212-	●	●
227	BRACKET; FUEL SEDIMENTER (B)	1-19755-108-1	01	1	9212-	●	●
227	BRACKET; FUEL SEDIMENTER (A)	1-22518-124-1	01	1	9212-	●	●
228	BOLT; BRKT,SEDIMENTER M10X30 W/LK WASHER	0-50041-030-0	05	1	9212-	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9212-	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	07	1	9212-	●	●
232	BOLT; CLIP,PIPE M8X25 FLANGE	0-28080-825-0	03	1	9212-	●	●
232	BOLT; CLIP,PIPE FUEL TANK 200L FRAME SIDE<N20> M8X20 FLANGE	0-28080-820-0	01	1	9212-	●	●
239	CLIP; FUEL PIPE (A) L=25	1-09700-927-0	01	1	9212-	●	●
239	CLIP; FUEL PIPE (B) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9212-	●	●
239	CLIP; FUEL PIPE (C)	1-15419-291-0	01	1	9212-	●	●
290	NUT; FILTER TO BRKT M10	9-09110-510-0	02	1	9212-	●	●
291	BOLT; FILER TO BRKT M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9212-	●	●
