9-33 — REAR BODY; GATE AND SIDE GUARD (#17198) — 247 parça

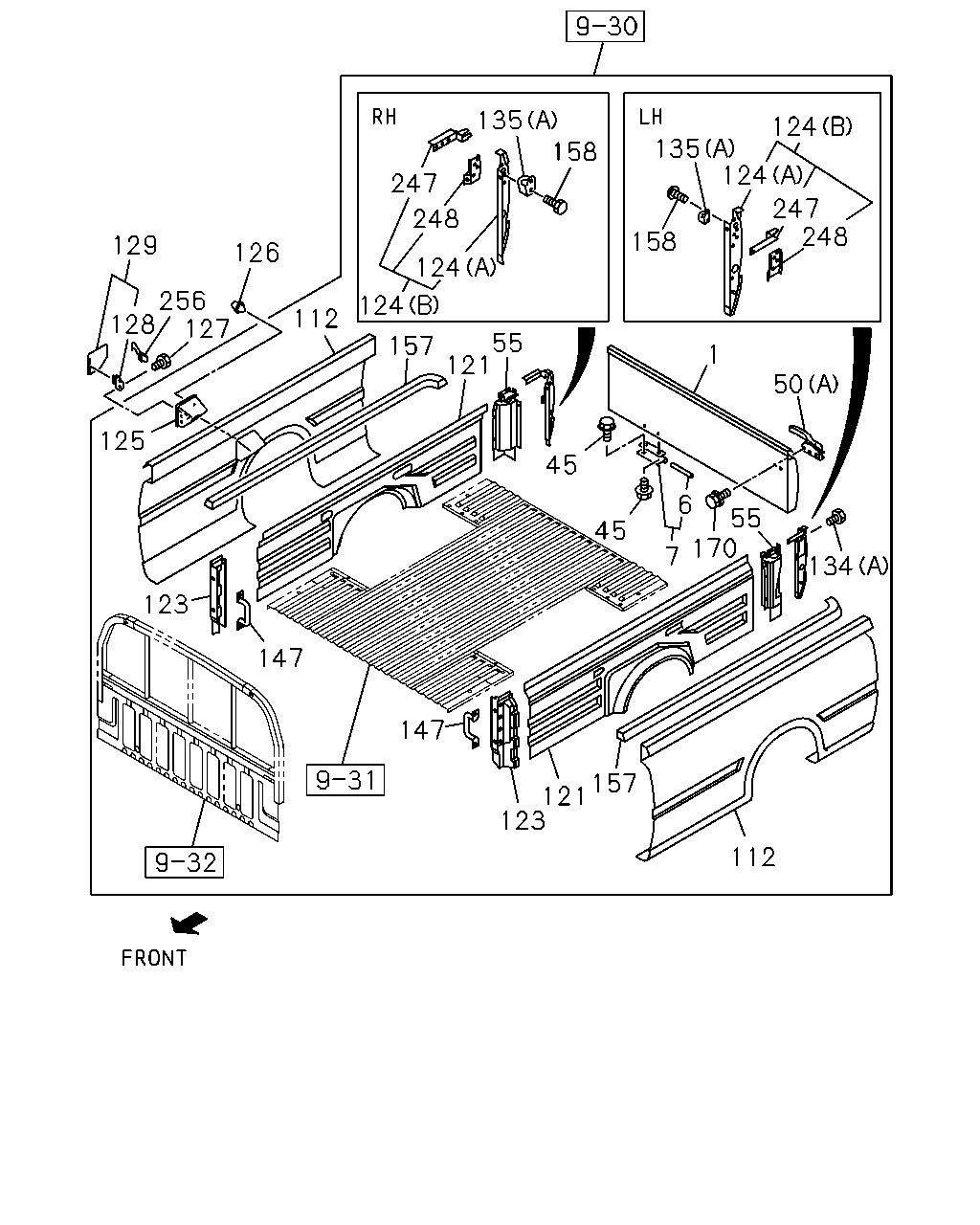

çizim 10422
135 124 247 248 135 158 124 247 248 158 129 126 124 124 256 128 127 112 157 55 121 1 50 125 45 55 170 7 6 45 134 123 147 147 157 121 123 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GATE ASM; RR
THA 		8-97940-402-1 01 1 0009- ● ● ● ●
1 GATE ASM; RR
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97940-402-1 01 1 0009- ●
1 GATE ASM; RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97940-400-0 01 1 0009- ●
1 GATE ASM; RR
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> THA 		8-97940-401-0 01 1 0009- ●
6 PIN; TAIL GATE HINGE
THA 		8-97940-434-0 03 1 0009- ● ● ● ●
6 PIN; TAIL GATE HINGE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97940-434-0 03 1 0009- ● ●
7 HINGE ASM; RR GATE
THA 		8-97940-435-0 03 1 0009- ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97940-435-0 03 1 0009- ● ●
45 BOLT; TAIL GATE TO RR BODY
M8X23 FLANGE THA 		8-97941-923-0 12 1 0009- ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> M8X23 FLANGE THA 		8-97941-923-0 12 1 0009- ● ●
50 LOCK ASM; TAIL GATE,RR BODY
(B) THA 		8-97131-656-0 01 1 0009- ● ● ● ●
50 LOCK ASM; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) THA 		8-97131-656-0 01 1 0009- ●
50 LOCK ASM; TAIL GATE,RR BODY
(B) THA 		8-97131-655-0 01 1 0009- ● ● ● ●
50 LOCK ASM; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) THA 		8-97131-655-0 01 1 0009- ●
50 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97911-966-0 02 1 0009- ●
50 LOCK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (A) THA 		8-97911-966-0 02 1 0009- ●
55 PANEL; RR CORNER
THA 		8-97940-519-0 01 1 0009- ● ● ● ●
55 PANEL; RR CORNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97940-519-0 01 1 0009- ●
55 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97940-519-0 01 1 0009- ●
55 PANEL; RR CORNER
THA 		8-97940-518-0 01 1 0009- ● ● ● ●
55 PANEL; RR CORNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97940-518-0 01 1 0009- ●
55 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97940-518-0 01 1 0009- ●
112 PANEL; SIDE GATE
THA 		8-97919-628-0 01 1 0009- ●
112 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R> EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-628-0 01 1 0009- ●
112 PANEL; SIDE GATE
THA 		8-97915-348-0 01 1 0009- ● ●
112 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R> EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97915-348-0 01 1 0009- ●
112 PANEL; SIDE GATE
THA 		8-97915-342-0 01 1 0009- ●
112 PANEL; SIDE GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97912-861-0 01 1 0009- ●
112 PANEL; SIDE GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97919-626-0 01 1 0009- ●
112 PANEL; SIDE GATE
THA 		8-97921-368-0 01 1 0009- ● ●
112 PANEL; SIDE GATE
THA 		8-97921-367-0 01 1 0009- ● ●
112 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R> SPECIAL PACKAGE VAR.2<7TB> THA 		8-97918-636-0 01 1 0009- ●
112 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R> SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-629-0 01 1 0009- ●
112 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> THA 		8-97912-426-0 01 1 0009- ●
112 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> THA 		8-97919-627-0 01 1 0009- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97919-464-1 01 1 0009- ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97919-464-1 01 1 0009- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97940-506-0 01 1 0009- ● ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97940-506-0 01 1 0009- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97940-505-0 01 1 0009- ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97940-504-0 01 1 0009- ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97919-463-1 01 1 0009- ●
121 PANEL; SIDE INNER,RR BODY 8-97114-964-1 01 1 0009- ● ●
121 PANEL; SIDE INNER,RR BODY 8-97213-611-2 01 1 0009- ● ●
123 PANEL; EXT,FRT INNER,RR BODY
THA 		8-97940-510-0 01 1 0009- ● ●
123 PANEL; EXT,FRT INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97940-510-0 01 1 0009- ●
123 PANEL; EXT,FRT INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97940-510-0 01 1 0009- ●
123 PANEL; EXT,FRT INNER,RR BODY
THA 		8-97940-509-0 01 1 0009- ● ●
123 PANEL; EXT,FRT INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97940-509-0 01 1 0009- ●
123 PANEL; EXT,FRT INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97913-898-0 01 1 0009- ●
124 PANEL; EXT,RR CORNER POST,RR BODY
(B) THA 		8-97915-349-0 01 1 0009- ● ●
124 PANEL; EXT,RR CORNER POST,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97915-349-0 01 1 0009- ●
124 PANEL; EXT,RR CORNER POST,RR BODY
(B) THA 		8-97915-343-0 01 1 0009- ● ●
124 PANEL; EXT,RR CORNER POST,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97915-343-0 01 1 0009- ●
124 PANEL; EXT,RR CORNER POST,RR BODY
(A) THA 		8-97940-464-0 01 1 0009- ● ● ● ●
124 PANEL; EXT,RR CORNER POST,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97940-464-0 01 1 0009- ●
124 PANEL; EXT,RR CORNER POST,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (A) THA 		8-97940-464-0 01 1 0009- ●
124 PANEL; EXT,RR CORNER POST,RR BODY
(A) THA 		8-97940-463-0 01 1 0009- ● ● ● ●
124 PANEL; EXT,RR CORNER POST,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97940-463-0 01 1 0009- ●
124 PANEL; EXT,RR CORNER POST,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (A) THA 		8-97940-463-0 01 1 0009- ●
124 PANEL; EXT,RR CORNER POST,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97911-869-1 01 1 0009- ●
124 PANEL; EXT,RR CORNER POST,RR BODY
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (B) THA 		8-97911-869-1 01 1 0009- ●
124 PANEL; EXT,RR CORNER POST,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97912-419-1 01 1 0009- ●
124 PANEL; EXT,RR CORNER POST,RR BODY
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (B) THA 		8-97912-419-1 01 1 0009- ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97942-092-1 01 1 0009- ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97942-092-1 01 1 0009- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97911-859-0 01 1 0009- ●
125 RECESS; FUEL FILLER NECK,RR BODY 8-97212-711-2 01 1 0009- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-97911-223-0 01 1 0009- ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97911-223-0 01 1 0009- ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97911-223-0 01 1 0009- ●
127 BOLT; FUEL FILLER LID
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0009- ● ● ● ●
127 BOLT; FUEL FILLER LID
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0009- ● ●
128 HINGE; FUEL FILLER LID,RR BODY
THA 		8-97212-879-0 01 1 0009- ●
128 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97212-879-0 01 1 0009- ● ●
128 HINGE; FUEL FILLER LID,RR BODY
THA 		8-97915-788-0 01 1 0009- ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97919-483-3 01 1 0009-0009 ●
129 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97919-483-3 01 1 0009-0009 ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97921-701-1 01 1 0009- ●
129 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97921-701-1 01 1 0009- ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97911-900-0 01 1 0009- ●
129 LID ASM; FUEL FILLER,RR BODY 8-97212-882-0 01 1 0009- ● ●
134 BOLT; STRIKER,TAIL GATE
(A) M6X10 		8-97020-236-0 02 1 0009- ● ● ● ●
134 BOLT; STRIKER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M6X10 		8-97020-236-0 02 1 0009- ●
134 BOLT; STRIKER,TAIL GATE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (A) M6X10 		8-97020-236-0 02 1 0009- ●
134 BOLT; STRIKER,TAIL GATE
(B) M8X22 THA 		8-97104-889-0 04 1 0009- ● ● ● ●
134 BOLT; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) M8X22 THA 		8-97104-889-0 04 1 0009- ●
135 STRIKER; TAIL GATE,RR BODY
(B) THA 		8-97064-382-1 02 1 0009- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) THA 		8-97064-382-1 02 1 0009- ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97911-916-0 01 1 0009- ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (A) THA 		8-97911-916-0 01 1 0009- ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97911-915-0 01 1 0009- ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (A) THA 		8-97911-915-0 01 1 0009- ●
147 HOOK ASM; ROPE,FRT
THA 		8-97940-534-0 02 1 0009- ● ● ● ●
147 HOOK ASM; ROPE,FRT
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97940-534-0 02 1 0009- ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
THA 		8-97940-486-0 01 1 0009- ● ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97940-486-0 01 1 0009- ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
THA 		8-97940-485-0 01 1 0009- ● ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97940-485-0 01 1 0009- ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97940-474-0 01 1 0009- ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97940-473-0 01 1 0009- ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
THA 		8-97940-488-0 01 1 0009- ● ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
THA 		8-97940-487-0 01 1 0009- ● ●
158 SCREW; STRIKER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97912-168-0 04 1 0009- ●
158 SCREW; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> THA 		8-97912-168-0 04 1 0009- ●
159 WASHER; LK,STRIKER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> ID=8.4 TOOTH LK COUNTERSUNK 		9-09152-708-0 04 1 0104- ●
159 WASHER; LK,STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> ID=8.4 TOOTH LK COUNTERSUNK 		9-09152-708-0 04 1 0104- ●
170 BOLT; TAIL GATE LOCK
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X20 W/WASHER THA 		8-97916-314-0 04 1 0009- ●
170 BOLT; TAIL GATE LOCK
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> M6X20 W/WASHER THA 		8-97916-314-0 04 1 0009- ●
247 REINFORCEMENT; CARGO RR
THA 		8-97940-466-0 01 1 0009- ● ●
247 REINFORCEMENT; CARGO RR
THA 		8-97940-465-0 01 1 0009- ● ●
248 PATCH; CARGO RR
THA 		8-97940-471-0 01 1 0009- ● ● ● ●
248 PATCH; CARGO RR
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97940-471-0 01 1 0009- ●
248 PATCH; CARGO RR
THA 		8-97940-470-0 01 1 0009- ● ● ● ●
248 PATCH; CARGO RR
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97940-470-0 01 1 0009- ●
248 PATCH; CARGO RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97940-469-0 01 1 0009- ●
248 PATCH; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> THA 		8-97940-469-0 01 1 0009- ●
248 PATCH; CARGO RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97940-468-0 01 1 0009- ●
248 PATCH; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> THA 		8-97940-468-0 01 1 0009- ●
256 SPRING; LID,FUEL FILLER 8-97217-091-1 01 1 0009- ● ● ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> 		8-97217-091-1 01 1 0009- ●
256 SPRING; LID,FUEL FILLER
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> 		8-97217-091-1 01 1 0009- ●

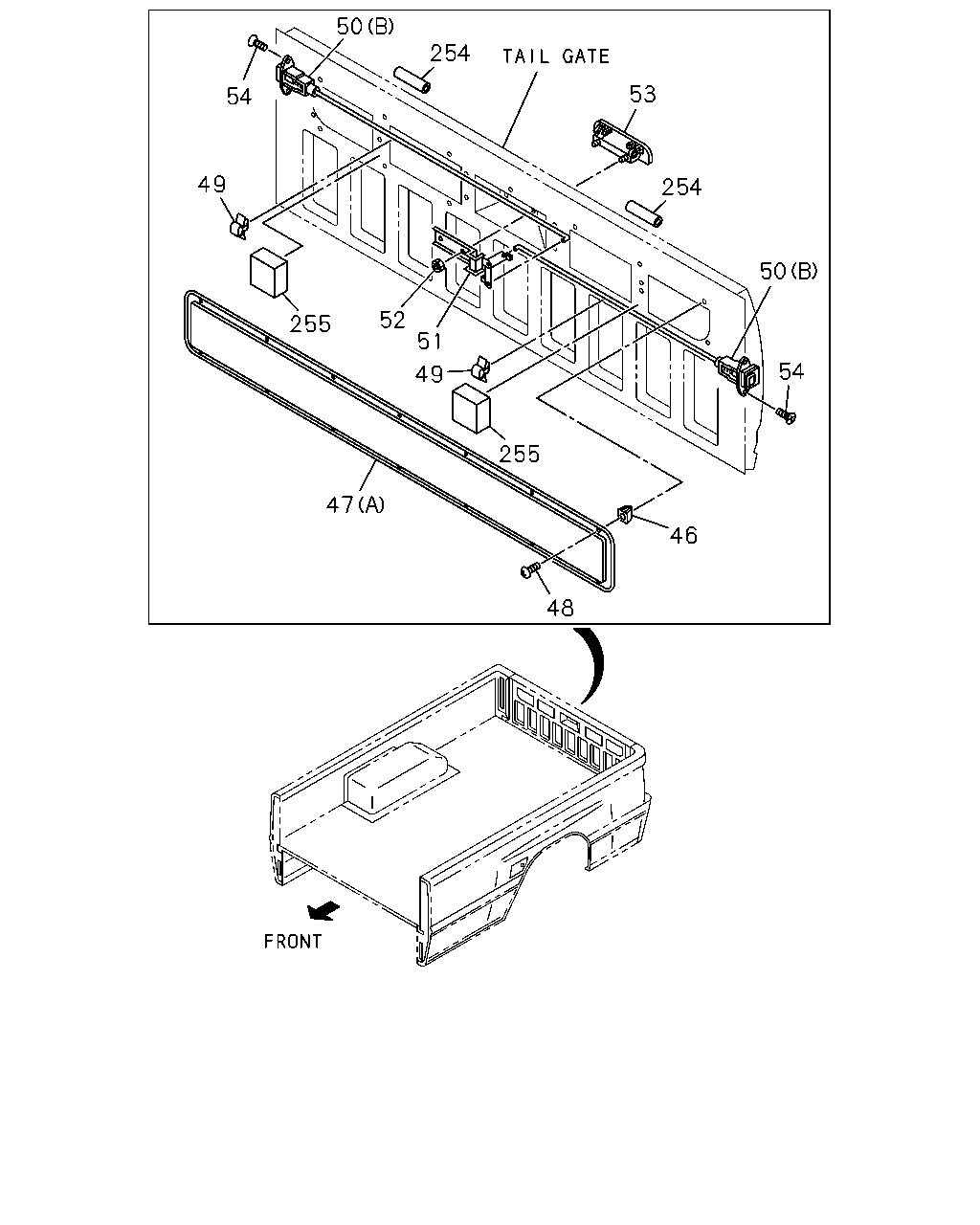

çizim 48381
50 254 53 54 49 254 50 52 51 49 255 54 255 47 46 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
46 GROMMET; SCREW,TAIL GATE HOLE COVER
M4 THA 		5-09470-002-0 14 1 0009- ● ● ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M4 THA 		5-09470-002-0 14 1 0009- ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M4 THA 		5-09470-002-0 06 1 0009- ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> M4 THA 		5-09470-002-0 06 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
(A) THA 		8-97915-858-0 01 1 0009- ● ● ● ●
47 PLATE; HOLE COVER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (A) THA 		8-97915-858-0 01 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97912-905-1 04 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (B) THA 		8-97912-905-1 04 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97912-906-1 01 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (C) THA 		8-97912-906-1 01 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97913-270-0 01 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (C) THA 		8-97913-270-0 01 1 0009- ●
48 SCREW; HOLE COVER,TAIL GATE
M4X10 THA 		8-97043-528-0 14 1 0009- ● ● ● ●
48 SCREW; HOLE COVER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M4X10 THA 		8-97043-528-0 14 1 0009- ●
48 SCREW; HOLE COVER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M4X10 THA 		8-97043-528-0 06 1 0009- ●
48 SCREW; HOLE COVER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> M4X10 THA 		8-97043-528-0 06 1 0009- ●
49 ANTIRATTLER; TAIL GATE
ID=3.8 WHITE 		8-94217-699-0 02 1 0009- ● ● ● ●
49 ANTIRATTLER; TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> ID=3.8 WHITE 		8-94217-699-0 02 1 0009- ●
50 LOCK ASM; TAIL GATE,RR BODY
(B) THA 		8-97131-656-0 01 1 0009- ● ● ● ●
50 LOCK ASM; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) THA 		8-97131-656-0 01 1 0009- ●
50 LOCK ASM; TAIL GATE,RR BODY
(B) THA 		8-97131-655-0 01 1 0009- ● ● ● ●
50 LOCK ASM; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) THA 		8-97131-655-0 01 1 0009- ●
50 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97911-966-0 02 1 0009- ●
50 LOCK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (A) THA 		8-97911-966-0 02 1 0009- ●
51 LEVER ASM; TAIL GATE LOCK CONT
THA 		8-97131-635-0 01 1 0009- ● ● ● ●
51 LEVER ASM; TAIL GATE LOCK CONT
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97131-635-0 01 1 0009- ●
52 NUT; OUTSIDE HANDLE,TAIL GATE
M6 FLANGE 		5-09440-004-0 02 1 0009- ● ● ● ●
52 NUT; OUTSIDE HANDLE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M6 FLANGE 		5-09440-004-0 02 1 0009- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
SPECIAL PACKAGE<7BB> 020 MODEL YEAR PACKAGE<8GN> 		8-97314-201-0 01 1 0106- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
020 MODEL YEAR PACKAGE<8GN> 		8-97314-201-0 01 1 0106- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
SPECIAL PACKAGE<7BB> FROSTY WHITE THA 		8-97921-834-0 01 1 0102- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
FROSTY WHITE THA 		8-97921-834-0 01 1 0102- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
SPECIAL PACKAGE<7BB> CASCADE BLUE THA 		8-97921-835-0 01 1 0102- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
CASCADE BLUE THA 		8-97921-835-0 01 1 0102- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
SPECIAL PACKAGE<7BB> QUARTZ SILVER THA 		8-97921-836-0 01 1 0102- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
QUARTZ SILVER THA 		8-97921-836-0 01 1 0102- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
SPECIAL PACKAGE<7BB> SATIN GOLD THA 		8-97921-837-0 01 1 0102- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
SATIN GOLD THA 		8-97921-837-0 01 1 0102- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
THA 		8-97131-642-1 01 1 0009-0105 ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97131-642-1 01 1 0009-0105 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. 020 MODEL YEAR PACKAGE<8GN> THA 		8-97131-642-1 01 1 0106- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
THA 		8-97131-642-1 01 1 0106- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97131-642-1 01 1 0106- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
SPECIAL PACKAGE VAR.2<7TB> 		8-97187-111-0 01 1 0009-0105 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE 8-97187-111-0 01 1 0009-0105 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
SPECIAL PACKAGE VAR.2<7TB> 		8-97187-111-0 01 1 0106-0106 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. 020 MODEL YEAR PACKAGE<8GN> 		8-97187-111-0 01 1 0106-0106 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
SPECIAL PACKAGE VAR.2<7TB> 		8-97187-111-0 01 1 0107- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE 8-97187-111-0 01 1 0107- ●
54 SCREW; TAIL GATE LOCK,RR BODY
THA 		8-94481-018-1 04 1 0009-0112 ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-94481-018-1 04 1 0009-0112 ●
54 SCREW; TAIL GATE LOCK,RR BODY
M8X20 		8-94446-355-1 04 1 0201- ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M8X20 		8-94446-355-1 04 1 0201- ●
159 WASHER; LK,STRIKER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> ID=8.4 TOOTH LK COUNTERSUNK 		9-09152-708-0 04 1 0104- ●
159 WASHER; LK,STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> ID=8.4 TOOTH LK COUNTERSUNK 		9-09152-708-0 04 1 0104- ●
254 INSULATOR; NOISE
THA 		8-97918-560-0 02 1 0009- ● ● ● ●
254 INSULATOR; NOISE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97918-560-0 02 1 0009- ●
255 SEAL; NOISE
THA 		8-97918-625-0 02 1 0009- ● ● ● ●
255 SEAL; NOISE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97918-625-0 02 1 0009- ●

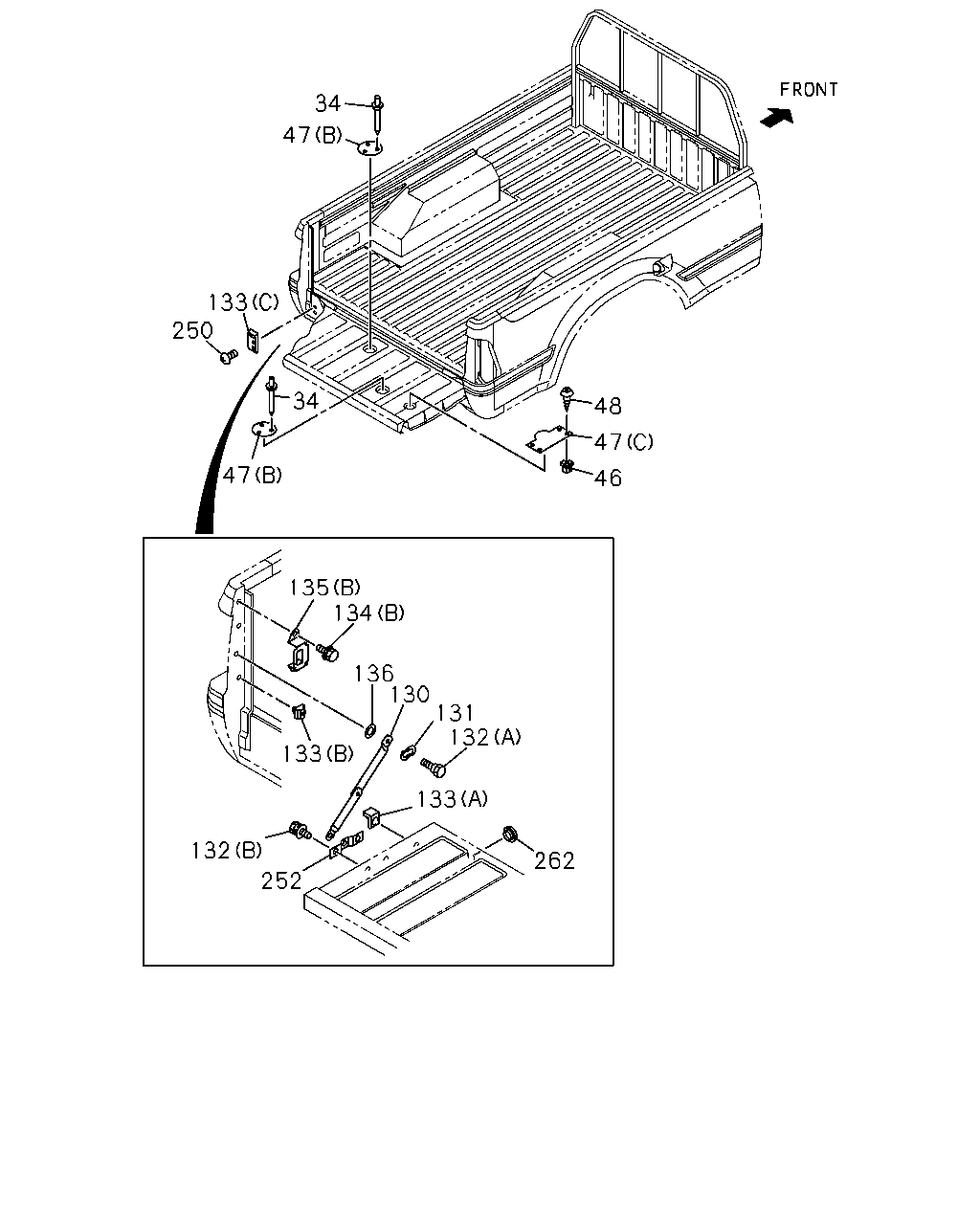

çizim 48418
34 47 34 133 250 48 47 47 46 135 134 136 130 131 132 133 133 132 252 262
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
34 RIVET; POP,COVER PLATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97916-562-0 12 1 0009- ●
34 RIVET; POP,COVER PLATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> THA 		8-97916-562-0 12 1 0009- ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
M4 THA 		5-09470-002-0 14 1 0009- ● ● ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M4 THA 		5-09470-002-0 14 1 0009- ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M4 THA 		5-09470-002-0 06 1 0009- ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> M4 THA 		5-09470-002-0 06 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
(A) THA 		8-97915-858-0 01 1 0009- ● ● ● ●
47 PLATE; HOLE COVER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (A) THA 		8-97915-858-0 01 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97912-905-1 04 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (B) THA 		8-97912-905-1 04 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97912-906-1 01 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (C) THA 		8-97912-906-1 01 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97913-270-0 01 1 0009- ●
47 PLATE; HOLE COVER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (C) THA 		8-97913-270-0 01 1 0009- ●
48 SCREW; HOLE COVER,TAIL GATE
M4X10 THA 		8-97043-528-0 14 1 0009- ● ● ● ●
48 SCREW; HOLE COVER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M4X10 THA 		8-97043-528-0 14 1 0009- ●
48 SCREW; HOLE COVER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M4X10 THA 		8-97043-528-0 06 1 0009- ●
48 SCREW; HOLE COVER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> M4X10 THA 		8-97043-528-0 06 1 0009- ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-97911-033-2 02 1 0009-0009 ● ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-97911-033-2 02 1 0009- ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97911-033-2 02 1 0009- ● ●
131 WASHER; WAVE,TAIL GATE LINK,RR BODY
THA 		8-94481-020-0 02 1 0009-0010 ● ● ● ● ● ●
131 WASHER; WAVE,TAIL GATE LINK,RR BODY
THA 		8-94481-020-0 02 1 0011- ● ● ● ●
131 WASHER; WAVE,TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-94481-020-0 02 1 0011- ● ●
132 BOLT; TAIL GATE LINK,RR BODY
(B) M8X22 THA 		8-97104-889-0 04 1 0009-0010 ● ● ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
(B) M8X22 THA 		8-97104-889-0 04 1 0011- ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (B) M8X22 THA 		8-97104-889-0 04 1 0011- ● ●
132 BOLT; TAIL GATE LINK,RR BODY
(A) M8X14 THA 		8-97911-222-1 02 1 0009-0009 ● ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
(A) M8X14 THA 		8-97911-222-1 02 1 0009- ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (A) M8X14 THA 		8-97911-222-1 02 1 0009- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) THA 		8-97911-037-1 01 1 0009- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97911-037-1 01 1 0009- ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (C) THA 		8-97911-037-1 01 1 0009- ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) THA 		8-97911-036-1 01 1 0009- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97911-036-1 01 1 0009- ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (C) THA 		8-97911-036-1 01 1 0009- ●
133 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-97911-034-0 02 1 0009-0009 ● ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-97911-034-0 02 1 0009- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (B) THA 		8-97911-034-0 02 1 0009- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(A) THA 		8-97911-035-0 02 1 0009-0009 ● ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(A) THA 		8-97911-035-0 02 1 0009- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (A) THA 		8-97911-035-0 02 1 0009- ● ●
134 BOLT; STRIKER,TAIL GATE
(A) M6X10 		8-97020-236-0 02 1 0009- ● ● ● ●
134 BOLT; STRIKER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M6X10 		8-97020-236-0 02 1 0009- ●
134 BOLT; STRIKER,TAIL GATE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (A) M6X10 		8-97020-236-0 02 1 0009- ●
134 BOLT; STRIKER,TAIL GATE
(B) M8X22 THA 		8-97104-889-0 04 1 0009- ● ● ● ●
134 BOLT; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) M8X22 THA 		8-97104-889-0 04 1 0009- ●
135 STRIKER; TAIL GATE,RR BODY
(B) THA 		8-97064-382-1 02 1 0009- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) THA 		8-97064-382-1 02 1 0009- ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97911-916-0 01 1 0009- ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (A) THA 		8-97911-916-0 01 1 0009- ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97911-915-0 01 1 0009- ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> (A) THA 		8-97911-915-0 01 1 0009- ●
136 WASHER; PL,TAIL GATE LINK,RR BODY
ID=8.4 OD=18 THA 		9-09160-608-0 02 1 0009- ● ● ● ●
136 WASHER; PL,TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> ID=8.4 OD=18 THA 		9-09160-608-0 02 1 0009- ● ●
159 WASHER; LK,STRIKER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> ID=8.4 TOOTH LK COUNTERSUNK 		9-09152-708-0 04 1 0104- ●
159 WASHER; LK,STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> ID=8.4 TOOTH LK COUNTERSUNK 		9-09152-708-0 04 1 0104- ●
250 BOLT; STOPPER
M6X18 		8-97071-681-0 04 1 0009- ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X18 		8-97071-681-0 04 1 0009- ●
250 BOLT; STOPPER
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> M6X18 		8-97071-681-0 04 1 0009- ●
252 BRACKET; LINK
THA 		8-97911-040-0 02 1 0009-0009 ● ● ● ● ●
252 BRACKET; LINK
THA 		8-97911-040-0 02 1 0009- ● ● ● ●
252 BRACKET; LINK
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97911-040-0 02 1 0009- ● ●
262 GROMMET; TAIL GATE
THA 		8-97911-038-0 06 1 0009-0009 ● ● ● ● ●
262 GROMMET; TAIL GATE
THA 		8-97911-038-0 06 1 0009- ● ● ● ●
262 GROMMET; TAIL GATE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97911-038-0 06 1 0009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
