Isuzu WW
▶
PICKUP
▶
TFR
▶
50890 - TFR/S(THAILAND)
▶
9 - Tools
▶
9-32 - REAR BODY; GUARD FRAME
▶

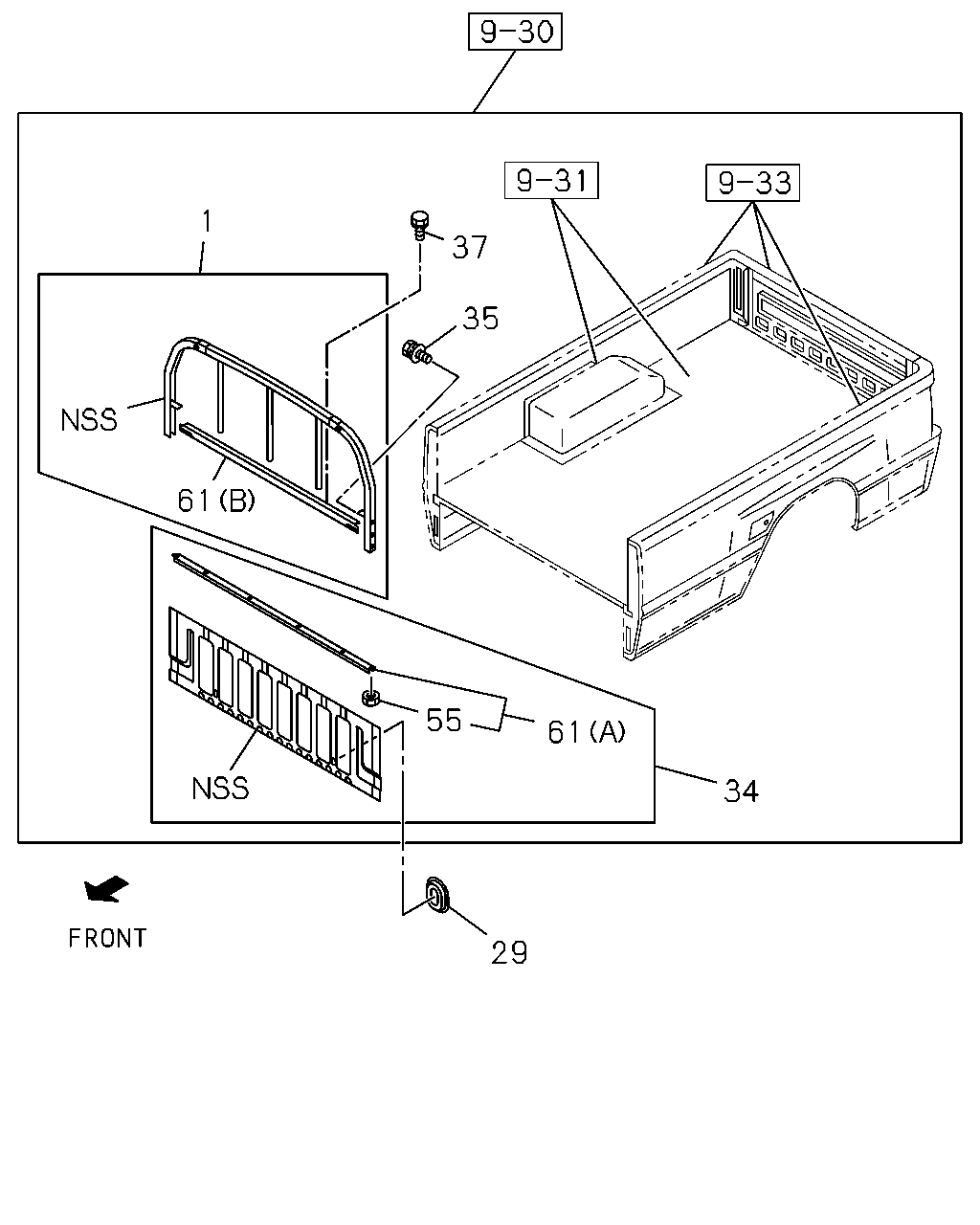

9-32 — REAR BODY; GUARD FRAME
(#17197) — 13 parça
Tümü
A - TFB5SF
B - TFB5CF
C - TFB5QF
D - TFB5WF
E - TFS5WF
F - TFS5CF
1
37
35
61
55
61
34
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
FRAME; GUARD,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA
8-97941-402-0
01
1
0009-
●
29
COVER; GUARD FRAME
THA
8-97918-416-0
02
1
0009-
●
●
●
●
29
COVER; GUARD FRAME
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA
8-97918-416-0
02
1
0009-
●
●
34
PANEL; FRT,RR BODY
THA
8-97912-417-0
01
1
0009-
●
●
34
PANEL; FRT,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA
8-97912-417-0
01
1
0009-
●
34
PANEL; FRT,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA
8-97912-852-0
01
1
0009-
●
34
PANEL; FRT,RR BODY
THA
8-97921-346-0
01
1
0009-
●
●
35
BOLT; FRT PANEL,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M8X25 FLANGE
0-28680-825-0
10
1
0009-
●
35
BOLT; FRT PANEL,RR BODY
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> M8X20.5 W/LK&PL WASHER
8-94279-207-0
06
1
0009-
●
37
BOLT; GUARD FRAME
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X16 FLANGE
0-28080-616-0
06
1
0009-
●
55
NUT; MEMBER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6 THA
9-09114-086-0
06
1
0009-
●
61
BAR ASM
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA
8-97940-442-0
01
1
0009-
●
61
BAR ASM
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA
8-97940-565-0
01
1
0009-
●
