9-31 — REAR BODY; FLOOR AND FENDER (#17196) — 50 parça

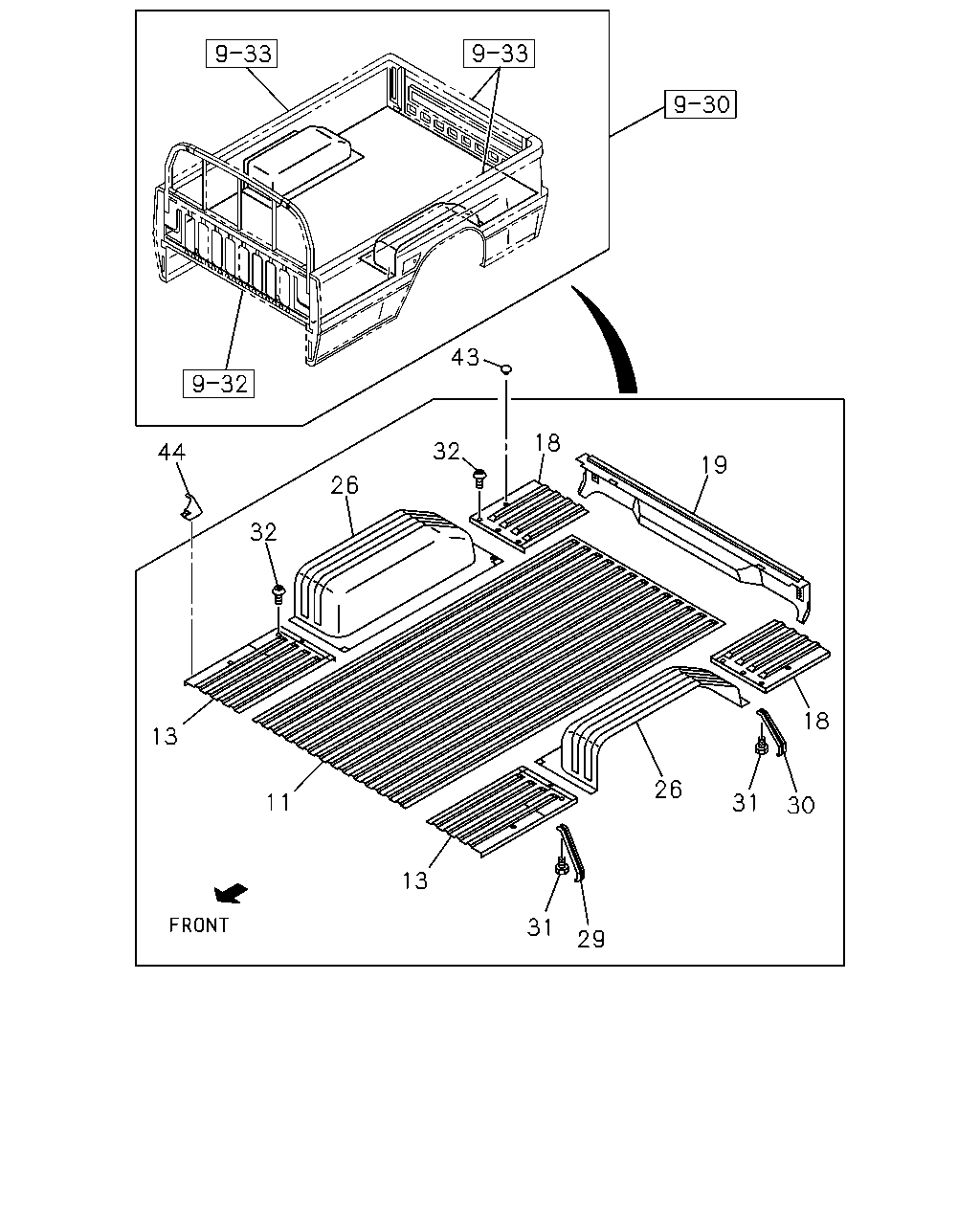

çizim 51147
43 18 32 44 19 26 32 18 13 26 11 31 30 13 31 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 PANEL; FLOOR BOARD,RR BODY
THA 		8-97911-981-0 01 1 0009- ● ●
11 PANEL; FLOOR BOARD,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97911-981-0 01 1 0009- ●
11 PANEL; FLOOR BOARD,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97911-804-0 01 1 0009- ●
11 PANEL; FLOOR BOARD,RR BODY
THA 		8-94454-489-2 01 1 0009- ● ●
13 PANEL; FLOOR BOARD,FRT SIDE,RR BODY
THA 		8-97912-410-0 01 1 0009- ● ●
13 PANEL; FLOOR BOARD,FRT SIDE,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97912-410-0 01 1 0009- ●
13 PANEL; FLOOR BOARD,FRT SIDE,RR BODY
THA 		8-97912-408-0 01 1 0009- ● ●
13 PANEL; FLOOR BOARD,FRT SIDE,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97912-408-0 01 1 0009- ●
13 PANEL; FLOOR BOARD,FRT SIDE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97912-848-0 01 1 0009- ●
13 PANEL; FLOOR BOARD,FRT SIDE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97912-845-0 01 1 0009- ●
18 PANEL; FLOOR BOARD,RR SIDE
THA 		8-97912-411-0 01 1 0009- ● ●
18 PANEL; FLOOR BOARD,RR SIDE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97912-411-0 01 1 0009- ●
18 PANEL; FLOOR BOARD,RR SIDE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97912-411-0 01 1 0009- ●
18 PANEL; FLOOR BOARD,RR SIDE
THA 		8-97912-409-0 01 1 0009- ● ●
18 PANEL; FLOOR BOARD,RR SIDE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97912-409-0 01 1 0009- ●
18 PANEL; FLOOR BOARD,RR SIDE
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97912-409-0 01 1 0009- ●
18 PANEL; FLOOR BOARD,RR SIDE
THA 		8-94463-164-2 01 1 0009- ● ●
18 PANEL; FLOOR BOARD,RR SIDE
THA 		8-94463-163-2 01 1 0009- ● ●
19 BOLSTER; RR END,RR BODY
THA 		8-97912-416-0 01 1 0009- ● ● ● ●
19 BOLSTER; RR END,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97912-416-0 01 1 0009- ● ●
26 PANEL; WHEEL HOUSE,RR BODY
THA 		8-97919-461-0 01 1 0009- ●
26 PANEL; WHEEL HOUSE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97919-461-0 01 1 0009- ●
26 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97919-461-0 01 1 0009- ●
26 PANEL; WHEEL HOUSE,RR BODY
THA 		8-97911-910-1 01 1 0009- ● ●
26 PANEL; WHEEL HOUSE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97911-910-1 01 1 0009- ●
26 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97911-910-1 01 1 0009- ●
26 PANEL; WHEEL HOUSE,RR BODY
THA 		8-97911-907-0 01 1 0009- ●
26 PANEL; WHEEL HOUSE,RR BODY 8-97114-966-1 01 1 0009- ● ●
26 PANEL; WHEEL HOUSE,RR BODY 8-97213-637-0 01 1 0009- ● ●
29 STAY; SIDE PANEL TO FLOOR,RR BODY FRT
THA 		8-97911-889-0 02 1 0009- ● ●
29 STAY; SIDE PANEL TO FLOOR,RR BODY FRT
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97911-889-0 02 1 0009- ●
29 STAY; SIDE PANEL TO FLOOR,RR BODY FRT
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97911-889-0 02 1 0009- ●
30 STAY; SIDE PANEL TO FLOOR,RR BODY RR
THA 		8-97911-883-0 01 1 0009- ● ● ● ●
30 STAY; SIDE PANEL TO FLOOR,RR BODY RR
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97911-883-0 01 1 0009- ● ●
30 STAY; SIDE PANEL TO FLOOR,RR BODY RR
THA 		8-97911-882-0 01 1 0009- ● ● ● ●
30 STAY; SIDE PANEL TO FLOOR,RR BODY RR
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97911-882-0 01 1 0009- ● ●
31 BOLT; SIDE PANEL STAY,RR BODY
M6X18 W/PL WASHER THA 		8-97911-890-0 04 1 0009- ● ●
31 BOLT; SIDE PANEL STAY,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X18 W/PL WASHER THA 		8-97911-890-0 04 1 0009- ●
31 BOLT; SIDE PANEL STAY,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> M6X18 W/PL WASHER THA 		8-97911-890-0 04 1 0009- ●
31 BOLT; SIDE PANEL STAY,RR BODY
M6X18 W/PL WASHER THA 		8-97911-890-0 02 1 0009- ● ●
32 SCREW; FLOOR BOLSTER,RR BODY
M6X16 W/WASHER (+) 		8-97109-753-1 10 1 0009- ● ●
32 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> M6X16 W/WASHER (+) 		8-97109-753-1 10 1 0009- ●
32 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X16 W/WASHER (+) 		8-97109-753-1 12 1 0009- ●
32 SCREW; FLOOR BOLSTER,RR BODY
M6X16 W/WASHER (+) 		8-97109-753-1 08 1 0009- ● ●
43 GROMMET; DUMMY HOLE,RR BODY
THA 		8-97911-224-0 02 1 0009- ● ● ●
43 GROMMET; DUMMY HOLE,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97911-224-0 02 1 0009- ● ●
43 GROMMET; DUMMY HOLE,RR BODY
THA 		8-97911-224-0 01 1 0009- ●
44 SEAL; RR POST,RR BODY
THA 		8-97133-851-1 02 1 0009- ● ● ● ●
44 SEAL; RR POST,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97133-851-1 02 1 0009- ●
44 SEAL; RR POST,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97133-851-1 02 1 0009- ●
