9-30 — REAR BODY ASM AND MOUNTING (#17195) — 38 parça

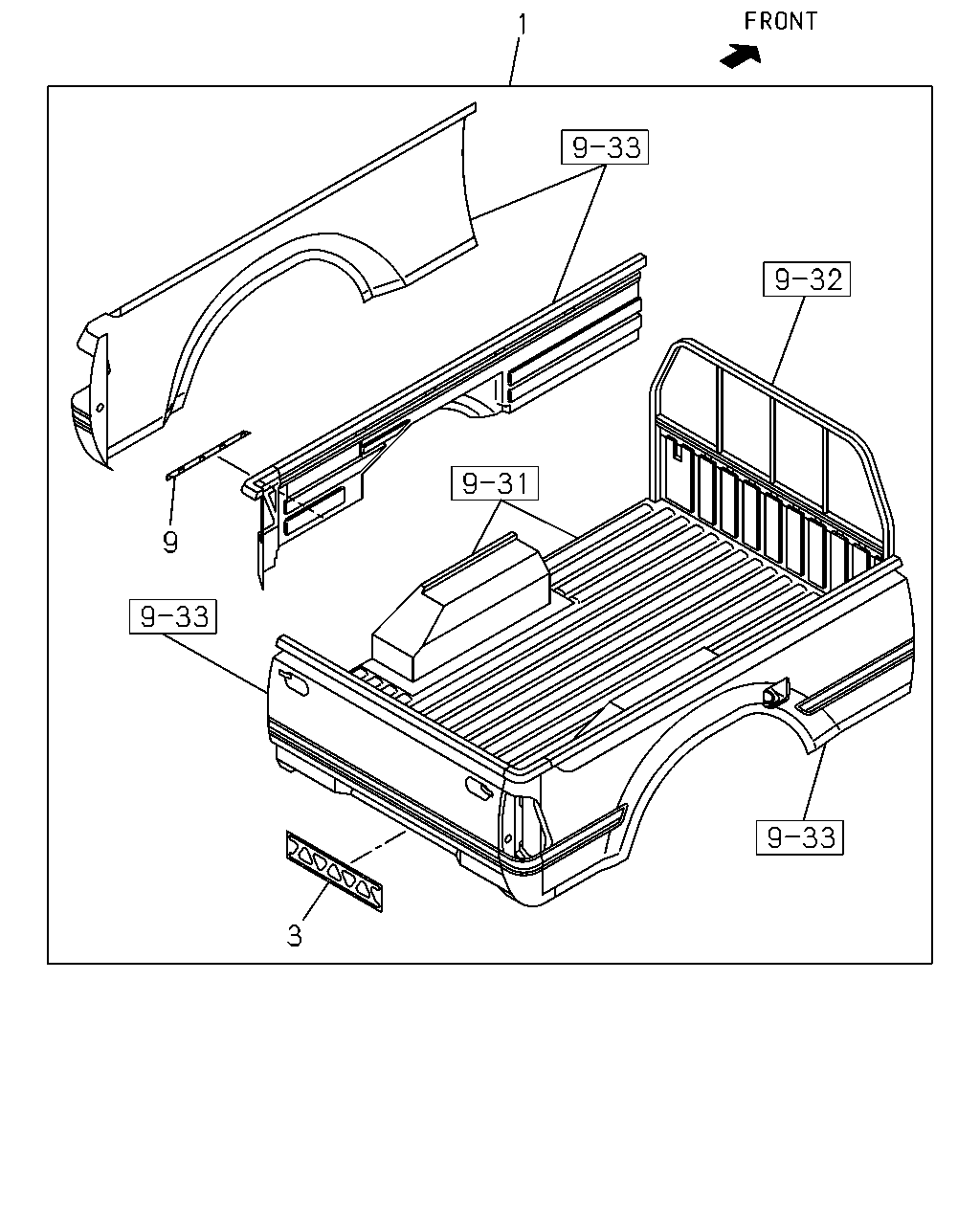

çizim 11627
1 9 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BODY ASM; REAR
THA 		8-97919-615-1 01 1 0009- ●
1 BODY ASM; REAR
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R> EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-615-1 01 1 0009- ●
1 BODY ASM; REAR
THA 		8-97915-232-1 01 1 0009- ●
1 BODY ASM; REAR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97919-613-1 01 1 0009- ●
1 BODY ASM; REAR
THA 		8-97921-344-0 01 1 0009- ● ●
1 BODY ASM; REAR
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R> SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-616-1 01 1 0009- ●
1 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME <7HJ> THA 		8-97919-614-1 01 1 0009- ●
3 BRACKET; LICENSE PLATE LAMP
THA 		8-97911-789-0 01 1 0009- ● ● ● ●
3 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA 		8-97911-789-0 01 1 0009- ● ●
9 COVER; MUD,FLOOR SIDE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97911-850-0 02 1 0009- ●
9 COVER; MUD,FLOOR SIDE,RR BODY
THA 		8-97940-532-0 02 1 0009- ● ●
çizim 48775
13 12 11 11 11 16 15 16 15 68 13 13 11 11 16 15 16 15

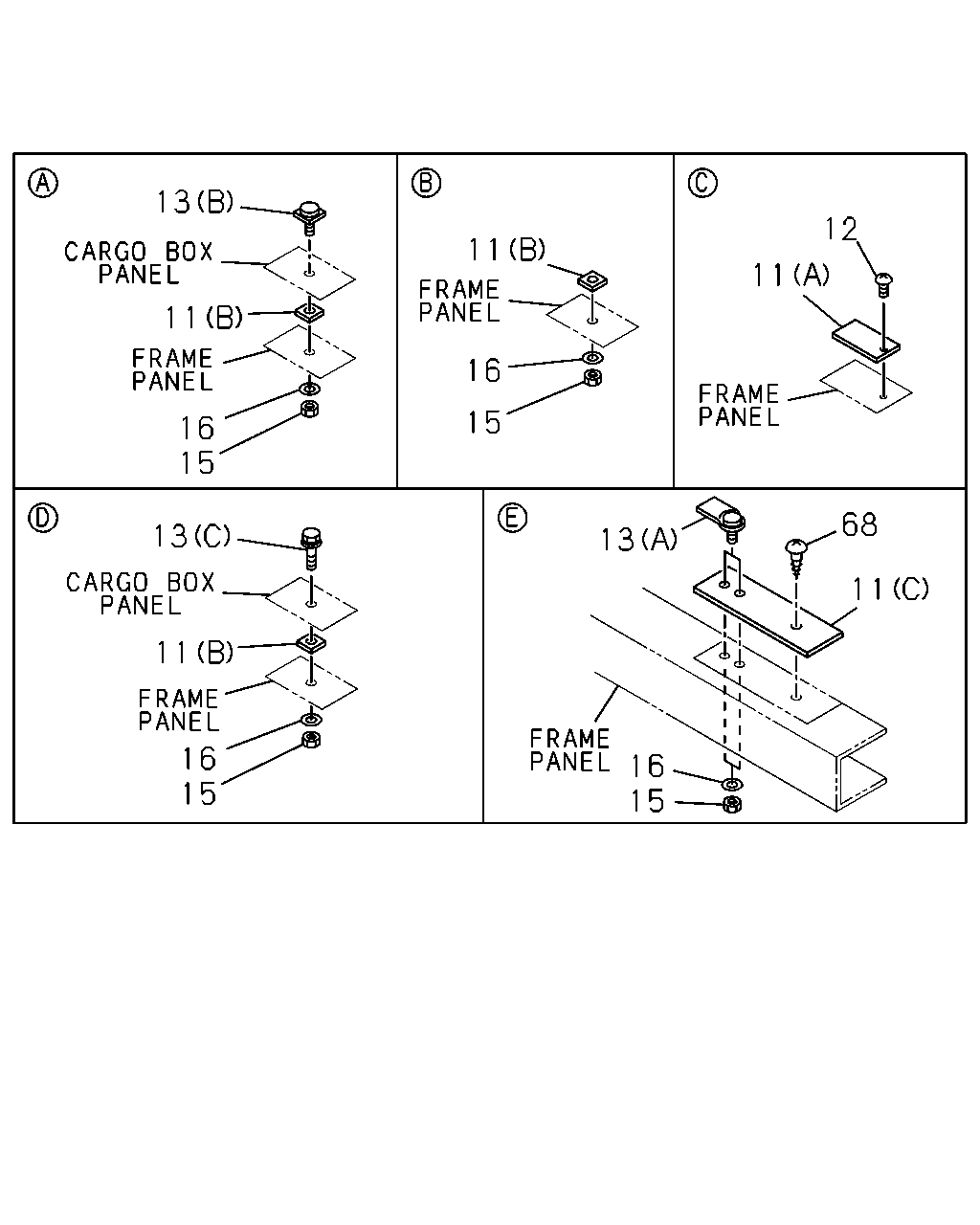

BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 GASKET; RR BODY MTG
(A) THA 		8-97911-050-0 04 1 0009- ●
11 GASKET; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (A) THA 		8-97911-050-0 04 1 0009- ● ●
11 GASKET; RR BODY MTG
(C) THA 		8-97911-051-0 02 1 0009- ● ● ● ●
11 GASKET; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (C) THA 		8-97911-051-0 02 1 0009- ● ●
11 GASKET; RR BODY MTG
(A) THA 		8-97911-050-0 02 1 0009- ● ● ●
11 GASKET; RR BODY MTG
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97911-049-0 08 1 0009- ●
11 GASKET; RR BODY MTG
(B) THA 		8-97911-049-0 04 1 0009- ● ●
12 SCREW; RR BODY MTG GASKET
M6X20 THA 		8-97912-086-0 04 1 0009- ● ●
12 SCREW; RR BODY MTG GASKET
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X20 THA 		8-97912-086-0 04 1 0009- ●
12 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> M6X20 THA 		8-97912-086-0 04 1 0009- ●
12 SCREW; RR BODY MTG GASKET
M6X20 THA 		8-97912-086-0 02 1 0009- ● ●
13 BOLT; RR BODY MTG
(C) M12X40 W/PL WASHER THA 		8-97169-423-0 02 1 0009- ● ● ● ●
13 BOLT; RR BODY MTG
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) M12X40 W/PL WASHER THA 		8-97169-423-0 02 1 0009- ●
13 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (C) M12X40 W/PL WASHER THA 		8-97169-423-0 02 1 0009- ●
13 BOLT; RR BODY MTG
(A) M12X32 THA 		8-97911-044-1 04 1 0009- ● ● ● ●
13 BOLT; RR BODY MTG
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M12X32 THA 		8-97911-044-1 04 1 0009- ●
13 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> (A) M12X32 THA 		8-97911-044-1 04 1 0009- ●
13 BOLT; RR BODY MTG
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M12X40 THA 		8-97911-220-0 04 1 0009- ●
15 NUT; RR BODY MTG
M12 THA 		8-97911-048-0 08 1 0009- ● ● ●
15 NUT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> M12 THA 		8-97911-048-0 08 1 0009- ●
15 NUT; RR BODY MTG
M12 THA 		8-97911-048-0 10 1 0009- ●
15 NUT; RR BODY MTG
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M12 THA 		8-97911-048-0 12 1 0009- ●
16 WASHER; FRAME END,RR BODY
ID=12.5 THA 		8-97911-046-0 08 1 0009- ● ● ●
16 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> ID=12.5 THA 		8-97911-046-0 08 1 0009- ●
16 WASHER; FRAME END,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> ID=12.5 THA 		8-97911-046-0 12 1 0009- ●
68 SCREW; SIDE MEMBER
M6X16 TAPPING 		9-07067-616-0 02 1 0009- ● ● ● ●
68 SCREW; SIDE MEMBER
RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>,RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> M6X16 TAPPING 		9-07067-616-0 02 1 0009- ● ●
