9-01 — TOOLS (#17194) — 25 parça

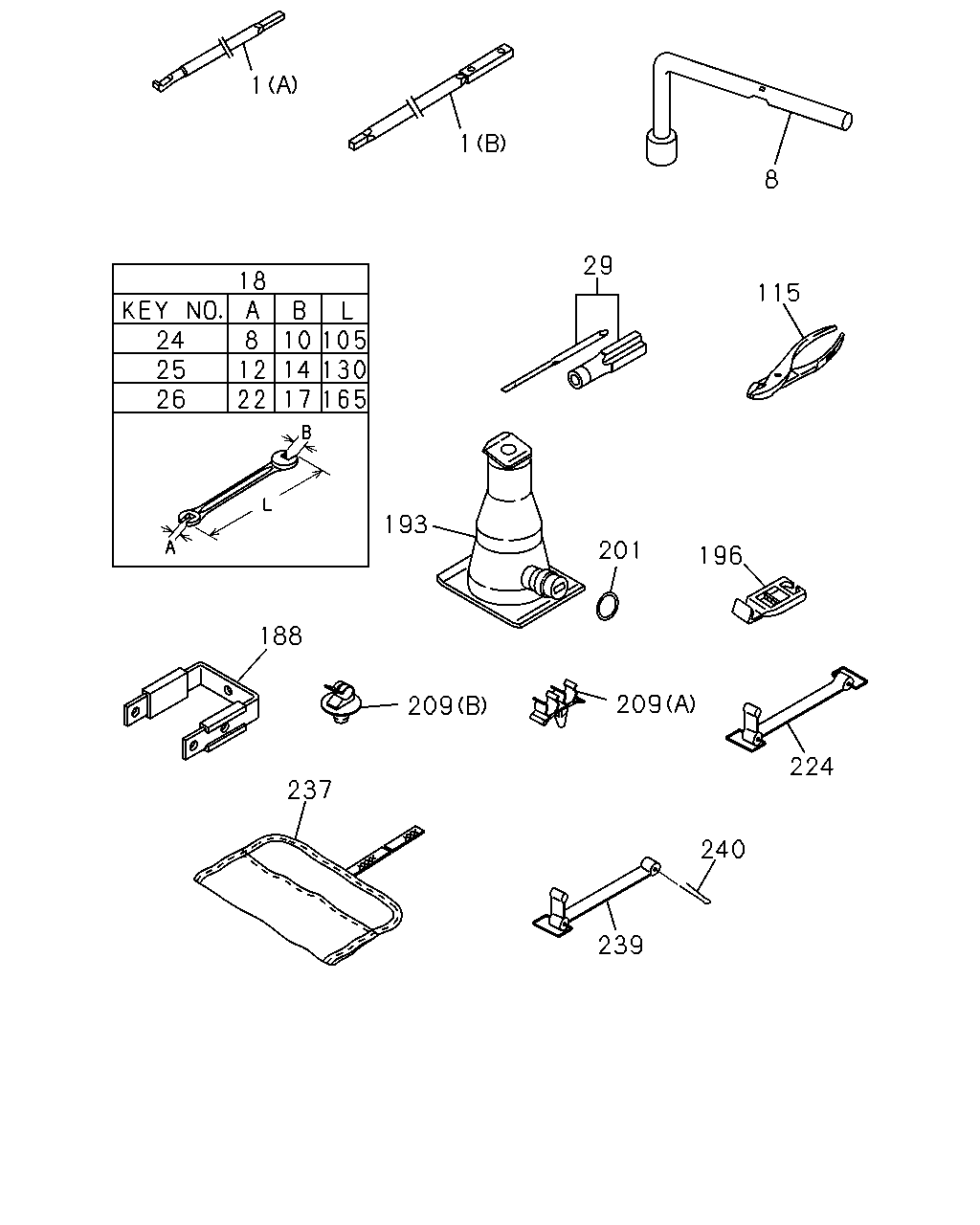

1 1 8 29 18 115 24 25 26 193 201 196 188 209 209 224 237 240 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	HANDLE; SPARE TIRE CARRIER (A) THA	8-97911-398-0	01	1	0009-	●	●	●	●	●	●	●
1	HANDLE; SPARE TIRE CARRIER (B) THA	8-97911-400-0	01	1	0009-	●	●	●	●	●	●	●
1	HANDLE; SPARE TIRE CARRIER (A) THA	8-97911-399-0	01	1	0009-								●
8	WRENCH; WHEEL MIC THA	8-97911-402-0	01	1	0009-	●	●	●	●	●	●	●	●
8	WRENCH; WHEEL SPC THA	8-97911-403-0	01	1	0009-	●	●	●	●	●	●	●	●
18	WRENCH KIT THA	8-97914-665-0	01	1	0009-	●	●	●	●	●	●	●	●
24	WRENCH; 8X10 THA	8-97911-406-0	01	1	0009-	●	●	●	●	●	●	●	●
25	WRENCH; 12X14 THA	8-97911-405-0	01	1	0009-	●	●	●	●	●	●	●	●
26	WRENCH; 22X17 MIC THA	8-97911-404-0	01	1	0009-	●	●	●	●	●	●	●	●
26	WRENCH; 22X17 SPC THA	8-97912-243-0	01	1	0009-	●	●	●	●	●	●	●	●
29	DRIVER; SCREW MIC THA	8-97911-407-0	01	1	0009-	●	●	●	●	●	●	●	●
29	DRIVER; SCREW SPC THA	8-97911-408-0	01	1	0009-	●	●	●	●	●	●	●	●
115	PLIER MIC THA	8-97911-409-0	01	1	0009-	●	●	●	●	●	●	●	●
115	PLIER SPC THA	8-97911-410-0	01	1	0009-	●	●	●	●	●	●	●	●
188	EXTRACTOR; WHEEL CAP THA	8-97912-241-0	01	1	0009-	●	●	●	●	●	●	●	●
193	JACK ASM THA	8-97911-396-0	01	1	0009-	●	●	●	●				●
193	JACK ASM THA	8-97911-397-0	01	1	0009-					●	●	●
196	BAND; JACK THA	8-97915-241-0	01	1	0009-		●	●			●		●
201	GASKET; JACK	9-09561-324-0	01	1	0009-	●			●	●		●
209	CLIP; JACK HANDLE (A) THA	8-97917-412-0	02	1	0009-	●	●	●	●	●	●	●
209	CLIP; JACK HANDLE (B) THA	8-97915-242-0	02	1	0009-								●
224	BAND; RUBBER,JACK THA	8-97918-176-0	01	1	0009-	●			●	●		●
237	BAG; TOOL THA	8-97911-401-0	01	1	0009-	●	●	●	●	●	●	●	●
239	BAND; TOOL BAG THA	8-97918-177-0	01	1	0009-	●				●
240	PIN; SPLIT,TOOL BAG BAND THA	8-97917-230-1	01	1	0009-	●				●
