8-90 — RADIO AND TV (#17193) — 96 parça

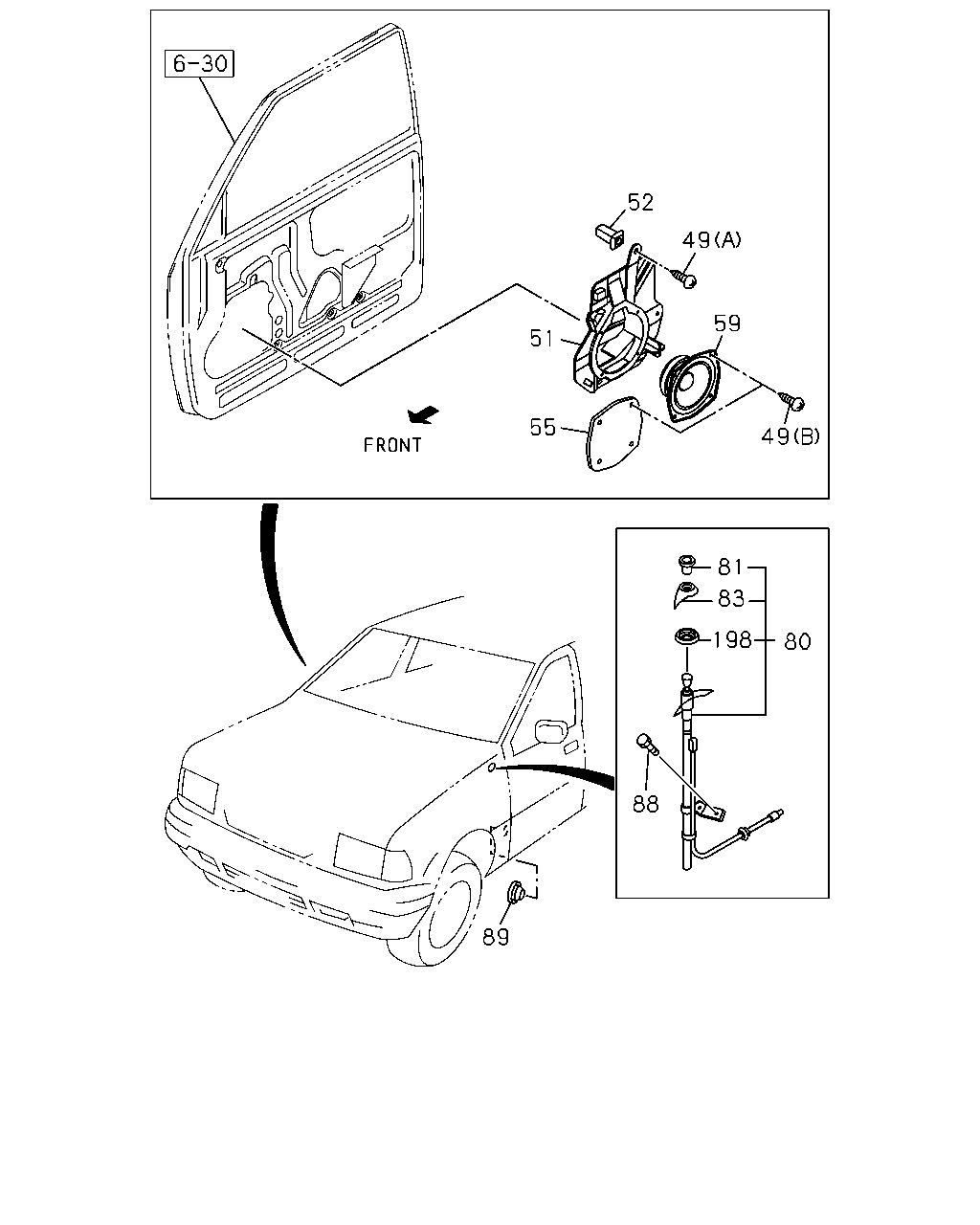

52 49 59 51 55 49 81 83 198 80 88 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
49	SCREW; SPEAKER RADIO W/CASSETTE 4 SPEAKERS<7SE> (C) THA	8-97917-856-0	06	1	0009-	●
49	SCREW; SPEAKER SPEAKER & ANTENNA<8DW> (C) THA	8-97917-856-0	06	1	0009-		●
49	SCREW; SPEAKER (A) M5X16 THA	8-94279-312-0	06	1	0009-	●	●	●	●	●	●	●	●
49	SCREW; SPEAKER (B) M5X16 TAPPING	9-09829-323-1	08	1	0009-	●	●			●	●		●
49	SCREW; SPEAKER (B) M5X16 TAPPING	9-09829-323-1	08	1	0009-						●		●
51	SPACER; SPEAKER THA	8-97911-385-2	01	1	0009-	●	●	●	●	●	●	●	●
51	SPACER; SPEAKER THA	8-97911-386-2	01	1	0009-	●	●	●	●	●	●	●	●
52	GROMMET; SCREW,SPEAKER D=7.8X7.8 L=18 NATURAL	8-94279-043-0	06	1	0009-	●	●	●	●	●	●	●	●
55	COVER; SPEAKER HOLE EXC. AM/FM W/CASSETTE 4 SPEAKERS<UM6>,AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND>	8-94372-840-0	02	1	0009-	●				●	●		●
55	COVER; SPEAKER HOLE EXC. AM/FM W/CASSETTE 4 SPEAKERS<UM6>,PRE WIRING & 2 SPEAKER<7MV>,AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND>	8-94372-840-0	02	1	0009-		●				●		●
59	SPEAKER; AUDIO RADIO W/CASSETTE 4 SPEAKERS<7SE> EXC. SPECIAL PACKAGE VAR 2<7SB> REAR THA	8-97921-597-0	02	1	0009-	●
59	SPEAKER; AUDIO SPEAKER & ANTENNA<8DW> REAR THA	8-97921-597-0	02	1	0009-		●
59	SPEAKER; AUDIO AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> SPECIAL PACKAGE VAR 2<7SB> FRONT THA	8-97912-810-1	02	1	0009-	●
59	SPEAKER; AUDIO AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR 2<7SB> FRONT THA	8-97910-364-1	02	1	0009-0110	●
59	SPEAKER; AUDIO SPECIAL PACKAGE<7BB> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> RADIO W/CASSETTE 4 SPEAKERS<7SE> FRONT THA	8-97910-364-1	02	1	0009-0110	●
59	SPEAKER; AUDIO COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> FRONT THA	8-97910-364-1	02	1	0009-0110					●
59	SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS<UM6> FRONT THA	8-97910-364-1	02	1	0009-0110						●		●
59	SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS<UM6> FRONT THA	8-97910-364-1	02	1	0009-0110						●		●
59	SPEAKER; AUDIO AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> FRONT THA	8-97910-364-1	02	1	0009-0110		●
59	SPEAKER; AUDIO SPEAKER & ANTENNA<8DW> FRONT THA	8-97910-364-1	02	1	0009-0110		●
59	SPEAKER; AUDIO AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR 2<7SB> THA	8-97922-257-0	02	1	0111-	●
59	SPEAKER; AUDIO SPECIAL PACKAGE<7BB> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> RADIO W/CASSETTE 4 SPEAKERS<7SE> THA	8-97922-257-0	02	1	0111-	●
59	SPEAKER; AUDIO COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> THA	8-97922-257-0	02	1	0111-					●
59	SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS<UM6> THA	8-97922-257-0	02	1	0111-						●		●
59	SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS<UM6> THA	8-97922-257-0	02	1	0111-						●		●
59	SPEAKER; AUDIO AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> THA	8-97922-257-0	02	1	0111-		●
59	SPEAKER; AUDIO SPEAKER & ANTENNA<8DW> THA	8-97922-257-0	02	1	0111-		●
59	SPEAKER; AUDIO SPECIAL PACKAGE VAR 2<7SB> RADIO W/CASSETTE 4 SPEAKERS<7SE> REAR THA	8-97914-286-0	02	1	0009-	●
80	ANTENNA ANTENNA<U73> THA	8-97912-436-1	01	1	0009-	●	●				●		●
80	ANTENNA ANTENNA<U73> THA	8-97912-436-1	01	1	0009-	●	●
80	ANTENNA COOLER WO/HEATER<YL1> ANTENNA<U73> THA	8-97912-436-1	01	1	0009-					●
80	ANTENNA COOLER WO/HEATER<YL1> ANTENNA<U73> THA	8-97912-436-1	01	1	0009-					●
81	NUT; ANTENNA POLE ANTENNA<U73> THA	8-97914-359-0	01	1	0009-	●	●				●		●
81	NUT; ANTENNA POLE ANTENNA<U73> THA	8-97914-359-0	01	1	0009-	●	●
81	NUT; ANTENNA POLE COOLER WO/HEATER<YL1> ANTENNA<U73> THA	8-97914-359-0	01	1	0009-					●
81	NUT; ANTENNA POLE COOLER WO/HEATER<YL1> ANTENNA<U73> THA	8-97914-359-0	01	1	0009-					●
83	GROMMET; BASE,ANTENNA POLE INNER ANTENNA<U73> THA	8-97914-360-0	01	1	0009-	●	●				●		●
83	GROMMET; BASE,ANTENNA POLE INNER ANTENNA<U73> THA	8-97914-360-0	01	1	0009-	●	●
83	GROMMET; BASE,ANTENNA POLE INNER COOLER WO/HEATER<YL1> ANTENNA<U73> THA	8-97914-360-0	01	1	0009-					●
83	GROMMET; BASE,ANTENNA POLE INNER COOLER WO/HEATER<YL1> ANTENNA<U73> THA	8-97914-360-0	01	1	0009-					●
88	BOLT; ANTENNA EARTH ANTENNA<U73> M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0009-	●	●	●	●	●	●	●	●
89	GROMMET; FEEDER CABLE EXC. ANTENNA<U73>	8-94111-420-0	01	1	0009-	●	●	●	●	●	●	●	●
198	SHEET; ANTENNA ANTENNA<U73> THA	8-97914-361-0	01	1	0009-	●	●				●		●
198	SHEET; ANTENNA ANTENNA<U73> THA	8-97914-361-0	01	1	0009-	●	●
198	SHEET; ANTENNA COOLER WO/HEATER<YL1> ANTENNA<U73> THA	8-97914-361-0	01	1	0009-					●
198	SHEET; ANTENNA COOLER WO/HEATER<YL1> ANTENNA<U73> THA	8-97914-361-0	01	1	0009-					●

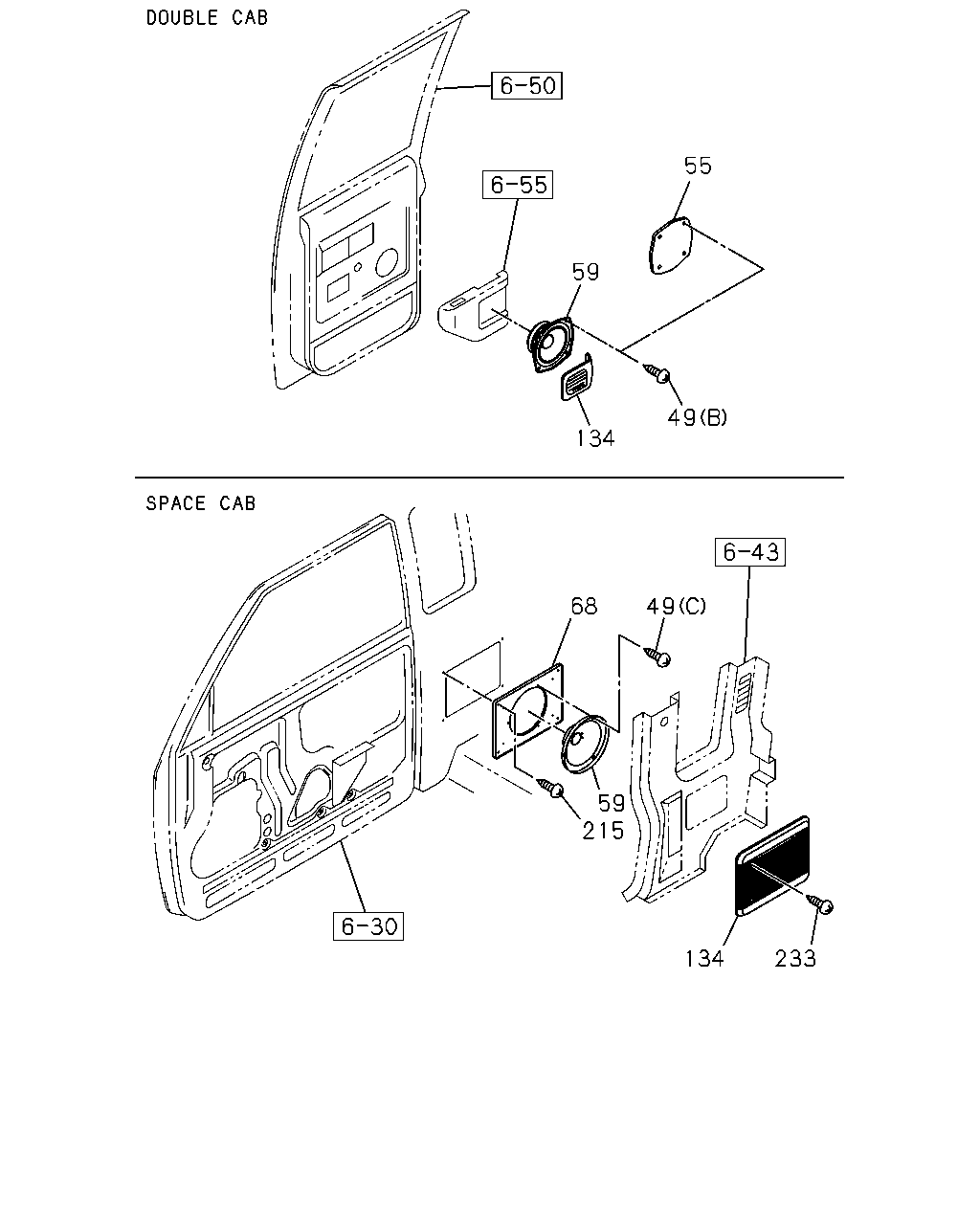

55 59 49 134 68 49 59 215 134 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
49	SCREW; SPEAKER RADIO W/CASSETTE 4 SPEAKERS<7SE> (C) THA	8-97917-856-0	06	1	0009-	●
49	SCREW; SPEAKER SPEAKER & ANTENNA<8DW> (C) THA	8-97917-856-0	06	1	0009-		●
49	SCREW; SPEAKER (A) M5X16 THA	8-94279-312-0	06	1	0009-	●	●	●	●	●	●	●	●
49	SCREW; SPEAKER (B) M5X16 TAPPING	9-09829-323-1	08	1	0009-	●	●			●	●		●
49	SCREW; SPEAKER (B) M5X16 TAPPING	9-09829-323-1	08	1	0009-						●		●
55	COVER; SPEAKER HOLE EXC. AM/FM W/CASSETTE 4 SPEAKERS<UM6>,AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND>	8-94372-840-0	02	1	0009-	●				●	●		●
55	COVER; SPEAKER HOLE EXC. AM/FM W/CASSETTE 4 SPEAKERS<UM6>,PRE WIRING & 2 SPEAKER<7MV>,AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND>	8-94372-840-0	02	1	0009-		●				●		●
59	SPEAKER; AUDIO RADIO W/CASSETTE 4 SPEAKERS<7SE> EXC. SPECIAL PACKAGE VAR 2<7SB> REAR THA	8-97921-597-0	02	1	0009-	●
59	SPEAKER; AUDIO SPEAKER & ANTENNA<8DW> REAR THA	8-97921-597-0	02	1	0009-		●
59	SPEAKER; AUDIO AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> SPECIAL PACKAGE VAR 2<7SB> FRONT THA	8-97912-810-1	02	1	0009-	●
59	SPEAKER; AUDIO AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR 2<7SB> FRONT THA	8-97910-364-1	02	1	0009-0110	●
59	SPEAKER; AUDIO SPECIAL PACKAGE<7BB> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> RADIO W/CASSETTE 4 SPEAKERS<7SE> FRONT THA	8-97910-364-1	02	1	0009-0110	●
59	SPEAKER; AUDIO COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> FRONT THA	8-97910-364-1	02	1	0009-0110					●
59	SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS<UM6> FRONT THA	8-97910-364-1	02	1	0009-0110						●		●
59	SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS<UM6> FRONT THA	8-97910-364-1	02	1	0009-0110						●		●
59	SPEAKER; AUDIO AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> FRONT THA	8-97910-364-1	02	1	0009-0110		●
59	SPEAKER; AUDIO SPEAKER & ANTENNA<8DW> FRONT THA	8-97910-364-1	02	1	0009-0110		●
59	SPEAKER; AUDIO AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR 2<7SB> THA	8-97922-257-0	02	1	0111-	●
59	SPEAKER; AUDIO SPECIAL PACKAGE<7BB> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> RADIO W/CASSETTE 4 SPEAKERS<7SE> THA	8-97922-257-0	02	1	0111-	●
59	SPEAKER; AUDIO COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> THA	8-97922-257-0	02	1	0111-					●
59	SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS<UM6> THA	8-97922-257-0	02	1	0111-						●		●
59	SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS<UM6> THA	8-97922-257-0	02	1	0111-						●		●
59	SPEAKER; AUDIO AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> THA	8-97922-257-0	02	1	0111-		●
59	SPEAKER; AUDIO SPEAKER & ANTENNA<8DW> THA	8-97922-257-0	02	1	0111-		●
59	SPEAKER; AUDIO SPECIAL PACKAGE VAR 2<7SB> RADIO W/CASSETTE 4 SPEAKERS<7SE> REAR THA	8-97914-286-0	02	1	0009-	●
68	BRACKET; RR SPEAKER RADIO W/CASSETTE 4 SPEAKERS<7SE> THA	8-97915-533-2	02	1	0009-	●
68	BRACKET; RR SPEAKER SPEAKER & ANTENNA<8DW> THA	8-97915-533-2	02	1	0009-		●
134	GRILLE; SPEAKER,RR RADIO W/CASSETTE 4 SPEAKERS<7SE> THA	8-97915-481-2	02	1	0009-	●
134	GRILLE; SPEAKER,RR SPEAKER & ANTENNA<8DW> THA	8-97915-481-2	02	1	0009-		●
134	GRILLE; SPEAKER,RR GRAY	8-97154-679-2	01	1	0009-						●		●
134	GRILLE; SPEAKER,RR GRAY	8-97154-678-2	01	1	0009-						●		●
215	SCREW; BRKT,SPEAKER RADIO W/CASSETTE 4 SPEAKERS<7SE> THA	8-97917-858-0	08	1	0009-	●
215	SCREW; BRKT,SPEAKER SPEAKER & ANTENNA<8DW> THA	8-97917-858-0	08	1	0009-		●
233	SCREW RADIO W/CASSETTE 4 SPEAKERS<7SE> THA	8-97917-546-0	08	1	0009-	●
233	SCREW SPEAKER & ANTENNA<8DW> THA	8-97917-546-0	08	1	0009-		●

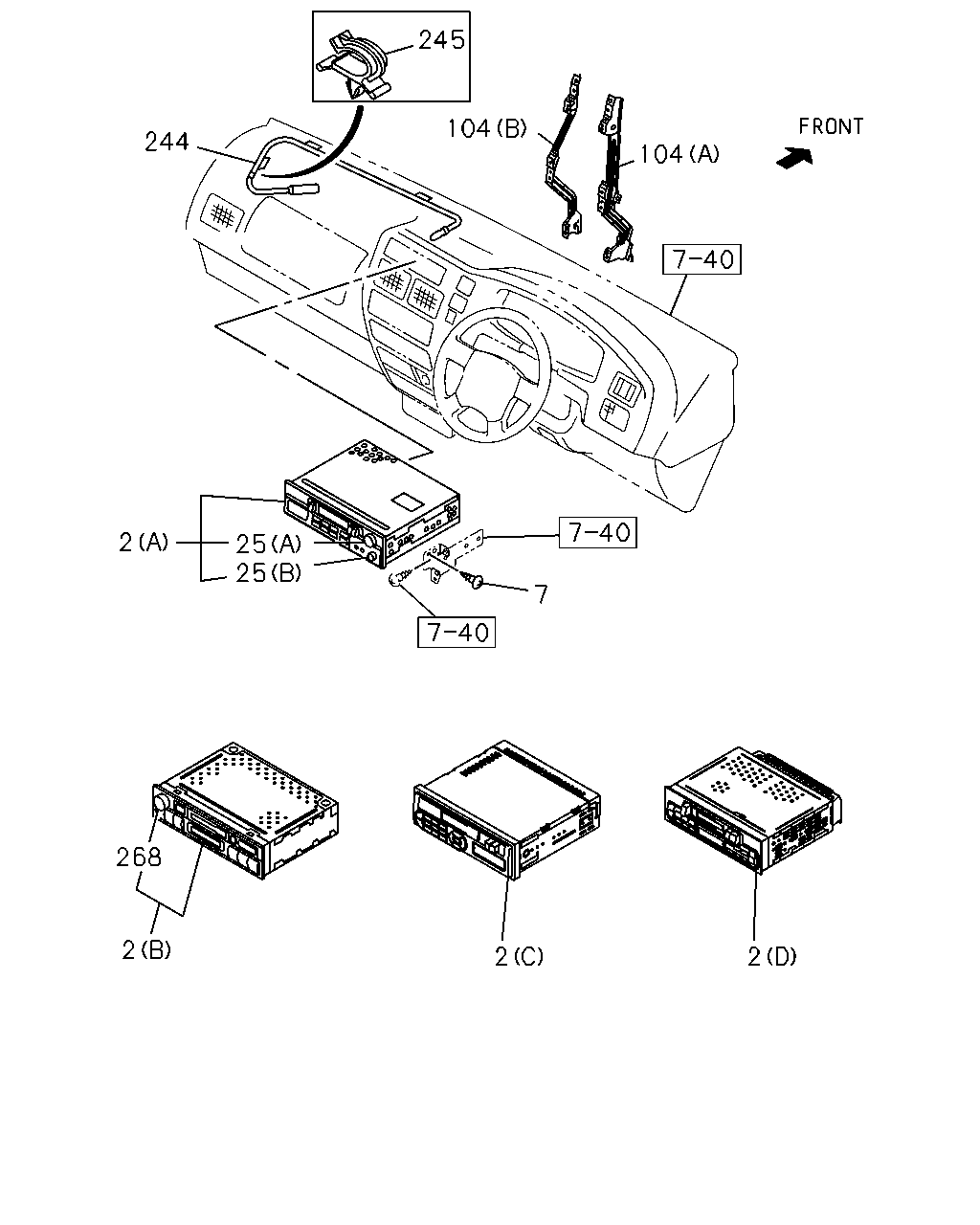

245 104 244 104 2 25 25 7 268 2 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> RADIO W/CASSETTE 4 SPEAKERS<7SE> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR 2<7SB> (D) THA	8-97914-444-0	01	1	0009-	●
2	RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> SPECIAL PACKAGE VAR 2<7SB> RADIO W/CASSETTE 4 SPEAKERS<7SE> EXC. SPECIAL PACKAGE<7BB> (C) THA	8-97914-284-1	01	1	0009-	●
2	RADIO & CASSETTE DECK ASM SPECIAL PACKAGE<7BB> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> RADIO W/CASSETTE 4 SPEAKERS<7SE> (B) THA	8-97921-002-2	01	1	0009-	●
2	RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SPEAKERS<UM6> (B) THA	8-97921-002-2	01	1	0009-						●		●
2	RADIO & CASSETTE DECK ASM COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> RADIO W/CASSETTE 2 SPEAKERS<7SD> (A) THA	8-97910-363-1	01	1	0009-					●
7	SCREW; RADIO AM/FM W/CASSETTE 4 SPEAKERS<UM6>,AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0009-	●	●			●	●		●
25	ATTACH KIT; CASSETTE DECK COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> RADIO W/CASSETTE 2 SPEAKERS<7SD> (A) THA	8-97914-326-0	01	1	0009-					●
25	ATTACH KIT; CASSETTE DECK COOLER WO/HEATER<YL1> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> RADIO W/CASSETTE 2 SPEAKERS<7SD> (B) THA	8-97914-438-0	01	1	0009-					●
104	BRACKET; AUDIO (A) THA	8-97910-982-0	01	1	0009-	●	●	●	●	●	●	●	●
104	BRACKET; AUDIO (B) THA	8-97910-983-0	01	1	0009-	●	●	●	●	●	●	●	●
244	CABLE; FEEDER ANTENNA<U73> THA	8-97913-524-1	01	1	0009-	●	●				●		●
244	CABLE; FEEDER ANTENNA<U73> COOLER WO/HEATER<YL1> THA	8-97913-524-1	01	1	0009-					●
245	CLIP; CABLE,FEEDER ANTENNA<U73> ID=7 THA	5-09707-053-0	01	1	0009-	●	●	●	●	●	●	●	●
268	KNOB; VOL SPECIAL PACKAGE<7BB> AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> RADIO W/CASSETTE 4 SPEAKERS<7SE> THA	8-97921-573-0	01	1	0009-	●
268	KNOB; VOL AM/FM W/CASSETTE 4 SPEAKERS<UM6> THA	8-97921-573-0	01	1	0009-						●		●
