Isuzu WW
▶
PICKUP
▶
TFR
▶
50890 - TFR/S(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

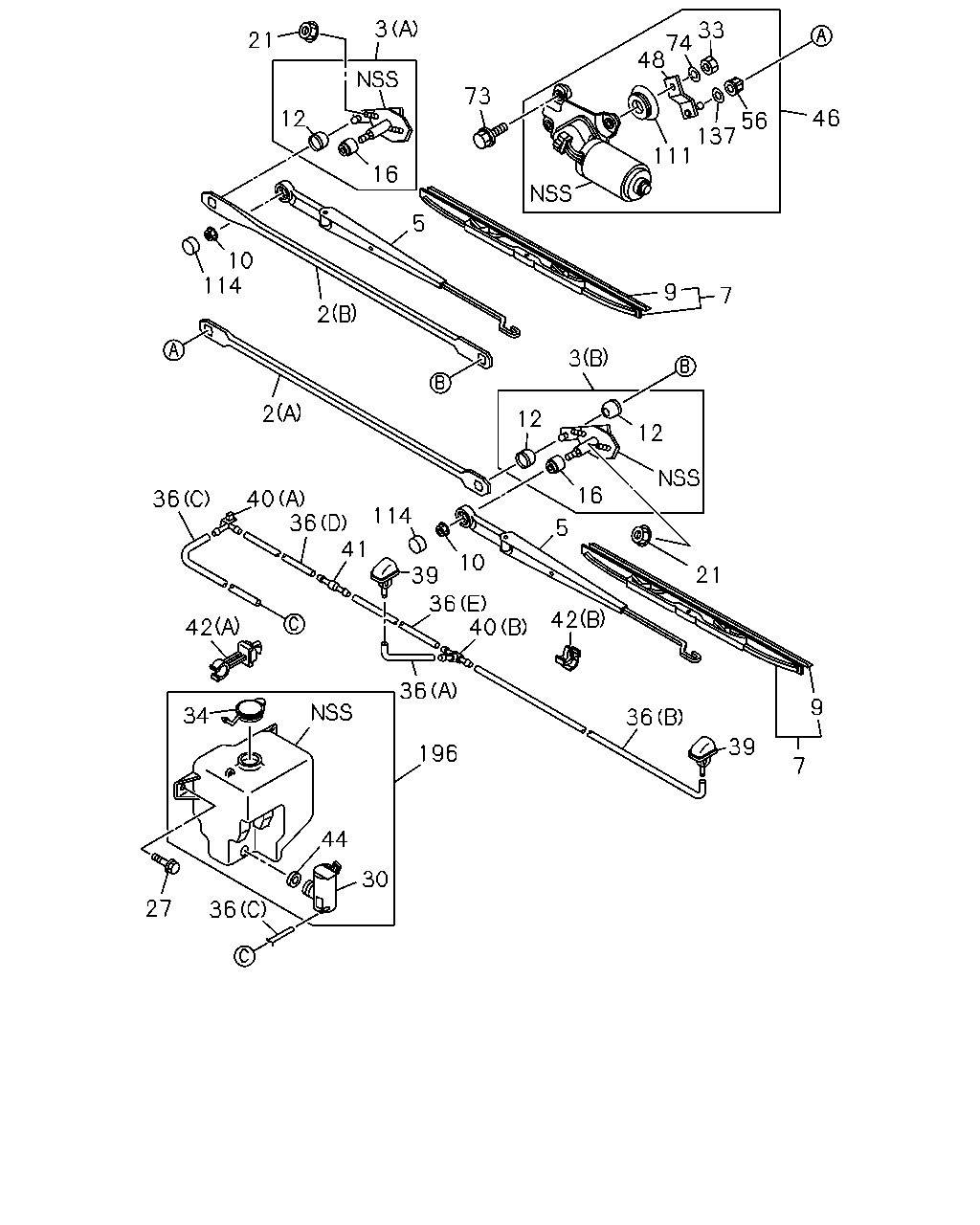

8-80 — WINDSHIELD WIPER AND WASHER
(#17192) — 37 parça
Tümü
A - TFB5CF
B - TFB5PF
C - TFB5QF
D - TFB5SF
E - TFB5WF
F - TFS5CF
G - TFS5PF
H - TFS5WF
3
33
74
48
56
137
111
21
73
46
12
16
5
10
114
9
7
2
3
2
12
12
16
5
40
114
36
41
36
10
39
36
40
21
42
42
36
9
34
36
39
196
7
44
30
27
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
2
LINK; FRT WIPER
(A)
8-97110-242-0
01
1
0009-
●
●
●
●
●
●
●
●
2
LINK; FRT WIPER
(B)
8-97110-243-0
01
1
0009-
●
●
●
●
●
●
●
●
3
PIVOT ASM; FRT WIPER
(B)
8-97110-240-0
01
1
0009-
●
●
●
●
●
●
●
●
3
PIVOT ASM; FRT WIPER
(A)
8-97110-241-0
01
1
0009-
●
●
●
●
●
●
●
●
5
ARM; WIPER
THA
8-97915-387-0
01
1
0009-
●
●
●
●
●
●
●
●
5
ARM; WIPER
THA
8-97915-388-0
01
1
0009-
●
●
●
●
●
●
●
●
7
BLADE; WIPER
THA
8-97915-389-0
02
1
0009-
●
●
●
●
●
●
●
●
9
RUBBER; FRT WIPER BLADE
THA
8-97915-820-0
02
1
0009-
●
●
●
●
●
●
●
●
10
NUT; WIPER ARM TO WIPER PIVOT
M8 FLANGE
9-09844-190-0
02
1
0009-
●
●
●
●
●
●
●
●
12
RETAINER; BALL JOINT,FRT WIPER LINK
THA
8-97025-889-0
03
1
0009-
●
●
●
●
●
●
●
●
16
SEAL; BALL JOINT
8-94319-016-0
02
1
0009-
●
●
●
●
●
●
●
●
21
NUT; WIPER LINK PIVOT
M6 W/DISHED WASHER
8-94423-325-0
04
1
0009-
●
●
●
●
●
●
●
●
27
BOLT; WASHER TANK
M6X20
8-94412-422-0
02
1
0009-
●
●
●
●
●
●
●
●
30
MOTOR ASM; FRT WASHER TANK
THA
8-97916-162-0
01
1
0009-
●
●
●
●
●
●
●
●
33
NUT; MOTOR TO ARM
THA
8-97913-365-0
01
1
0009-
●
●
●
●
●
●
●
●
34
CAP; WASHER TANK
THA
8-97914-487-0
01
1
0009-
●
●
●
●
●
●
●
●
36
HOSE; WASHER
(A) L=40 THA
8-97920-241-0
01
1
0009-
●
●
●
●
●
●
●
●
36
HOSE; WASHER
(B) L=520 THA
8-97920-242-0
01
1
0009-
●
●
●
●
●
●
●
●
36
HOSE; WASHER
(E) L=140 THA
8-97920-243-0
01
1
0009-
●
●
●
●
●
●
●
●
36
HOSE; WASHER
(D) L=210 THA
8-97920-244-1
01
1
0009-
●
●
●
●
●
●
●
●
36
HOSE; WASHER
(C) L=1340 SERVICED BY L=10000 THA
8-94153-780-0
01
1
0009-
●
●
●
●
●
●
●
●
39
NOZZLE; WINDSHIELD WASHER
THA
8-97912-332-0
02
1
0009-
●
●
●
●
●
●
●
●
40
JOINT; WASHER HOSE
(A) THA
8-97916-125-0
01
1
0009-
●
●
●
●
●
●
●
●
40
JOINT; WASHER HOSE
(B) THA
8-97920-240-0
01
1
0009-
●
●
●
●
●
●
●
●
41
VALVE; CHECK,WASHER TANK
THA
8-97920-239-0
01
1
0009-
●
●
●
●
●
●
●
●
42
CLIP; WASHER HOSE
(A) L=46
8-94154-654-1
01
1
0009-
●
●
●
●
●
●
●
●
42
CLIP; WASHER HOSE
(B) ID=5.8 L=8
8-94155-681-0
03
1
0009-
●
●
●
●
●
●
●
●
44
GASKET; MOTOR TO TANK
THA
8-97914-485-0
01
1
0009-
●
●
●
●
●
●
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
THA
8-97913-886-1
01
1
0009-
●
●
●
●
●
●
●
●
48
ARM; WIPER MOTOR
THA
8-97913-363-0
01
1
0009-
●
●
●
●
●
●
●
●
56
JOINT; OUTER,WIPER MOTOR
8-94323-719-0
01
1
0009-
●
●
●
●
●
●
●
●
73
BOLT
M6X25 W/LK&PL WASHER THA
8-94416-136-0
04
1
0009-
●
●
●
●
●
●
●
●
74
WASHER; ARM TO MOTOR
THA
8-97913-366-0
01
1
0009-
●
●
●
●
●
●
●
●
111
SEAL; FRT WIPER MOTOR TO BRKT
THA
8-97913-362-0
01
1
0009-
●
●
●
●
●
●
●
●
114
COVER; FRT WIPER ARM
THA
8-97916-248-0
02
1
0009-
●
●
●
●
●
●
●
●
137
SEAL; JOINT,WIPER MOTOR
THA
8-97913-367-0
01
1
0009-
●
●
●
●
●
●
●
●
196
TANK; WASHER
THA
8-97919-134-1
01
1
0009-
●
●
●
●
●
●
●
●
